Carli's most popular system, The pintop kit boasts Remote Reservoir King 2. 5 inch shocks.
Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.
Features and Benefits:
- The Carli Pintop is a Jack-of-all-trades system that delivers a sedate yet confident on-road ride with all the harsh edges rounded and smoothed while making light- to medium-duty off-road escapades completely controlled and uneventful. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

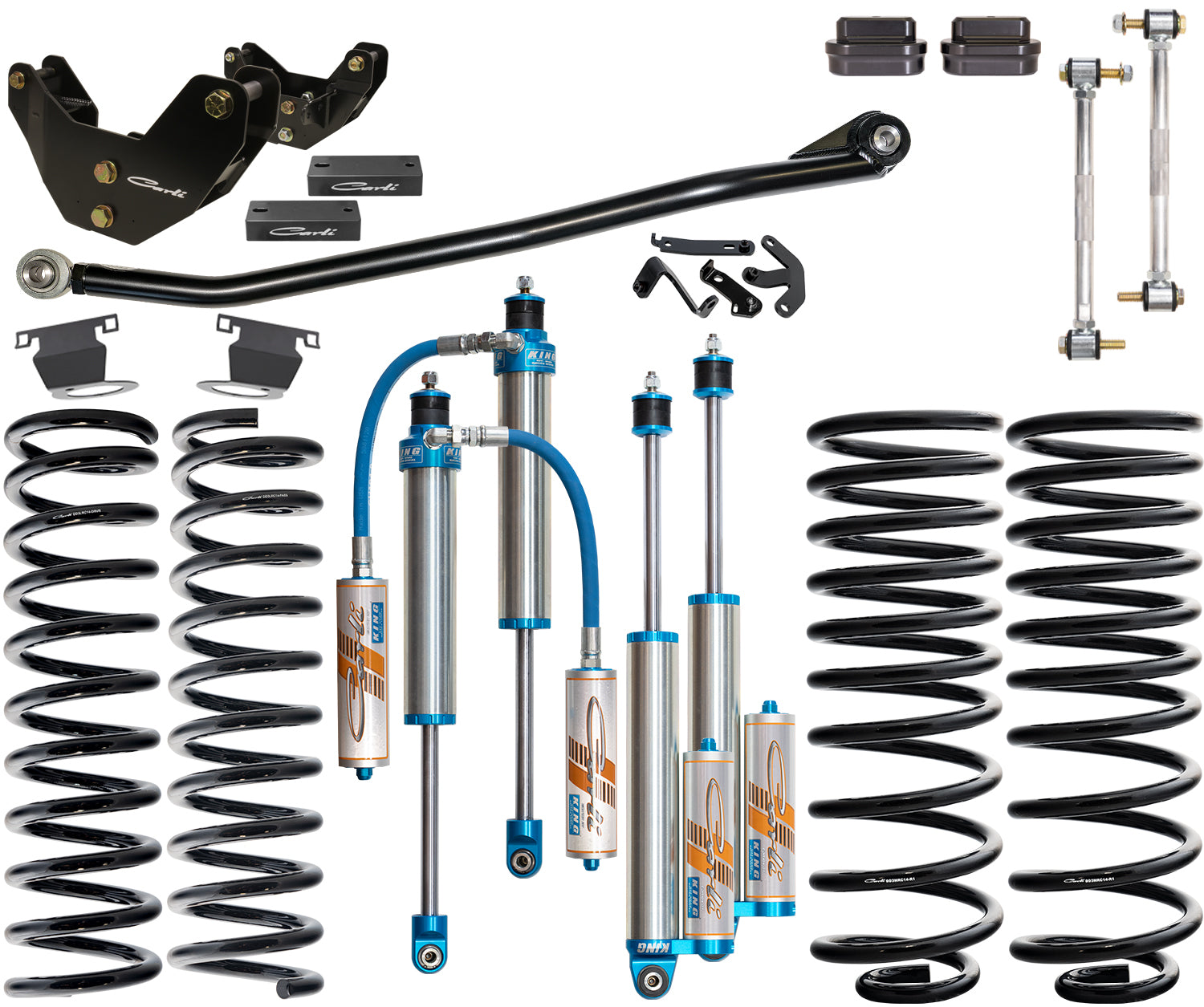

- System includes multi rate front and rear coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links and rear track bar drop.
- Increases wheel travel to 9.3 inch front and 11 inch rear.
- Allows for fitment of 37 inch tires.
- Required: this system requires but Does Not Include Carli front sway bar option and rear track bar option.
- Further improve performance by adding Carli torsion sway bar, fabricated radius arms, steering stabilizers, or ball joints.
Details:
- Drive: 4WD
- Fuel Type: Diesel
- Lift Height: 3.25 inch
- Location: Rear
- Warranty: Limited Lifetime Warranty
Fitment:2014-2026 RAM 2500 (Fuel: Diesel and Front Spring: Coil and Rear Spring: Coil and Wheel Base: 169.4 and Drive: 4WD)
