The Carli 2. 5 inch Pintop Leveling System is designed for the customer who refuses to keep the rubber on the tarmac and has an eye for quality and appreciation for bang-for-their-buck.
Nothing else is needed to run this system.
Features and Benefits:
- Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter (2.5 inch) shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55 percent more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust 3-4-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

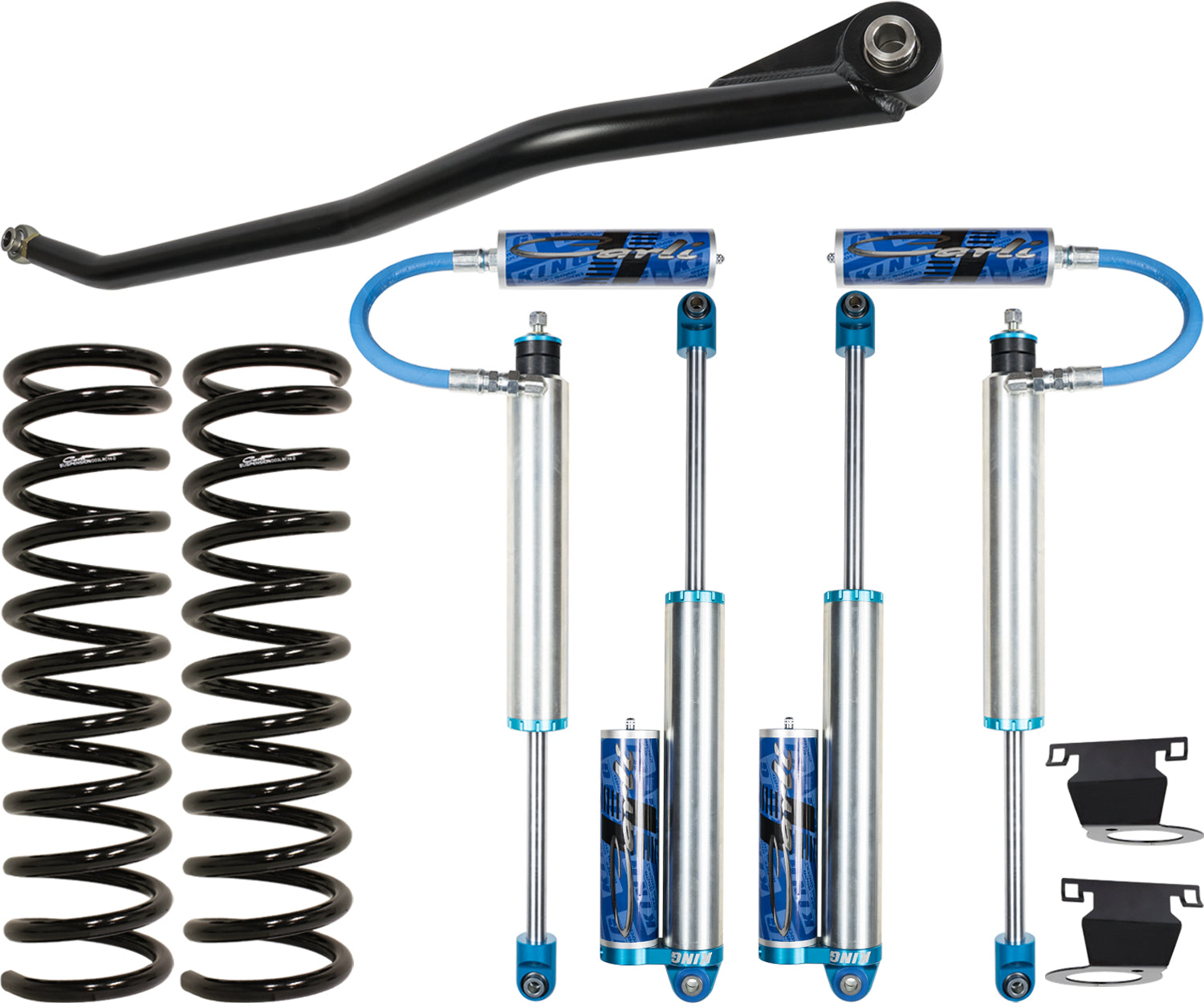

- System includes Multi-rate front coil springs, front and rear shock package, and adjustable track bar.
- Experience smooth and controlled rides with Carli Tuned King 2.5 Remote Reservoir Shocks equipped with Stainless Steel shafts for maximum durability.
- Increases wheel travel to 9.5 inch front and 11 inch rear.
Details:
- Drive: 4WD
- Fitment Notes: without air assist 2013 - 18 3500 SRW / DRW 2019 - 23 3500 DRW
- Fuel Type: Diesel
- Lift Height: 2.5 inch
- Material: Stainless Steel
- Warranty: Limited Lifetime Warranty
Fitment:2013-2023 RAM 3500 (Fuel: Diesel and Front Spring: Coil and Rear Spring: Leaf and Drive: 4WD / Note: without air assist 2013-18 3500 SRW / DRW 2019-23 3500 DRW )
