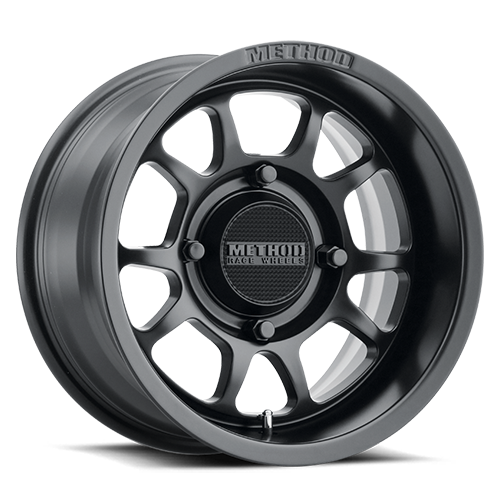

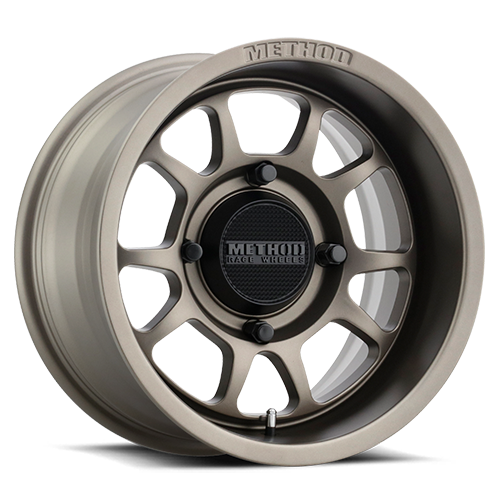

The 409 Bead Grip UTV wheel brings the styling of the 313 Standard Series wheel to the UTV Bead Grip lineup. It was also the first wheel in the UTV Series lineup to integrate the Method Bead Grip technology.
The South Racing and Monster Energy Can-Am teams utilized the 409 wheels for the 43rd edition of Dakar. The brutal 12 stage rally is a testament to the performance of this Bead Grip equipped wheel and why we say Dakar Proven!
Details:
Patented Bead Grip technology engages tire bead for increased grip at low tire pressures
Solid A356 aluminum with T6 heat treatment construction
Debossed METHOD logo on outer lip
Aggressive safety hump on bead seats further prevents de-beading
Reinforced inner lip taken from MRW race wheel increases strength
Snap-in center cap with embossed METHOD Bead Grip logo
Super strong 1600 lbs. load rating
- Wheel Size: 14x7
- Model: MR409 Bead Grip UTVMB
- Color: Matte Black
- Offset: 38
- Bolt Pattern: 4 On 156
- Bolt Circle 1: 156
- Bore: 132
- Lip Size: 1.3
- Wheel Diameter: 14
- Width: 7
- Weight: 14.4
- Load Rating: 1600
- BSM: 5.5
- Material: A356 Aluminum
- Structure: 1-Piece
- Lug Type: Spline
- Exposed Lugs: Yes
- Lug Count: 4
- Replacement Cap: CP-T080K123
- Segment: Off-Road, UTV/ATV/Golf
- Warranty: Lifetime Structural Warranty
- Sold As: Each
