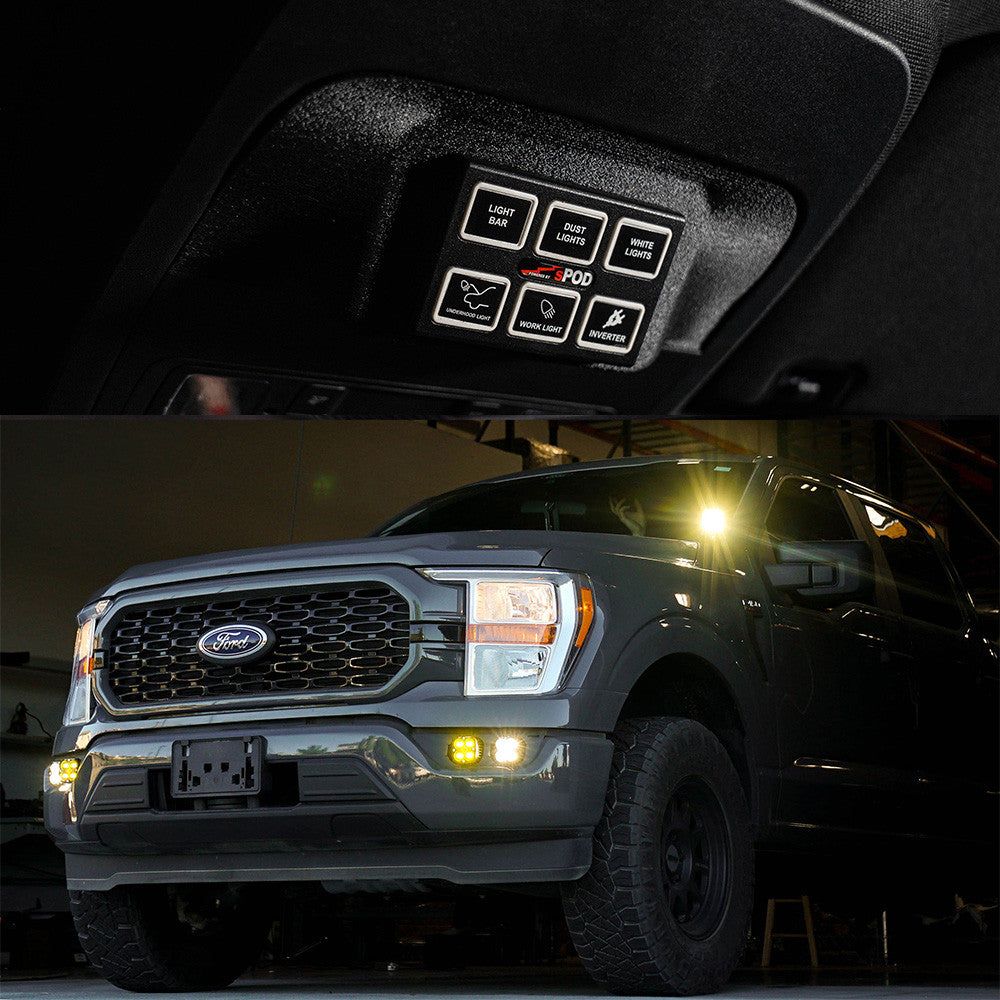

sPOD SourceLT Mini6 vehicle-specific kit for Ford F-150 (21-on) and Ford F-150 Raptor (21-on) has been designed specifically to integrate the sPOD Mini6 panel into your cabin seamlessly while providing a safe place to access all your controls. Designed to replace the in-cab sunglass holder, our plate has been specifically designed at the perfect angle to access switches easily.
The SourceLT will save hours of wiring and installation time! It is a small, solid-state 6-circuit control system that provides a clean (one cable into the cab!) and safe way to power and control 12VDC accessories. Due to the small footprint of the SourceLT, the placement options are endless!
No cutting, fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.
- 6 circuits rated at 30 amps at 12.5 VDC per circuit
- 12-position terminal block (easily attach accessories)
- Controller cable (10 foot) for simple plug-n-play connectivity to the switch controller
- Integrated low voltage cutoff (LVCO) battery protection w/ optional override
- Self-healing fault protection circuits (from 1.5 to 30amps)
- Current-sensing MOSFETs are controlled by a microprocessor (no fuses and no relays)
- 100amp in-line fuse
- Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket
- Operates on 12VDC
- Built-in Bluetooth capabilities for remote control
- Protection against: overheating, over-current, shorts, reverse polarity, and field collapse
- On-demand wireless software updates/upgrades
Hardware:
- Powder-coated steel base w/built-in hardware
- Silicone gasket for weatherproofing
- Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for placement of supplied legends
- Universal and vehicle specific mounting options
- Robust insulated base and cover
Mini6 Control Panel:
- Panel Dimensions: 2.062 inch W x 3.260 inch L x .375 inch D
- Programmable modes: momentary / latch and backlight brightness level
- Visual feedback circuit ON indicator light for each button
- Includes one sheet of 72 standard legends
- Power-saving Deep Sleep Mode: Deactivates after 6 hours of inactivity
- Silicone buttons for easy touch activation
- Can run in conjunction with a 6-switch panel
- CAT-6 Ethernet connected (up to 25 feet from SourceLT)
Features Available Through sPOD Mobile App (free):
Each switch can be programmed for:
- Dimming
- Strobe
- Flash
- Momentary
- Switch Linking
- On-Road and Off-Road Modes of operation
Bluetooth Requirements:
- Access to iTunes or Google Play Store to download the sPOD app
- Bluetooth 4.0 compatible
- Compatible with Android devices running 8.0 Oreo (API 26) or later
- Compatible with iOS 11 or newer, iPhone 7s or newer, iPad 2 or newer, iPad mini
- Must have existing sPOD system
