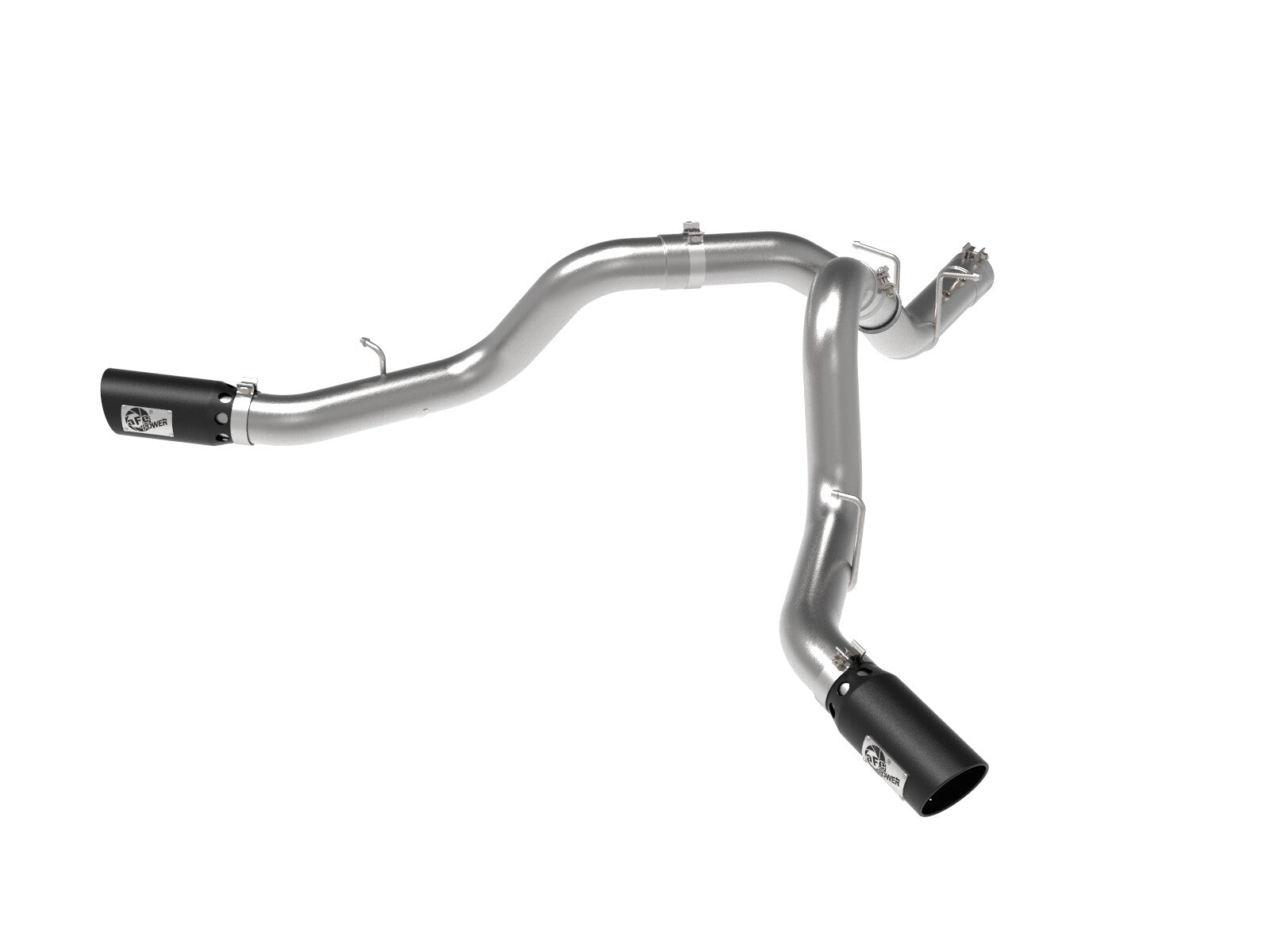

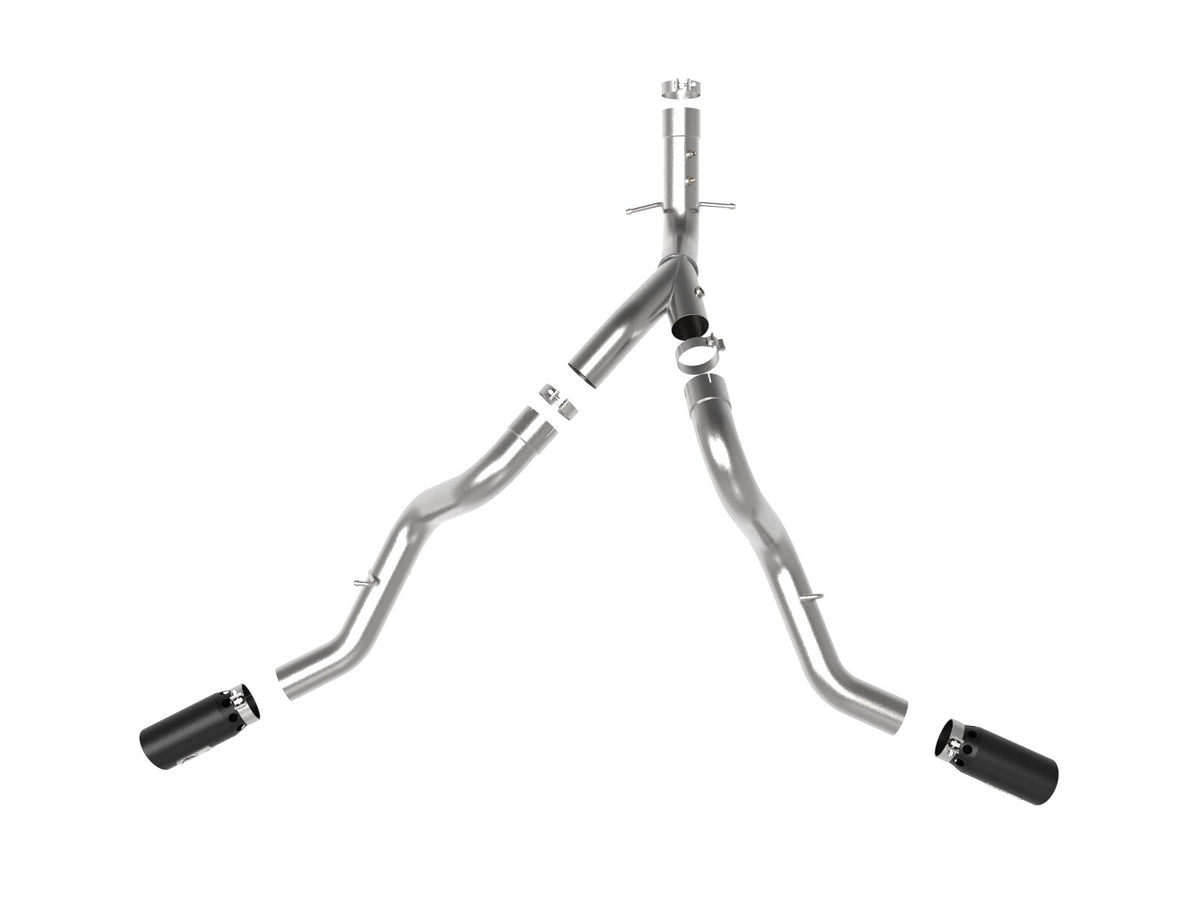

This Dpf-back exhaust system is constructed of 4 Inch mandrel-bent 409 stainless steel tubing for maximum strength and durability. Finishing off this exhaust system are dual 5 Inch diameter black 304 stainless steel intercooled clamp-on exhaust tips. The tips features an aFe Power logo plate riveted on for a unique style.
Some cutting may be required, see instruction sheet for further information. Utilizing factory style hangers this system mounts directly to factory mounting locations for a hassle-free installation. A mitered merge collector is used to decrease turbulence and increase exhaust velocity resulting in increased horsepower, torque and improved throttle response.
Utilizing state-of-the-art computer-aided design technology, this exhaust system is designed for custom, high tolerance factory fitment. 100 percent Mig-Welded for race-proven strength and durability. This system fits: Double Cab / Short-Bed - 149.4 Inch Wheelbase, Crew Cab / Short-Bed - 158.9 Inch Wheelbase, Double Cab / Long-Bed - 162.4 Inch Wheelbase, Crew Cab / Long-Bed - 172 Inch Wheelbase
Features and Benefits:
- Constructed from 4 Inch Mandrel-Bent 409 Stainless Steel Tubing

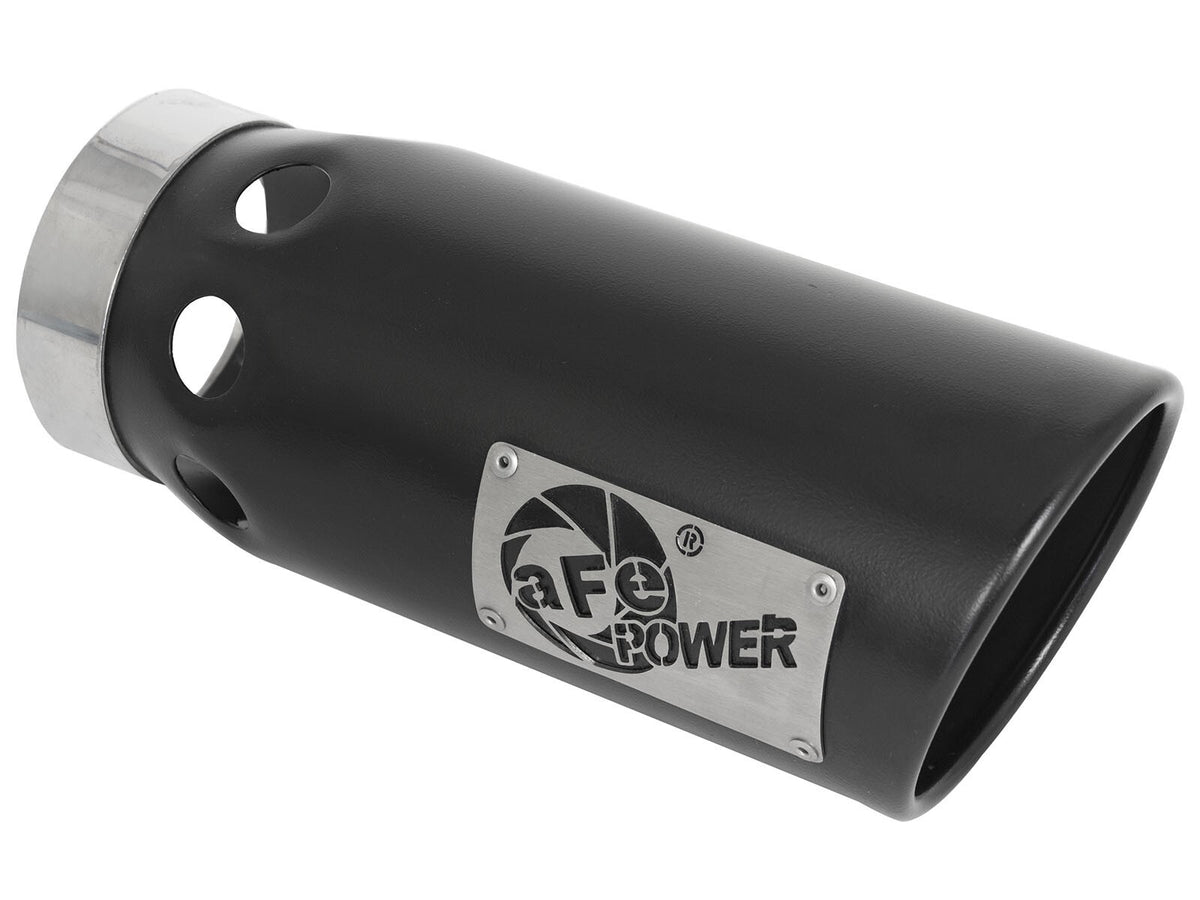

- Dual 5 Inch Diameter Black 304 stainless steel Intercooled Clamp-On Exhaust Tips
- Utilizes Factory Style Hangers for a Secure Fit
- 100 percent Mig-Welded for Strength and Durability
- All Necessary Hardware is Included for a Hassle-Free Installation
Details:
- Color: Black
- Emission Code: 4
- Engine Designation: L5P
- Exhaust Tip Cut: Slant
- Exhaust Tip Edge: Rolled edge
- Exhaust Tip Included: Yes
- Exhaust Tip Outlet Size: 5 Inch
- Exhaust Tip Quantity: Dual
- Exhaust Type: DPF-Back
- Exit Location: Passenger and Driver Side
- Fuel Type: Diesel
- Includes Muffler: No
- Liter: 6.6 Liter
- Muffler Included: No
- Series: Large Bore-HD
- Sound Level: Moderate
- System Finish: Natural
- System Material: 409 Stainless Steel
- System Style: DPF-Back
- Tip Cut: Slant
- Tip Edge Style: Rolled edge
- Tip Finish: Black Powdercoated
- Tip Included: Yes
- Tip Material: 409 stainless steel
- Tip Outlet Size: 5 Inch
- Tubing Diameter: 4 Inch
- Warranty: 2 Year
Applications:
- GM Diesel Trucks 20-26 V8-6.6L (td) L5P
