Foutz Motorsports Front Limit Strap & Bump Stop Kit - Stock Lower Arm 2021-2025 Ford F-150 Raptor 2023-2025 Ford F-150 Raptor R

• Designed to work with the factory stock lower a-arm & bolt on to the cast aluminum
• Limits the top out travel and saves your top shock mount from premature damage
• Extends the life of the front suspension components
• Restrains the top out so you don't have to rely on just the shock to stop the droop
• An absolute must-have if you're using aftermarket springs on your Raptor
• Engineered to work with the Fox, King, or ADS front bump stops. 2.5" OD and 2.5" travel bump stop provides full bottom out protection
• Made for Gen 3 Raptor / Raptor R (2021, 2022, 2023, 2024, 2025, 2026)

• They are 12 inches long and made of high quality material that allows them to withstand abuse when you off-road
• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black
• Their extreme durability will provide you with long lasting strength, unlike other cheap straps that will stretch and wear out over time

• A bump stop pad is built into the mounting brackets as an easy addition for a front bump stop kit to be added at any time
• The mounting brackets secure around the front of the lower stock control arm and are MIG welded in house and then finished in a hammer black powder coat for ultimate durability and strength

• 2021 Ford Raptor
• 2022 Ford Raptor
• 2023 Ford Raptor
• 2024 Ford Raptor
• 2025 Ford Raptor
• 2026 Ford Raptor
• Gen 3 Ford Raptor
• Gen 3 Ford Raptor R

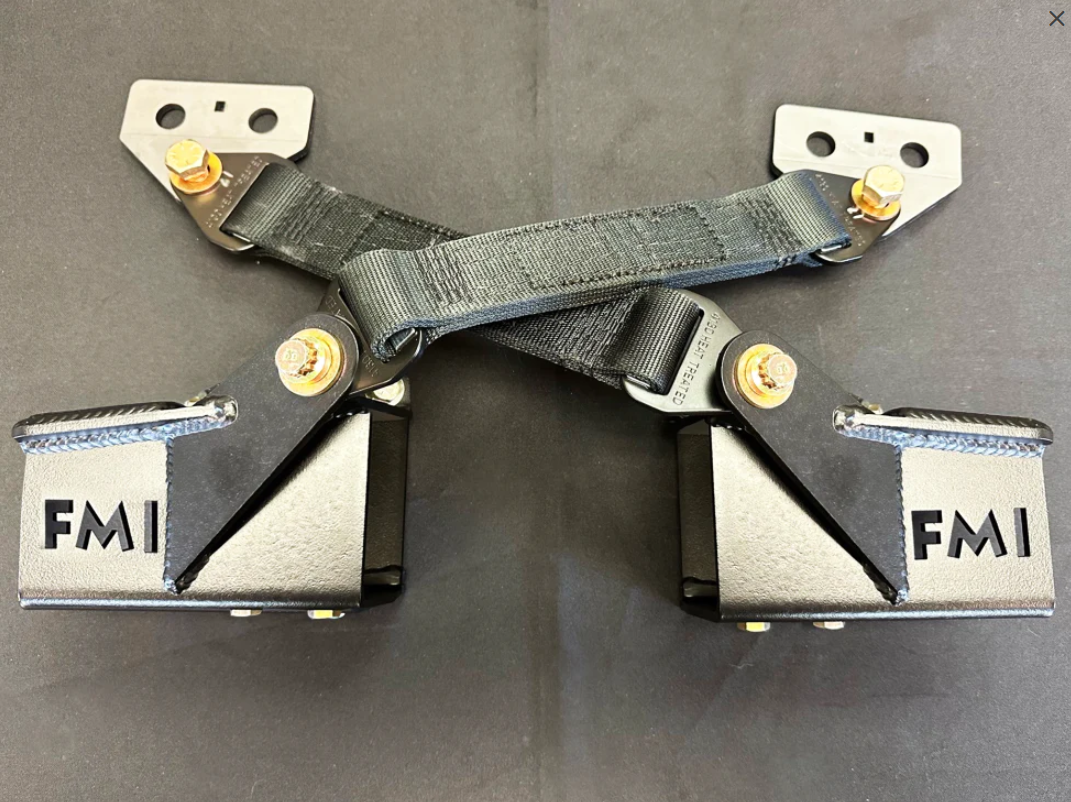

• Designed to work with the factory stock lower a-arm

• (2) 12" length limit straps
• (2) bump stop can mounts
• (2) 2.5" dia x 2.5" travel bump stops
• (2) main mounting brackets
• (2) mounting bracket backing plates

Lower Control Arm Mounting Bracket Hardware

• (10) 3/8-16 x 1-1/4" bolts
• (10) 3/8-16 Nyloc nuts
• (6) 3/8" washers

Lower Strap Mounting Bracket Hardware

• (2) 1/2-20 Nyloc nuts
• (2) 1/2-20 shallow Nyloc nuts
• (2) 1/2-20 12 point bolts
• (4) 1/2" washers

Upper Strap Mounting Bracket Hardware

• (2) 1/2-13 x 1-1/2" bolts
• (2) 1/2-13 Nyloc nuts
• (4) 1/2" washers

This kit requires you to weld the bump stop mount to the frame and should be installed by a qualified welder/fabricator. It will not work with Fox upgraded 3.0 hoses without rebuilding the shocks and hose kit.

What does the limit strap and bump stop kit do?

It limits front suspension top out travel, which saves the top shock mount from premature damage and extends the life of the front suspension components.

Does this kit work with the factory stock lower a-arm?

Yes. The kit is designed to work with the factory stock lower a-arm and bolts on to the cast aluminum.

What bump stops work with this kit?

The kit is engineered to work with Fox, King, or ADS front bump stops, and includes a 2.5" OD and 2.5" travel bump stop for full bottom out protection.

What years of Raptor does this kit fit?

This kit is made for the Gen 3 Raptor and Raptor R, covering the 2021, 2022, 2023, 2024, 2025, and 2026 model years.

Can I install this kit myself?

The kit requires welding the bump stop mount to the frame, so installation should be performed by a qualified welder/fabricator.

Does this kit work with Fox 3.0 upgraded hoses?

Not without rebuilding the shocks and hose kit. The kit will not work with Fox upgraded 3.0 hoses as supplied.

What are the mounting brackets made from?

The mounting brackets are MIG welded in house and finished in a hammer black powder coat, with a bump stop pad built directly into the bracket.
