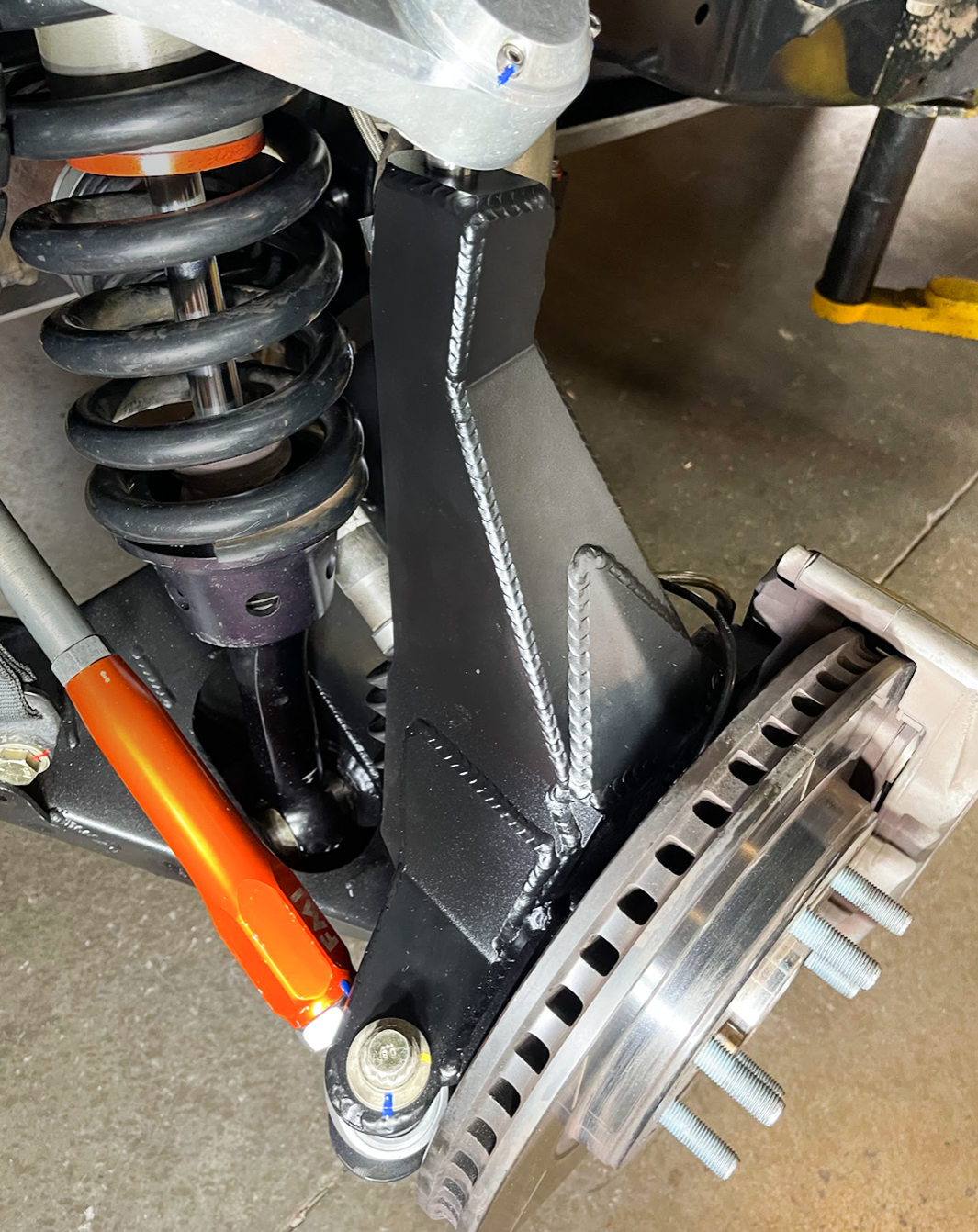

Foutz Motorsports Fabricated Front Spindle kit 2017-2020 Ford F-150 Raptor

Description

A fabricated front spindle (upright) kit for the 2017–2020 Gen 2 Ford F-150 Raptor, built around a CNC machined 2" thick backing plate with 4130 construction and stock ball joint tapers. It is built specifically for the Gen 2 and works with its standard vacuum 4x4 actuator module.

The spindle is where the arms, brakes, steering and hub all meet, so flex there shows up everywhere else. Because it keeps the stock ball joint tapers, it works with your stock upper and lower arms today and with upgraded arms later, so you can change the front end in stages instead of all at once.

Why A Fabricated Spindle

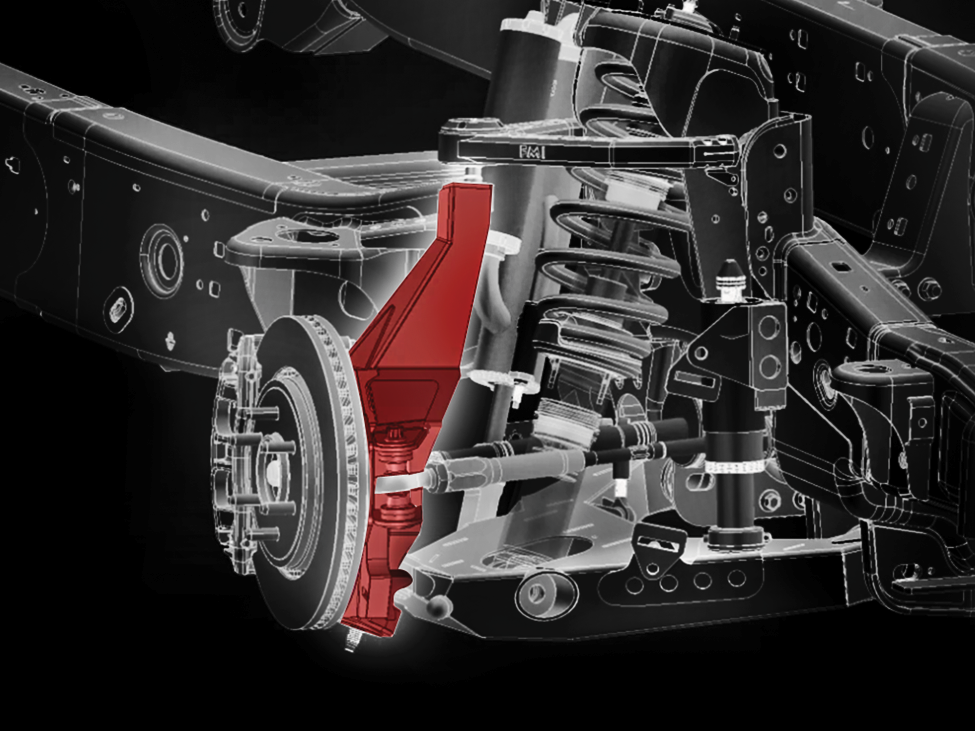

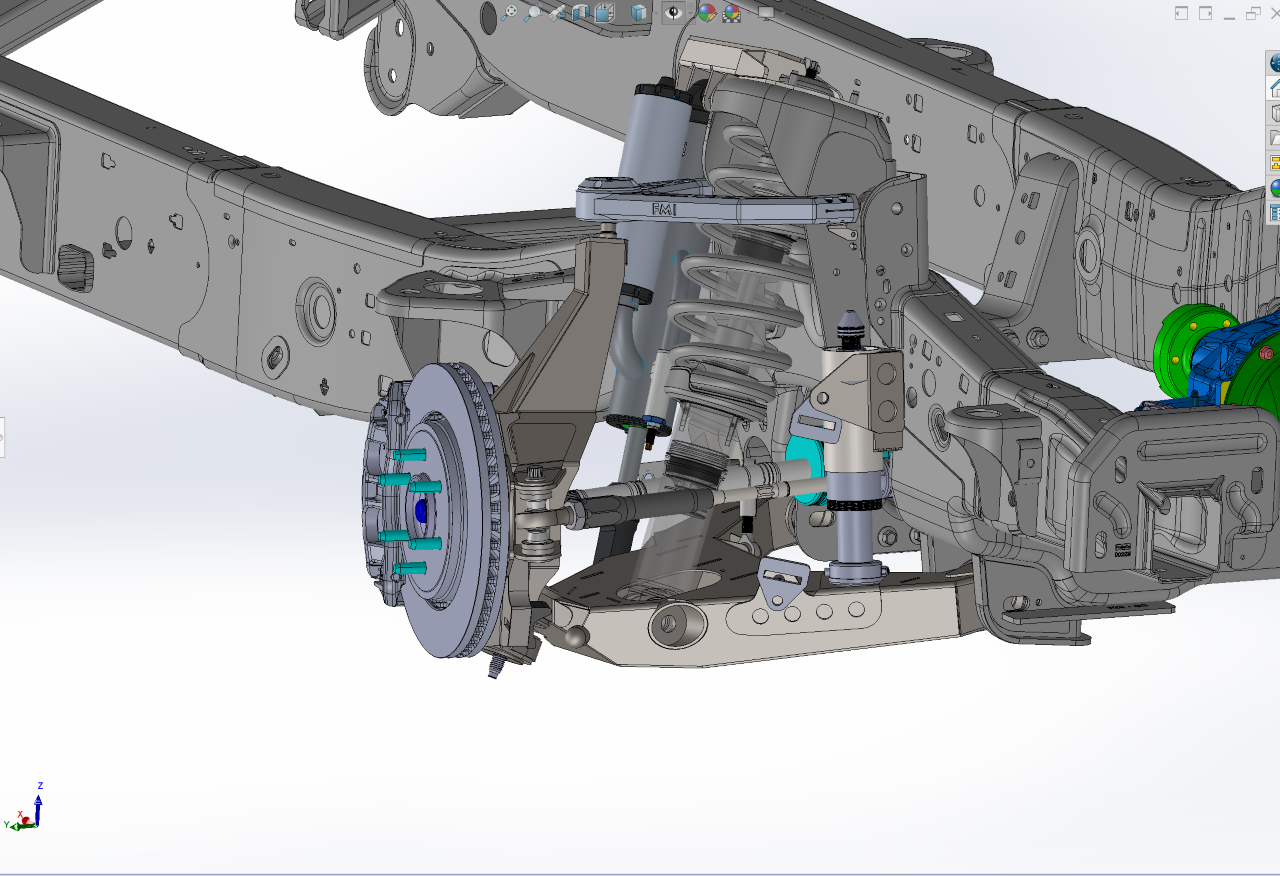

Everything at the corner of the truck bolts to the spindle: the upper and lower ball joints, the brake caliper, the tie rod and the hub. Every landing, every braking load and every hit to the tire passes through it, and any flex in it moves the brake and the steering relative to the wheel.

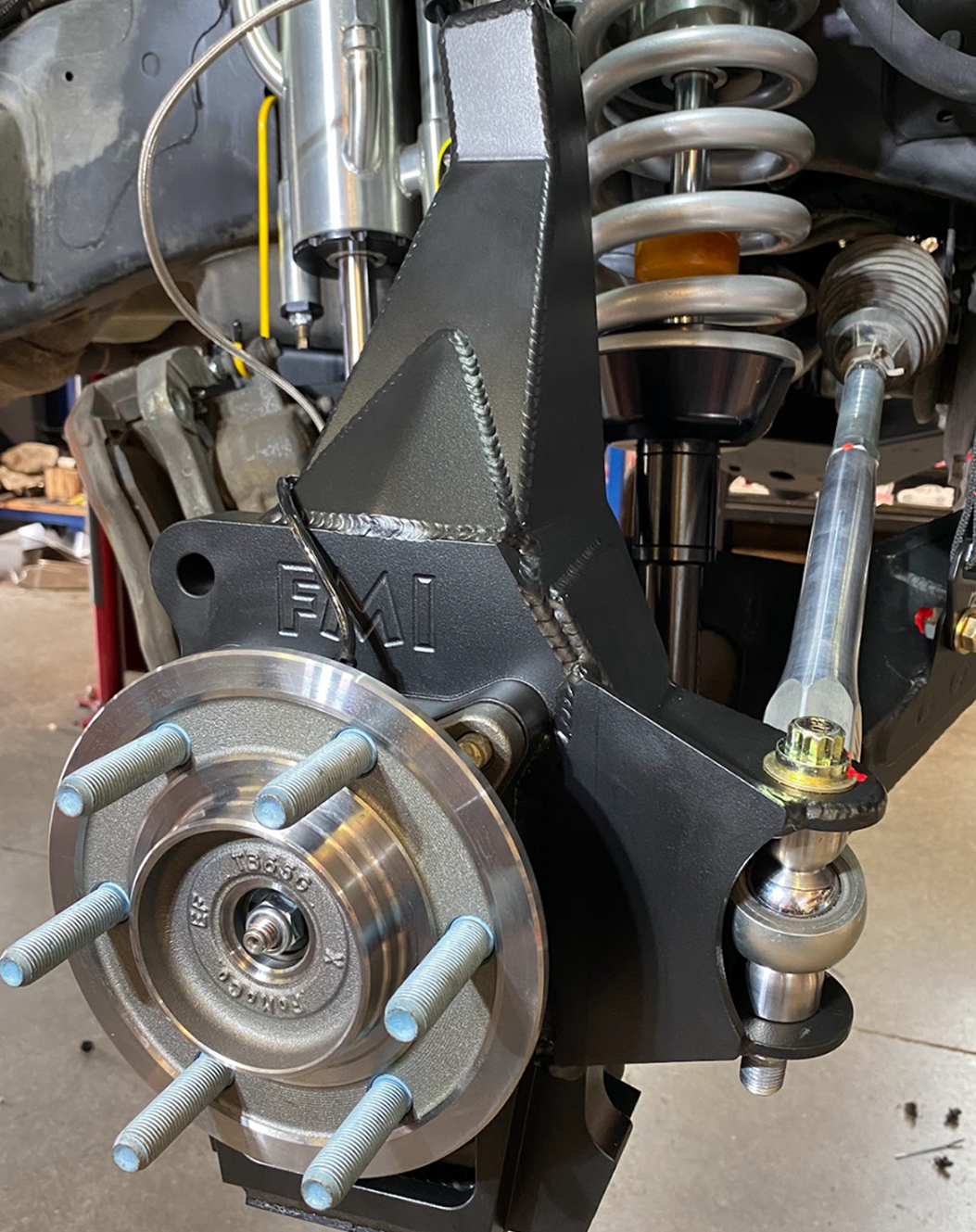

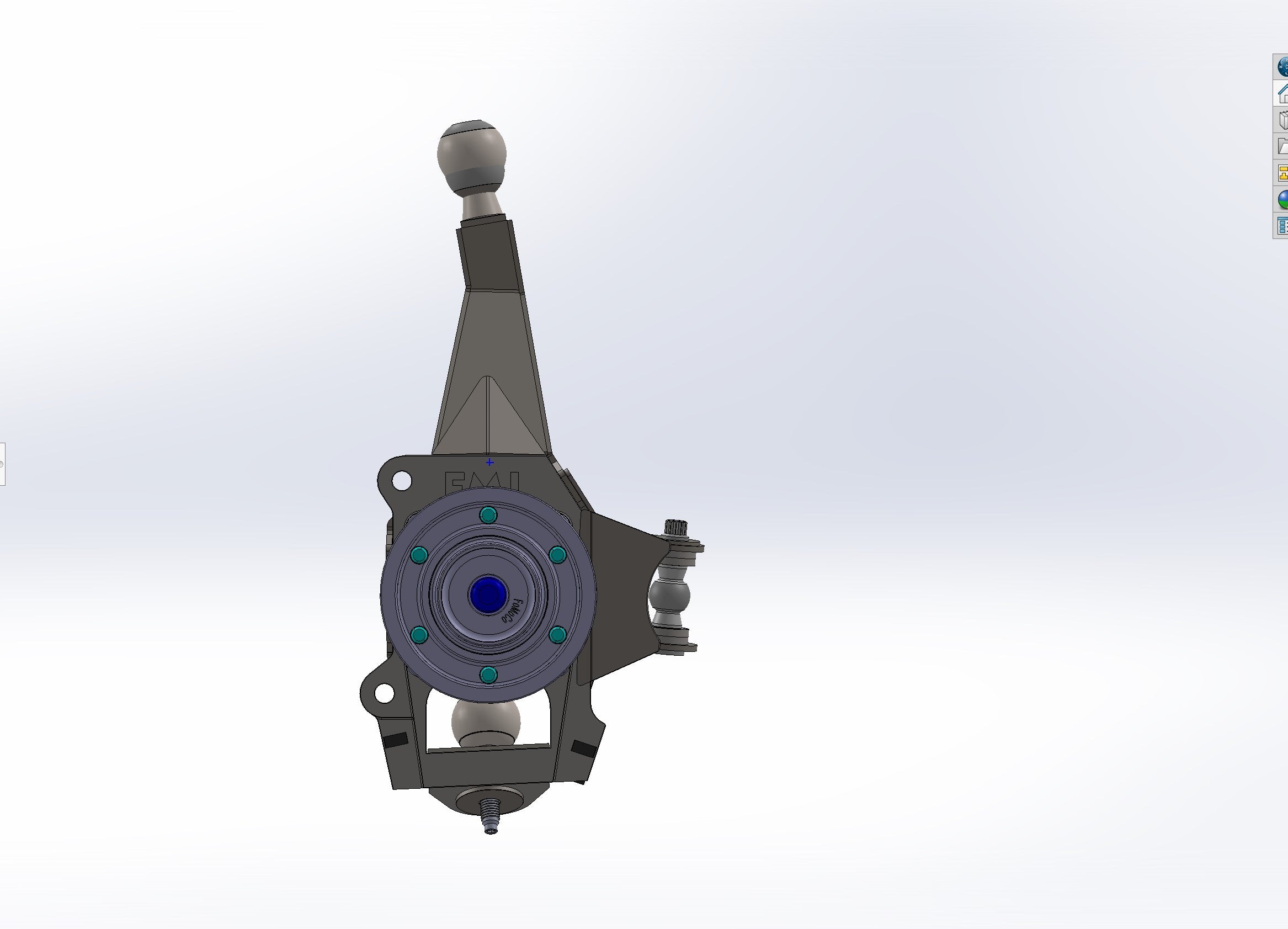

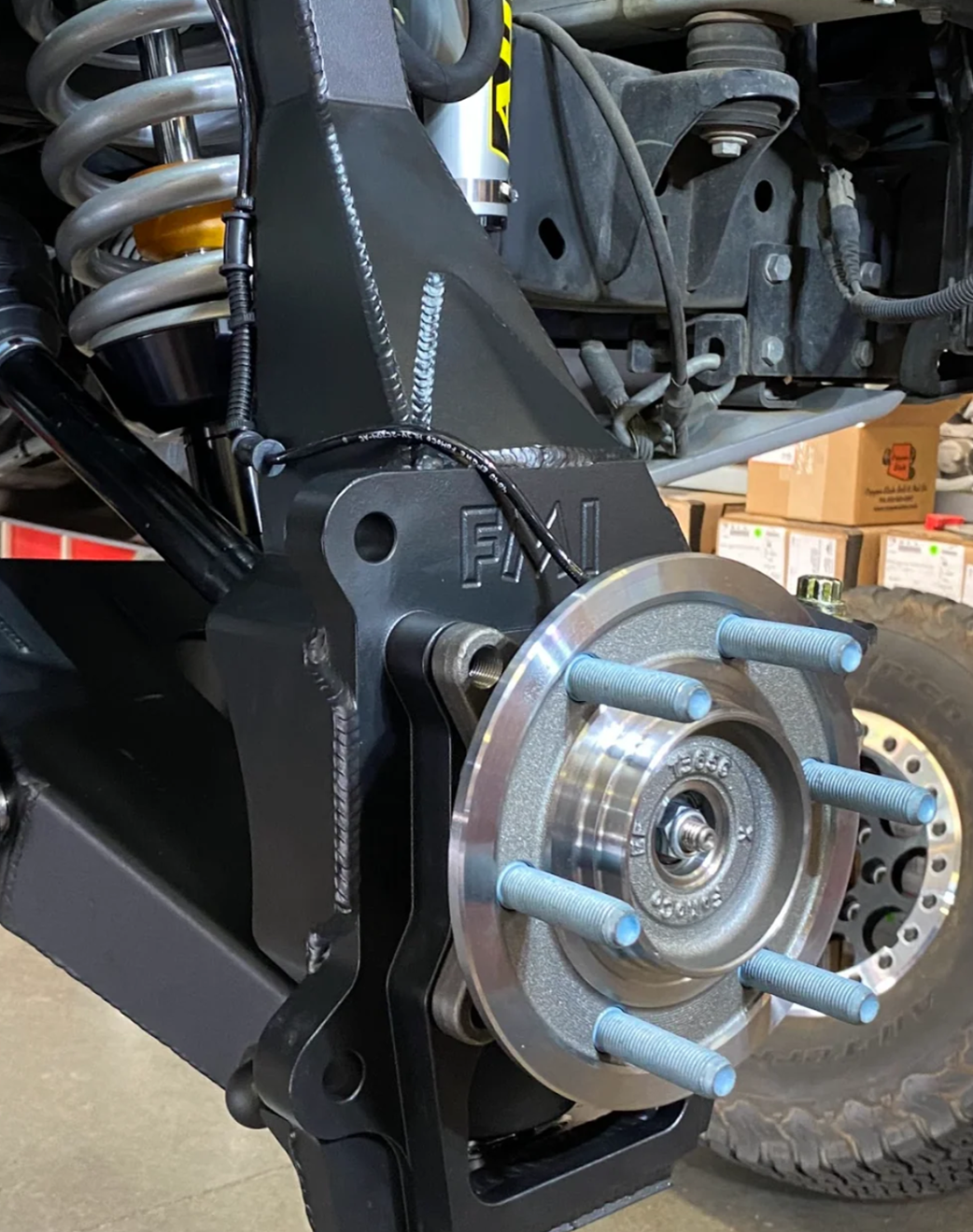

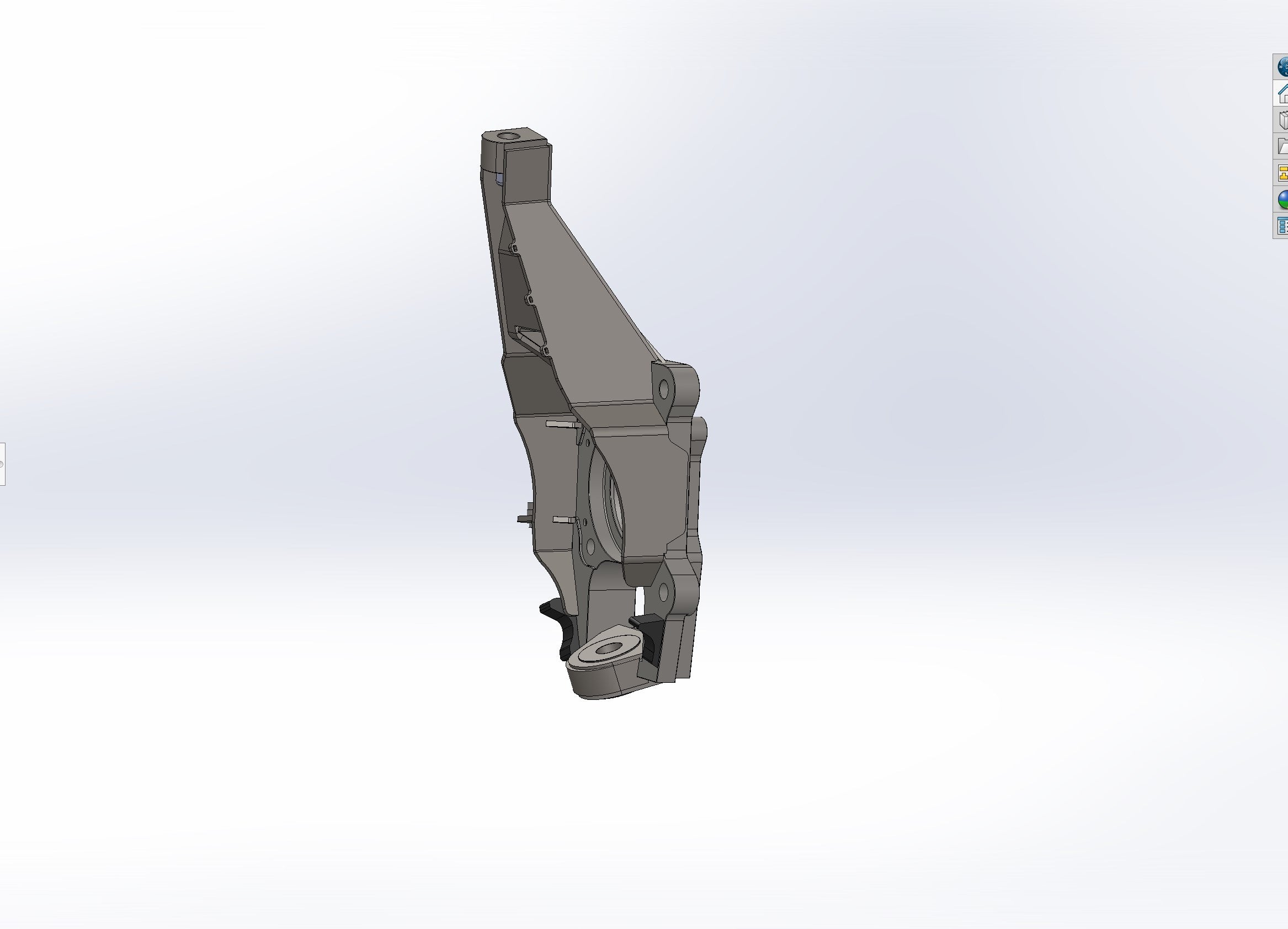

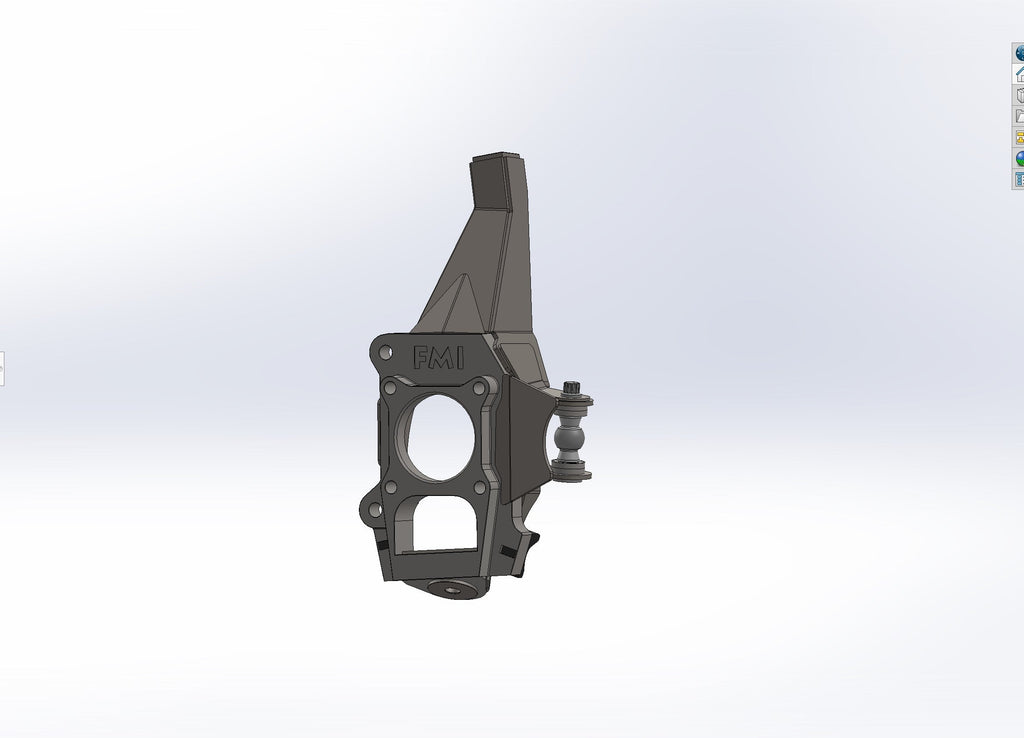

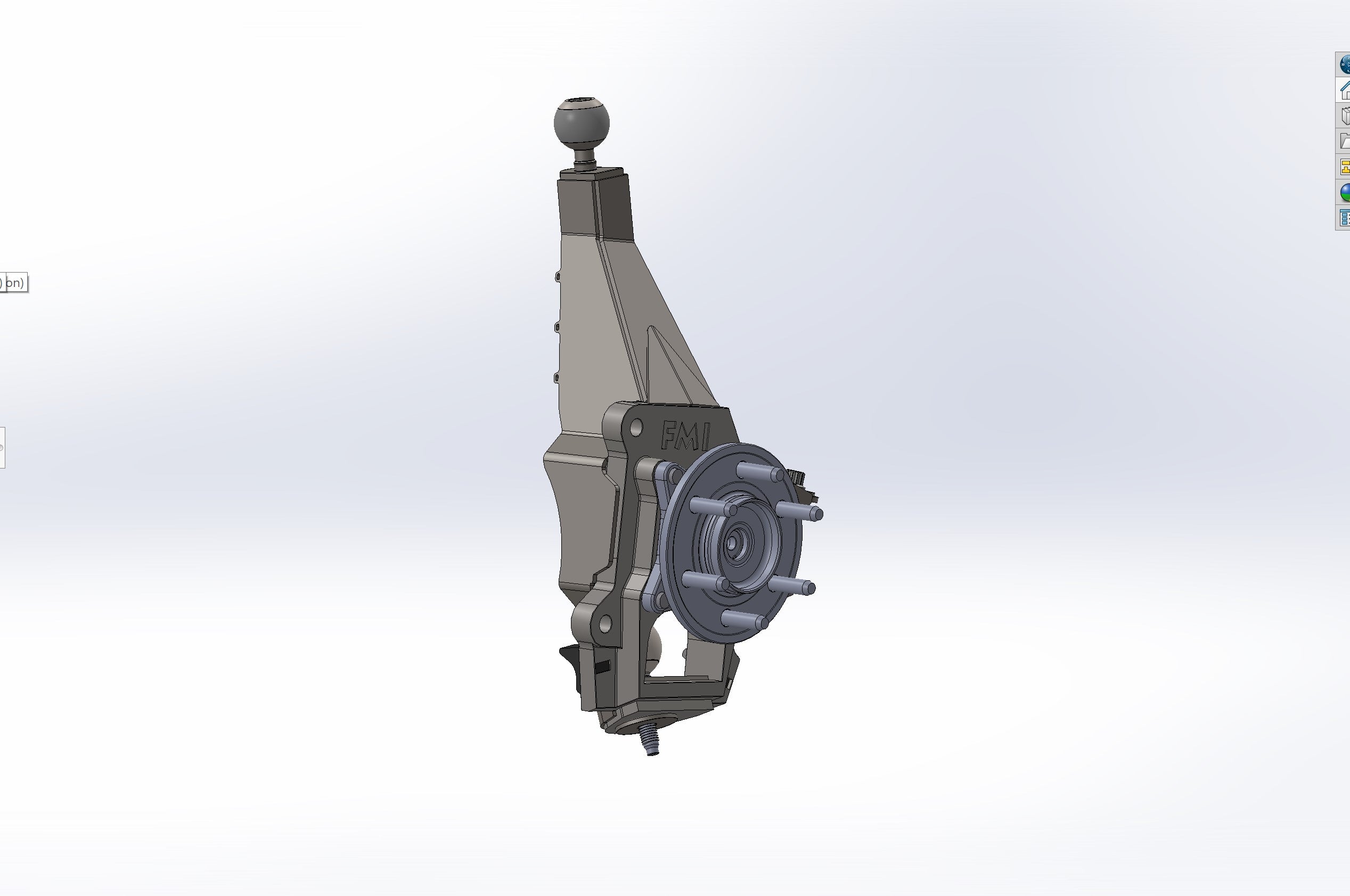

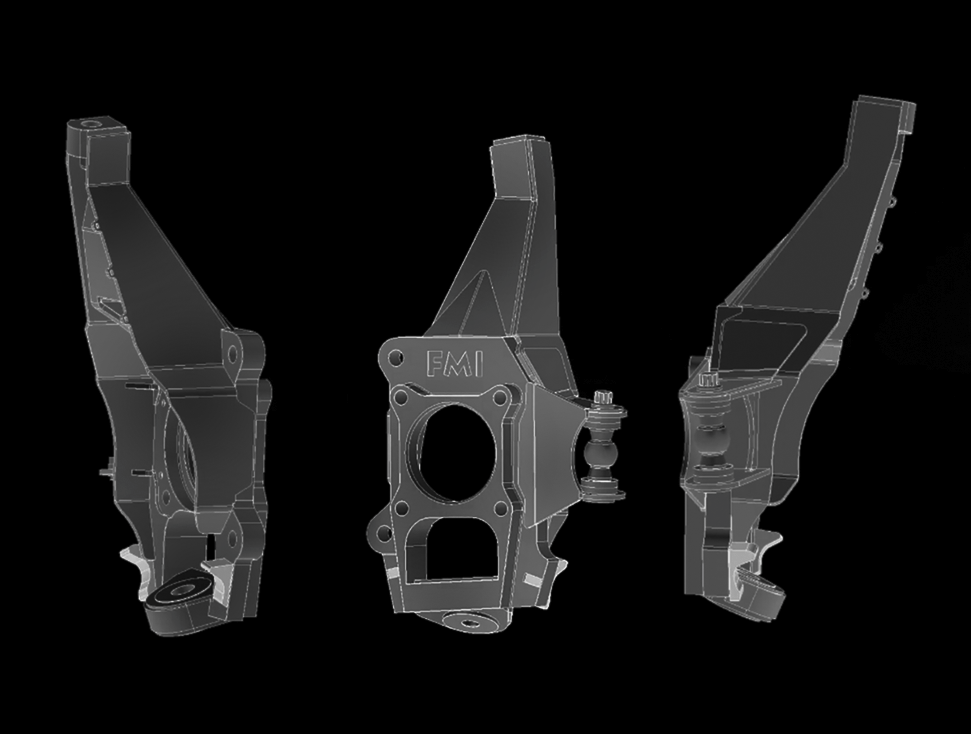

This upright is built around a 2" thick CNC machined primary backing plate that carries the brake caliper mounts, for strength and less flex in the upright assembly. The ball joint mounts are machined 4130, so the tapers stay strong and durable, and steering stops are built in to protect the steering and the CV joints.

How It Is Built

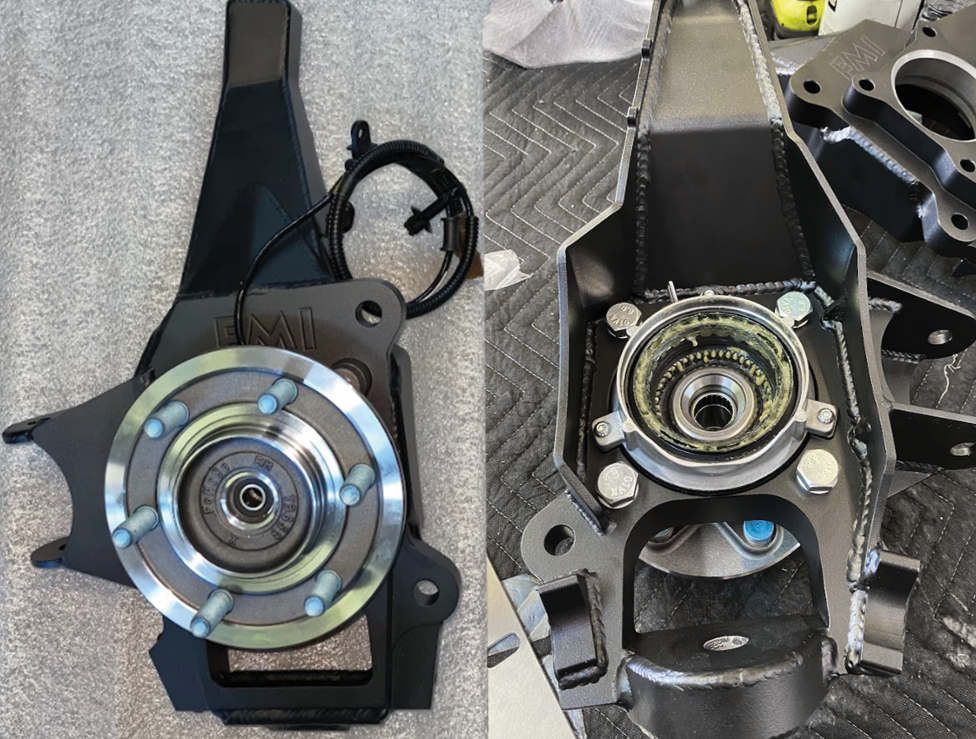

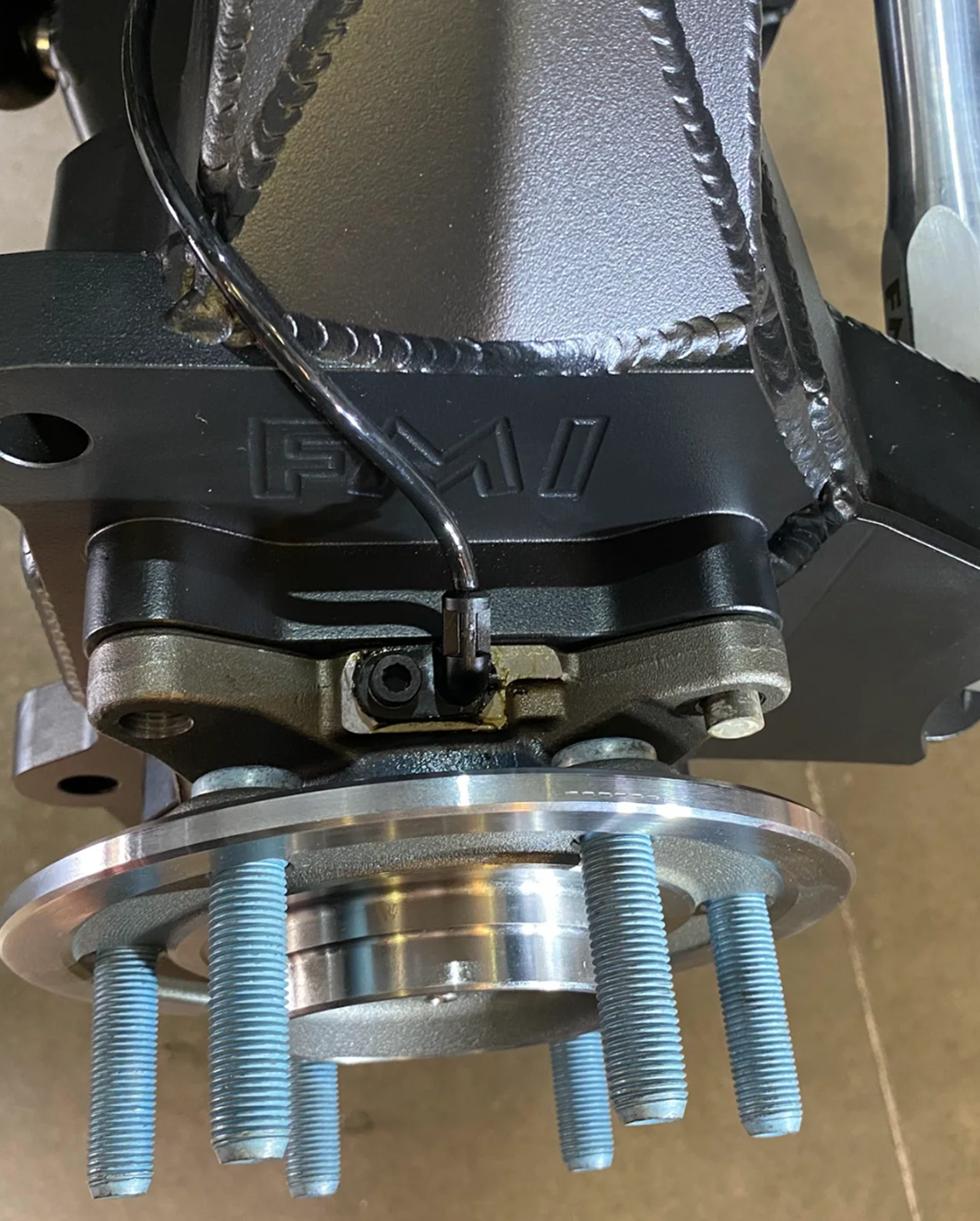

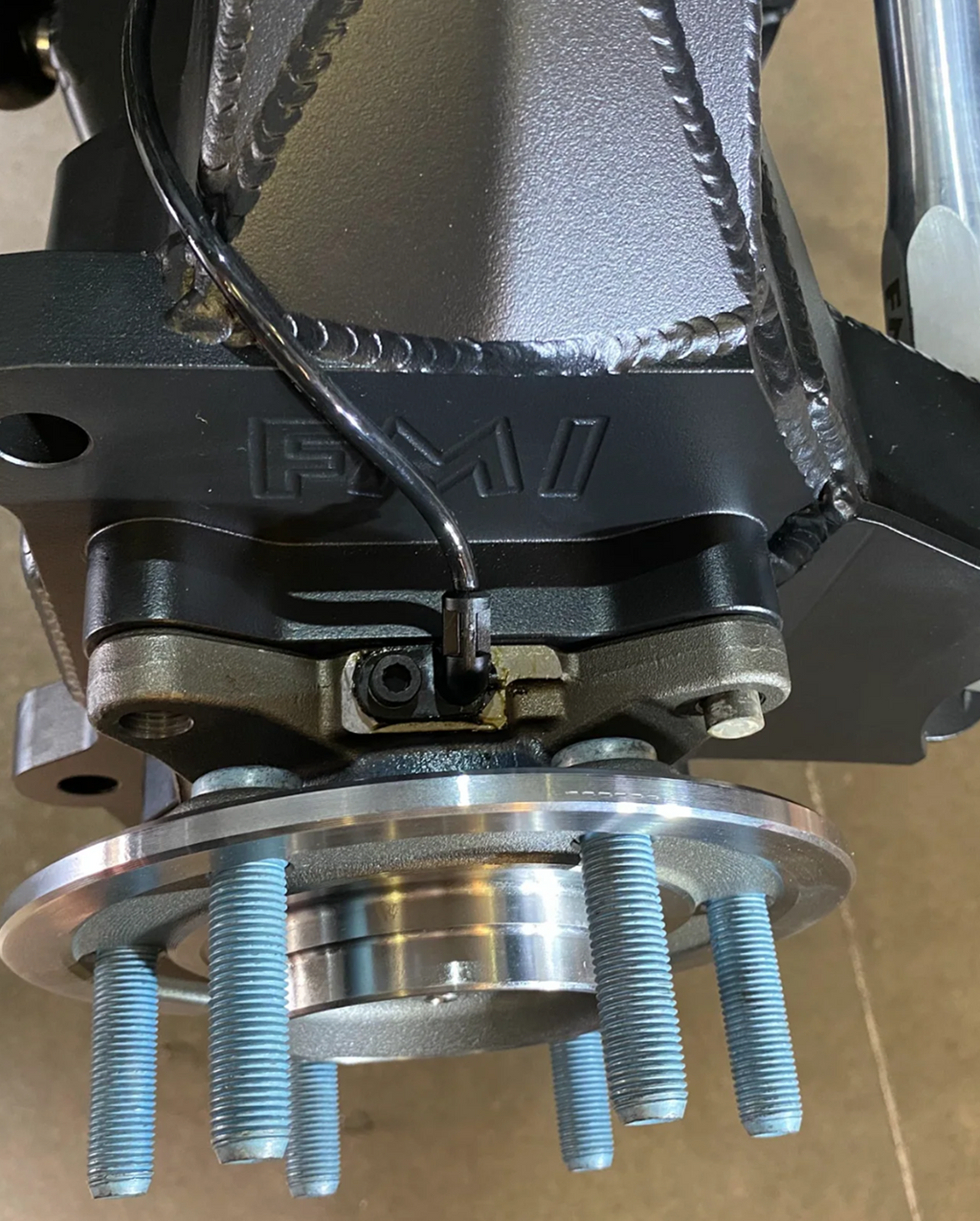

  • 2" thick CNC machined primary backing plate incorporating the brake caliper mounts.

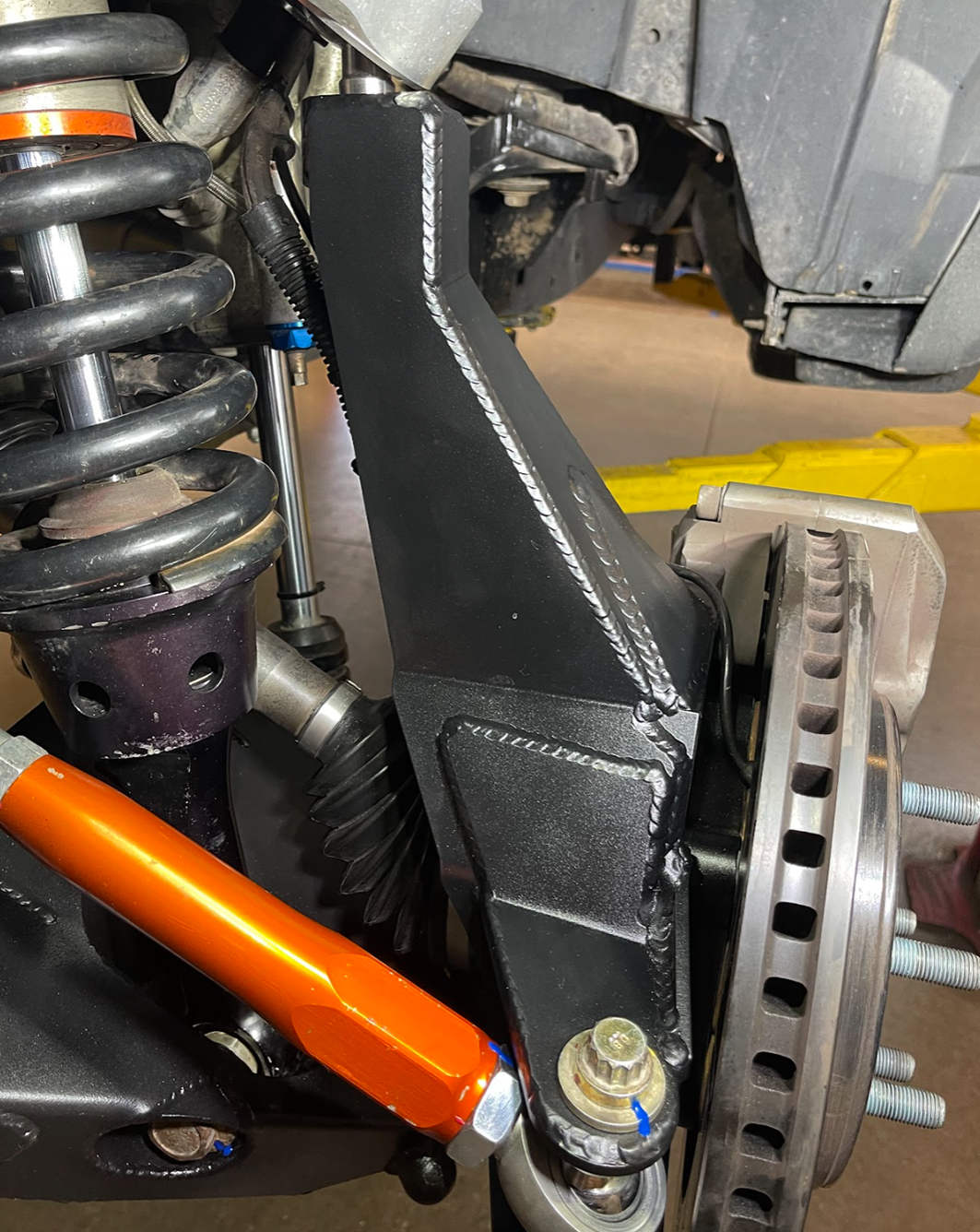

  • 4130 sheet metal parts, MIG welded.

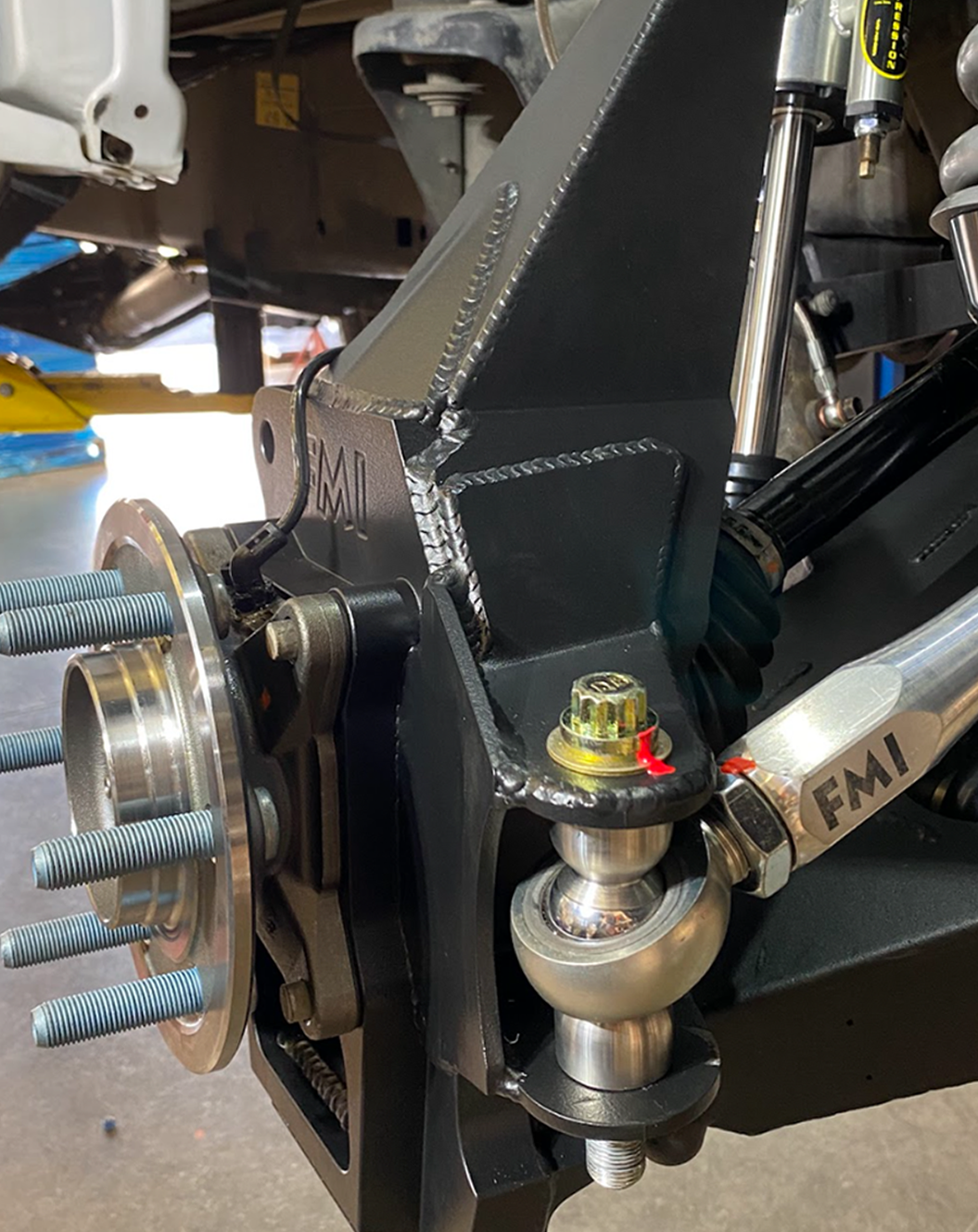

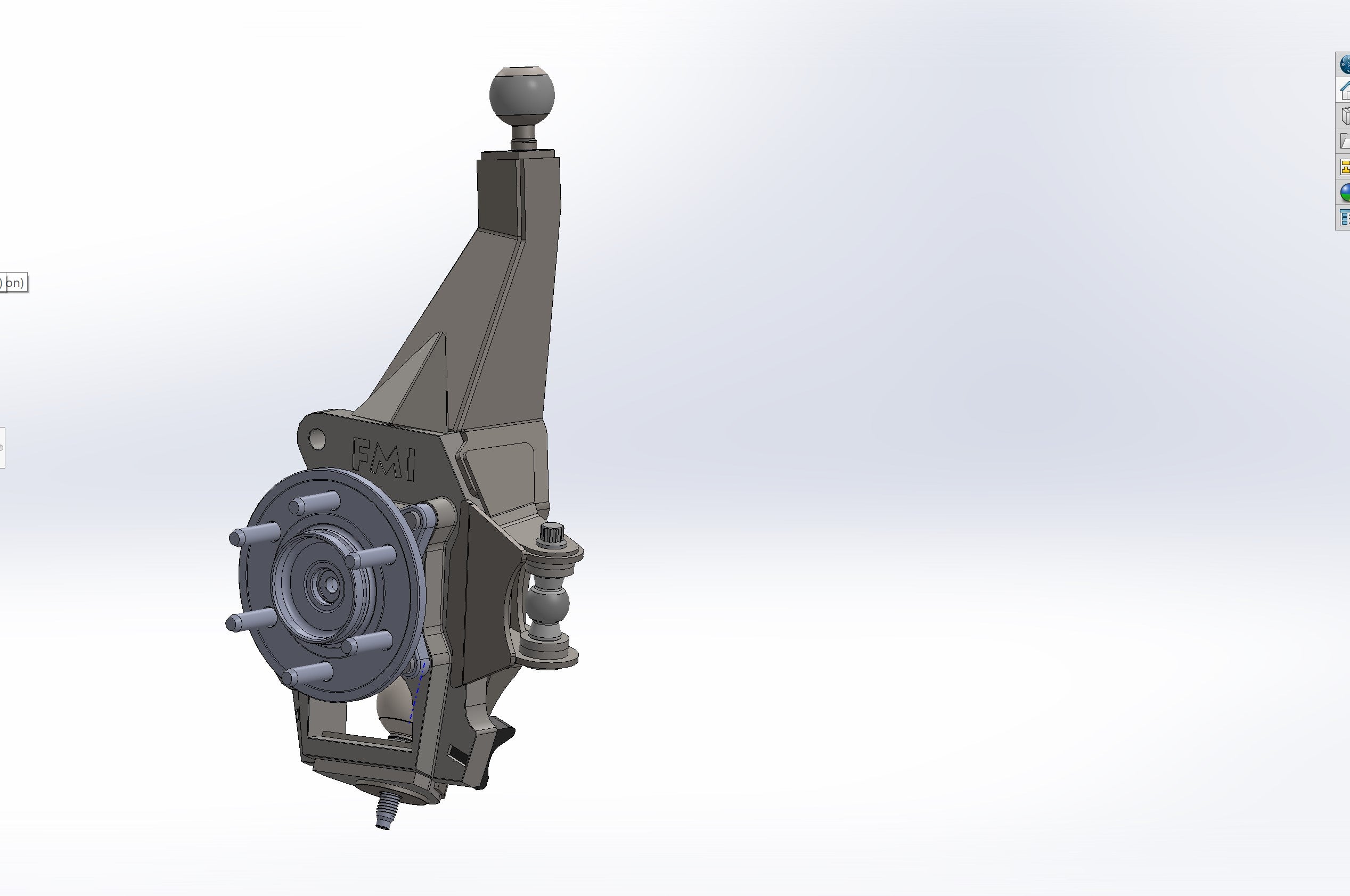

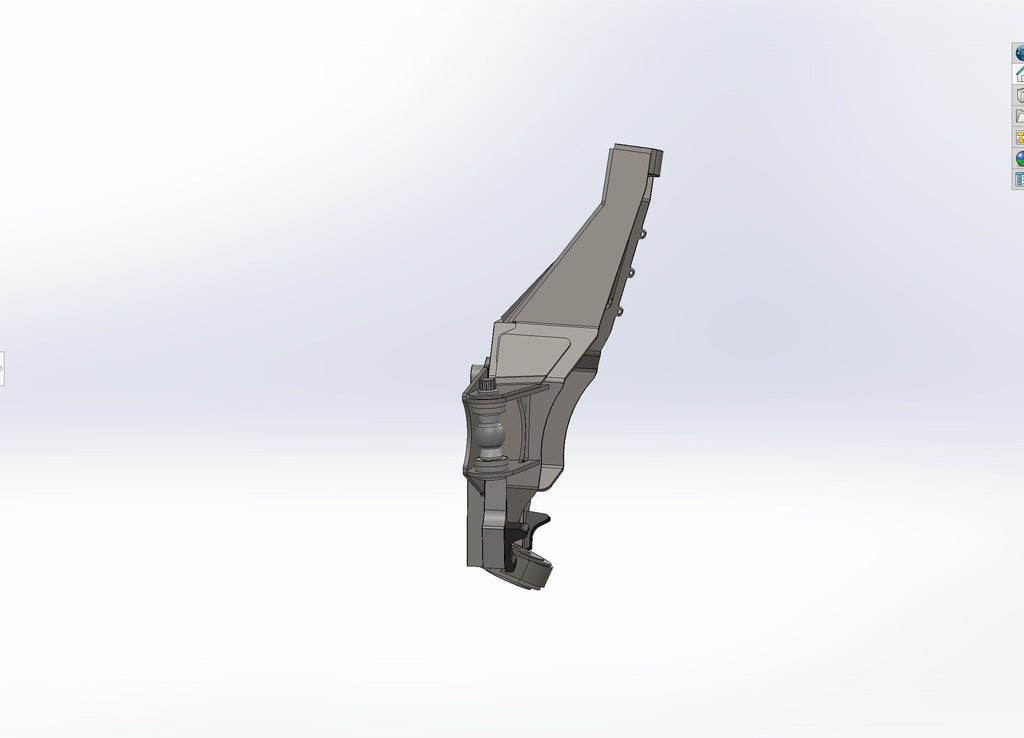

  • Machined 4130 ball joint mounts with stock ball joint tapers for the upper and lower arms.
  • Built-in steering stops to protect the steering and CV joints.
  • Hammer black finish, the only finish offered.

Fitment

Fits the 2017–2020 Gen 2 Ford F-150 Raptor, built for the Gen 2's standard vacuum 4x4 actuator module.

Control arms

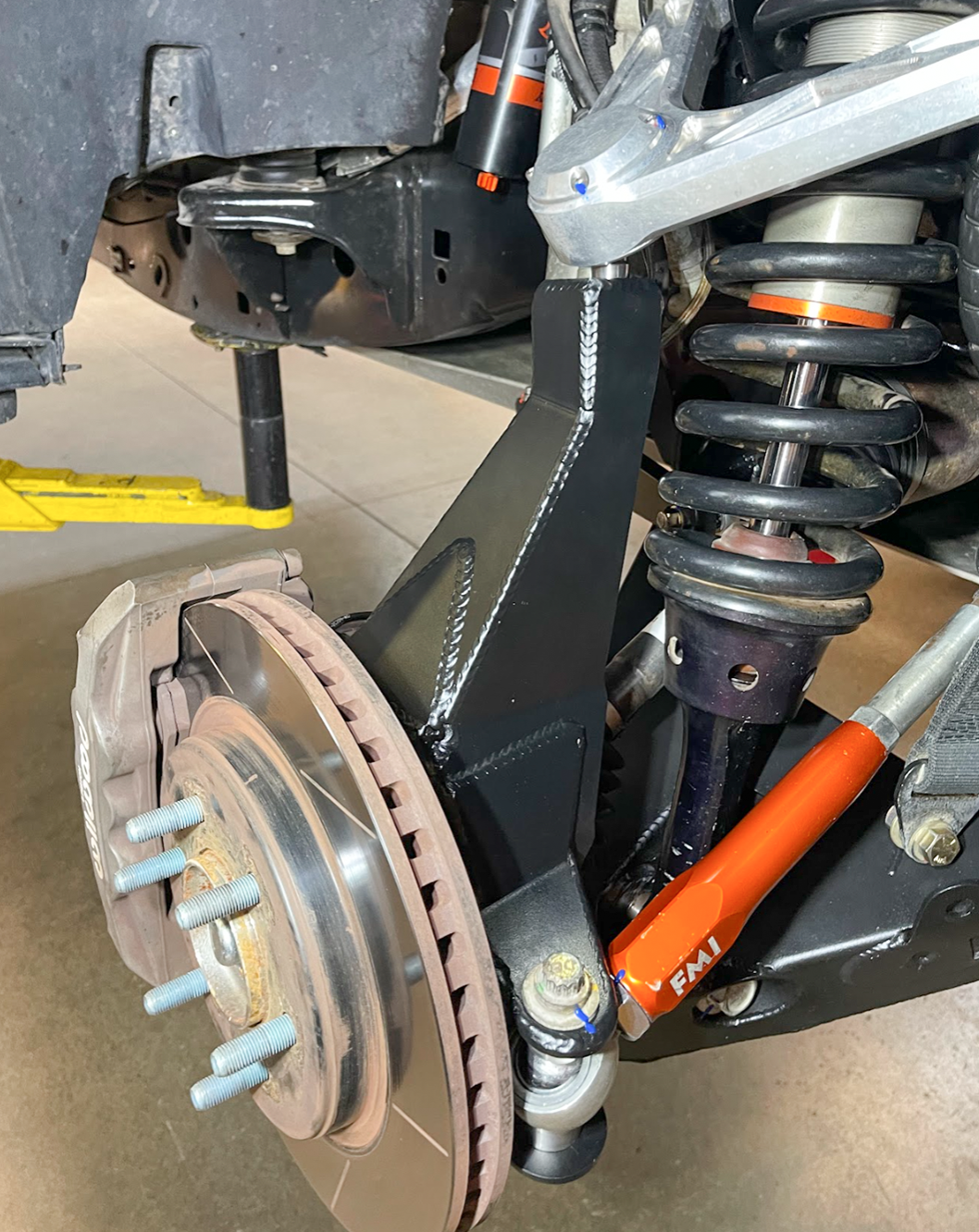

Works with the factory stock upper and lower arms, and with any combination of aftermarket upper and lower arms that mount to the stock ball joint location.

Wheels

Works with the factory stock Raptor wheels.

Tie rods

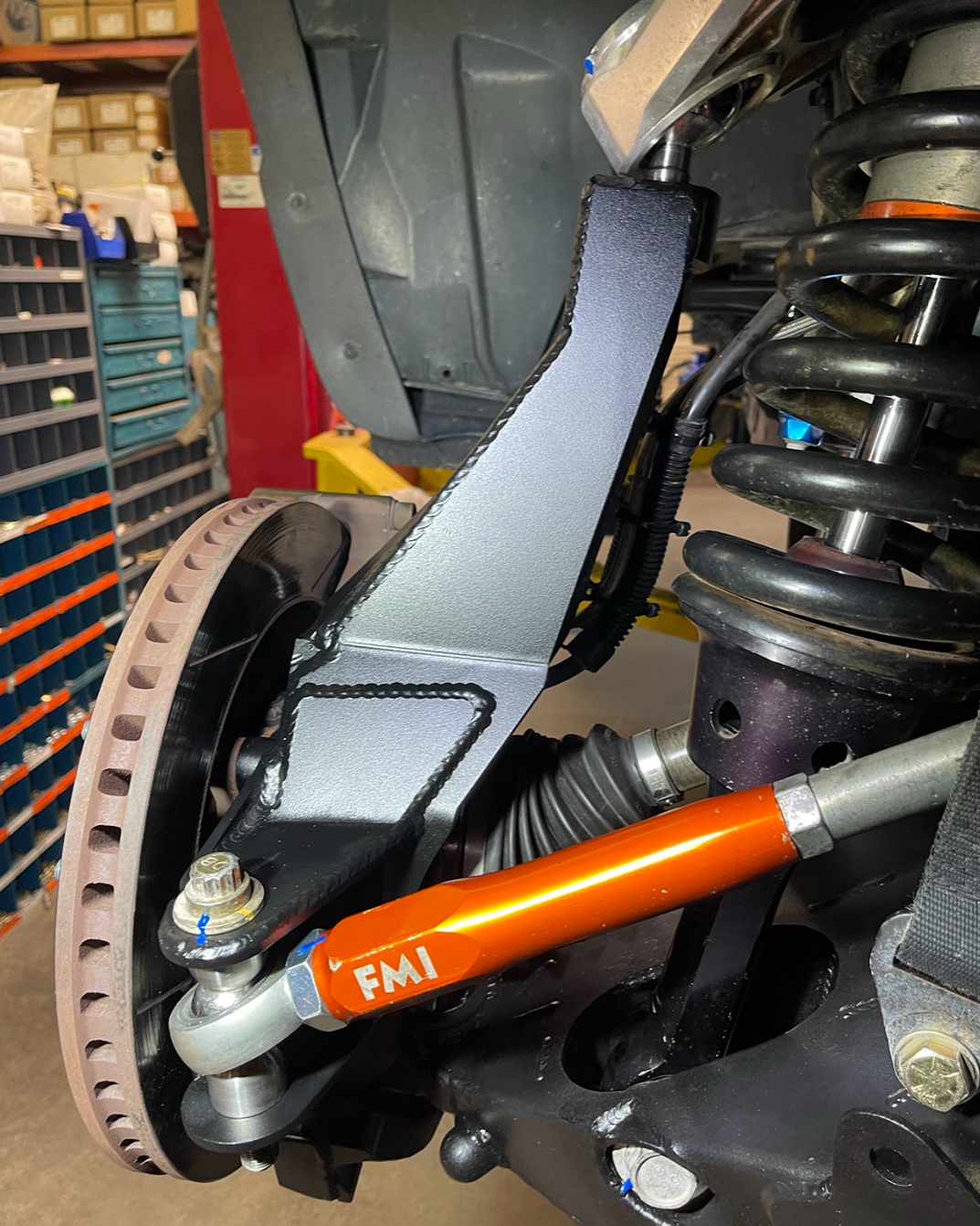

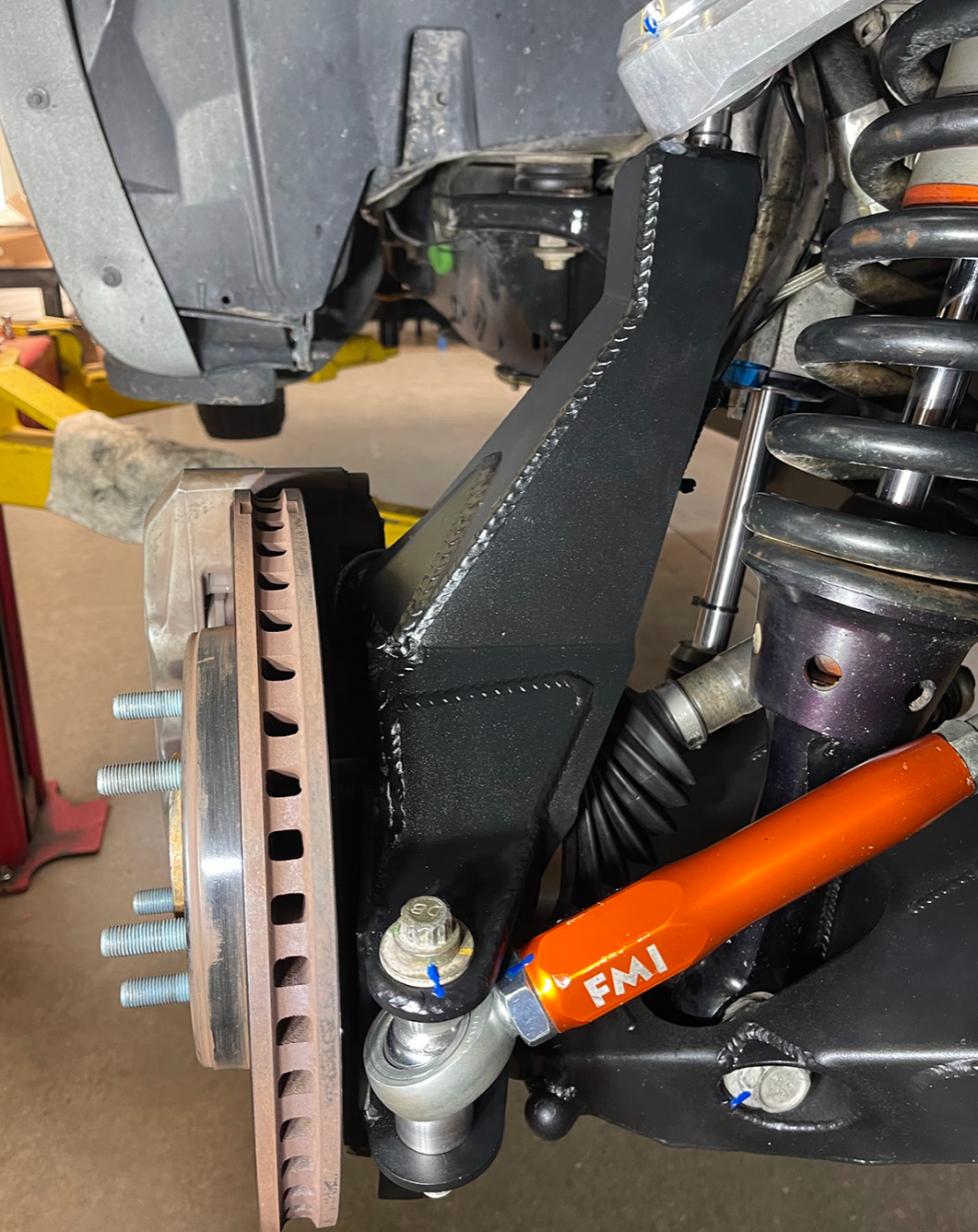

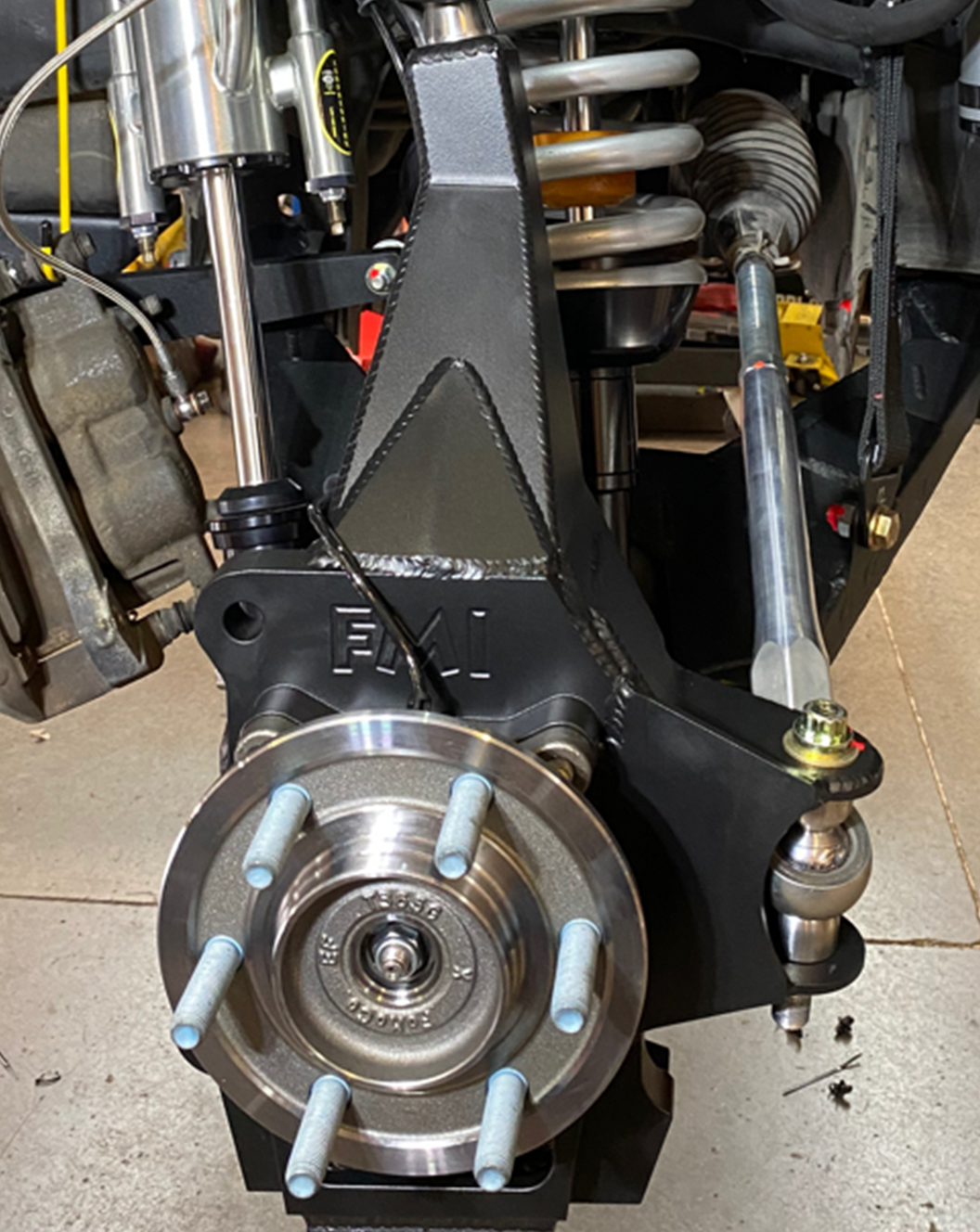

Works with any half tie rod kit or full billet tie rod kit that uses a 7/8" rod end at the wheel.

Brakes

Fit verified with the stock brake caliper and with the Wilwood brake kit. No other brake kits have been test fit.

Availability

Contact FMI for the current lead time.

Questions

Can I run it with my stock control arms?

Yes. It uses stock ball joint tapers, so it works with the stock upper and lower arms or with aftermarket arms that mount to the stock ball joint location.

Which tie rods does it take?

Any half tie rod kit or full billet tie rod kit that uses a 7/8" rod end at the wheel.

Does it work with the Gen 2 4x4 system?

Yes. It is built specifically for the Gen 2 and its standard vacuum 4x4 actuator module.

Will my stock wheels fit?

Yes. It works with the factory stock Raptor wheels.

Which brakes have been fit?

The stock brake caliper and the Wilwood brake kit. No other kits have been test fit.

What finish does it come in?

Hammer black only.

Foutz Motorsports Fabricated Front Spindle kit 2017-2020 Ford F-150 Raptor

Foutz Motorsports
SKU: FMI050023010030101
$ 2,599.99
Sale price  $ 2,599.99 Regular price
