Foutz Motorsports Shackles by Foutz Motorsports - MIG Welded 2010-2014 Ford F-150 SVT Raptor

Description

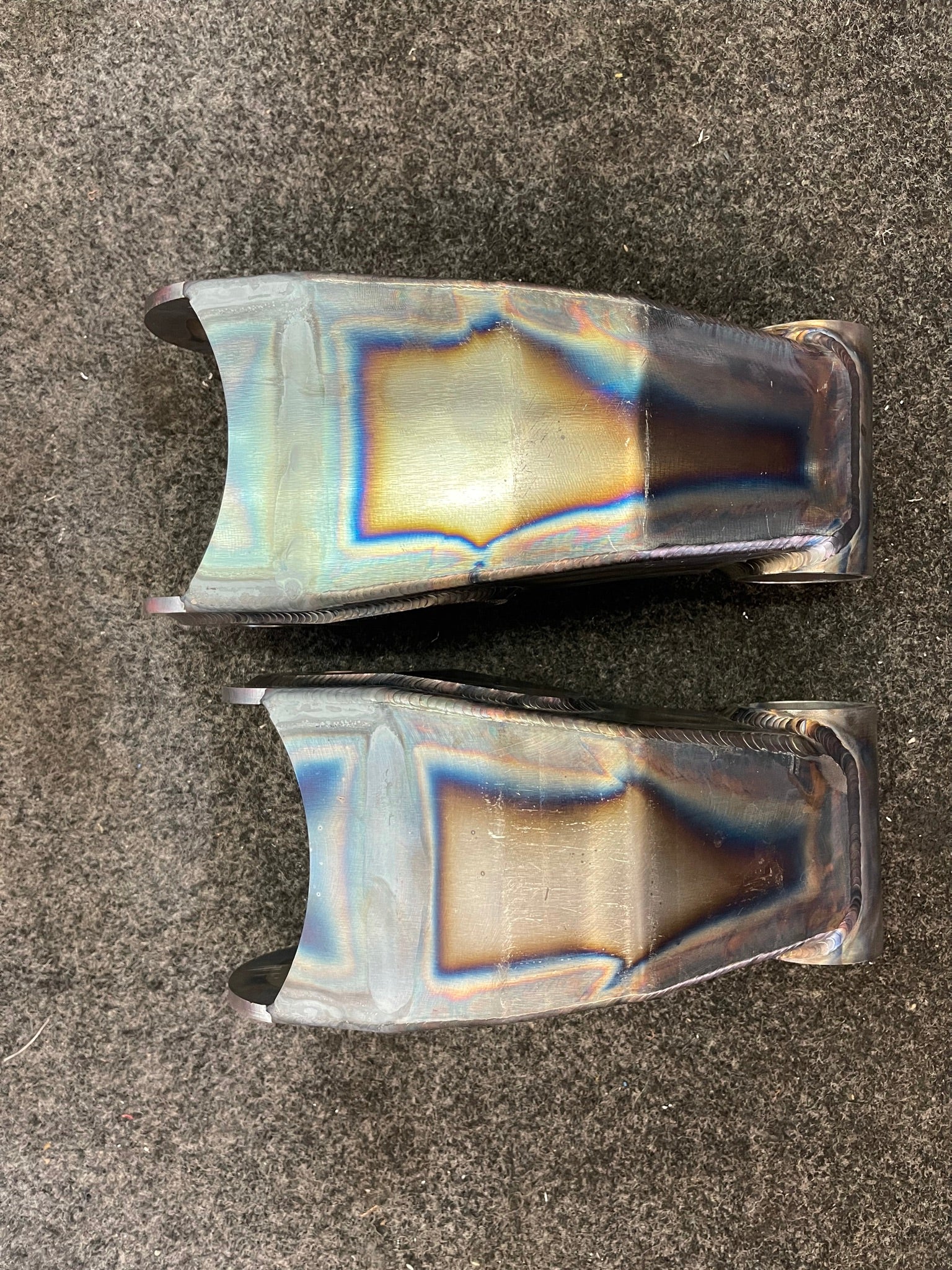

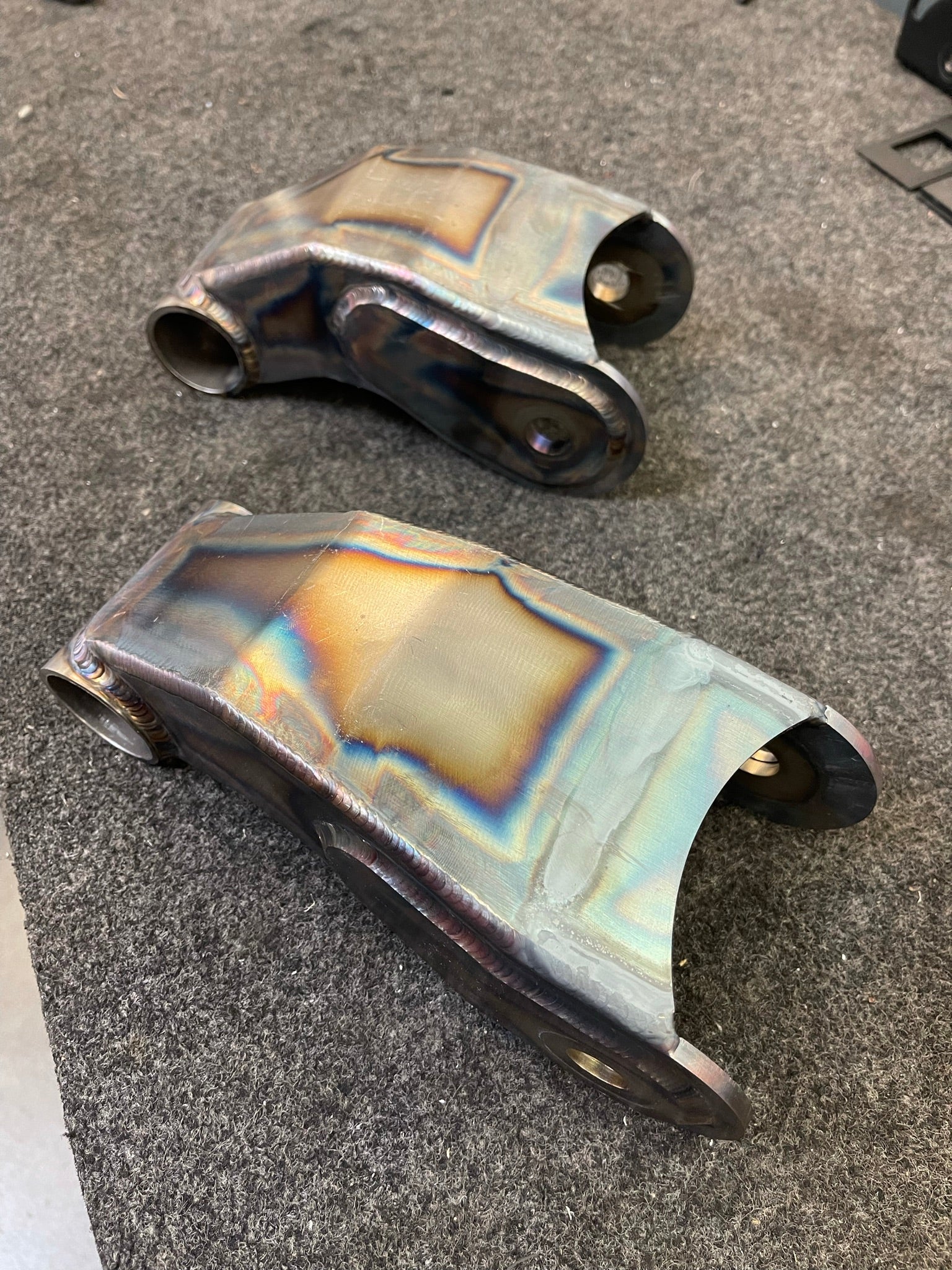

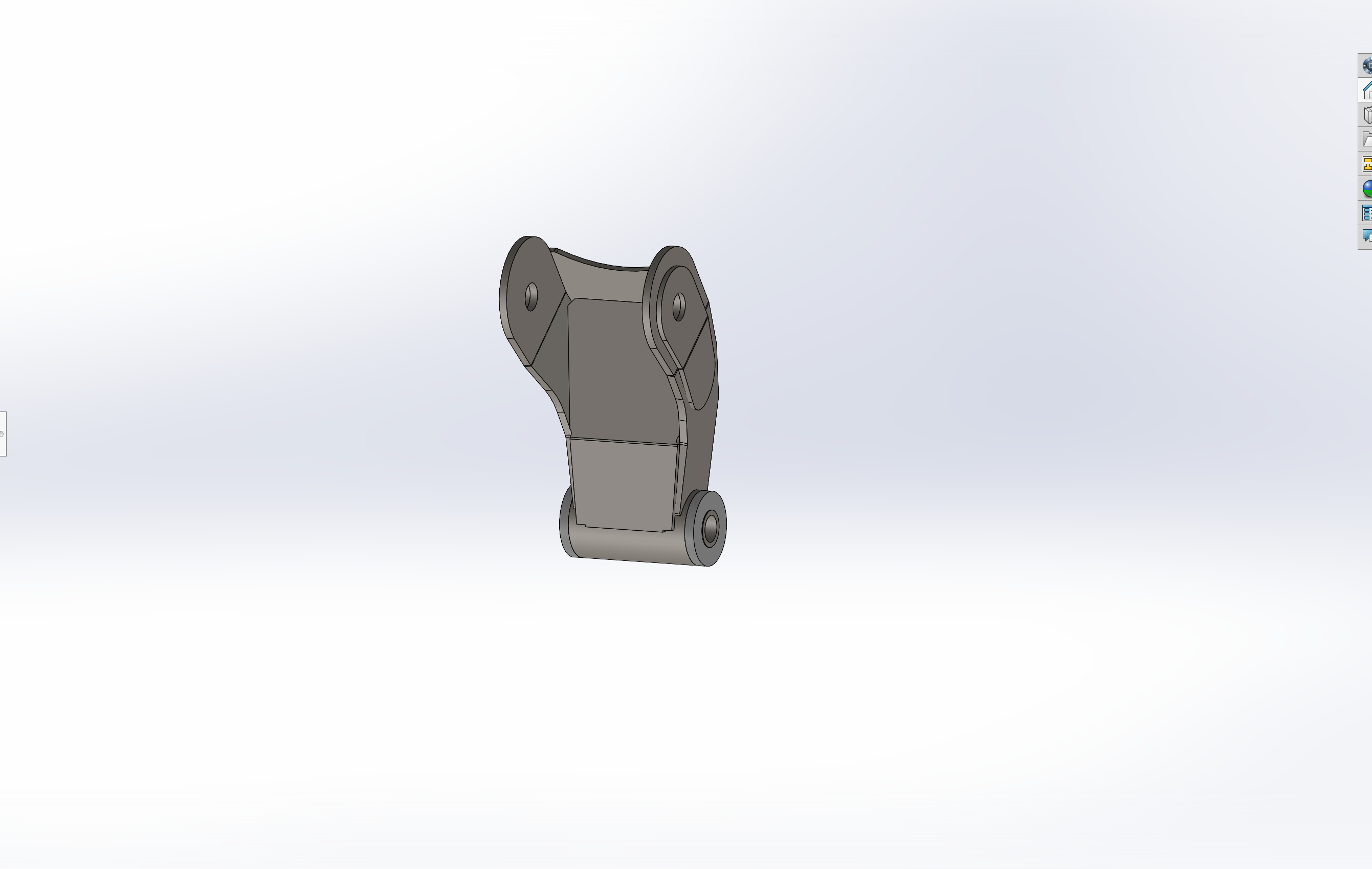

Extended rear leaf spring shackles for the 2010–2014 Gen 1 Ford Raptor, built from 4130 chromoly, boxed, strapped and MIG welded. Offered in 6" and 7" extended lengths to set the rear ride height you want.

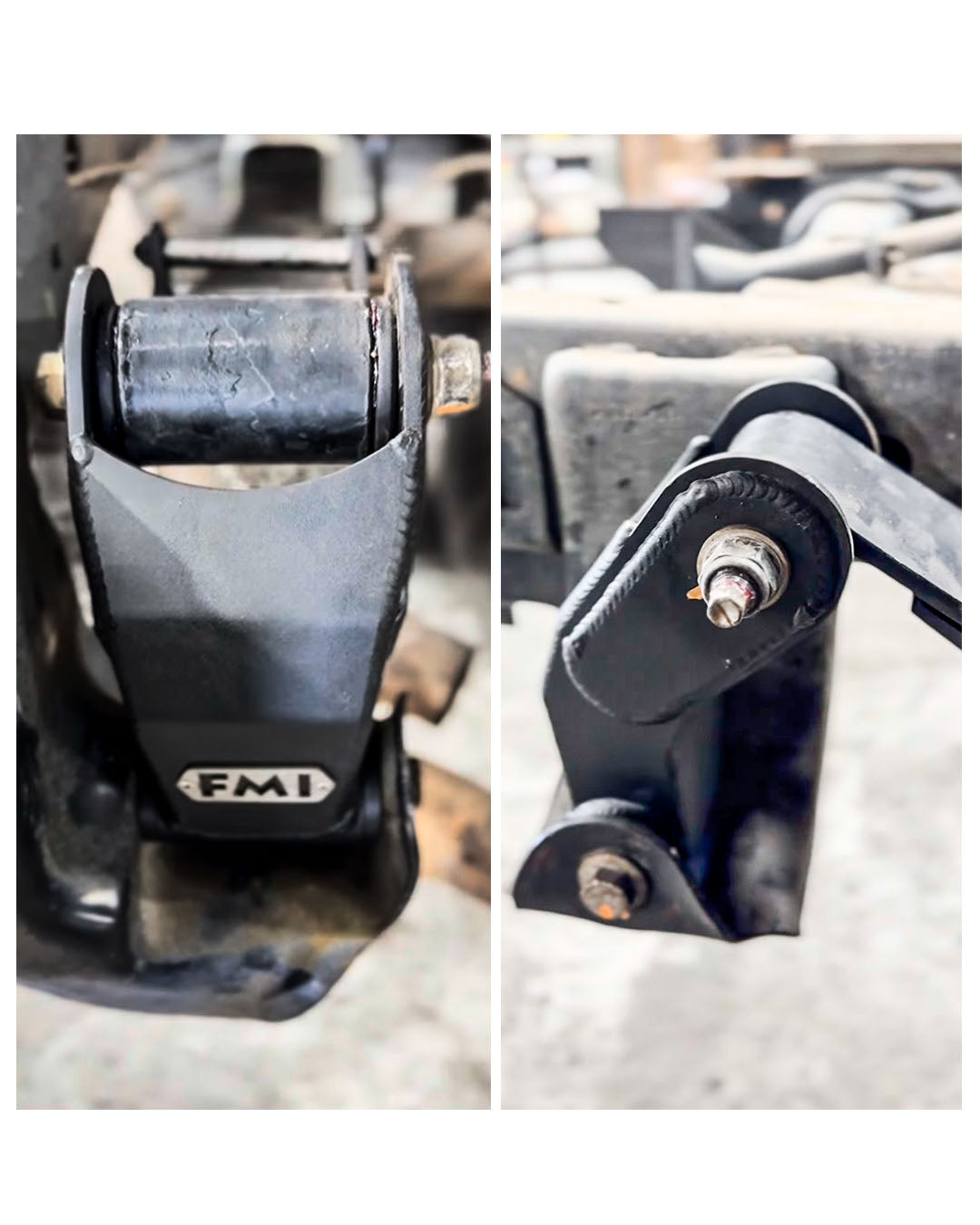

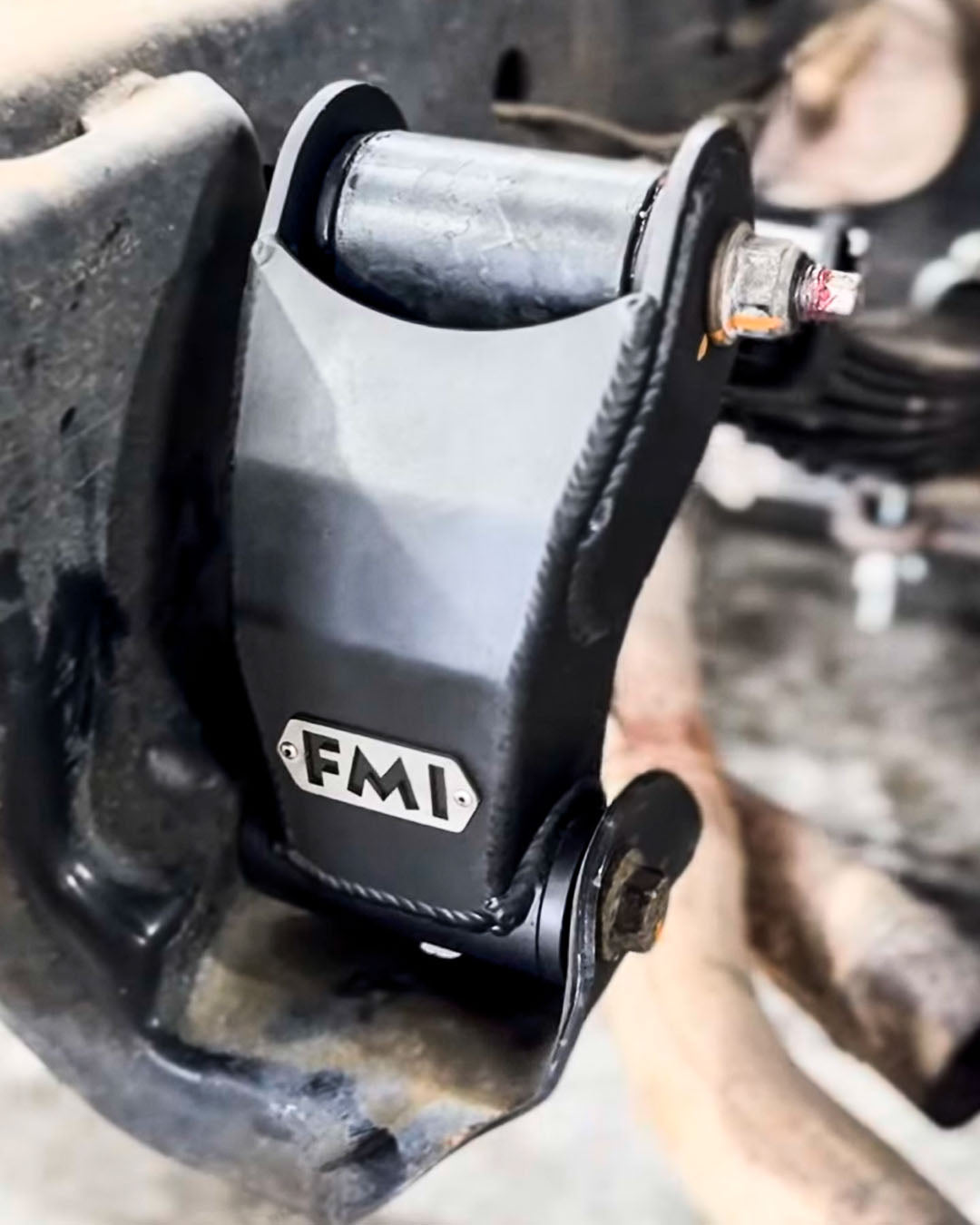

The shackle is the swinging link at the back of each leaf spring, and it sees load every time the rear suspension moves. These replace the factory shackles with a stronger part sized for off-road use.

Why Upgrade The Rear Shackles

As a leaf spring compresses it gets longer, and the shackle swings to let it. That makes the shackle a working part of the rear suspension, carrying the weight of the truck and every impact from the rear axle.

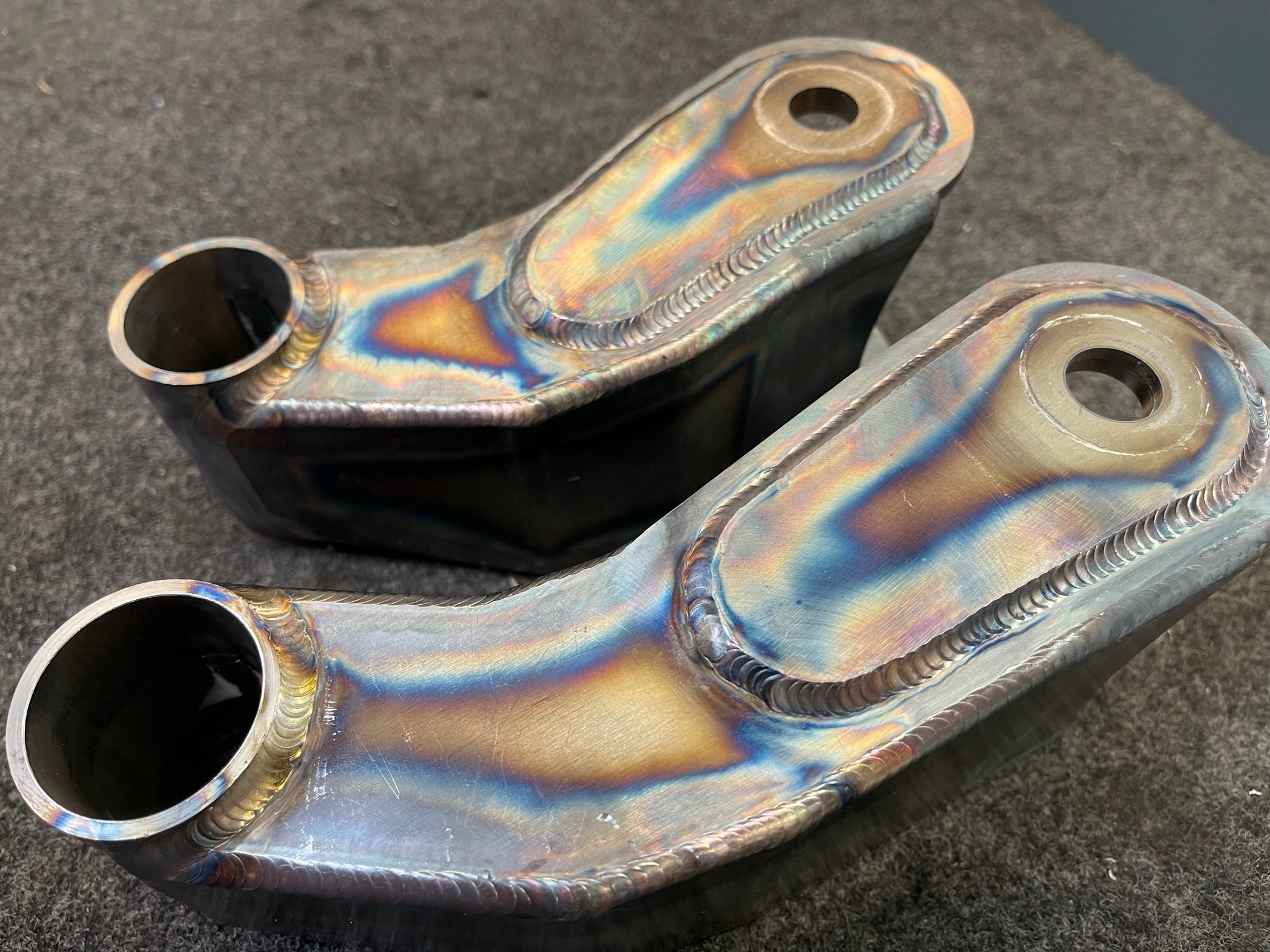

A boxed and strapped chromoly shackle resists twisting and bending under that load. Shackle length also sets where the rear of the truck sits, which is why these come in two extended lengths.

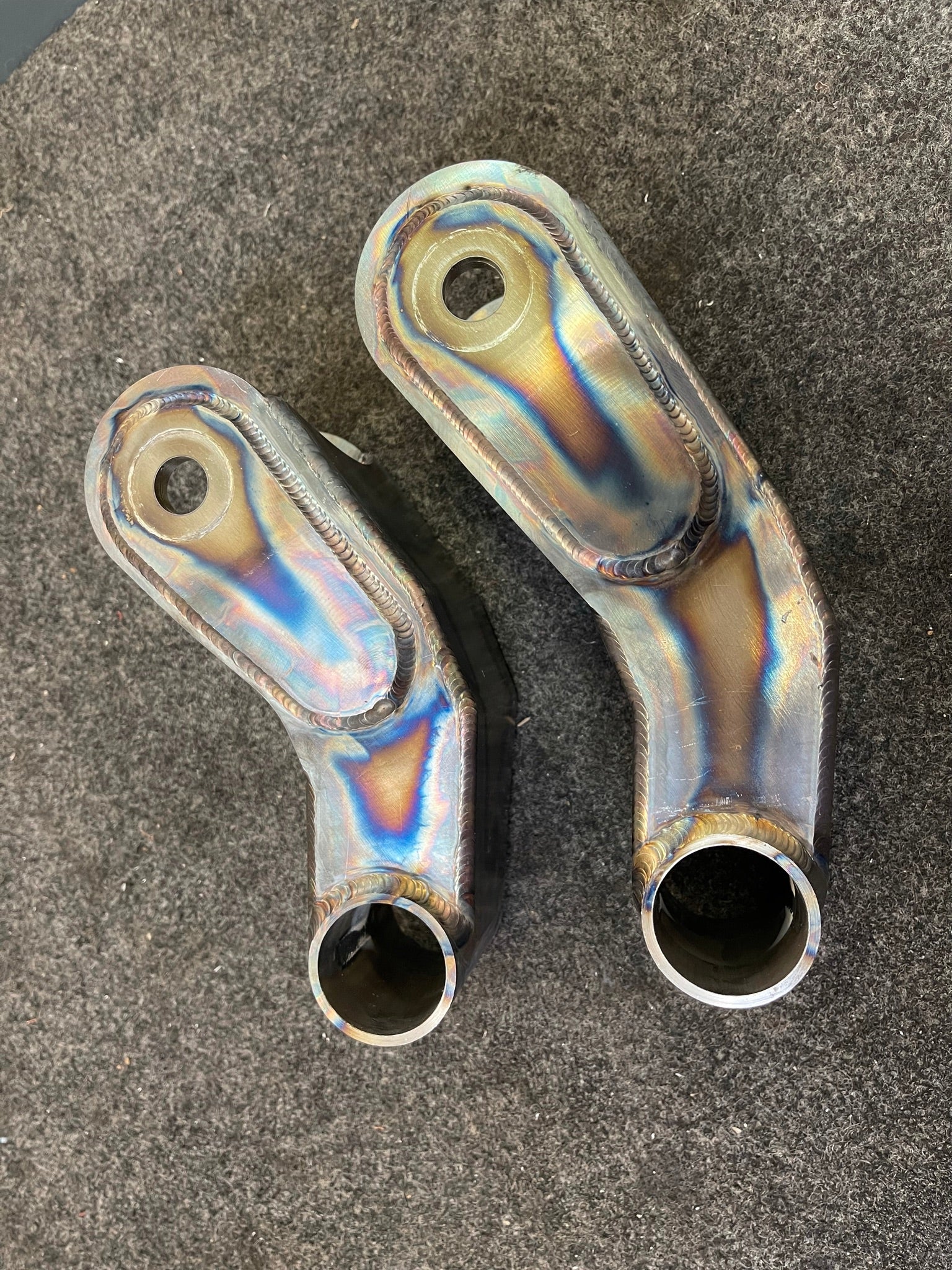

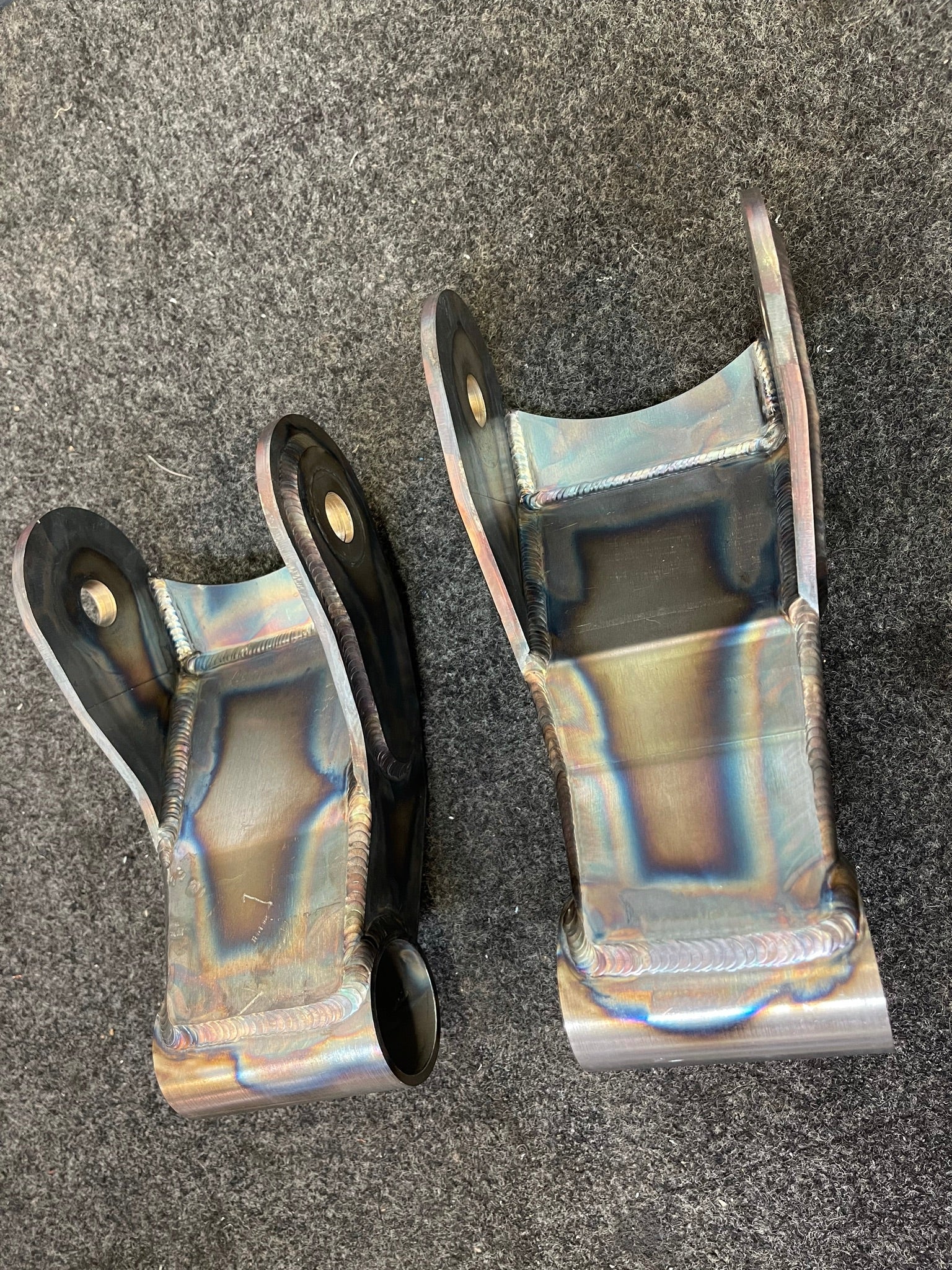

How It Is Built

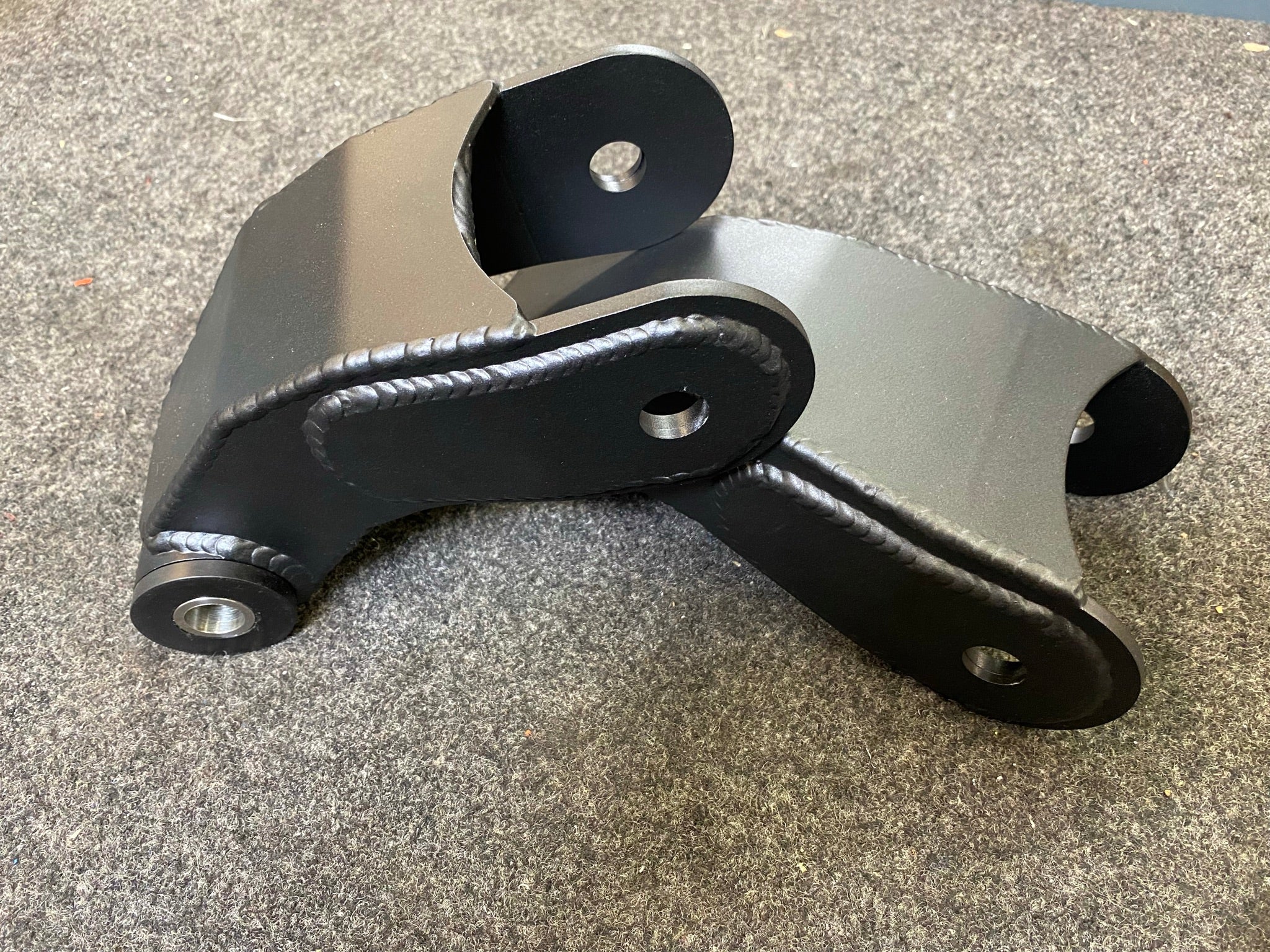

  • 4130 chromoly construction
  • Boxed and strapped design for additional strength
  • MIG welded
  • Delrin bushing with a zinc plated steel sleeve, to help prevent corrosion while keeping suspension movement smooth in harsh conditions
  • Black hammer texture powder coat

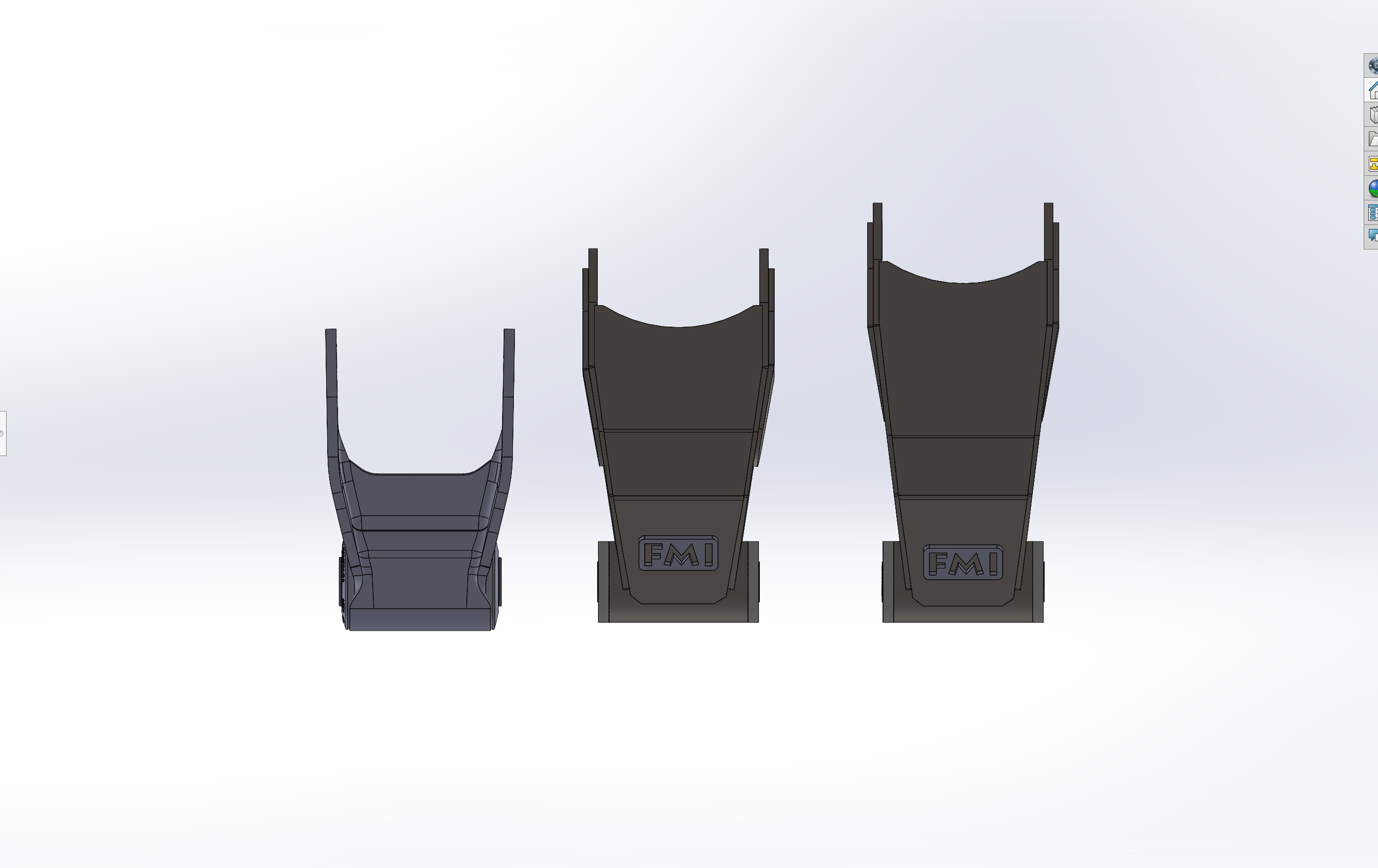

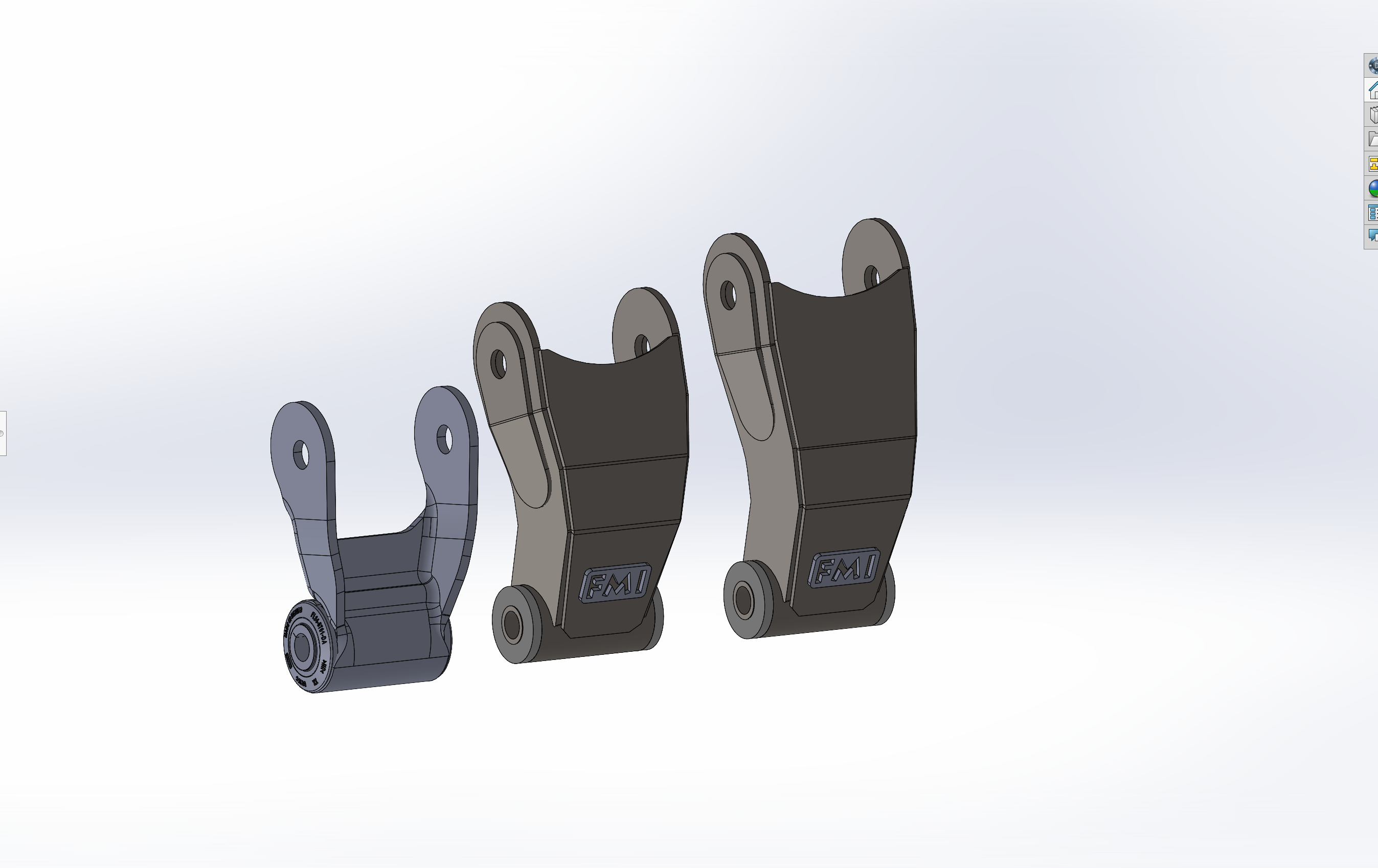

Lengths And Ride Height

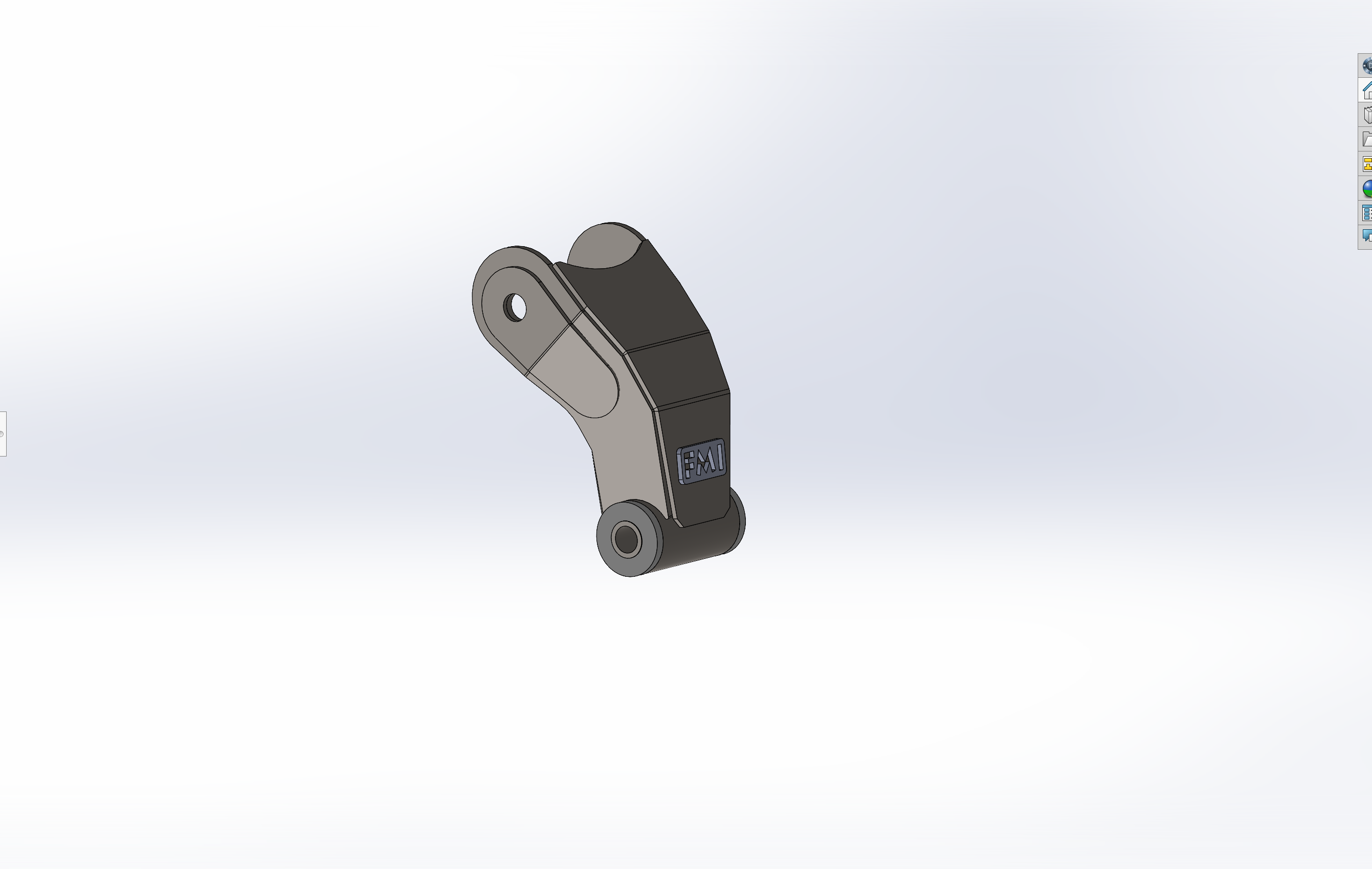

  • 6" extended shackle: lowers rear ride height approximately 1"

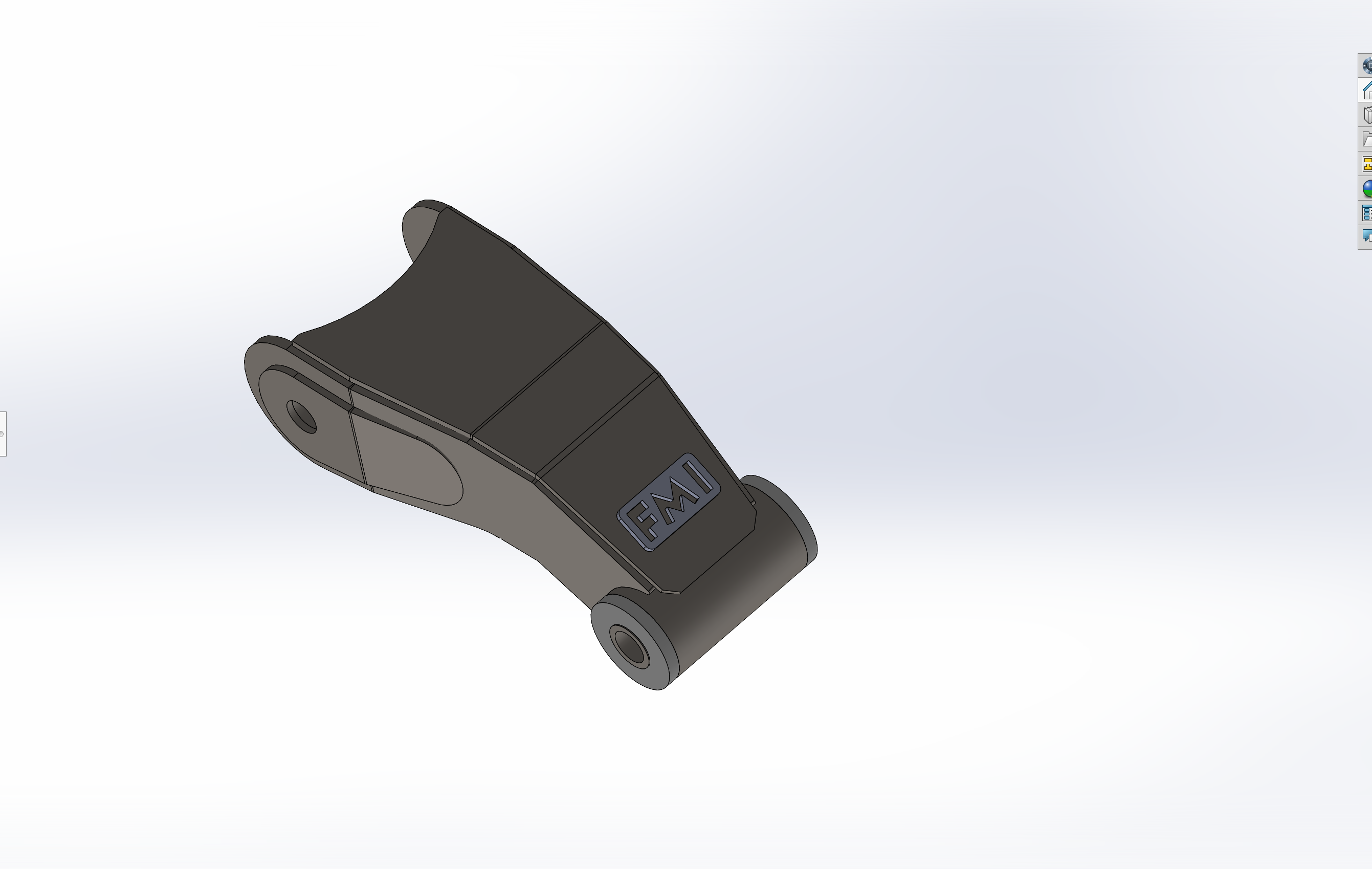

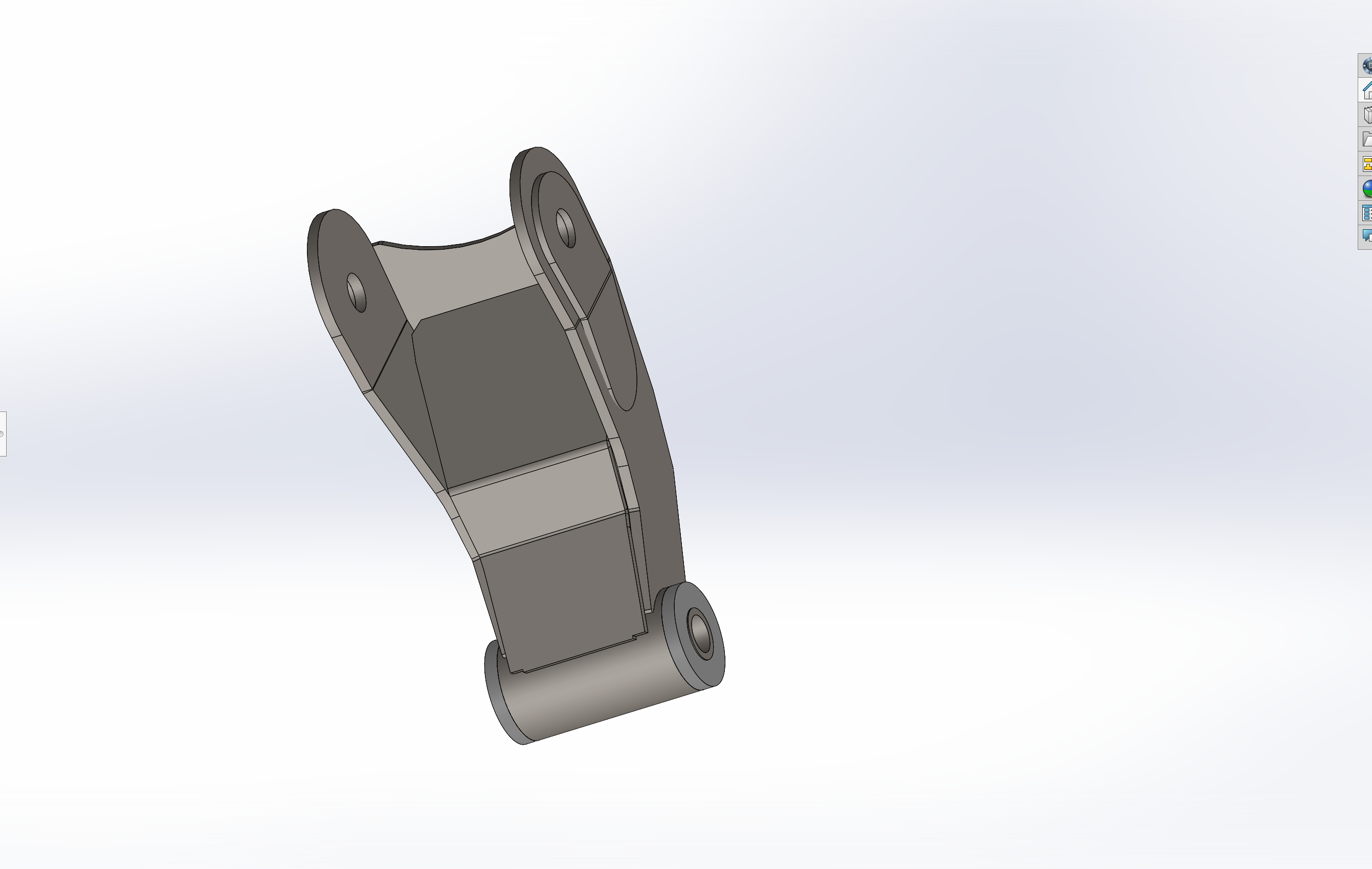

  • 7" extended shackle: lowers rear ride height approximately 2"

Not sure which length suits your build? Contact FMI and we will talk it through.

Fitment

Fits the Gen 1 Ford F-150 Raptor, model years 2010–2014. Also compatible with F-150 to Raptor conversion builds.

Designed to work with the factory rear springs, Deaver springs and ICON springs.

Suited to daily-driven and high-performance off-road Raptors. They pair especially well with the Foutz Motorsports bed cage and an 18" travel shock setup to help make the most of the available suspension travel.

Installation

The 7" extended shackle may require minor clearancing of the leading edge of the under-bed cross support. Depending on bed alignment, slight contact with the corner of the crossmember may occur.

Questions

What are they made from?

4130 chromoly, boxed and strapped, MIG welded and finished in black hammer texture powder coat.

Which length should I choose?

The 6" shackle lowers rear ride height about 1", the 7" about 2". The 7" may need minor clearancing at the under-bed cross support.

Will they work with my springs?

Yes, if you run the factory rear springs, Deaver springs or ICON springs. The shackles are designed to fit all three.

Will the 7" shackle need any modification?

Possibly. It may need minor clearancing of the leading edge of the under-bed cross support, and depending on bed alignment it may lightly contact the corner of the crossmember.

Foutz Motorsports Shackles by Foutz Motorsports - MIG Welded 2010-2014 Ford F-150 SVT Raptor

Foutz Motorsports
SKU: FMI050013920130101
$ 299.99
Sale price  $ 299.99 Regular price

Loading addons…

Quantity:
