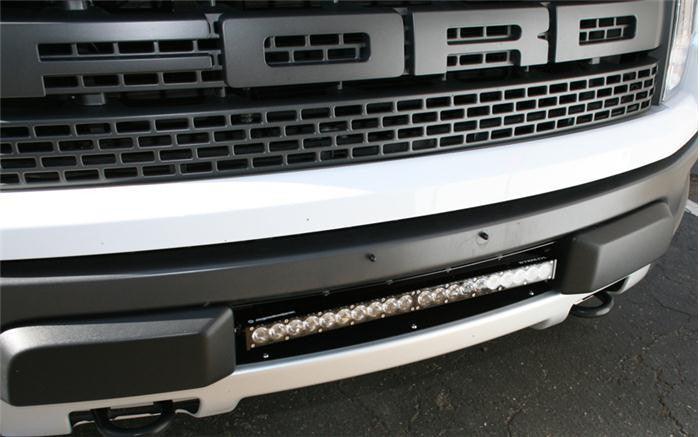

This OEM Ford Raptor / F150 Mount Kit will give your truck the clean, sleek look that so many strive for. This kit only fits either a 2010-2014 Ford Raptor F-150 and 2009-2014 Ford F-150.
Note: Trimming is required on this kit
Baja Designs Features:
- Satisfactions Guarantee -30 Day Money Back Guarantee
- Limited Lifetime Warranty - Complete Purchase Protection
- uService - Replaceable Lenses And Optics
- ClearView - All The Light, Right Where You Need It.
- MoistureBlock- Waterproof, Rain Proof, Submersible
- CopperDrive - Only LED Driven At 100 percent
- 5000K Daylight - Less Driver Fatigue, Natural Color
Specifications:
- Lumens: 12,700 Utilizing 16 Cree LEDs
- Wattage/Amps: 120W / 8.00A
- Dimensions: 20 inch x 3 inch x 1.6 inch
- Weight: 4.5 lbs
- LED Life Expectancy: 49,930 Hours
- Front Lens: Hard Coated Polycarbonate
- Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
- Bezel: Billet Machined Aluminum
- Hardware and Bracket Material: Stainless Steel
- Exceeds MIL-STD810G (Mil-Spec Testing)
- Built-In Overvoltage Protection
- IP69K (Waterproof up to 9ft and Pressure Washable)
- IK10 Compliant (Mechanical Impact Testing)
- (S8 Patent D780,964)

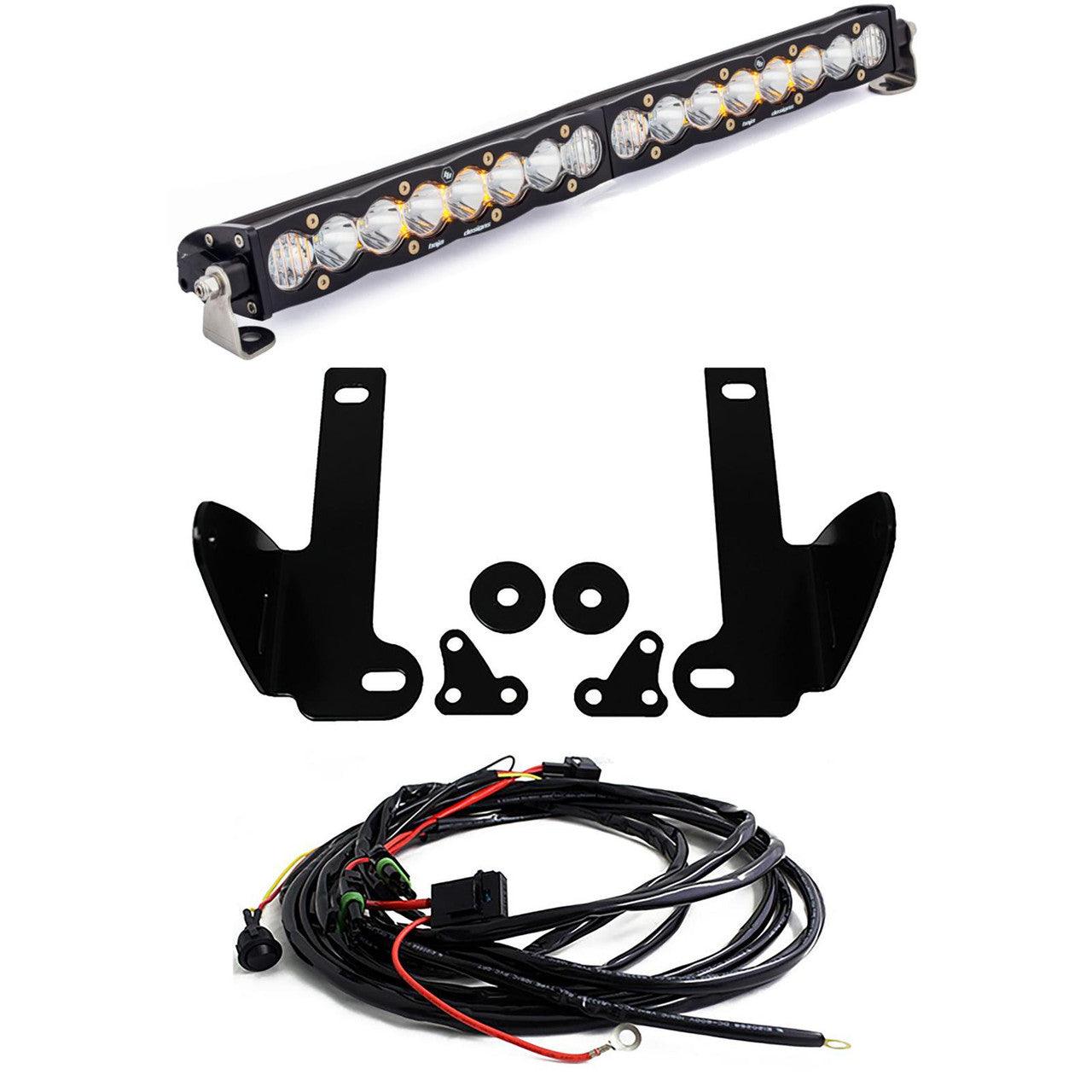

Includes:
- x2 OEM Ford Raptor Mounting Brackets
- x1 S8, 20 inch Driving/Combo LED Light Bar
- Wiring Harness with Toggle Switch
- Hardware
Application:
2010 - 2016 Ford Raptor F-150
2010 - 2014 Ford F-150
Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42 degree) and spot (9 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2)
Spot: A longer and narrower 9 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5)
