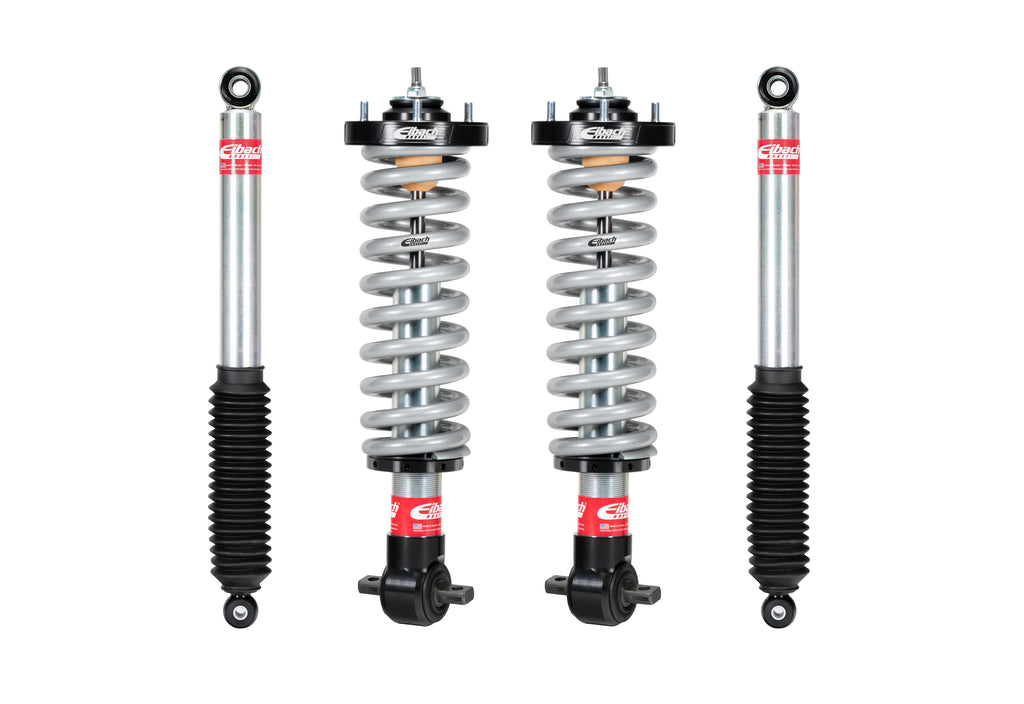

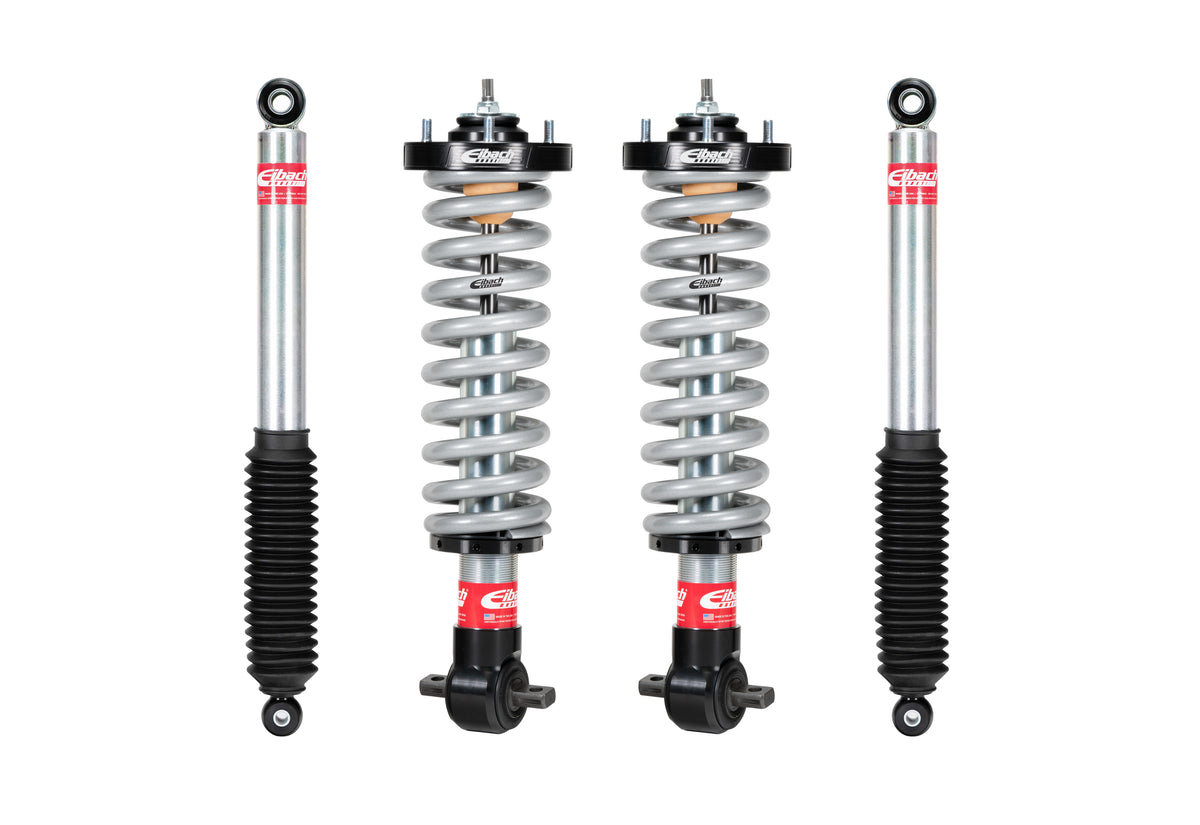

The PRO-TRUCK-LIFT STAGE 2 System shares the same rear components (lift springs, sport shocks, air bag delete) as our STAGE 1 system with an upgrade in adjustability up front. The front 2.0 coilovers were developed utilizing our extended-travel mono tube design and variable force valving that delivers control during on-road transit and compliance for maximum traction on the trails.
Features
- Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks.

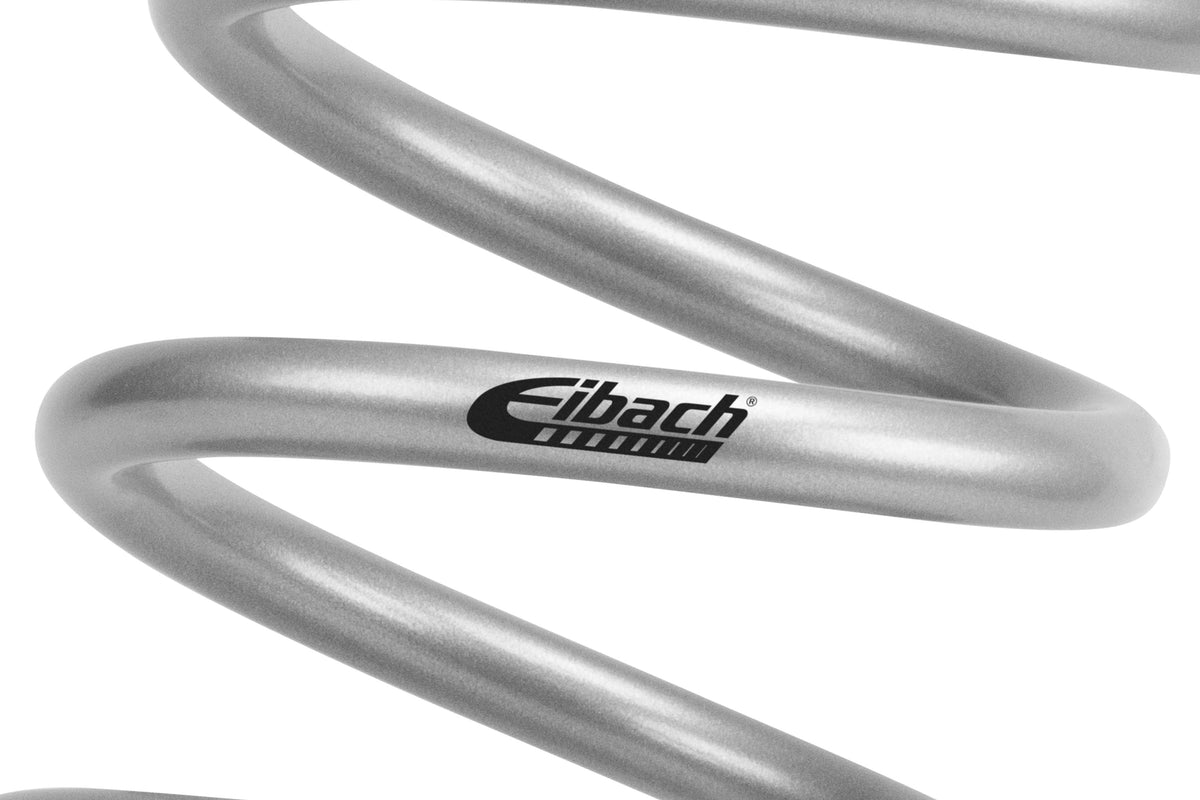

- Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
- Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
- Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
- Engineered, Tested and Manufactured by Eibach in the U.S.A.
Fitment notes
- Front +0-2.9, Rear +0-1.5 in., Forged aluminum, forged Steel, or upgraded aftermarket control arms highly recommended for trucks equipped with stamped steel control arms from the factory.
- Trailboss and AT4 trims will need to be adjusted to get to OE height (About +7mm o.
- Front +0.4 in - +2.6 in, Rear 0-1.5 in., Forged aluminum, forged Steel, or upgraded aftermarket control arms highly recommended for trucks equipped with stamped steel control arms from the factory.
- Trailboss and AT4 trims will need to be adjusted to get to OE height (About +7mm of preload).
- Front +0.4 in front.
Installation instructions (PDF)
