The E-CLIK Integrated Lighting Control is a seamless add-on for E-CLIK letting you control your rig’s lighting from the E-CLIK ergonomic touch screen, eliminating the need for a separate light controller. It supports most standard lights (light bars, pods) allowing you to adjust brightness and strobing effect.

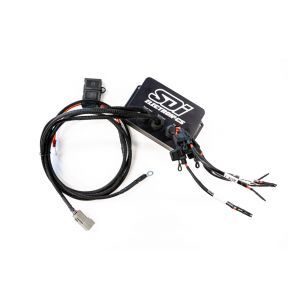

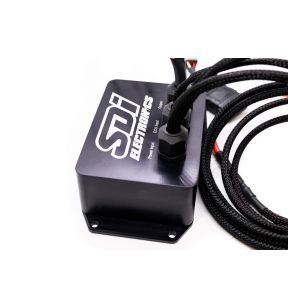

E-CLIK ILC is IP67 rated, featuring an O-ring sealed relay enclosure with mil-spec deutsch connectors. The enclosure also features 4 – 30-amp relay output channels. You’re able to adjust strobing & brightness on each channel.
E-CLIK ILC is available to existing E-CLIK installations, requiring a replacement main harness & update to the ECU/Touch Screen.
Features:
- Integrates seamlessly into the E-CLIK System
- Control lighting through an expanded menu within the E-CLIK Touch Screen
- 4 relays channels (12V, max 30A each)
- 3 modes for each channel: ON, OFF and STROBE
- Works with any standard light
- IP67 Rated - O-Ring Sealed Aluminum Enclosure
- Compatible with all existing ECLIK systems
- ECU and Touch Screen Update is required for current ECLIK users
- SDI-ESA-2241008 PRO+ILC ECU Main Harness Required to provide additional connections for the Relay Box and Rock Lights
Optional features:
- Control of KC RGB Rock Lights: ON, OFF, Color Selection, and Brightness adjustment.
- Requires purchase of SDI-ESA-2241009 KC Rock Lights to ECLIK Adapter (1x Adapter for 3x Rock Lights, 2x Adapters max)
