Overview
Introducing the Stage Series C2R LED Pod! Building on the versatility of the original C1R the C2R features upgraded performance in a compact dual-LED package. It delivers triple-function output with a high-power white main beam a high-power red output and a low-power red accent light ideal for reverse lighting 4th brake light applications or rear accent lighting.
Triple Function. The Stage Series C2R LED pod features a cool white main beam along with a high-power red main beam and low-power red accent light that can be activated independently. The C2R was designed to serve as a high-power reverse light along with your factory reverse lights a 4th brake light when your brakes are applied and a secondary running light with your taillights.
Functional Output. All Stage Series beam pattern options were designed with optical simulation modeling to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are there is a Stage Series optic for you!
Simple connections. All C2R LED pods feature a custom-molded DT-type Deutsch-style connector on the back and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red the red wire powers the white main beam the blue wire powers low-power red and the black wire is ground.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F along with vibration moisture intrusion and corrosion testing. All of these tests are completed to SAE standards just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

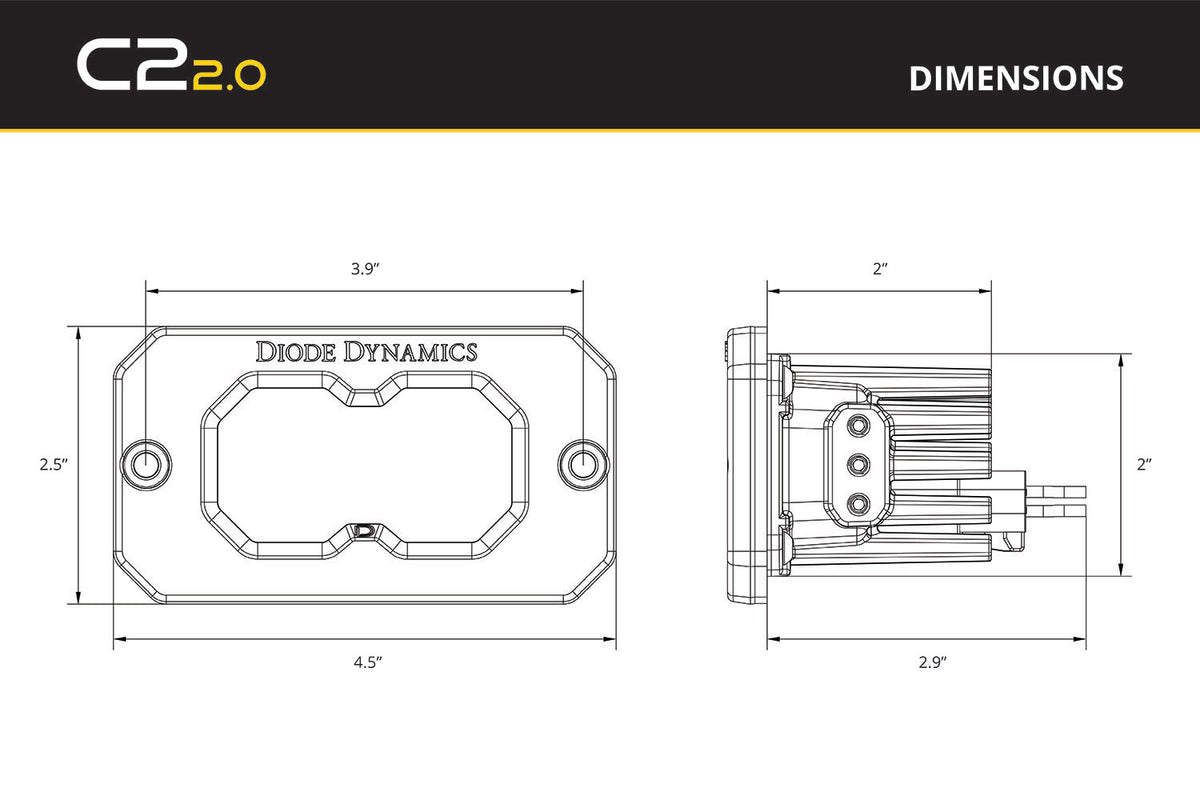

Compact dual-LED form factor

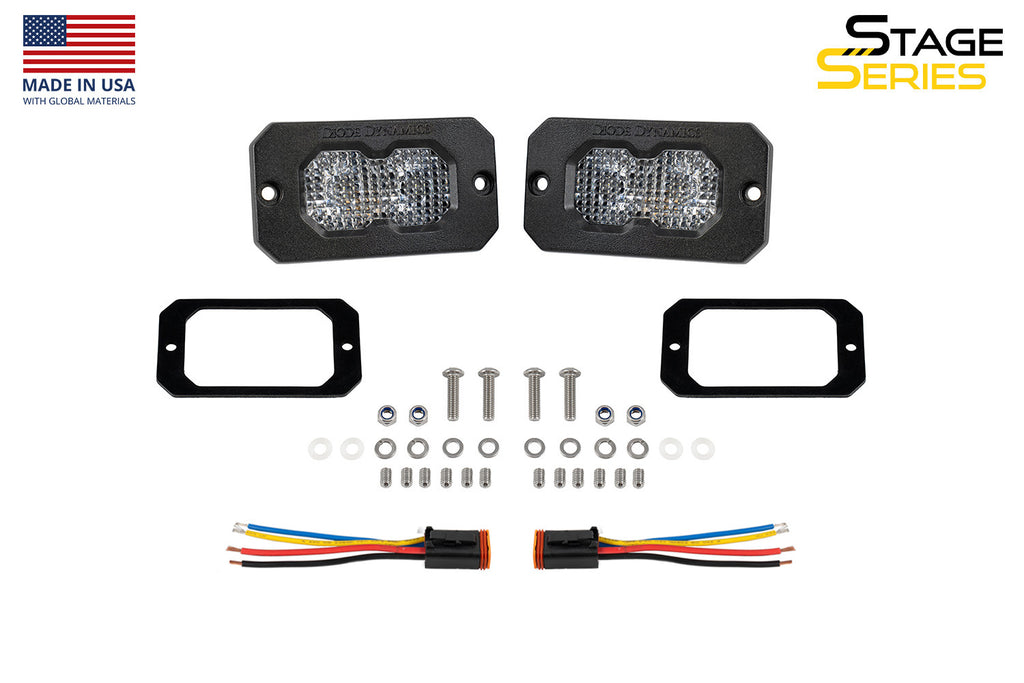

Included in the box:
- Two (2) Stage Series C2R LED Pods
- Two (2) Deutsch-style wire pigtails
- Two (2) Mounting brackets and hardware
