TAKING THE EXCEPTIONAL VALUE OF THE ORIGINAL CVF TITAN INTERCOOLER ONE STEP FURTHER
While our original CVF Titan Intercooler is unmatched when it comes to performance for your hard-earned buck, the Titan v2 takes performance a step further by featuring a 27% larger core, eliminating the cold side coupler connection, and introducing a condensation drain on under the cold side end tank. The advanced design not only allows for better cooling than the already exceptional 40+ degree Charge Air Temperature (CAC) reduction proven by the CVF Titan (data charts are on the product page for the original CVF Titan here) but also seamless installation on 15+ F-150 EcoBoost models.
LESS HEAT, MORE POWER
Improve the performance of your EcoBoost F-150 by replacing the small, inefficient stock intercooler to reduce heat and produce more power. This intercooler is a direct fit replacement that features a core over 82% larger than the stock unit.
EXCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

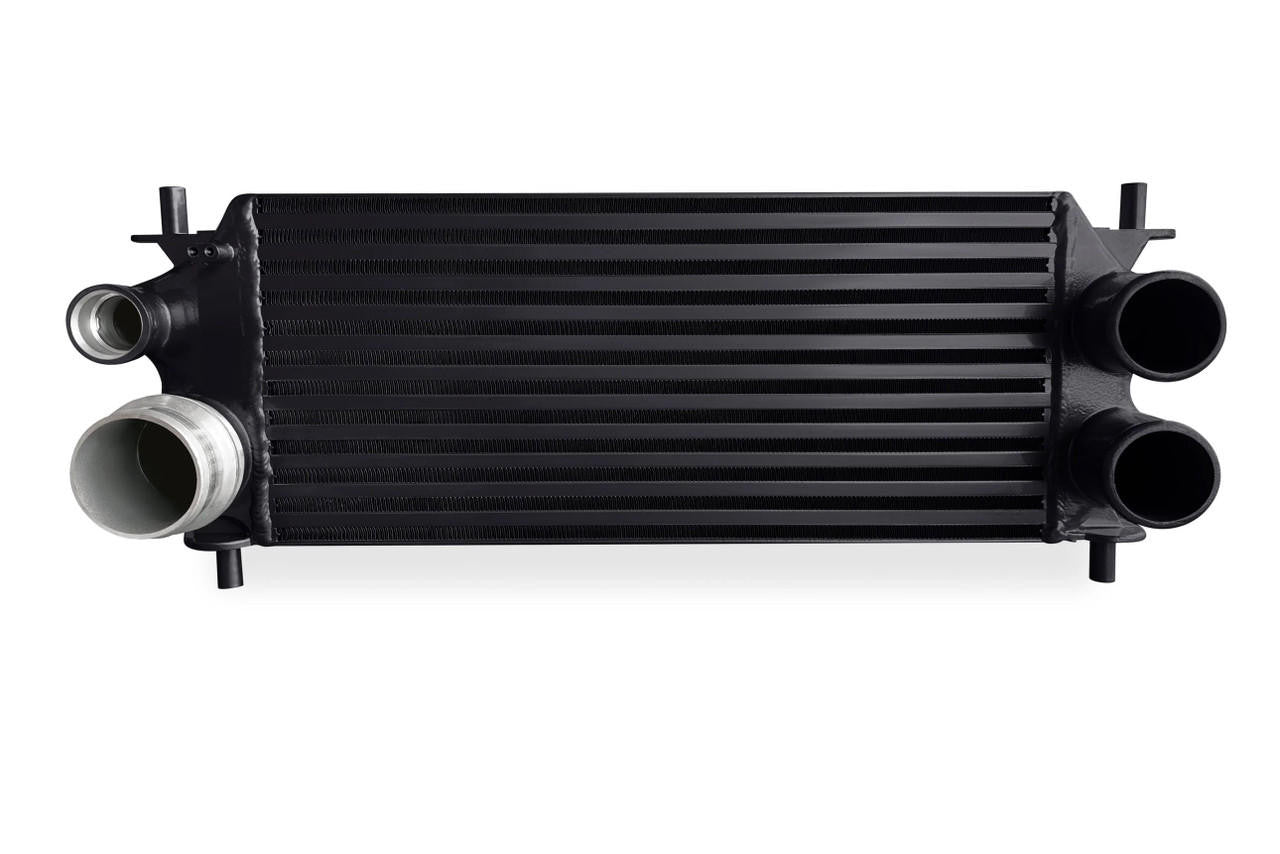

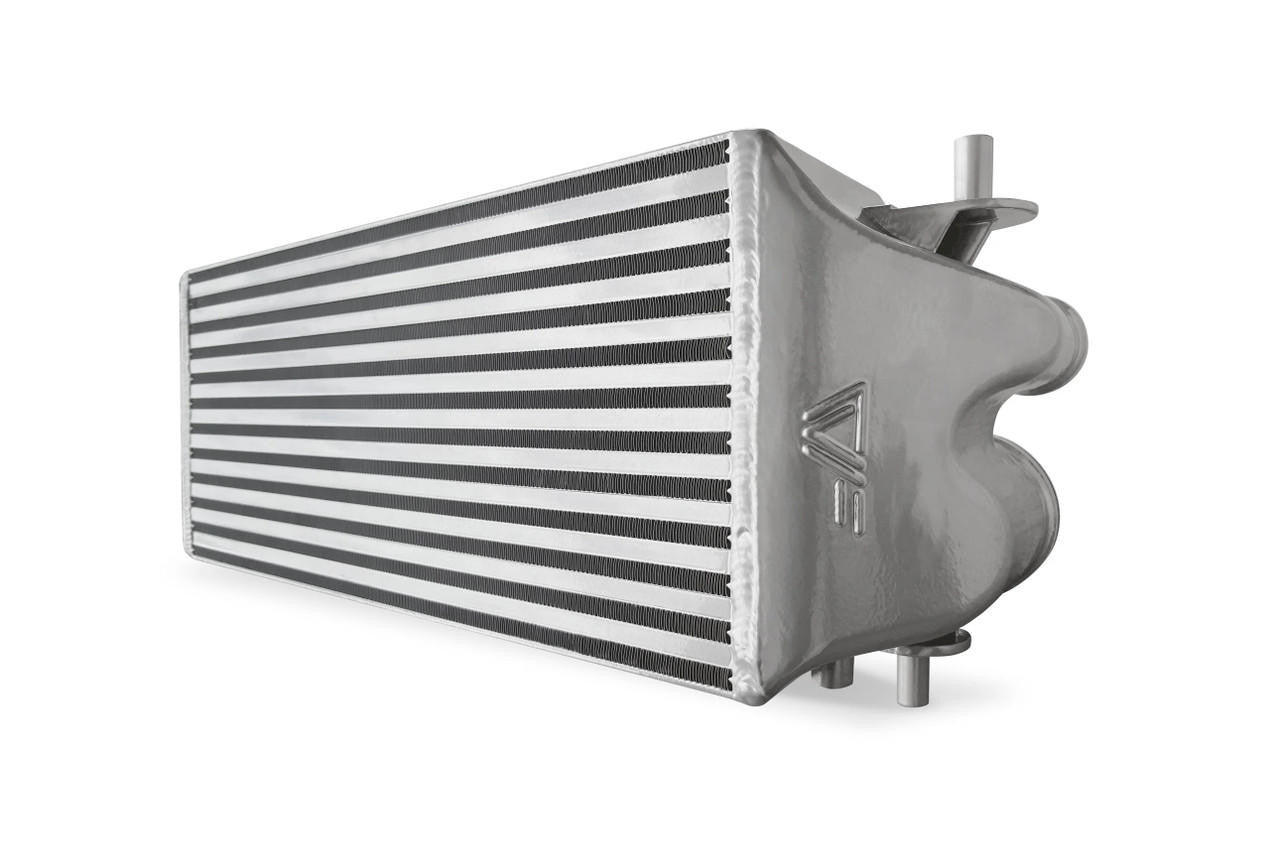

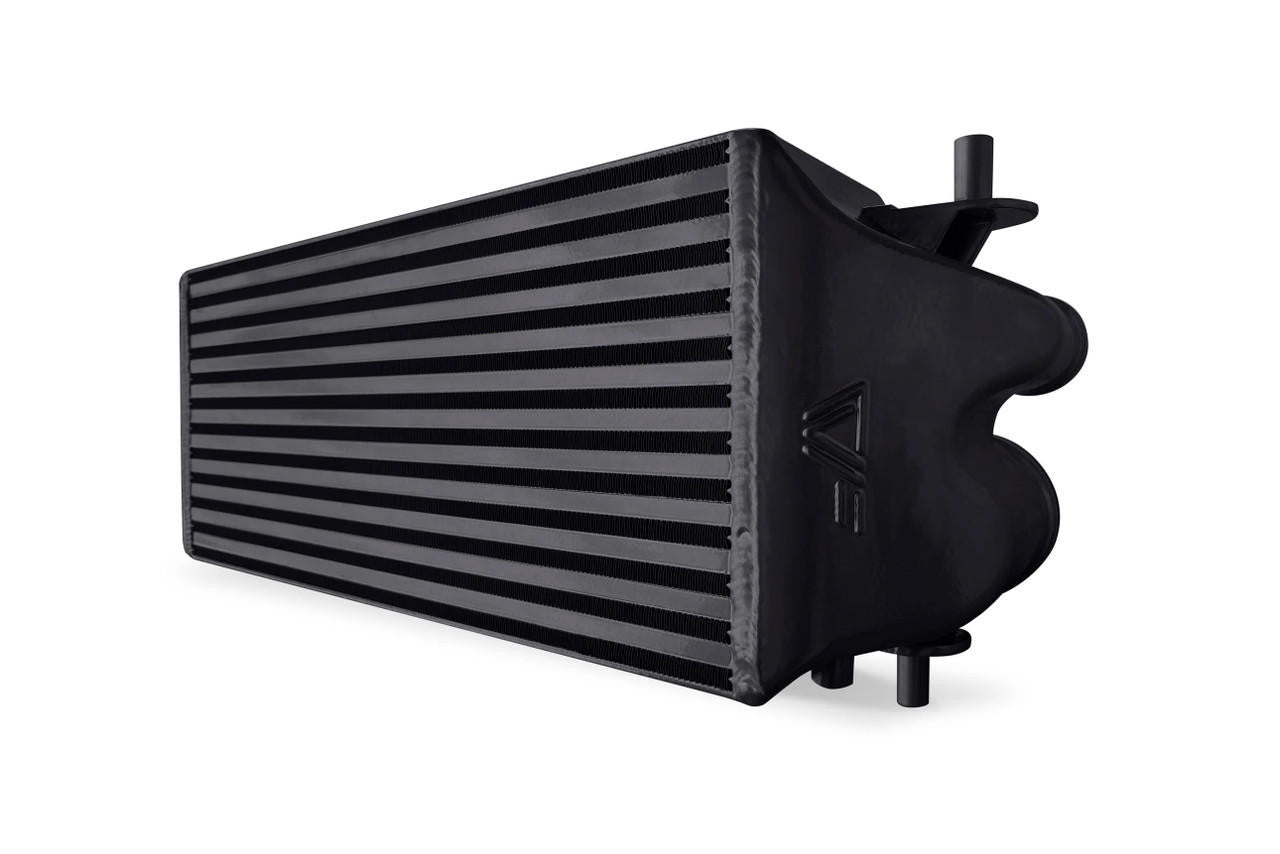

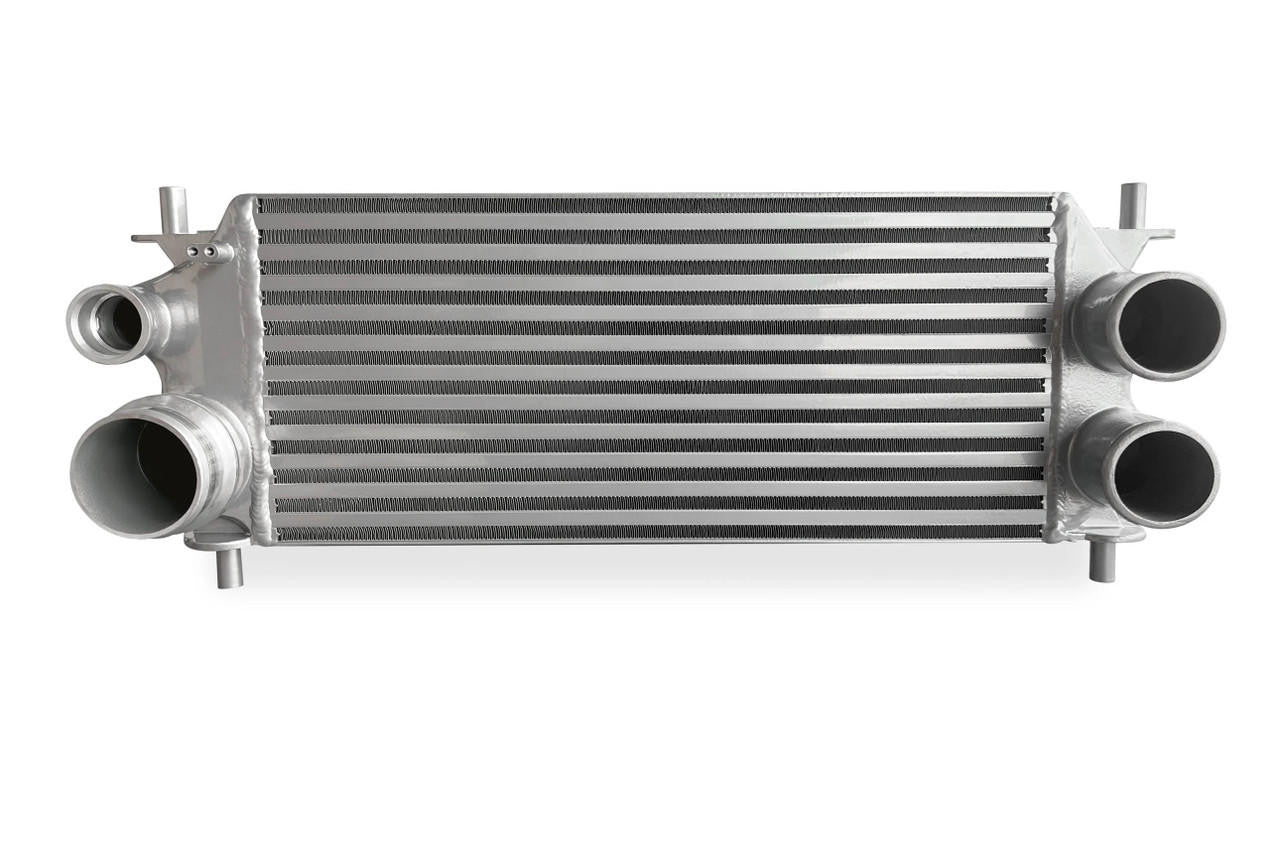

Manufactured from top-grade aluminum, the CVF Titan v2 Intercooler features a TIG-welded proprietary bar-and-plate design for maximum durability and fully cast end tanks (imprinted with the CVF logo) to ensure maximum flow of air into the unit and out to your turbo - equaling more HP.
APPLICATION AND INSTALLATION
This intercooler is specifically designed to fit both the 2015+ EcoBoost F-150 2.7L, 3.5L and Raptor models as well as 2021+ 3.5L PowerBoost models. There is no modification other than AGS removal required to install the intercooler.
- 40+ degree reduction in Charge Air Temperature (CAC) observed in real-world conditions (original Titan featuring similar proprietary core composition)
- Direct bolt-on replacement - no modifications required other than removal of the AGS (active grille shutters)
- Condensation drain on the cold-side end tank allows for seamless draining of built-up fluid
- Over 82% greater core volume than OEM intercooler (21" x 9.43" x 5.32")
- High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum
- TIG-welded bar-and-plate construction
- CVF Lifetime Warranty
