DETAILS
- Same proprietary core technology as original CVF Titan and CVF Titan v2 Intercoolers which featured 40+ degree reduction in Charge Air Temperature (CAT) observed in real-world conditions
- Bolt-on replacement - no modifications required other than removal of the AGS (active grille shutters)
- Over 70% greater core volume than OEM intercooler

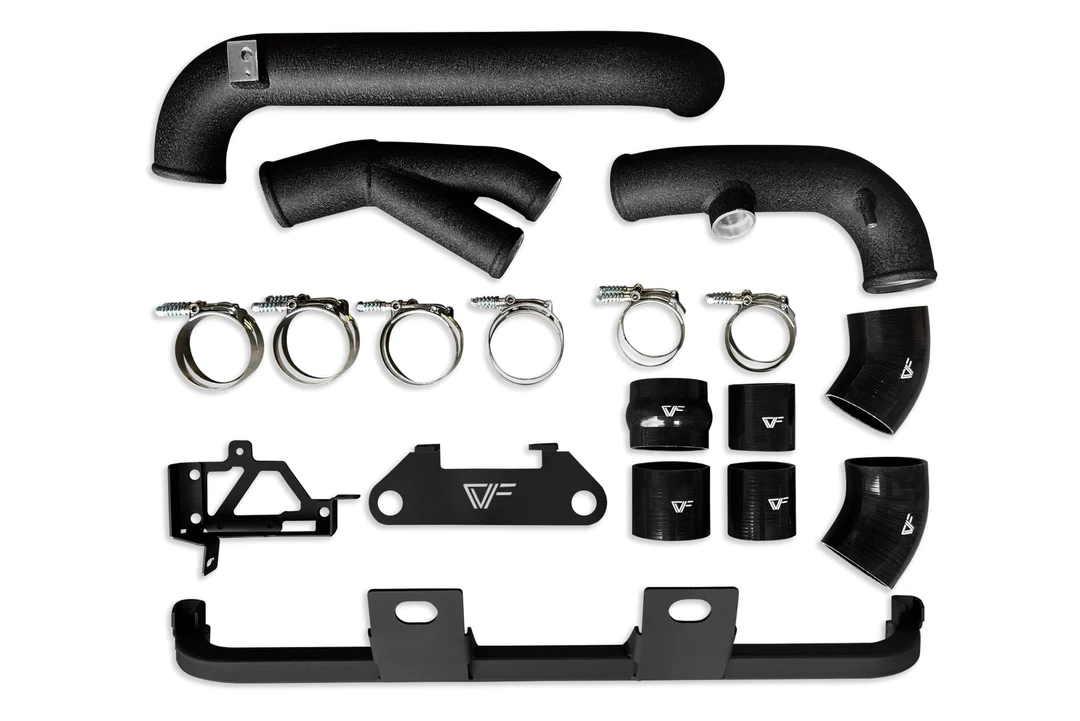

- Includes upgraded aluminum cold-side piping and hot-side relocation kit
- Upgraded 3" hot-side inlet and cold-side intercooler outlets
- High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum alternative
- s TIG-welded bar-and-plate construction
-
CVF Lifetime Warranty
TAKING THE EXCEPTIONAL VALUE OF THE ORIGINAL CVF TITAN AND TITAN V2 INTERCOOLERS ONE STEP FURTHER
While our original CVF Titan and CVF Titan v2 intercoolers are unmatched when it comes to performance for your hard-earned buck, the Titan High Mount takes performance a step further by relocating the intercooler up higher to facilitate the installation of a winch or certain aftermarket bumpers while maintaining the same data-backed, game-changing performance of our original units.
LESS HEAT, MORE POWER
Improve the performance of your EcoBoost F-150 by replacing the small, inefficient stock intercooler to reduce heat and produce more power. This intercooler is a bolt-on replacement that features a core over 70% larger than the stock unit. This intercooler's relocation kit also features upgraded aluminum hot-side and cold-side piping with expanded intercooler outlets (3" on each side). E
XCEPTIONAL CONSTRUCTION FOR MAXIMUM EFFICIENCY

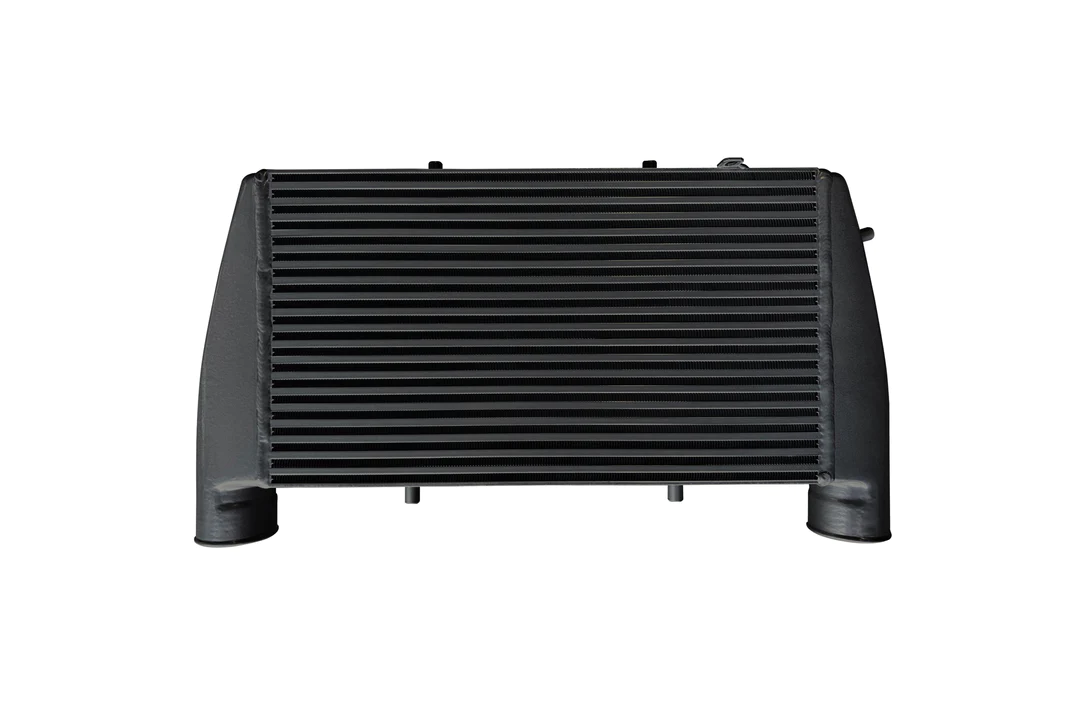

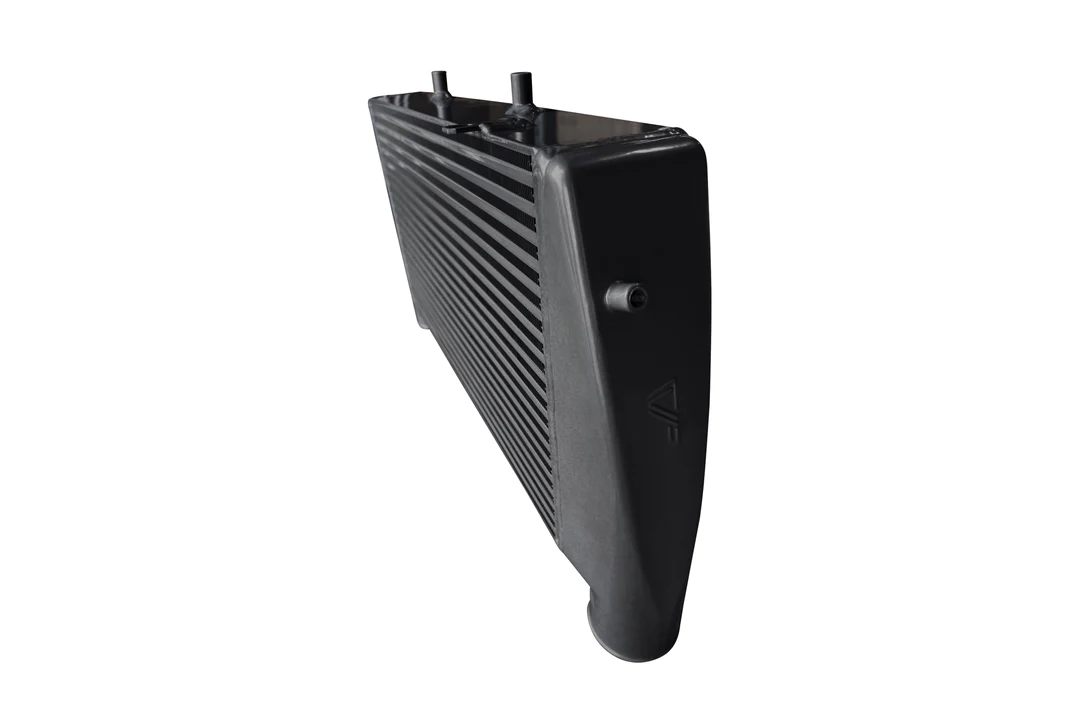

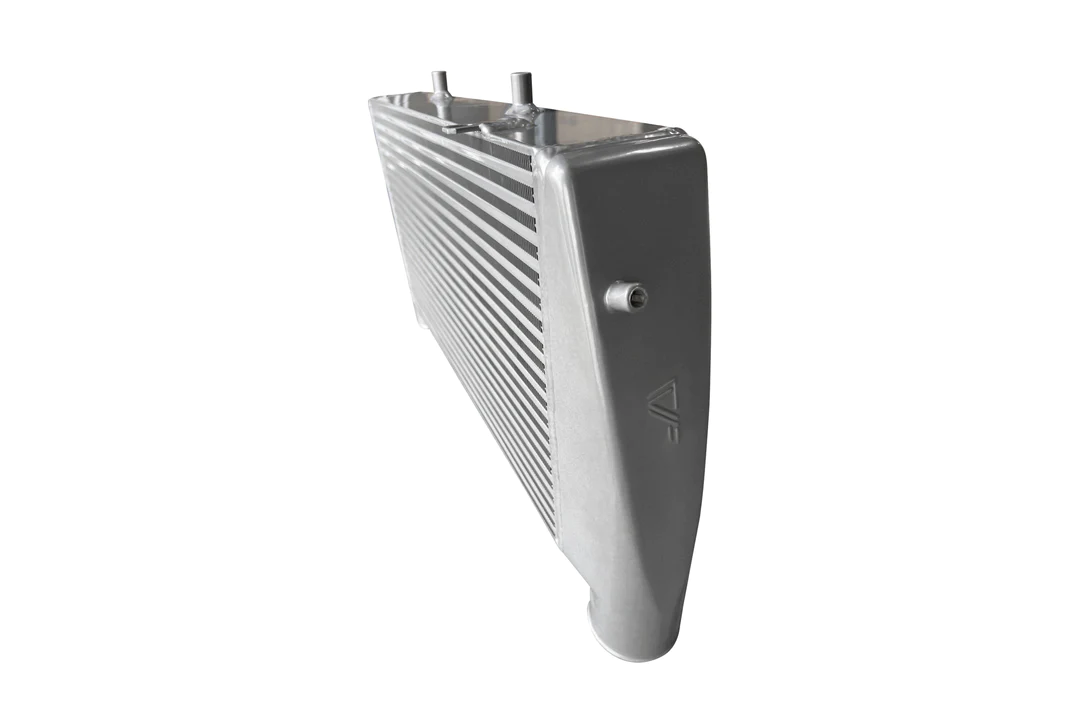

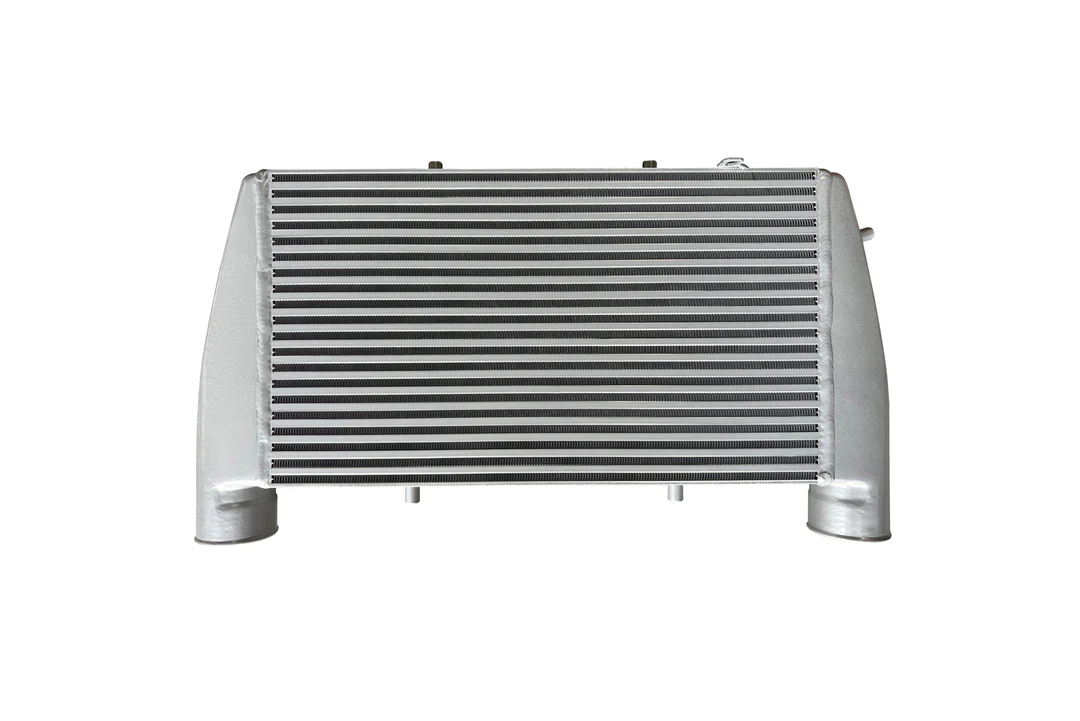

Manufactured from top-grade aluminum and accompanied by upgraded intercooler piping (also aluminum), the CVF Titan High Mount Intercooler features a TIG-welded proprietary bar-and-plate design for maximum durability and fully cast end tanks (imprinted with the CVF logo) to ensure maximum flow of air into the unit and out to your turbo - equaling more consistent airflow and more HP.
APPLICATION AND INSTALLATION
The active grille shutters (AGS) have to be removed for installation. There is no check engine light associated with removal of the AGS and they can be placed back on the vehicle if the intercooler is removed.
This part installs on the following vehicles: 2015-2025 Ford F-150 2.7L/3.5L/Raptor engines
