Description
DESCRIPTION
FITS:
Raptor 2017-2020
F-150 Limited 2019-2020
CHOOSE YOUR TUNING:
Standard ECU Tuning:
The Accessport V3 is the world's best selling, most flexible ECU and TCM upgrade solution for Ford. Unlock power hidden within the vehicle by replacing conservative factory settings with more aggressive calibrations. Upgrade forever with off-the-shelf (OTS) calibrations for most bolt-on modifications. It's the last engine management solution you'll ever need.
Optional - Add TCM Tuning:
This version of the Accessport includes the capability to flash the TCM which is the unit that controls the transmission. It includes various Off The Shelf transmission tunes which adjust shift points, shift firmness, skip shift behavior, and torque limits to fit your preferred driving style.
CHOOSE YOUR INTAKE:
Optional - COBB Cold Air Intake:
The COBB Intake for the second generation Ford Raptor checks every box that enthusiasts expect from a high-quality bolt on upgrade. The factory piping from the air-box is replaced with dual 3" mandrel bent aluminum tubing to maximize airflow while custom silicone couplers ensure perfect OEM-like fitment.No Aftermarket Intake. This will use your OEM cold air intake.

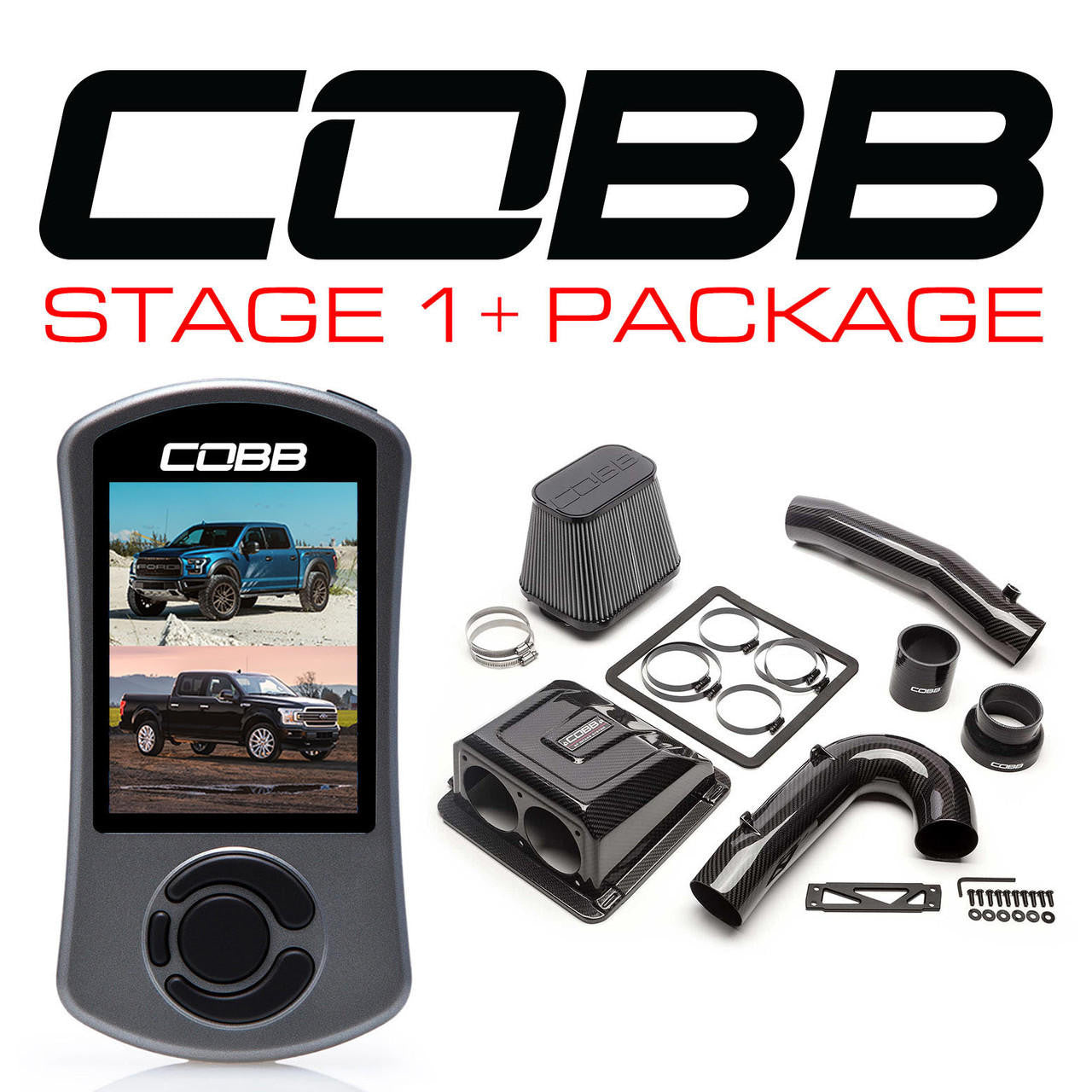

Optional - COBB Redline Carbon Fiber Cold Air Intake:
All of the carbon fiber pieces in the Redline Carbon Fiber Intake System are constructed of a 3k tow in a 2x2 twill weave pattern with a gloss clear coat. Factory piping from the air-box is replaced with 3" tubing to maximize airflow. A bespoke carbon airbox lid replaces the factory piece and allows installation of our reusable dual-inlet, high flow filter offering 165% additional surface area over stock. Black 4-ply silicone couplers are held in place with black e-coated stainless steel clamps, offering a sleek look and OEM-quality installation.
WHY?
The Accessport is the world's best selling, most flexible, and easiest to use ECU and TCM upgrade solution for your Ford F-150 Raptor. Unlock power hidden within the vehicle by replacing conservative factory settings with more aggressive calibrations. Follow our staged upgrade path with pre-loaded Off The Shelf (OTS) maps or use custom mapping for any modification level. It's the last engine management solution you'll ever need.
Stage1 93 Oct. or 98 RON
Peak Gains: +18.45% HP / +18.41% TQ
Max Gains: +42.17% HP / +41.31% TQ
Generally speaking, 91 octane calibrations have a less aggressive ignition advance map to help compensate for lower octane fuel blends. The maps designed for 93 octane are the most aggressive. Peak Gains are measured as the absolute maximum value between the highest points of two plots. Max. Gains are measured as the maximum delta percentage between two plots. Results may vary. Power as tested on 2018 F-150 Raptor vehicles using these identical calibrations.
CLICK HERE FOR MAP NOTES & POWER GAINS
TCM Map Notes:
Simulated Stock: this is a stock transmission calibration from a ’19 Raptor; this is true even if the Accessport is installed to a ’17 or ’18 Raptor.
COBB OEM+: this map is intended to be a sporty but refined improvement on the stock transmission behavior.
- Shift Points: skip-shifting in ‘Normal’ drive mode has been maintained; moderately increased shift points for sportier acceleration; more responsive downshift schedules; more anticipatory coastdown (off-power) shift schedules.
- Shift Firmness: moderately increased shift firmness during high-power, high-RPM shifts in ‘Normal’ and ‘Sport’ drive modes.
- Upshift Backout: upshift inhibit (zero APP gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.
- Torque Limits: increased torque limits for more aggressive launches and acceleration.
COBBÂ Sport: this map is intended to be a performance-first improvement on the stock transmission behavior.
- Shift Points: skip-shifting in ‘Normal’ mode has been eliminated, except for light throttle 1-3 shifts for comfort; increased shift points for livelier acceleration; more responsive downshift schedules; more anticipatory coastdown (off-power) shift schedules.
- Shift Firmness: increased shift firmness during moderate to high-power shifts in ‘Normal’ and ‘Sport’ drive modes.
- Upshift Backout: upshift inhibit (zero APP gear-holding) in ‘Sport’ mode following high-power acceleration and throttle backout has been disabled. Stock behavior would inhibit upshift until pedal position is re-applied above ~10%.
- Torque Limits: increased torque limits for more aggressive launches and acceleration.
FEATURES
- Accessport V3 with TCM Flashing
- Large, full color, higher resolution screen
- Customizable multi-gauge display
- In vehicle mount, with on/off switch
- Can be used with Accesstuner (available separately) to create custom tunes
- Interchangeable faceplates
- Simple installation and removal
- Read and clear engine trouble codes (ETCs)
- Change and store up to 100 maps
- Realtime gauges provide multiple monitors
- Data Log up to 10 hours for in-depth performance evaluation
- Set custom RPM warning lights for perfect shifts every time
- Use your PC or Mac to manage maps, download recorded datalogs, or quickly update your Accessport. Download free from right HERE.
- Cold Air Intake System
- 3" Mandrel Bent Tubing with Wrinkle Black Powder Coating
- Injection Molded Reinforced Composite Airbox Lid
- Cell-Foam Gasket Seals Against Mud/Dirt/Debris
- Filter with 165% More Surface Area Versus Stock
- 304 Stainless Steel Clamps and Bracket
- Redline Carbon Fiber Intake System
- 3k Row 2x2 Twill Carbon Fiber Construction
- Gloss Clear Coat Finish
- Dual Inlet Filter with 165% More Surface Area Versus Stock
- Black Phosphate Coated 304 Stainless Steel Hardware
FORD RAPTOR SPECIFIC FEATURES
AUTO START-STOP ADJUSTMENT: A common complaint with the Raptor was the bothersome auto start/stop setting. There was no easy way to turn it off and keep it off with subsequent key cycles. The Auto Start-Stop feature accomplishes just that! With this feature you can set enable/disable Auto Start-Stop and the setting will be retained even after the vehicle is turned off. To use this feature go to “Tune� > “Adjustments� > “Auto Start-Stop� > and then select “1� if you want it to be enabled or “0� to disable. Click here for more.
FUEL PUMP CONTROL: You guessed it. This feature allows control of the in-tank fuel pump. This is especially useful if you want to drain the fuel tank to run different fuels, depressurize the fuel system to change injectors, or are needing to drain the fuel tank for any other reason. To use this feature (see Accessport steps below), with the engine running set the value to -1. This will turn off the fuel pump and the engine will shut down when fuel pressure reaches its lowest. You can then disconnect the fuel line and route it to a container. You can then key ON and set the value to 1 turning the fuel pump back on which would then drain your fuel tank. Click here for more.
DYNAMIC PEDAL CONTROL: This feature can be used to enhance or dull your accelerator pedal response. You can set this value from -5 to 10. Each reduction from 0 to -5 will decrease pedal response by 20%. This could be useful if you’re wanting to limit power or fuel consumption. Each increment from 0 to 10 will increase your pedal response by 10%. This will make the truck feel faster since the throttle will open more with less pedal input. Below is a graphical representation comparing throttle pedal input (x axis) with the amount the throttle body is opening (y axis) for each setting. Also shown is the pathway on the Accessport to adjust this setting. Click here for more.
VALET MODE: Valet Mode can be used to reduce maximum power output by limiting throttle to about 25%. A value of 1 will enable valet mode. A value of 0 will return to normal. This setting will be retained even through key cycles and does not require changing maps! Below shows how to adjust Valet Mode on the Accessport. Click here for more.
