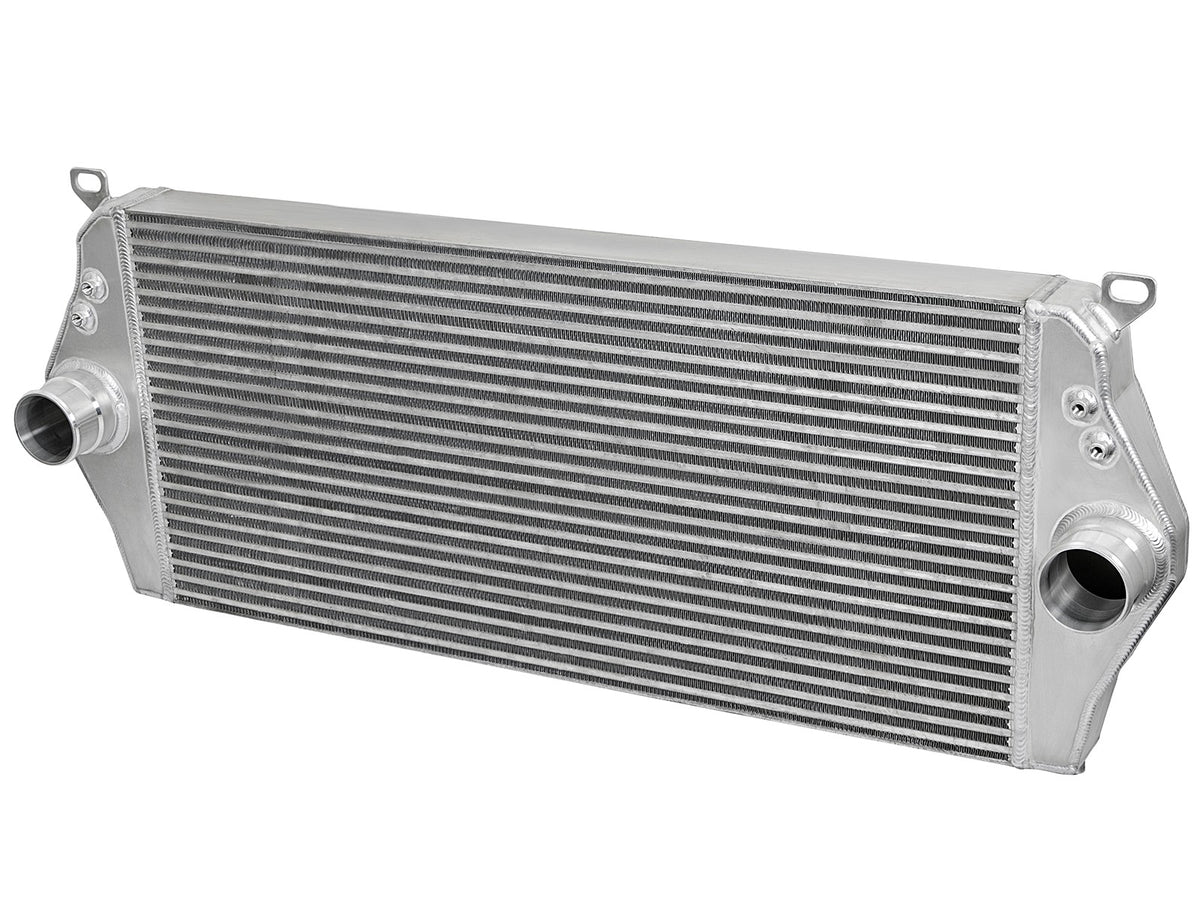

This BladeRunner Intercooler represents the next generation of intercoolers. Designed specifically for the 2016-2017 Nissan Titan Xd V8-5.0L turbo diesel Cummins, this BladeRunner intercooler utilizes a 3 Inch bar and plate core design. This design outflows the factory tube and fin core design, while the 3/16 Inch Tig-Welded end tanks offer superior strength and durability.

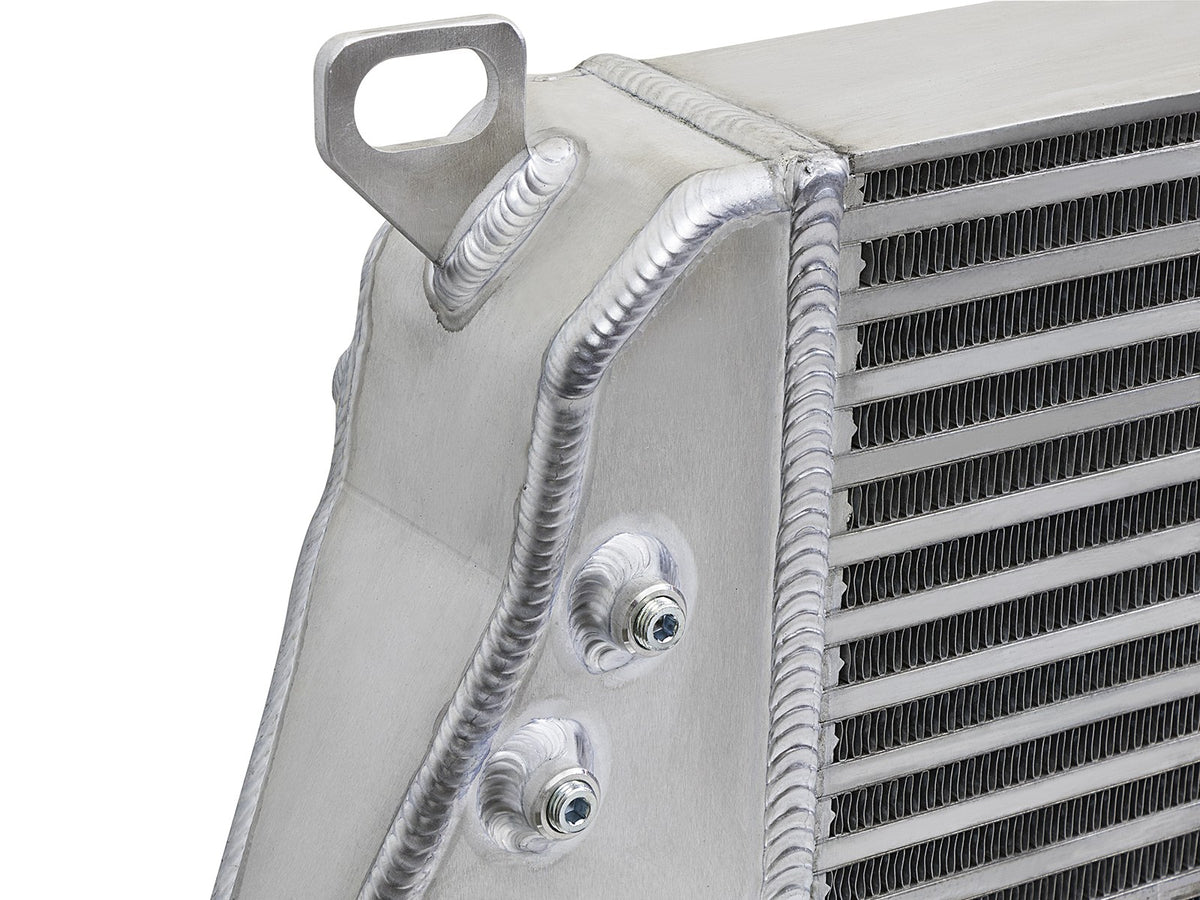

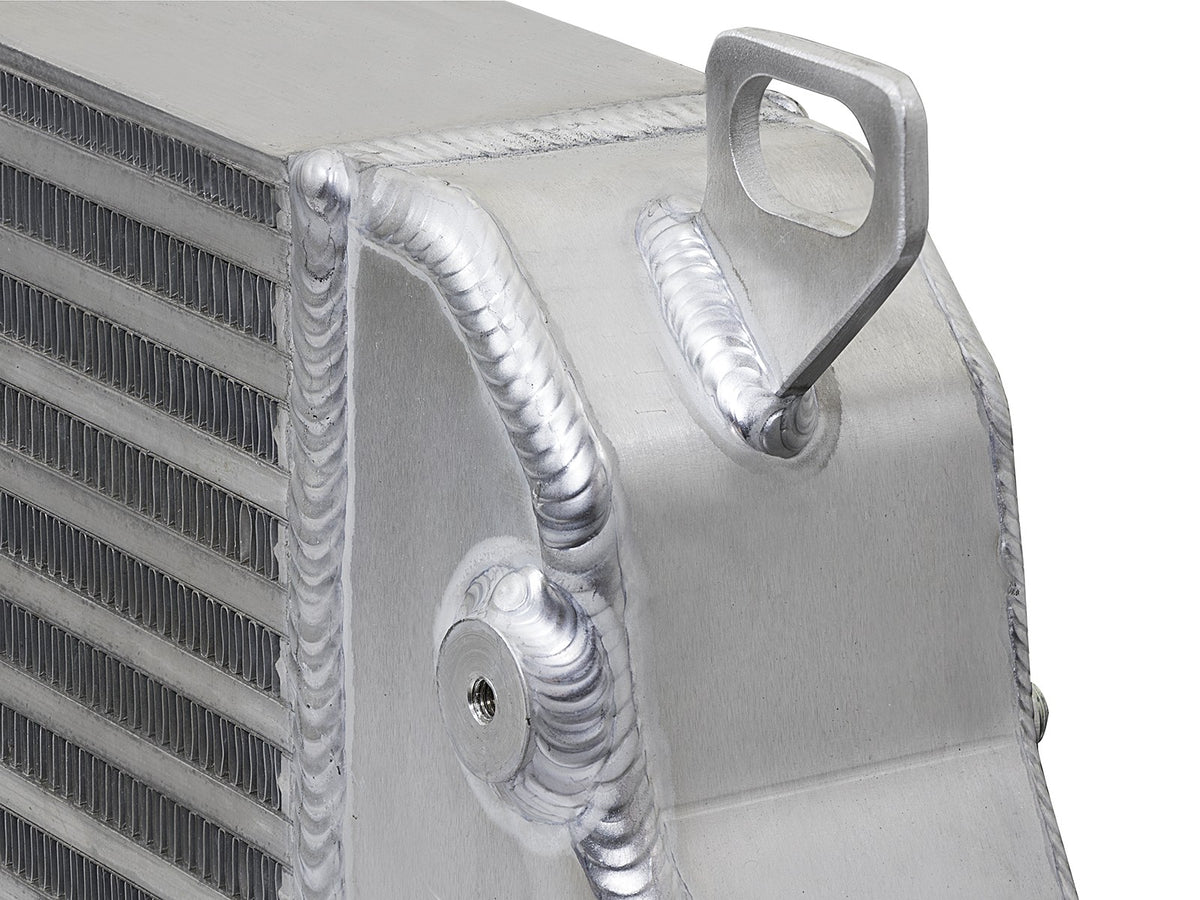

aFe has also added CNC machined vent tubes, which use a solid Npt plug for periodic draining of any type of build up inside the intercooler. Also included is four auxiliary 1/8 Inch Npt sensor ports are provided for the use of sensors or any type of injection. End Tanks: The unique BladeRunner end tanks are constructed out of 3/16'' Tig-Welded aluminum plates.

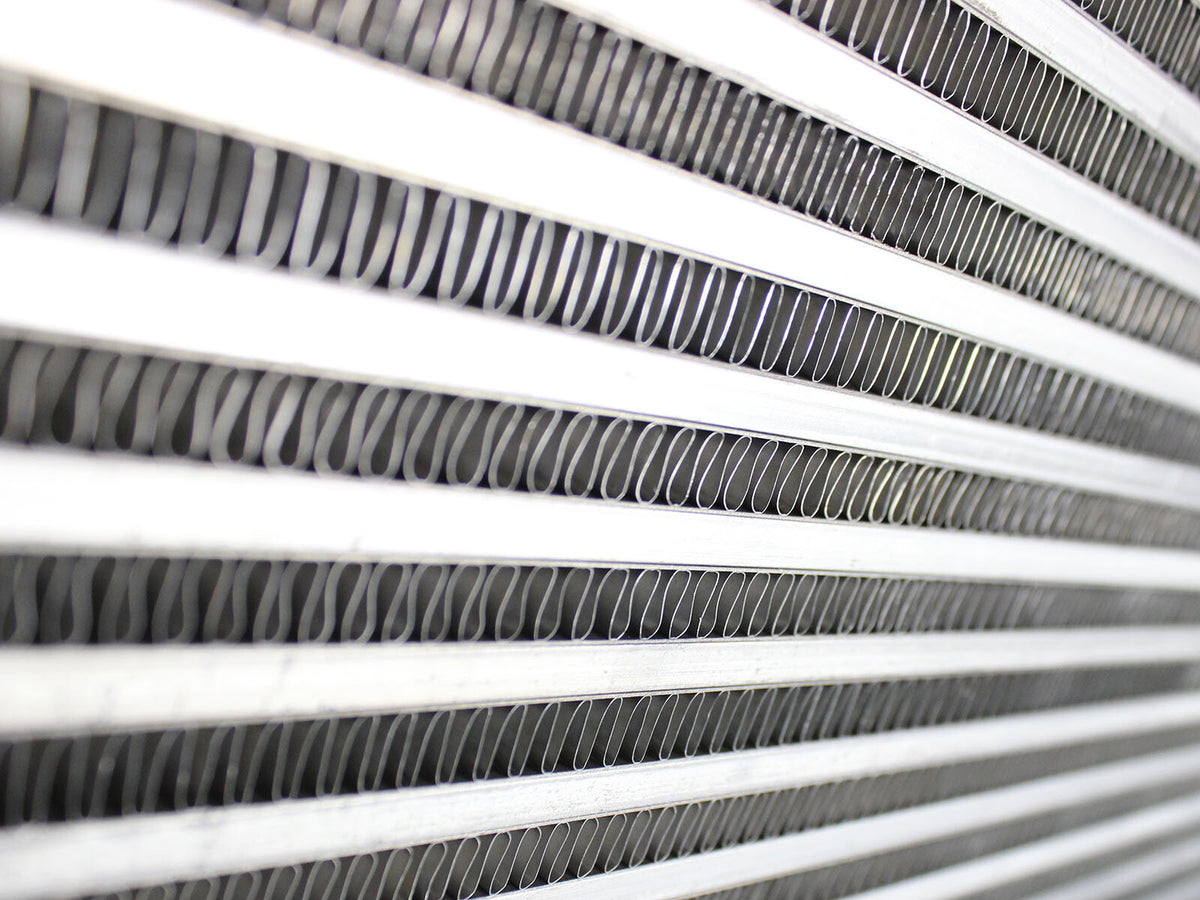

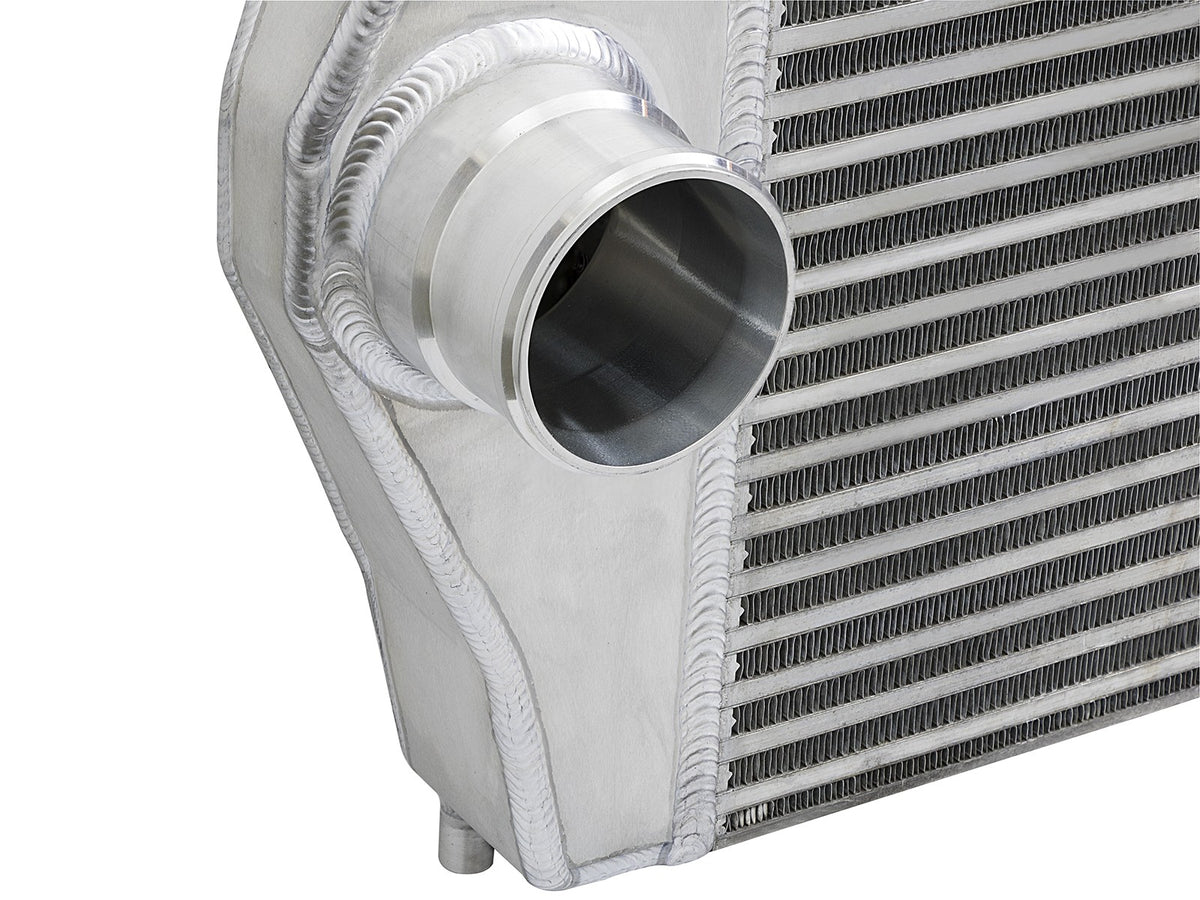

3 Inch Bar and Plate Core Design: The use of the bar and plate core design allows for greater airflow. Billet Aluminum Inlet/Outlets: This BladeRunner Intercooler uses 3 Inch inlets and outlets for superior strength and durability. Tig-Welded: 100 percent Tig-Welded by certified craftsmen for race proven strength and durability.

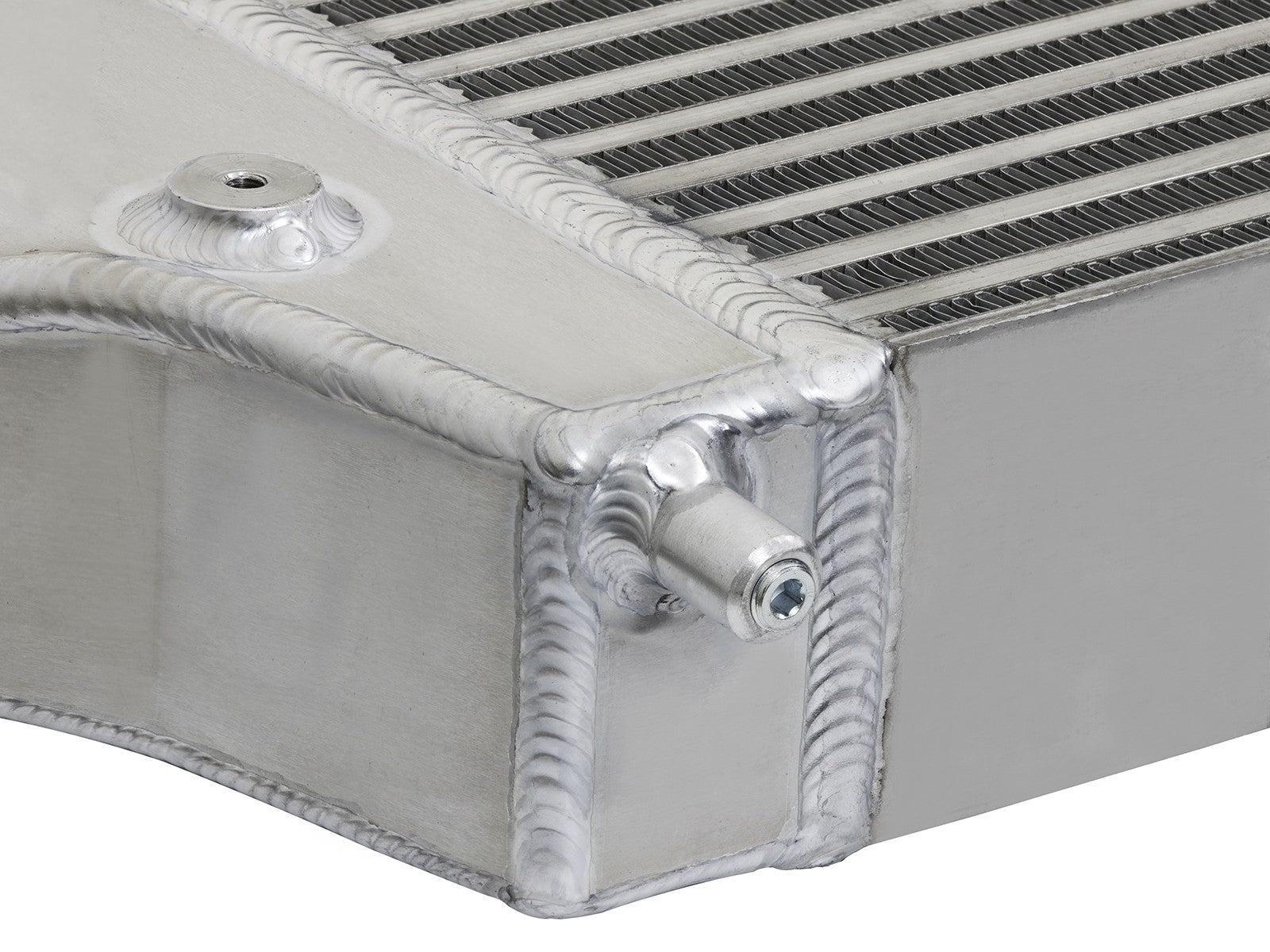

Tig-Welding provides the strongest welds reducing stress cracks. Condensation Drain: The intercooler includes a 1/8 Inch Npt vent, which can be used to drain any type of build up from the intercooler. Perfect Fit: Utilizes the factory mounting locations for a hassle-free installation.
Fits with aFe's intercooler tube upgrade kit only (Part Number: 46-20284-B)
Features and Benefits:
- Outflows Stock Intercooler
- 3 Inch Bar And Plate Core Design
- Billet Aluminum Inlet/Outlets
- 100 percent Tig-Welded
- 1/8in. Npt Port Provided For Press. Sensors/Water Meth Injection
- 1/8 Inch Npt Brass Condensation Drain w/Included Plug

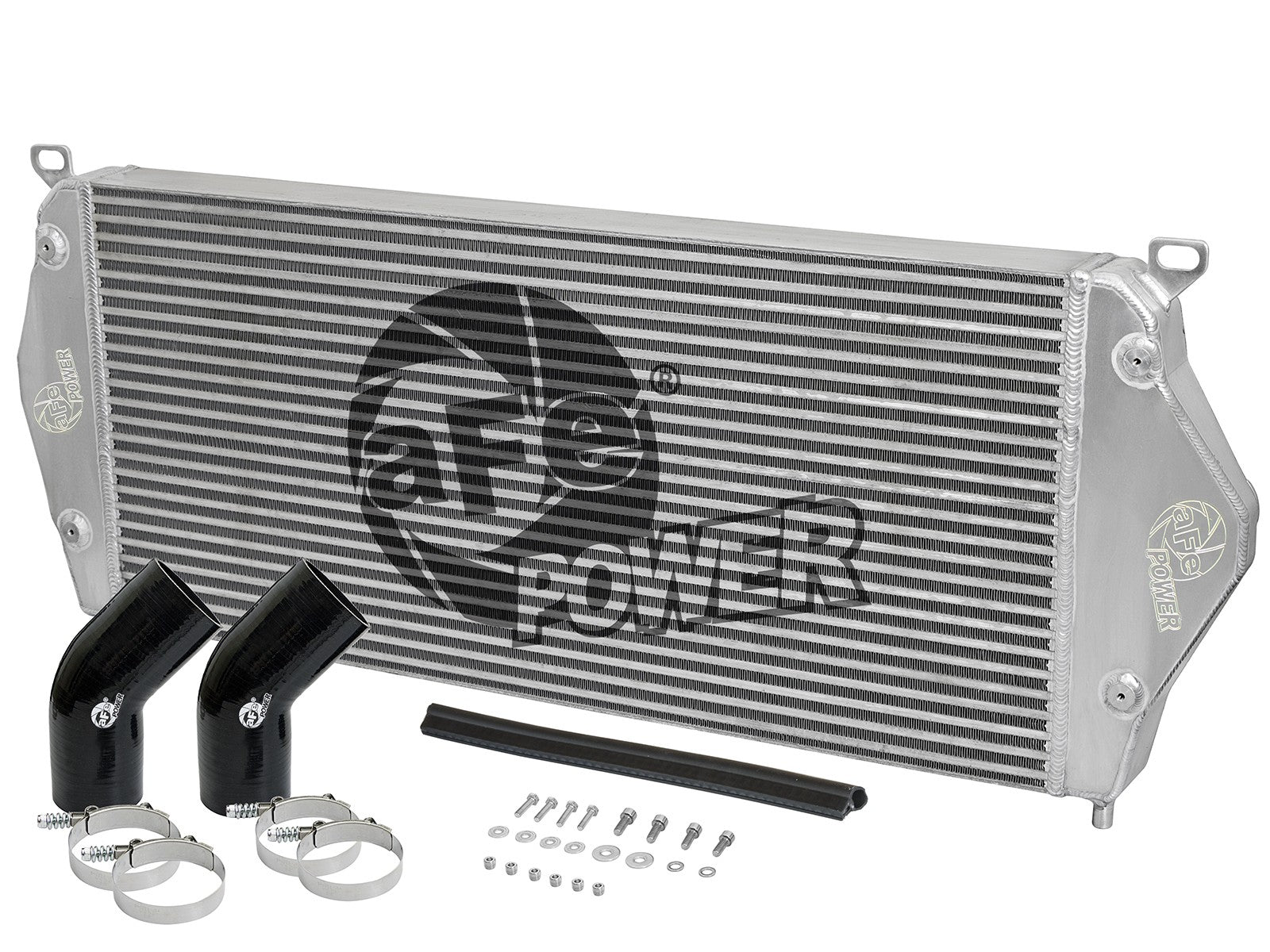

- Incl. Hardware For A Hassle Free Installation
- Incl. Premium Stainless Spring Loaded T-Bolt Clamps
- Reduces Intake Air Temp Up To 30 Degrees
Details:
- Emission Code: 1
- Fuel Type: Diesel
- Liter: 5.0 Liter
- Series: BladeRunner GT Series
- Warranty: 2 Year
Applications:
- Nissan Titan Xd 16-19 V8-5.0L (td)
