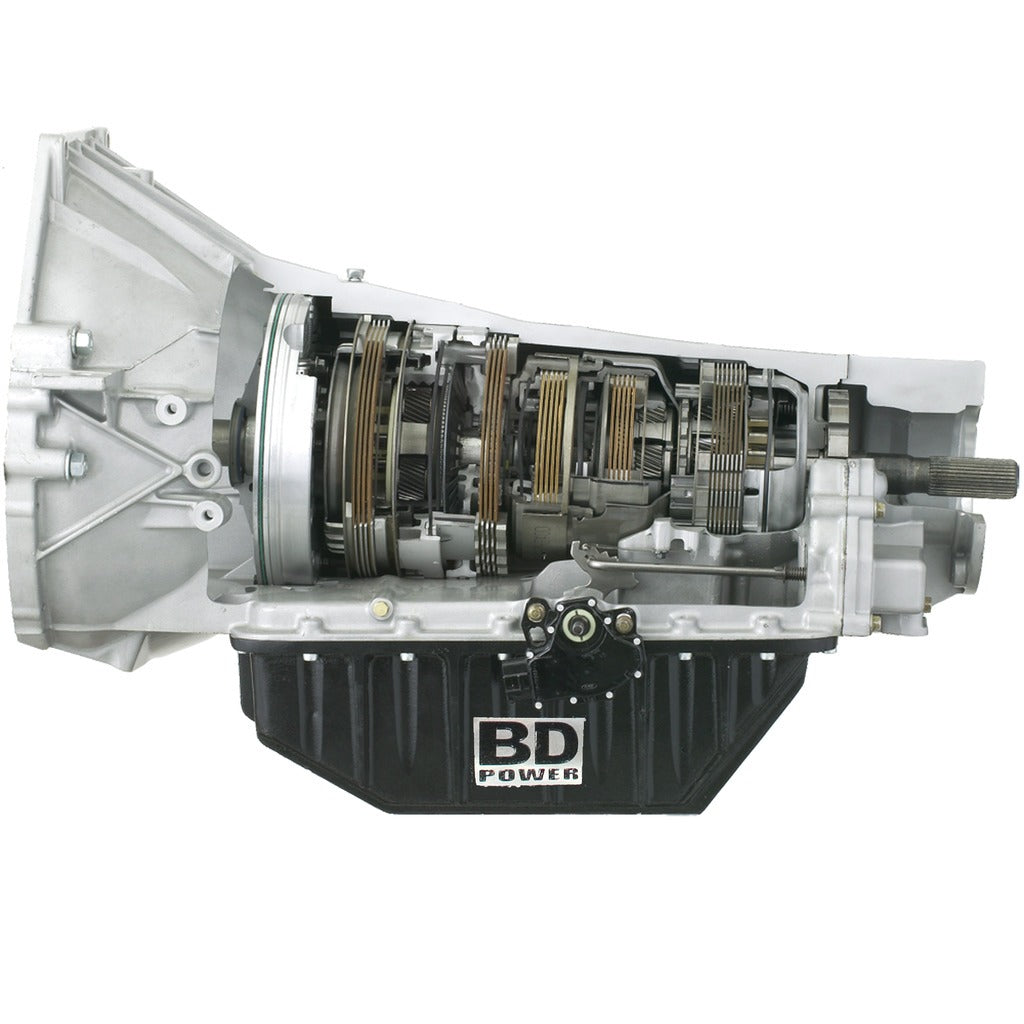

The stock Tranmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD Tranmission.
All Tranmissions come with BD's heavy duty Tranmission pan and most packages come bundled with our auxiliary Tranmission filter kit for added protection!
Install Time:
Warranty:
Parts
36-Months
150,000 Miles
Labor
12-Months
24,000 miles
Note:
No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air Tranmission cooler outlet.
Note:
2WD 5R110 models have two different output shafts, slip yoke and flanged - please determine your output shaft before ordering
Add PTO to part number for PTO provision (i.e. 1064444FPTO or 1064444FPTOLR)
BD Torque Converter must be installed at the time of installation of the Tranmission - use of a 3rd party or OE converter will invalidate the Tranmission
Warranty:
Emissions:
This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement Parts included. (EMS:4)
Features:
- Increase the durability of your drivetrain
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Upgraded larger late model sump filter installed for better filtration
- Replace plastic pressure plugs in valve body with aluminum
- Heavy duty snap ring and pressure regulator valve to prevent runaway pressure damaging case
- Reworked front pump
- Clutch Count: Coast Clutch 3
- Clutch Count: Forward 4
- Clutch Count: Low Reverse 6
- Clutch Count: Intermediate 5 (67 percent increase over stock)
- Clutch Count: Direct 6 (50 percent increase over stock)
- Clutch Count: Overdrive 5 (67 percent increase over stock)
- Each Tranmission is dyno tested
