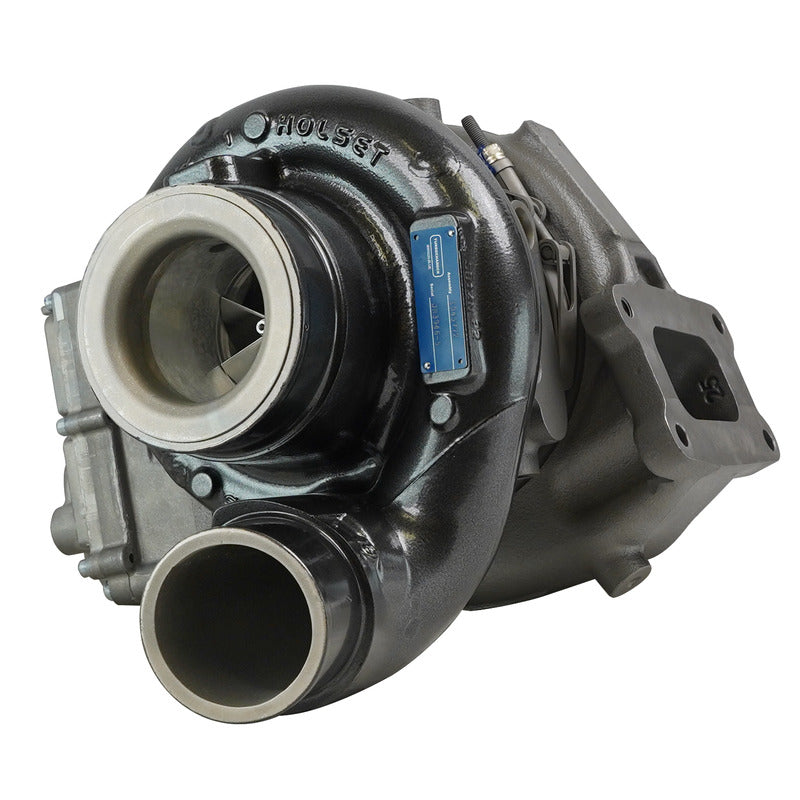

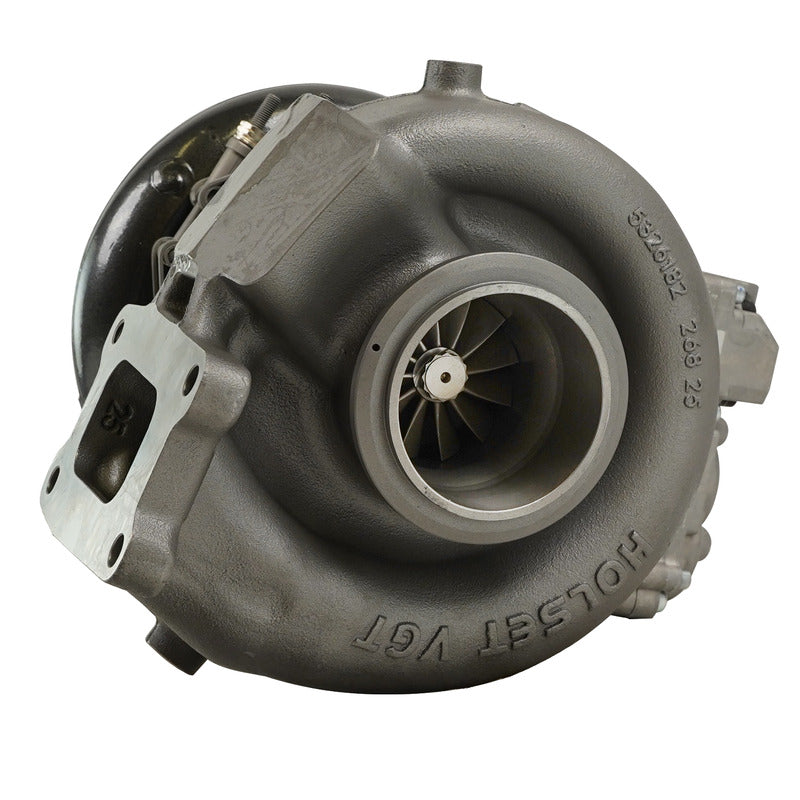

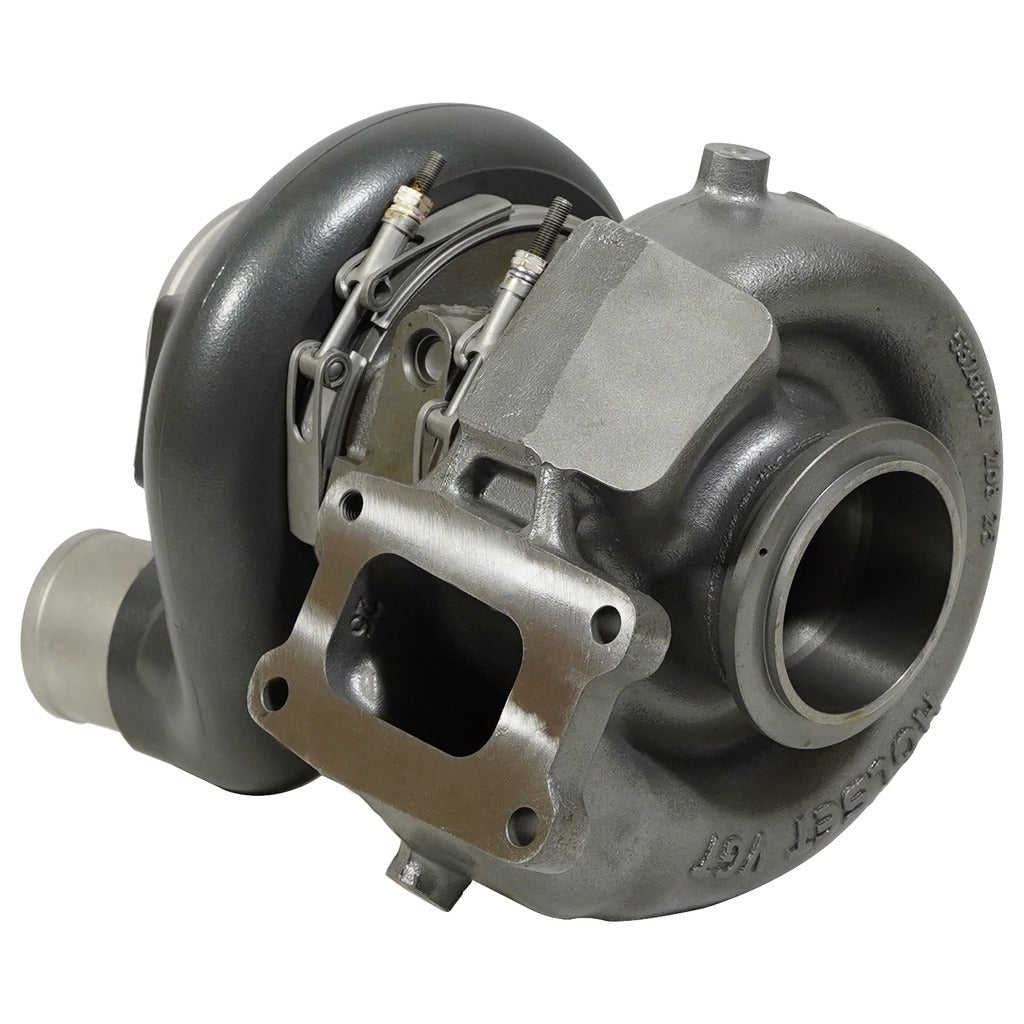

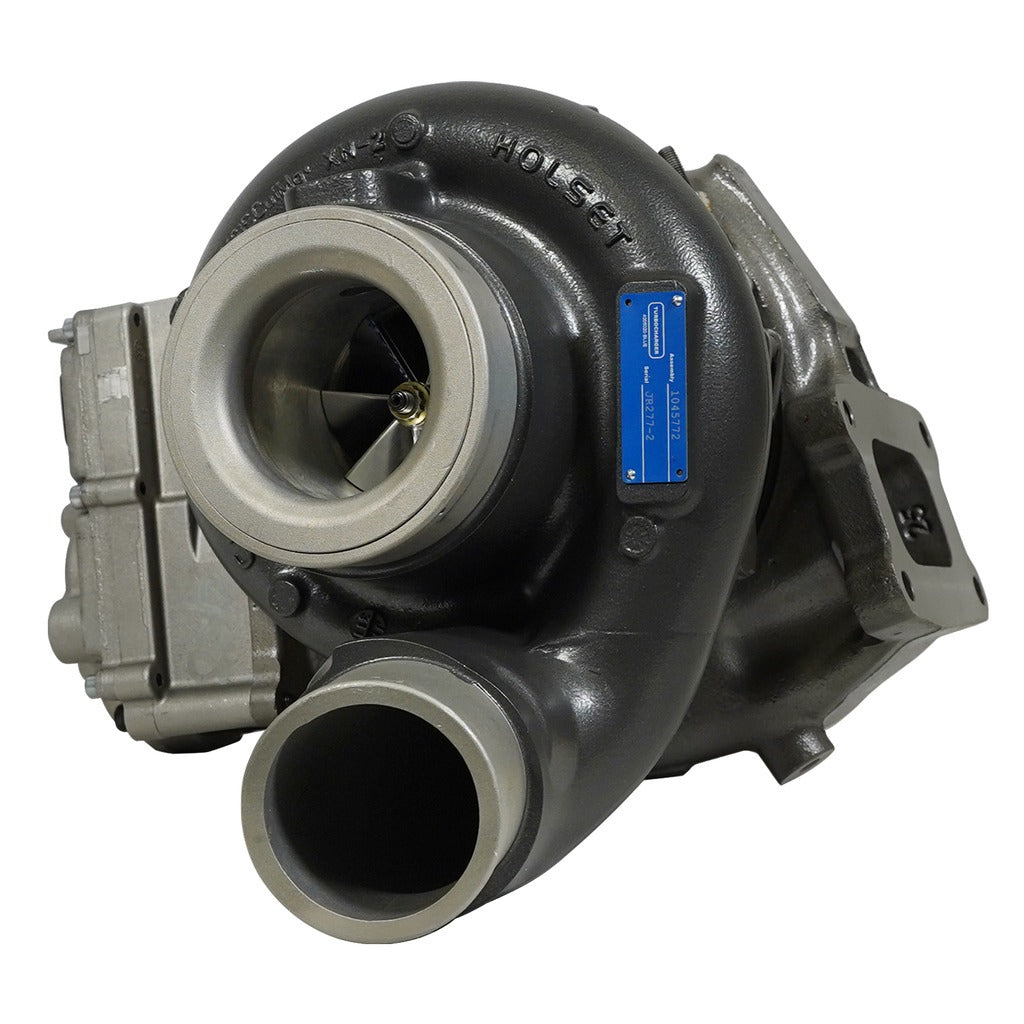

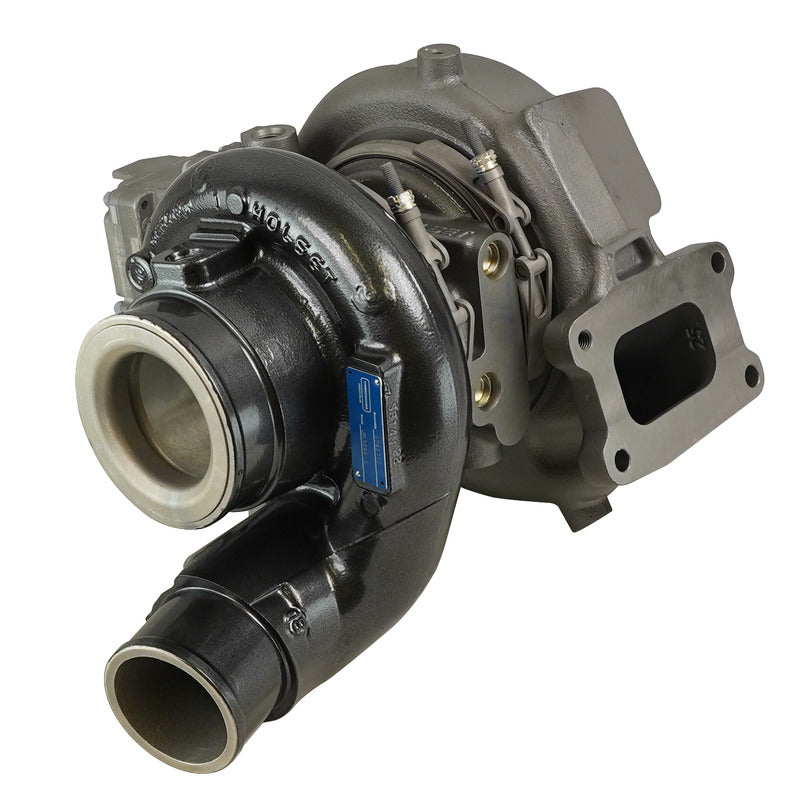

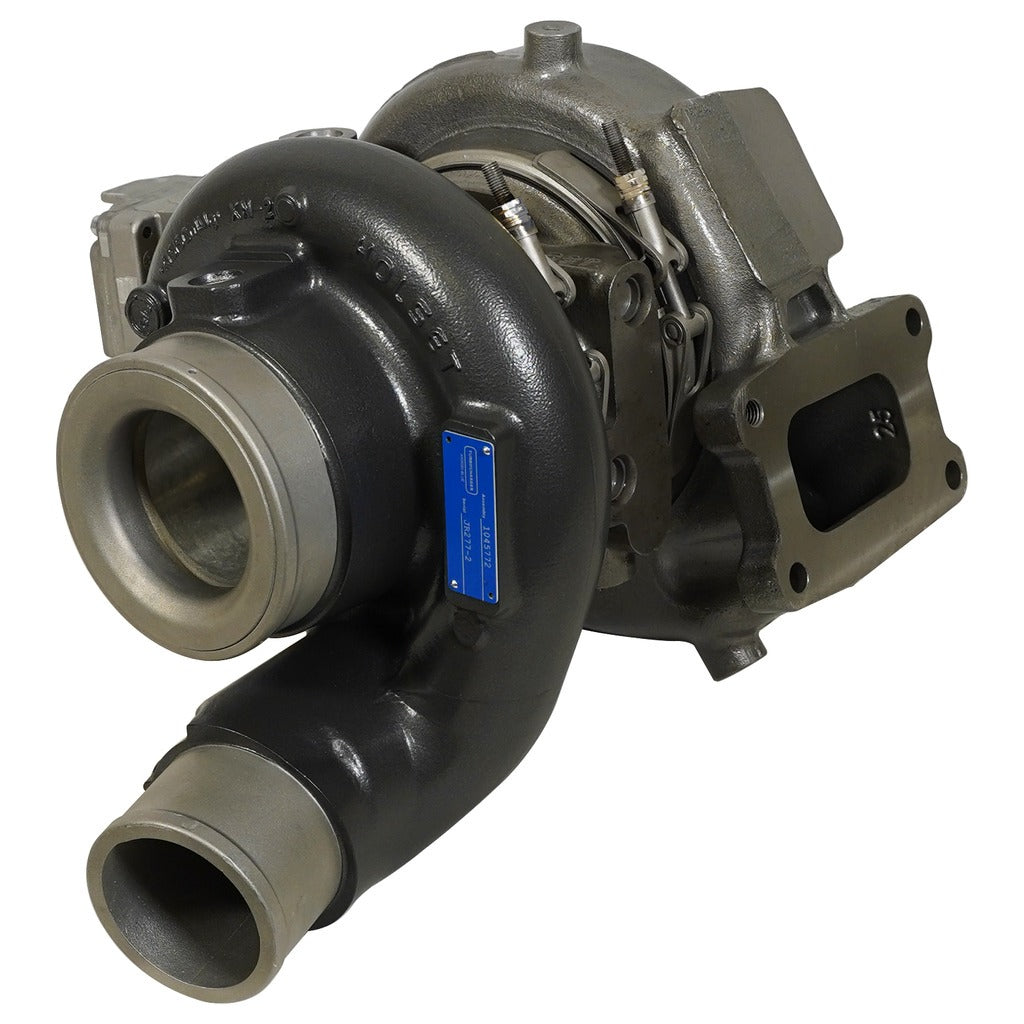

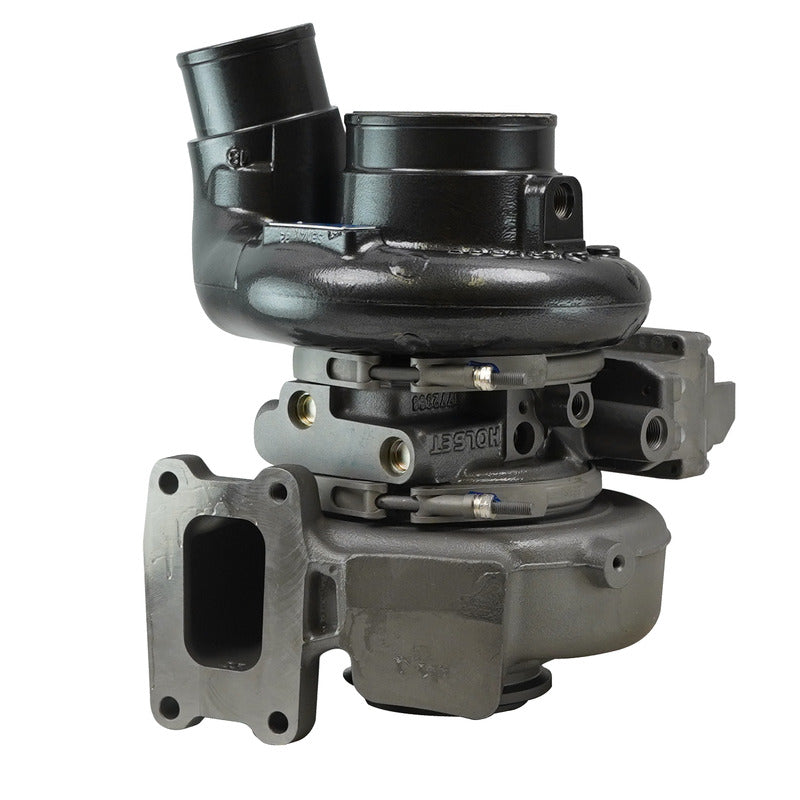

A drop-in stock installation, stock looking replacement that is anything but stock! The larger Ballistic Billet compressor wheel and our new exclusive Low MOI QST turbine wheel results in reduced backpressure, quicker response, increased efficiency and increased turbine flow compared to the competition.
This results in increased maximum potential power output, right up to 690 horsepower with performance modifications. No extra
Parts
to install, just drop-in and enjoy the extra power potential.
Install Time:
Warranty:
Parts
Note:

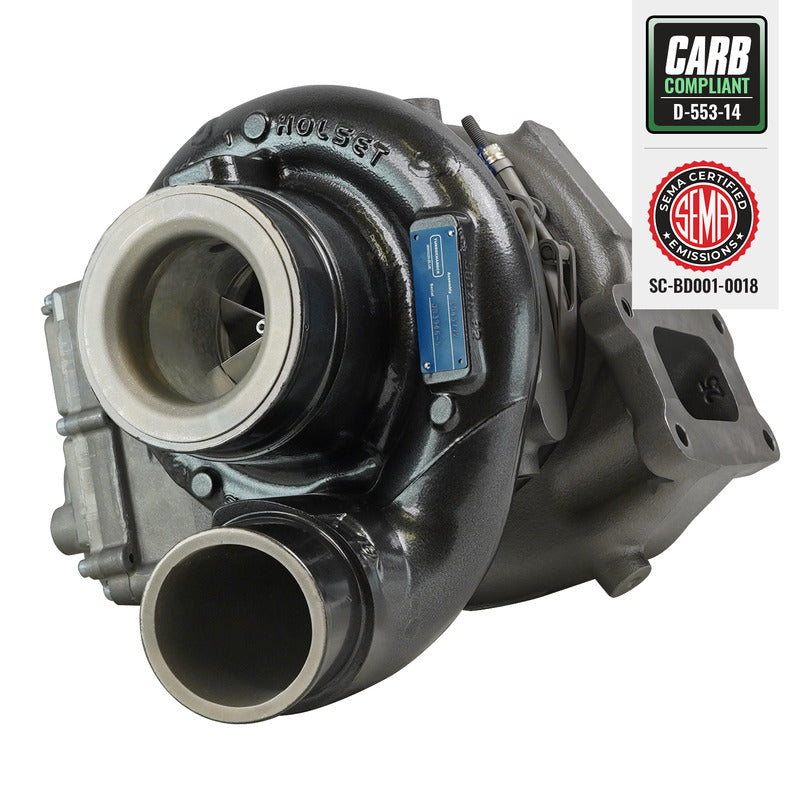

CARB EO No. D-553-14
SEMA Certification No. SC-BDD01-0018
Emissions:
This product is covered under CARB EO and is legal for sale and use in all 50 states. (EMS:1)
Features:
- 50 State Legal
- Allows for higher turbine gas flow and increased efficiency
- Can support modifications up to 690 HP
- Drops into the stock location

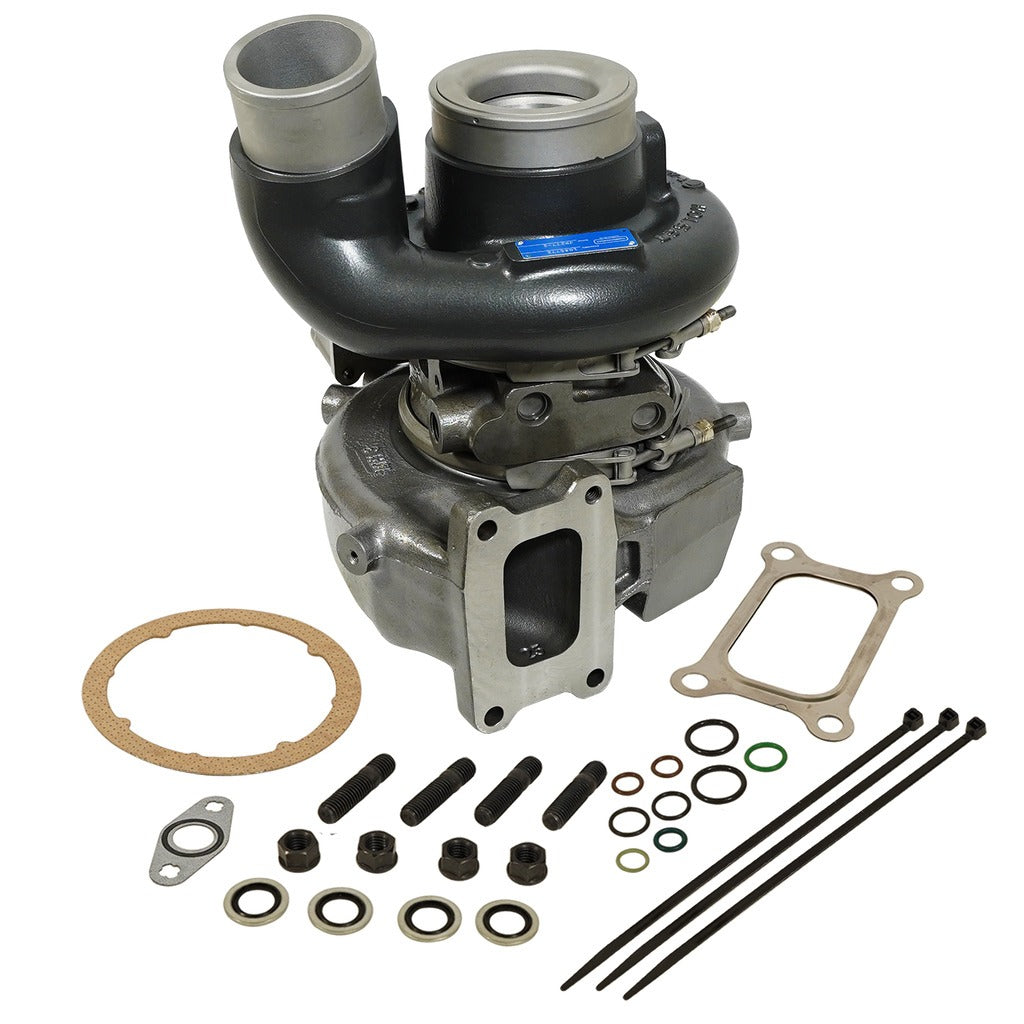

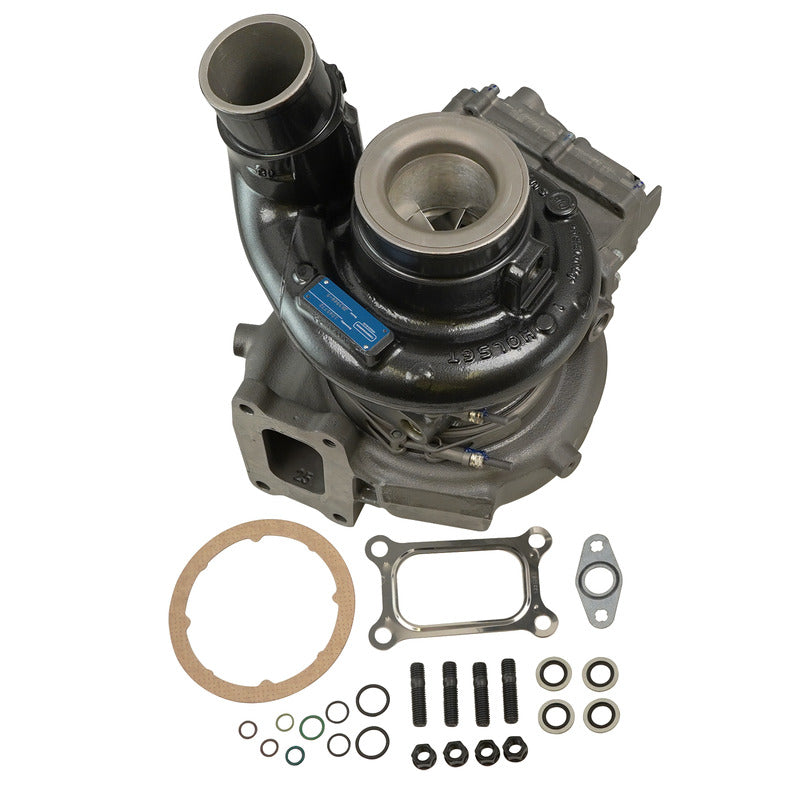

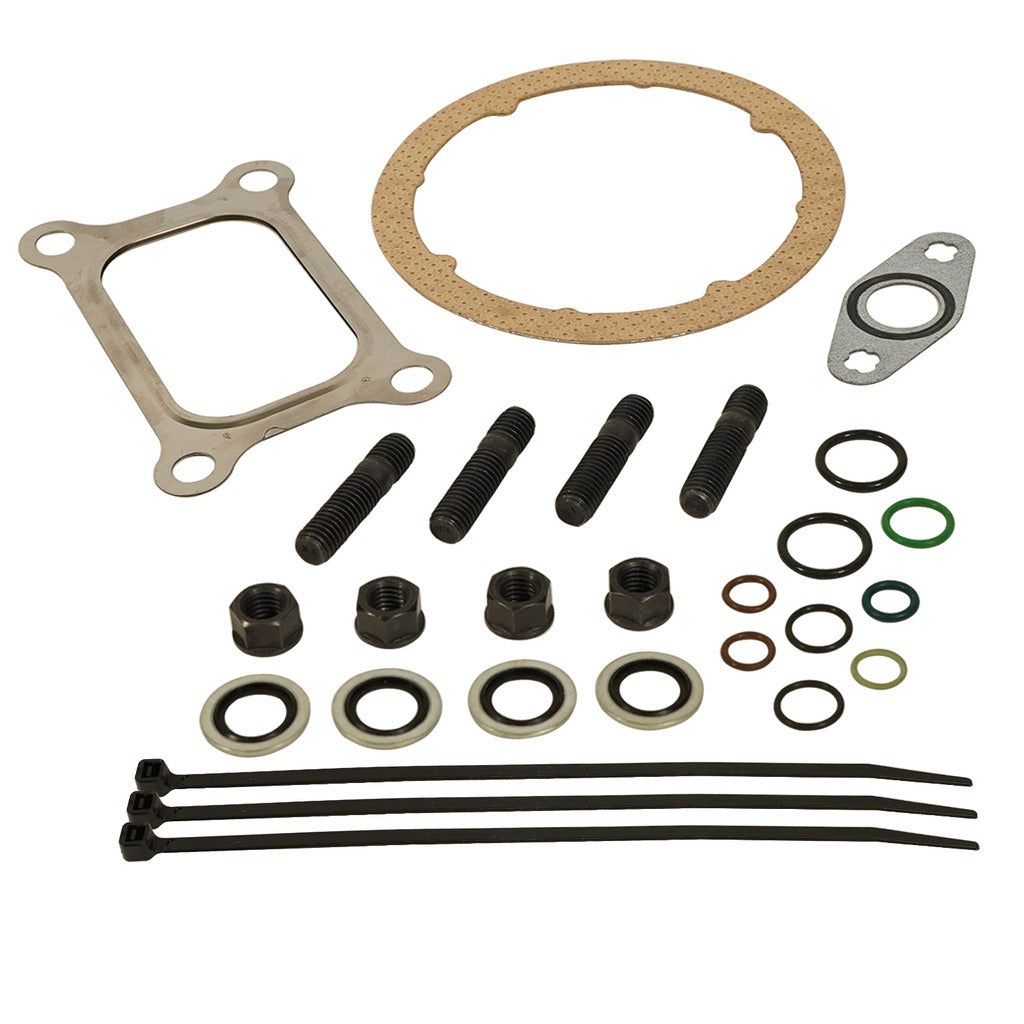

- Includes BD's HE300 Turbo Mounting Kit (PN: 1045999) with all the necessary hardware for your turbo install
- Enables quicker turbo response
- Replaces OEM Parts : 5456364, 5456365, 68444771AA, 68444771AB, 5498271RX, 5554227

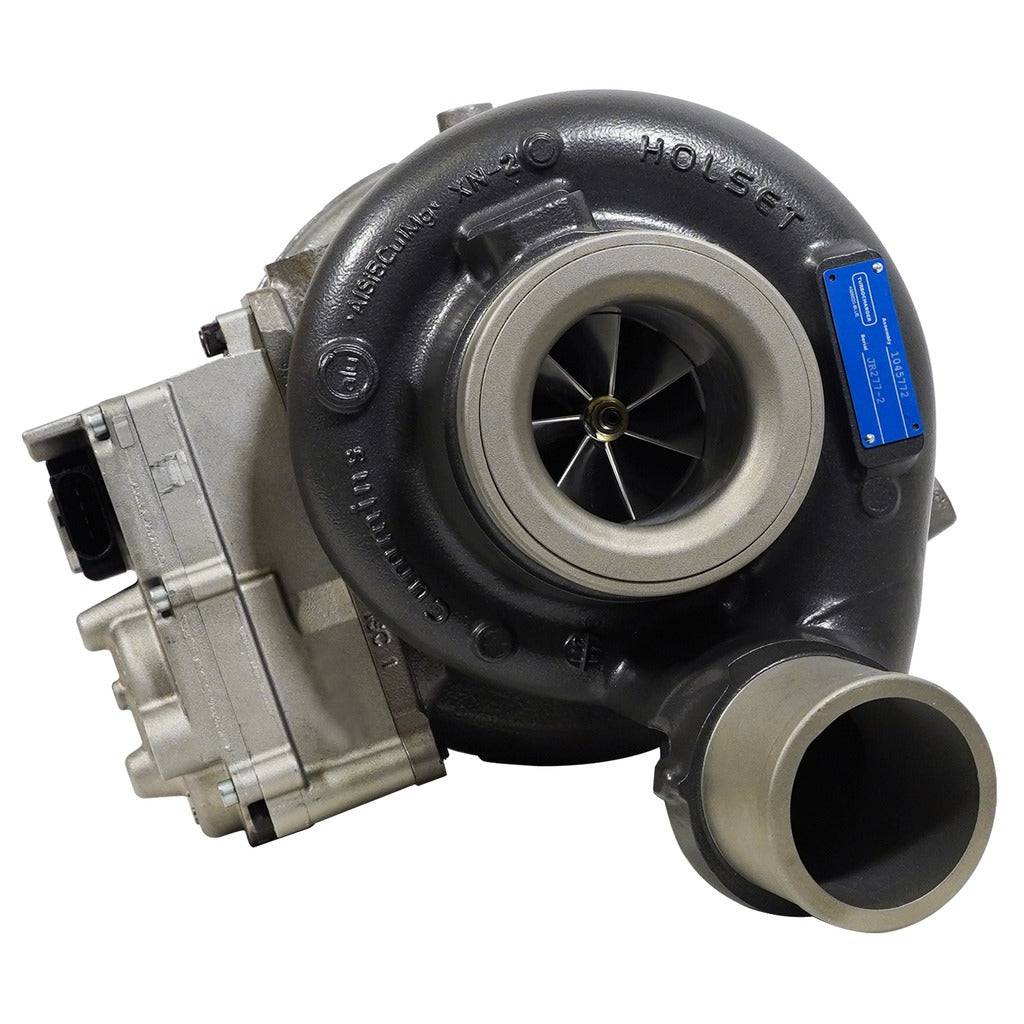

- Ballistic Billet 64.5mm 7+7 blade compressor wheel and Low MOI QST 70mm 12 blade turbine wheel
- The QST Turbine wheel has a 15 percent reduction in MOI (moment of inertia) which results in quicker turbo response
- QST turbine Blade thickness decreased by 25 percent allowing for higher turbine gas flow and increased efficiency
- Each actuator is calibrated and tested prior to shipping
- VSR high speed balanced
- CARB EO No. D-553-14
