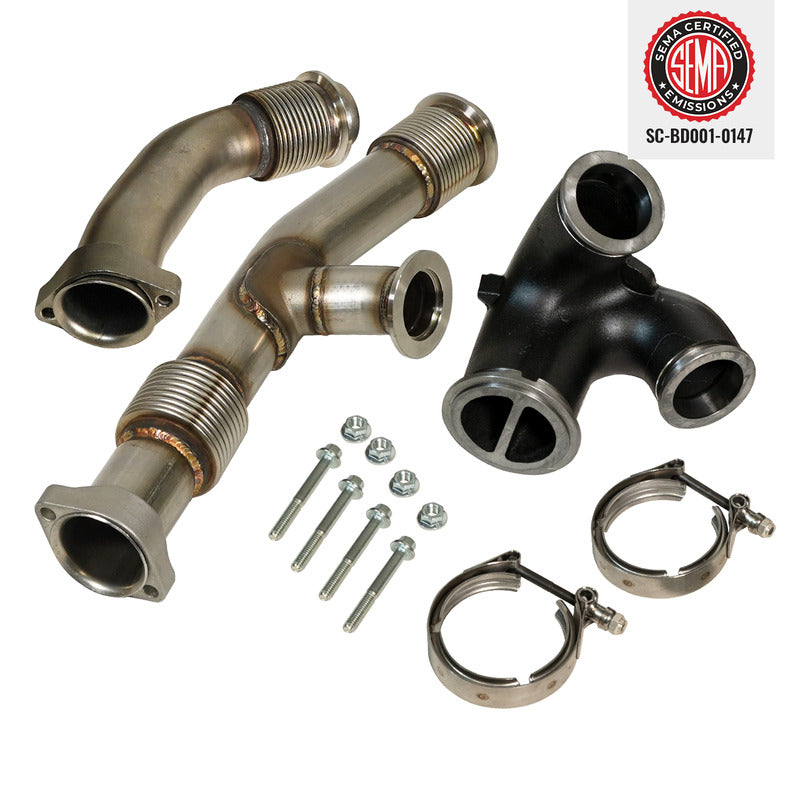

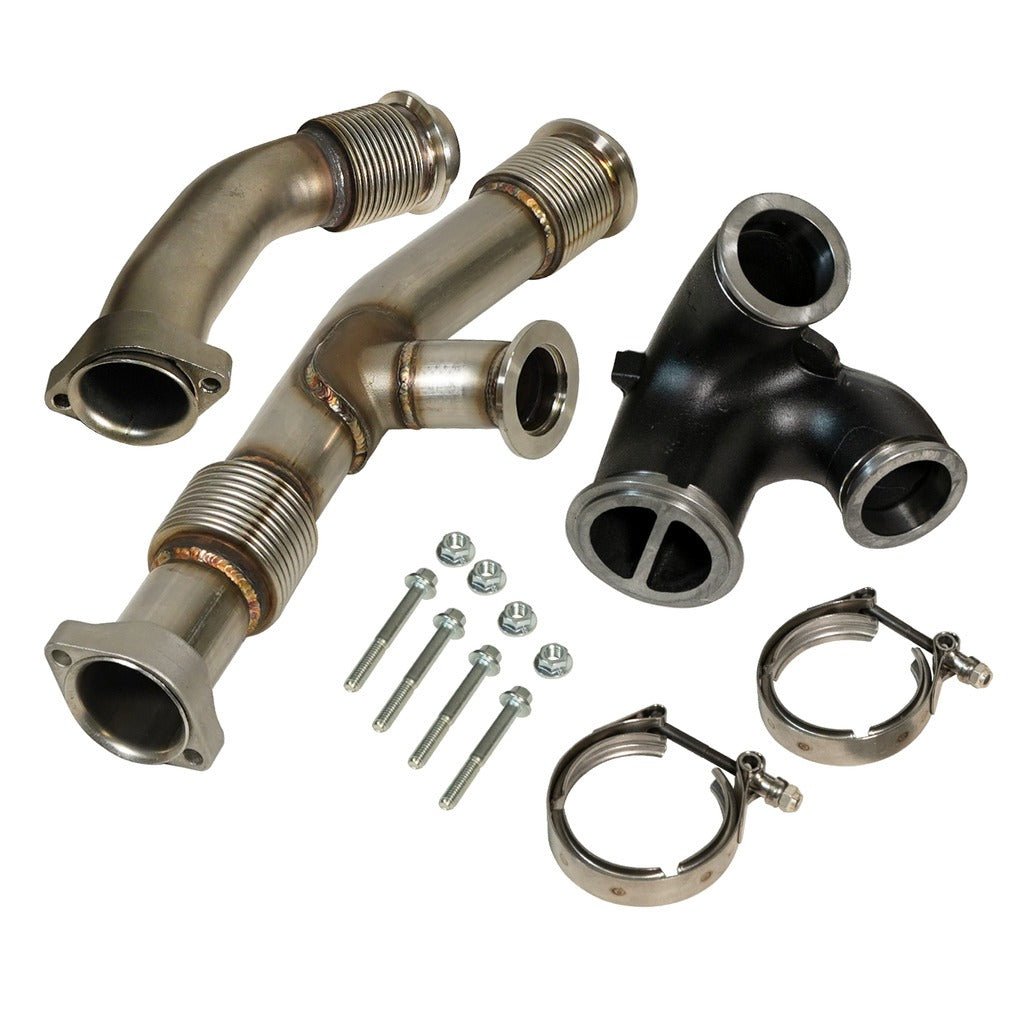

Replaces the factory exhaust up-pipes (exhaust Manifold to the turbo) which are prone to leakage due to deterioration. BD up-pipes are designed to minimize restriction to the turbo utilizing internally shielded expansion bellows.

The turbo Y-adapter is made from high-silicon ductile iron. The BD up-pipes are a durable, longer-life replacement for this common Power Stroke problem and are perfect as an upgrade while performing other engine or Tranmission repairs.

Install Time:

4 Hours 30 Minutes

Warranty:

Parts

• 12-Months
• 24,000 Miles

Note:
Not for sale on licensed California vehicles
SEMA Certification No. SC-BDD01-0147
Up-Pipes installation on 2003-2004.5 years requires the removal of OEM heat shield. Order 5C3Z-9F460-A heat shield from local Ford dealer for owners whom wish to have one reinstalled.

Emissions:

This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)

Features:

• Fully EGR compatible - Meets emission requirements
• Ductile cast iron Y-pipe design is a perfect fit and eliminates leaks and weld failures
• Larger diameter 304 stainless steel Up-Pipes includes internally shielded stainless steel expansion bellows
• V-band connections provide a flexible, easy aligning tight fit
• Stainless steel up-pipe clamps included
• Maximizes your turbo response time and eliminates exhaust leaks
• Fully divided Y-pipe optimizes turbo spool
• Smoother internal Y-pipe geometry than competitors up-pipe designs
