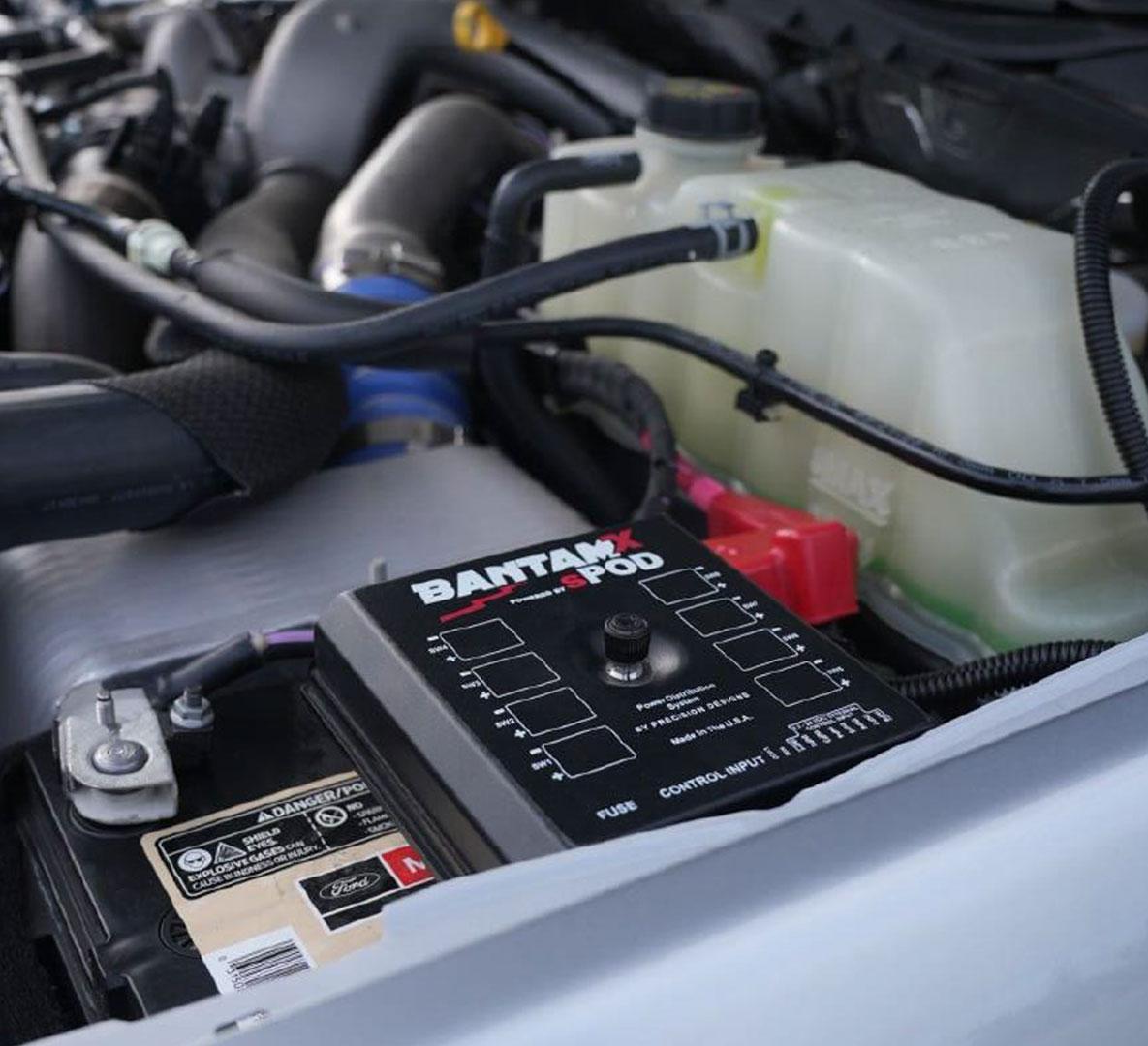

sPOD BantamX Upfitter power management system for the 2023-on Ford F-250/350 Super Duty has been engineered specifically to wire into the factory upfitter switches of the Super Duty.
The BantamX has 8 circuits of power each at 30A per channel, 100A total, the connect-and-go systems have been designed to fit seamlessly into your vehicle to fit your needs.
No longer are you limited to the power output of the stock upfitter switches, the BantamX offers more versatility to power a multitude of powered accessories.
Designed and equipped with built-in sPODConnect Bluetooth technology, allowing users to program from any iOS or Android device via the sPOD app.
With a wide range of programming options available, including output dimming, strobing, flashing, master-slave functions, memory, auto power-up, momentary settings, switch linking, input control and more.
The BantamX allows system scalability with the expansion of up to 32 channels controlled by one controller. Backed by a 5-year manufacturer warranty, sPOD allows simple and safe power management that is worry-free, allowing you to take control.

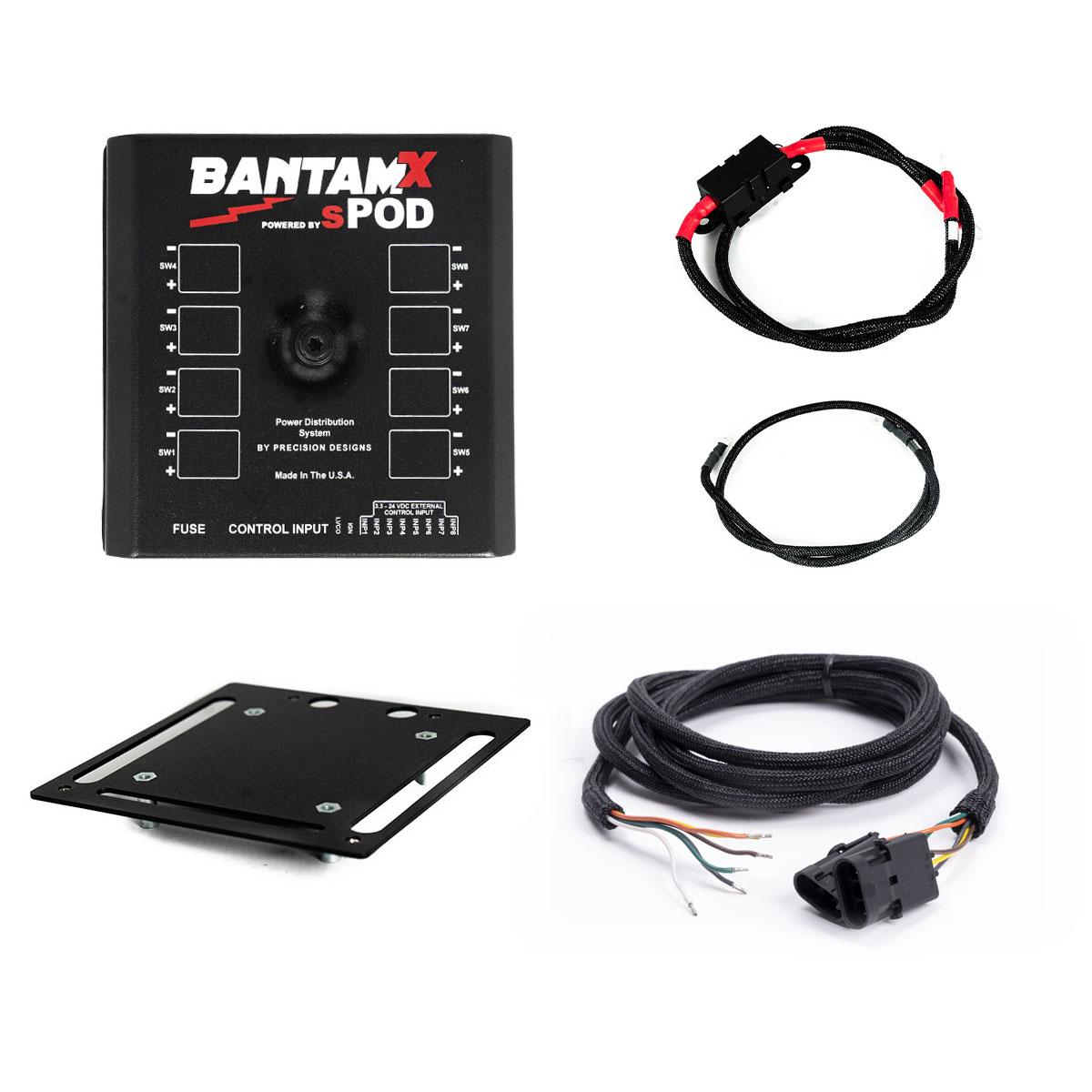

The BantamX Upfitter System includes:
- (1x) BantamX System
- (1x) 36 inch Battery Cable Set
- (1x) Upfitter Harness
- (1x) Ethernet Cable
- (1x) Mounting Bracket
- All necessary hardware
Specs for the BantamX:
- 8 circuits rated at 30 amps at 12.5 VDC per circuit, 100A total
- 16-position terminal block
- Integrated low voltage cutoff battery protection w/ optional override
- 100 amp in-line fuse
- Operates on 12 VDC or 24 VDC
- Built in Bluetooth capabilities for remote app control
- Input control automates functions for all switch circuits
- System Scalability allows expansion of up to 32 channels, controlled by one controller
- 2 controller port compatible
- Power saving deep sleep mode
