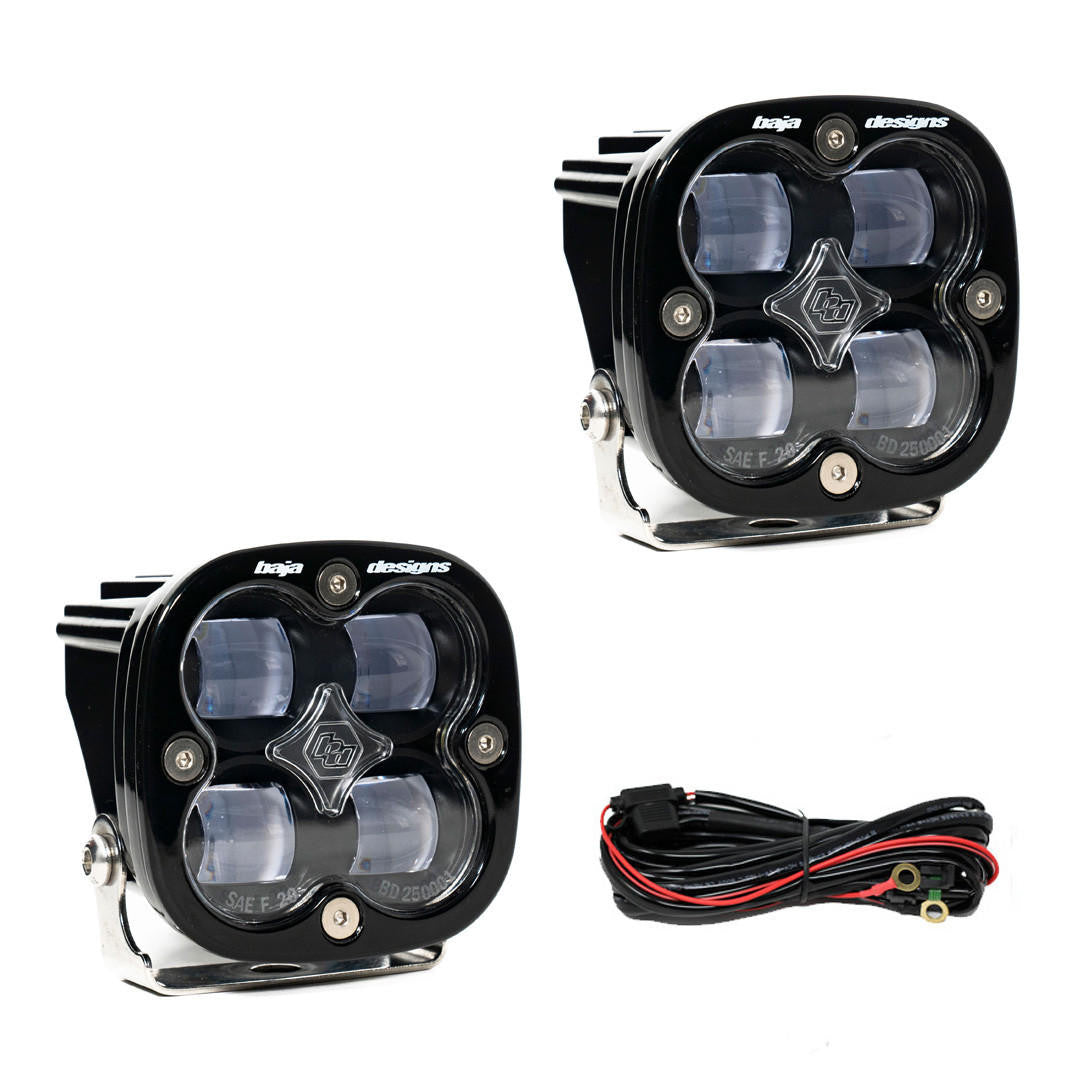

Baja Designs next generation Squadron® SAE is the perfect road-legal auxiliary fog light on the market today. Engineered with all-new aspheric projector optics and with our advanced LED technology provides a performance increase in luminous flux of 56% over our previous generation SAE model. The all-new Squadron® SAE delivers 2,420 lumens per light with output reaching up to 15,800 candela at just 29 watts. Keeping you safe on the road or trails, the Squadron® SAE will illuminate Zone 1 with a controlled, sharp cutoff from the combination of the new LED technology and highly efficient aspheric projector optics. Designed to meet the current SAE J583 fog lamp requirements, the Squadron® SAE is fully compliant with on-road regulations. This innovative approach allows for a highly controlled light pattern with a sharp cutoff, making them an ideal choice for driving through dust, fog, and inclement weather. Backed by our limited lifetime warranty and 30-day satisfaction guarantee, giving you the ultimate in-purchase protection. USPTO Reg No. 5,766,659
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Dimensions
- Depth (in.): 2.770
- Height (in.): 3.070
- Length (in.): 3.070
- Weight (lbs.): 0.750
Specifications
- Amperage Rating (A): 2.1
- Average Rated Life (hr.): 49930
- Beam Pattern: SAE Fog
- Bezel Material: Billet Machined Aluminum
- Brightness (Lumens): 2420
- Description: SAE Fog; Clear; Pair
- Housing Color: Black
- Housing Material: Hard Anodized and Powder Coated Cast Aluminum
- Lens Color: Clear
- Lighting Modes: Hardcoated Polycarbonate
- Light Quantity: 2
- Lens Material: Beam
- Lighting Quantity: 4
- Lighting Type: Forward Projecting
- Lighting Technology: Cree LED
- Mounting Hardware Included: Yes
- Mounting Hardware: Material Stainless Steel
- Overvoltage Protection: Built-In
- Product Type: Squadron SAE LED Light Pod Pair w/ Wiring Harness
- Wattage (W): 29
- Wiring Harness Included: Yes
Standards & Compliance
- DOT Approved: No
- Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
- Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
- Standards/Compliance (SAE): SAE Standard J583
- Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
- Street Legal: Yes
