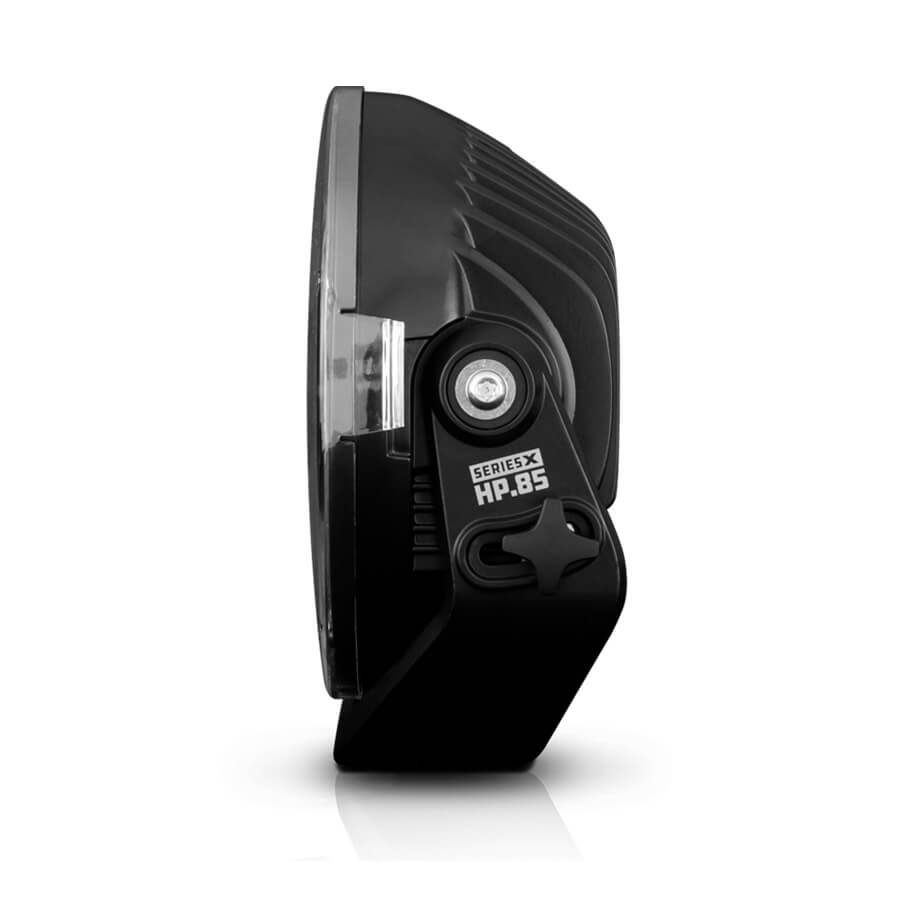

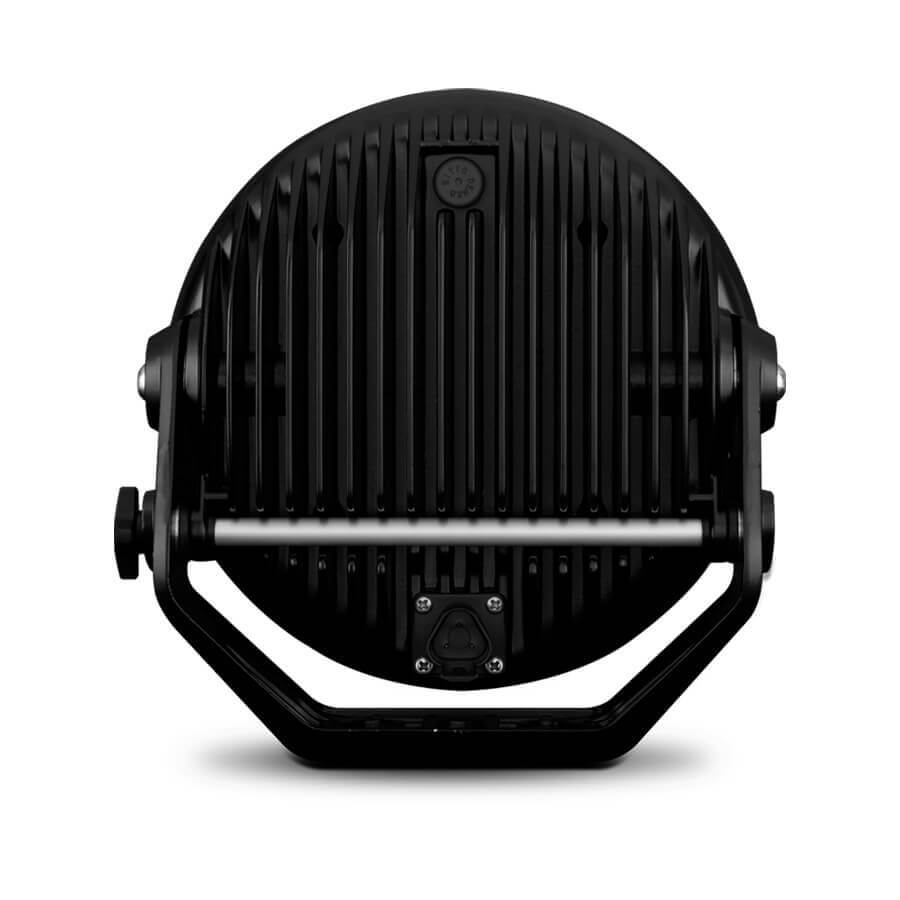

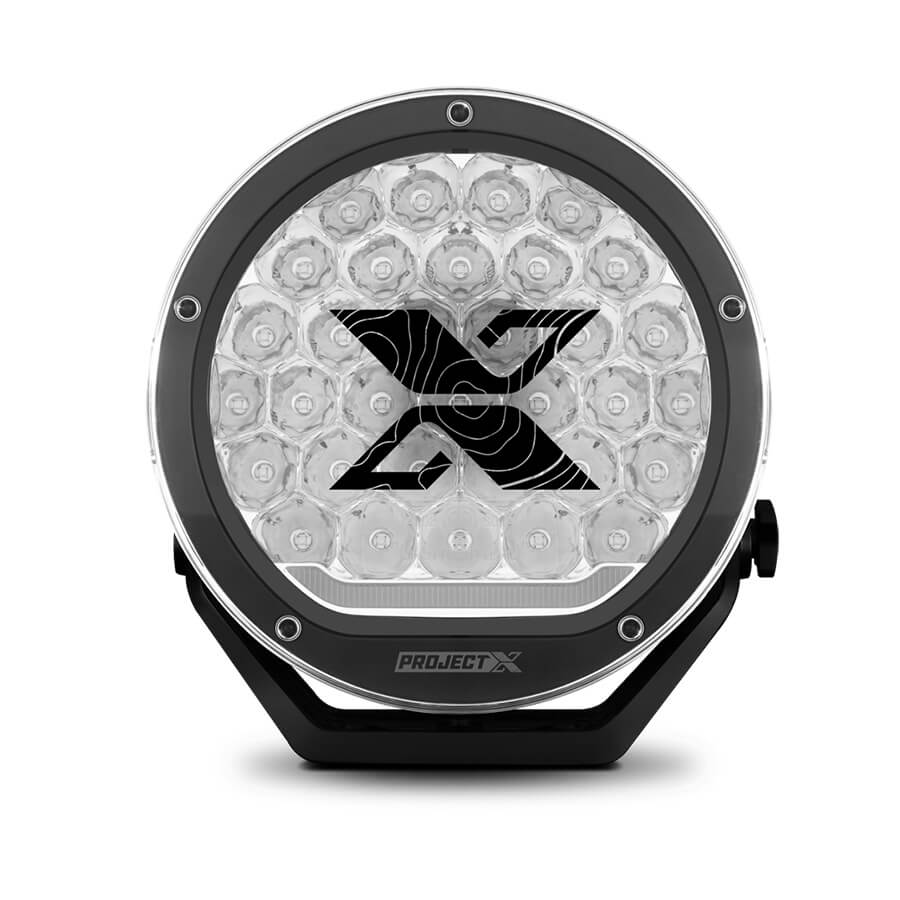

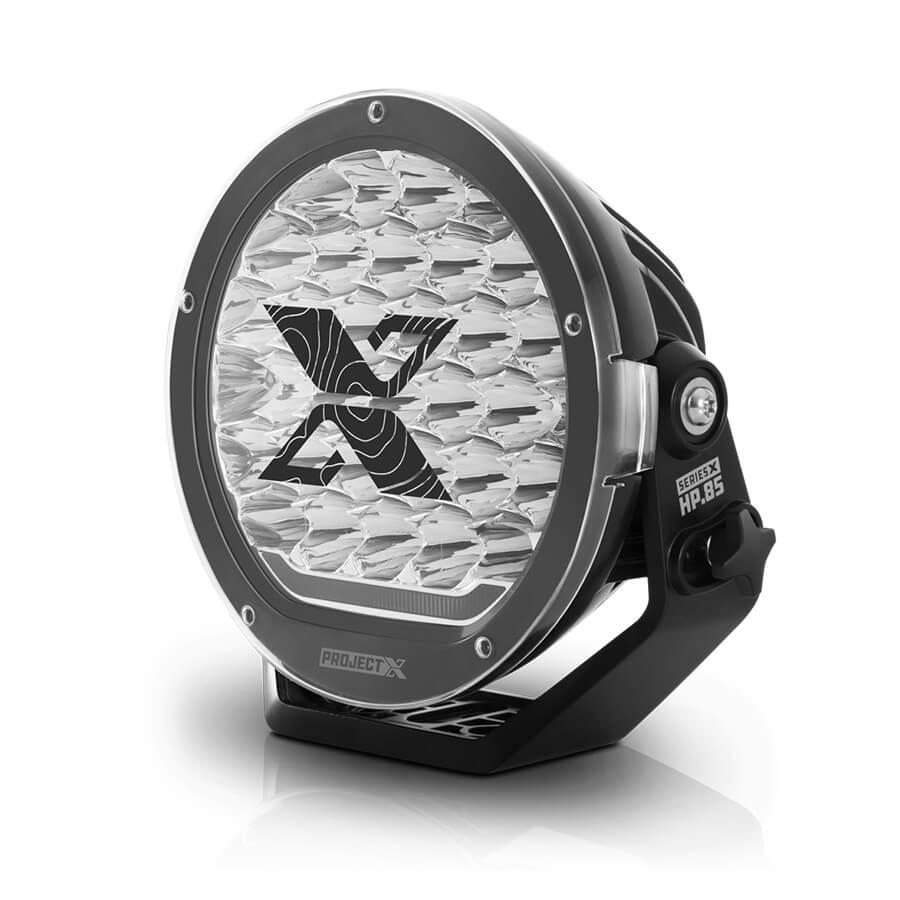

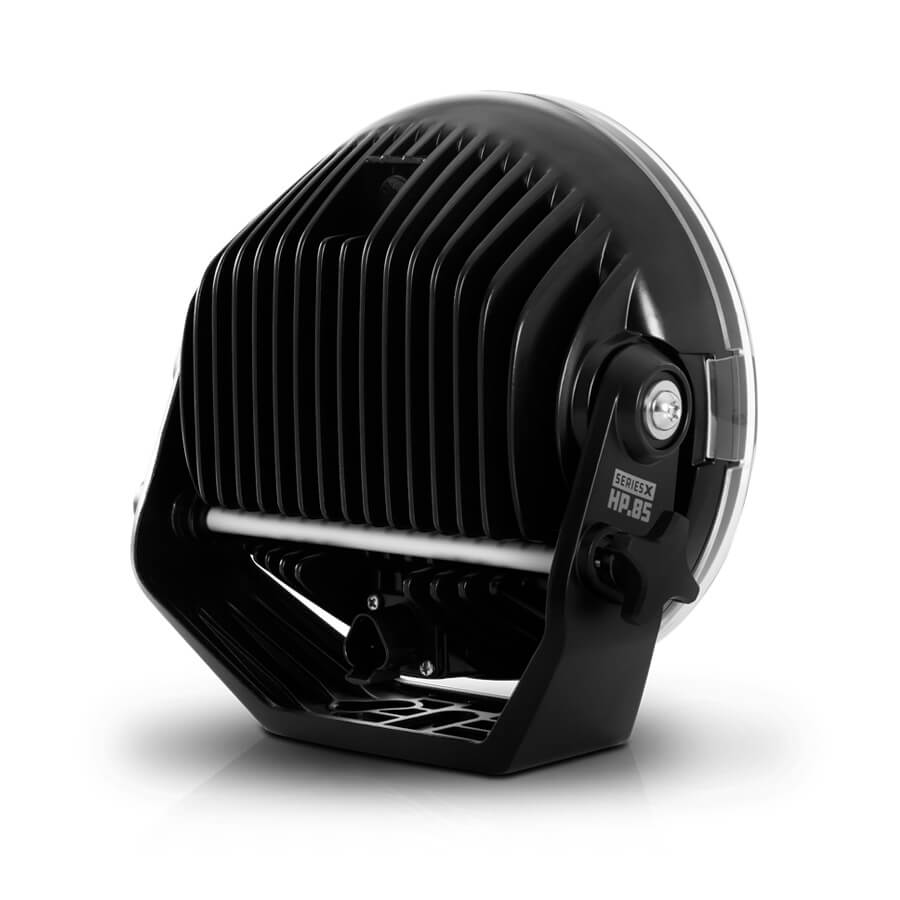

Connect with the Wild with the PROJECT X - Series X High Power LED auxiliary lights. The Series X LED lights feature best in class performance and is engineered using Osram LED technology to cut through the darkness and light the trail ahead with a powerful combo beam.
Featuring an integrated Active Thermal Management System (ATMS), the HP.85 delivers 165 watts of pure white light (5700¬8K) in a broad penetrating beam of light.
Unparalleled Performance - 5-Watt High Power Osram-LEDs producing 165W of pure white light (5700 degree K) and 21,780 raw lumens (15,410 effective) per light
LED Front Position Light Pipe - Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety.
Customizable Appearance - Customize the look of your Series X HP.85s with your choice of 3 inner trim pieces, including Brocky Blue, Dragon Red and PROJECT X Green.
The light is fully sealed making the ring simple and easy to swap without compromising light performance or affecting warranty.
Power
- Input Voltage: 9-33V
- LED Power: 165W
- Current Draw at 12V: 14.4A
- Operating Temp: -40 degree F to 149 degree F
- Heat Management: Active Thermal Management System (ATMS)
- Protection: Reverse Polarity Protection
- EMC: ECE R10
LEDs
- LED Type: Osram LEDs
- No. LED's: 33
Lumens
- Color Temp: 5700 degree K
- Color Rendering Index: 72
- Raw Lumens: 21,780
- Effective Lumens: 15,410
- Beam Length (1 lamp): 1 lux at 2536 Feet
- Beam Length (2 lamps): 1 lux at 3585 Feet
- Beam Width (1 lamp): 1 lux at 67 Feet
- Beam Width (2 lamps): 1 lux at 285 Feet
Construction
- Housing: Pressure die-cast aluminum
- Lens: Hard coated Polycarbonate
- Hardware: Stainless Steel
- IP Rating: IP66 & IP67
- Weight: 7.05 lbs
Details:
- Beam Length (1 lamp): 1 lux at 2536 Feet
- Beam Length (2 lamps): 1 lux at 3585 Feet
- Beam Width (1 lamp): 1 lux at 67 Feet
- Beam Width (2 lamps): 1 lux at 285 Feet
- Brocky Blue, Dragon Red and PROJECT X Green
- Bulb Quantity: 33
- Bulb Technology: LED Bulb Type: Osram LEDs Color Rendering Index: 72
- Connector Gender: Male
- Connector Quantity: 1
- Material: Die Cast Aluminum
- Effective Lumens: 15410 EMC: ECE R10
- Hardware Included: Yes Hardware
- Material: Stainless Steel
- Heat Management: Active Thermal Management System
- Height: 9.3 IN.
- Housing Color: Black
- Housing Finish: Flat
- Housing Material: Pressure die-cast aluminum
- Input Voltage Range: 9 - 33V DC
- IP Rating: IP67 Lamp Current Draw at 12V: 12.5 Amps
- Lens Color: Clear
- Lens Material: Hard coated Polycarbonate
- Mounting Hole Quantity: 3
- Operating Temp: Neg 40 Degree F to 149 Degree F Positional Light Current Draw at 12V: 0.17 Amps
- Protection: Reverse Polarity Protection
- Terminal Gender: Female
- Terminal Quantity: 1
- Terminal Type: Deutsch
- DT 3-pin Total Current Draw at 12V: 14.5 Amps Wattage Draw at 12V DC:
- Driving Light - 173 Watts, Position - 1.6 Watts
- Wire Quantity: 3
- Wiring Harness Included: Y
- Weight: 7.05 LBS
- Width: 4.4 IN.
