Accessory control redefined - The PROJECT X Ghost Box wireless ecosystem reimagines the market standard for switch boxes, creating a totally customizable and wirelessly controlled experience.
Expand Your Control - Intuitively connect your vehicle accessories the same way you would sync any Bluetooth product to integrate into your PROJECT X ecosystem.
Easy To Pair - Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.
Dual Circuit - Utilizing both Bluetooth and RF Wireless, the Ghost Box system gives you a reliable connection to your vehicle accessories ensuring your control is never severed.
Each module features a 2-circuit setup with a 20 amp and 40 amp circuit to give you multiple options for accessory control.

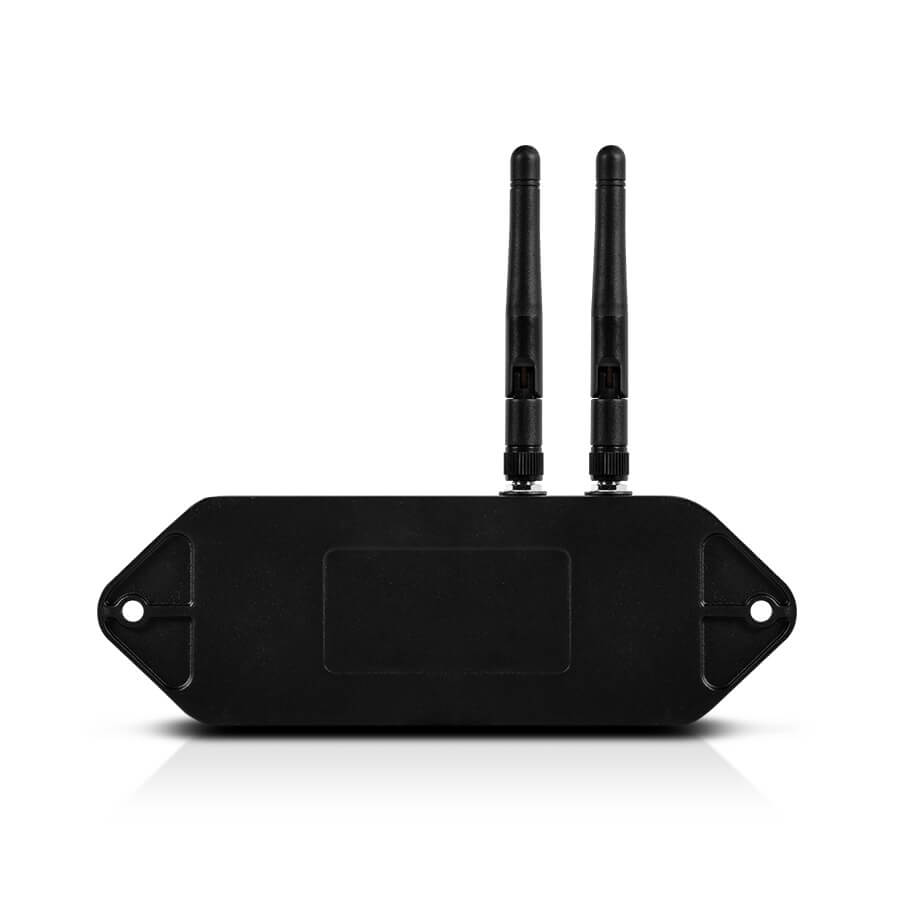

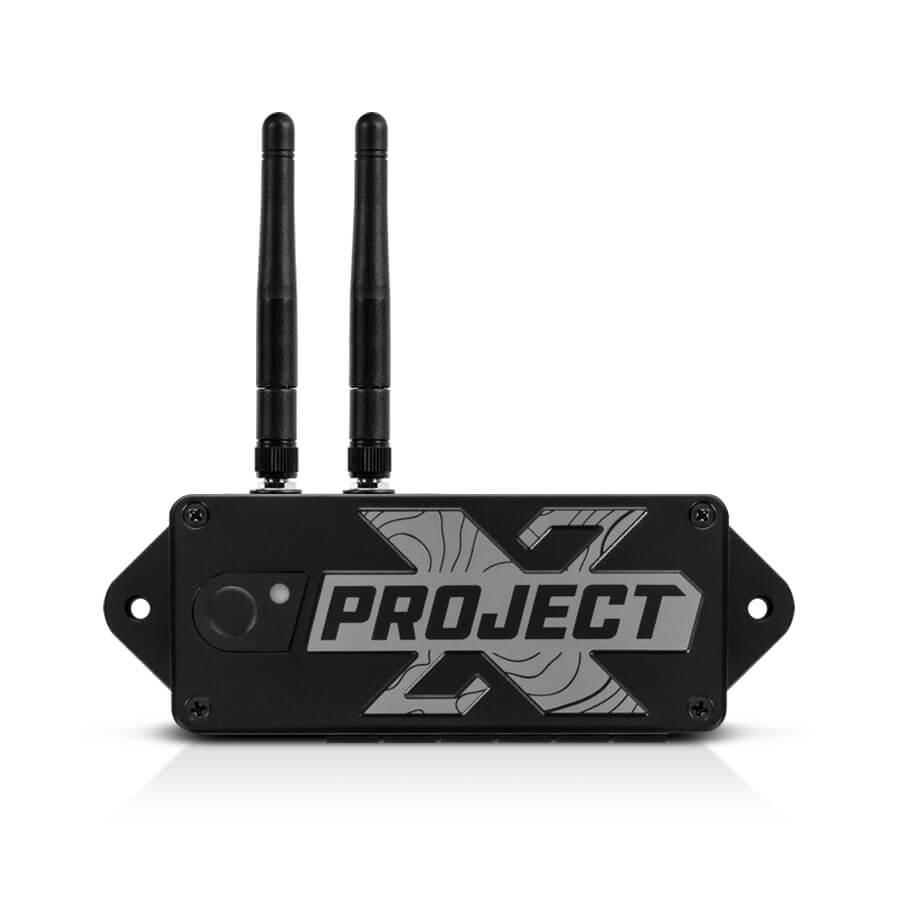

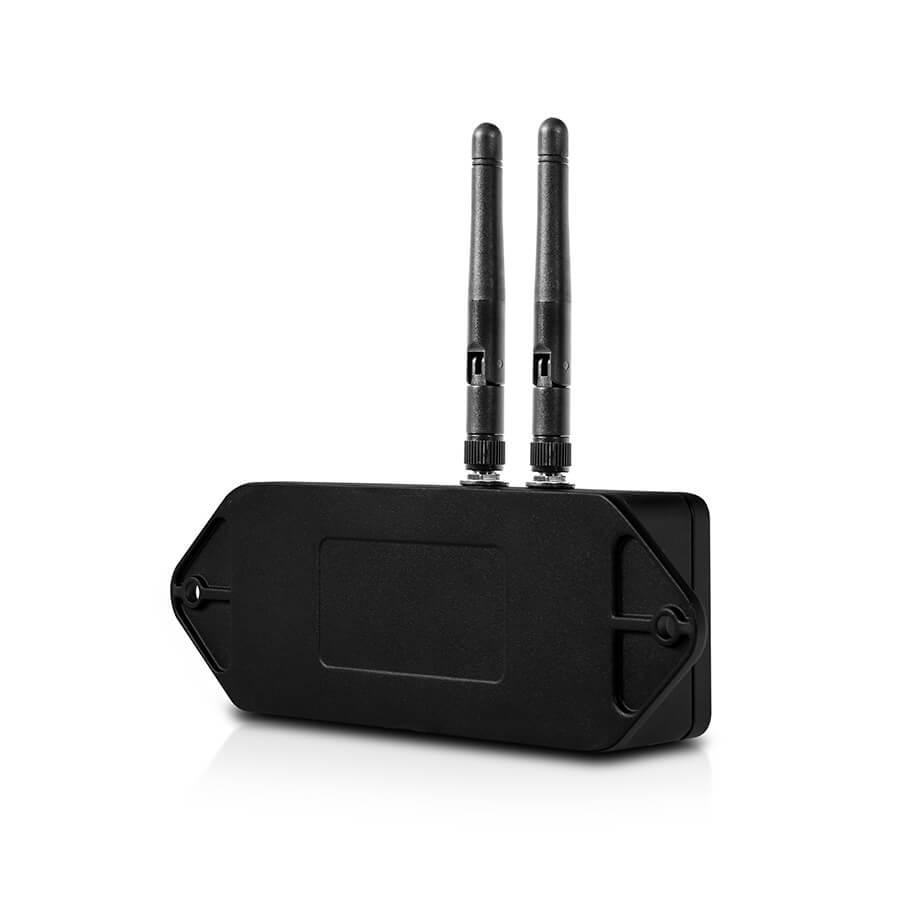

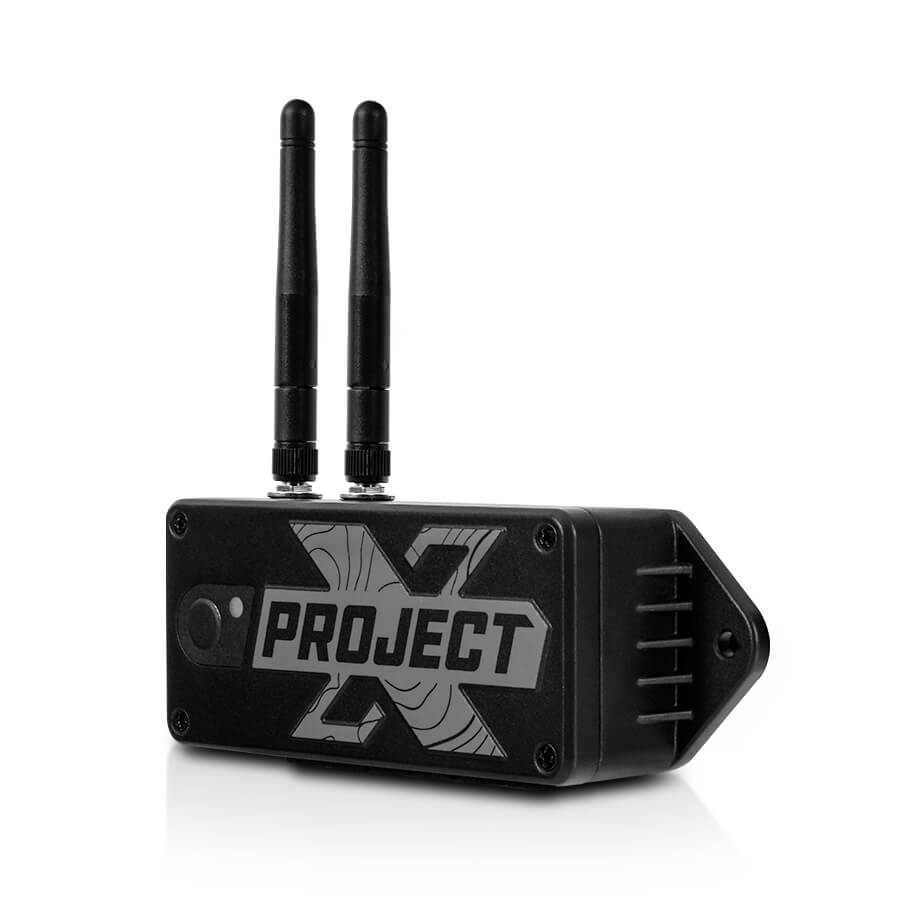

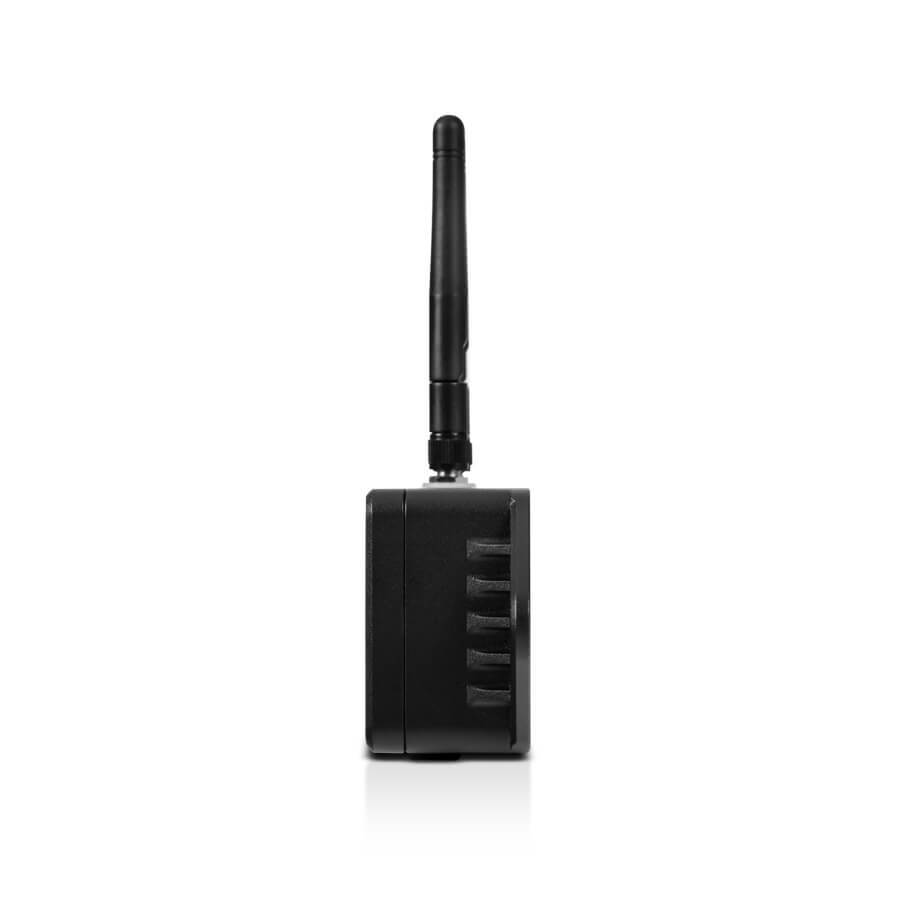

The fully expandable system includes a two-circuit control module that wirelessly communicates to the PROJECT X app or to an optional control keypad which can be programmed via the PROJECT X app as well.
- Control a single module for an easy accessory install, or create a large ecosystem of Ghost Box connected accessories across all your vehicles, trailers and equipment.
- Create presets you can incorporate across all of your accessories and set up groups and timers for maximum functionality.
- With the PROJECT X Ghost Box we make it easy to Connect with the Wild.
Wireless Control
Wirelessly connect all your Ghost Box control modules to the optional keypad via 2.4GHz RF Wireless and without having to route wires into your cab - simply tap the optional control pad to power and go!
Power
- Input Voltage: 9-16V
- Output Voltage: 9-16V
- Output Maximum Current: 40A at 12V DC
- Output Maximum Power: 480W at 12V DC
Temperature
Operating Temp: -22 degree F to 149 degree F
Storage Temp: -40 degree F to 185 degree F
Contruction
- Waterproof Rating: IP64
- Wireless Frequency: 2.4 GHz RF Wifi and Bluetooth 5.0
- Wireless Range (RF Wifi): 98.4 Feet (without interference or obstruction)
- Wireless Range (Bluetooth): 33 Feet (without interference or obstruction)
Details:
- Amperage Rating: 60
- Circuit Terminal Gender: Female
- Circuit Terminal Quantity (Per Module): 6
- Terminals: Input Positive, Input Negative, Output 1 Positive, Output 1 Negative, Output 2 Positive, Output 2 Negative,
- Circuit Terminal Type: Screw
- Terminal Control Method: Keypad or App (IOS & Android)
- Hardware Included: Yes
- Hardware Material: Stainless
- Housing Color: Black
- Housing Material: Aluminum diecast
- Input Voltage Range: 9-16V DC
- Keypad Included: No, Not needed but sold separately.
- Maximum Wire Size: 8 AWG
- Mounted Weight: 4
- Mounting Hole Quantity: 2 per Module
- Number of Circuits (Per Module): 2
- Number of Circuits (Total): 2
- Operating Temperature: -22F to 149F
- Output Maximum Current (Control Module): Circuit 1: 20 Amps at 12V DC, Circuit 2: 40 Amps at 12V DC Output
- Maximum Wattage (Control Module): 480 Watts at 12V DC
- Storage Temperature: -40F to 185F
- Terminal Quantity: 6 Voltage 12
- Waterproof Rating: IP64
- Wireless Frequency: 2.4GHz RF Wi-Fi & Bluetooth 5.0
- Wireless Range (Bluetooth): 33 Feet without interference or obstruction
- Wireless Range (RF Wi-Fi): 98.4 Feet without interference or obstruction
