Description

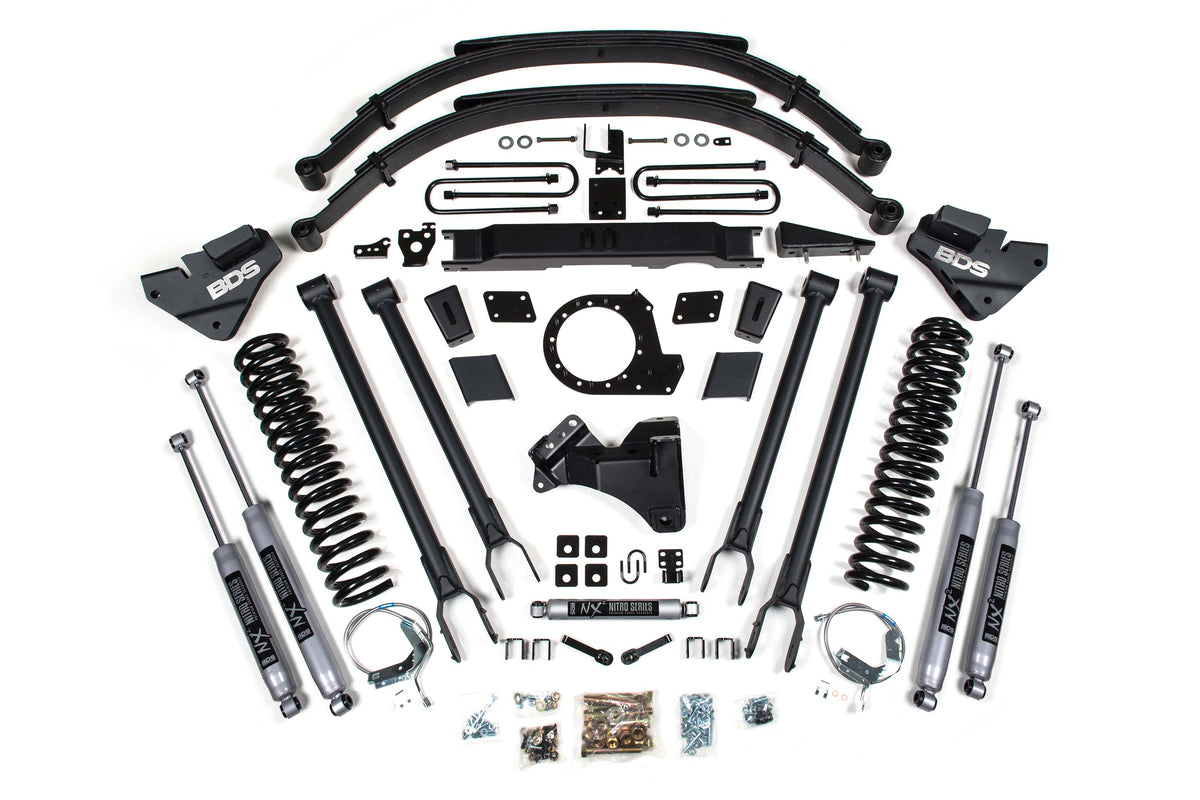

Take your Ford F250 and F350 Super Duty gas truck to the next level with this 9-inch 4-Link lift kit from BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 40 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arm conversion, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, bump stop extensions, stainless steel braided brake lines, NX2 steering stabilizer, and custom-tuned nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied.
In the rear this kit utilizes full replacement Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring, u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, gas-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
T-Case Indexing
At this height, driveline adjustments are necessary to allow the use of the factory driveshafts so a precision-built transfer-case indexing ring featuring ARP-studs can clock the transfer case and improve the front driveline operating angle. Additionally, a high clearance transmission crossmember supplied to allow sufficient clearance.
- Front Lift Method: Coil Spring
- Rear Lift Method: Leaf Spring
- Shocks Included: Yes
- Front Lift Height: 9 inch
- Rear Lift Height: 8 inch
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 40 x 13.50 Tires WILL require trimming.
- Transfer case indexing ring will not fit 6.2L vehicles equipped with the 6R100 transmission.
- If your truck is equipped with a factory rear sway bar add: 123009
- Indexing ring has not been designed to work on manual shift transfer case models. Modification to the shift cable mount will be required.
- Gas models will require exhaust modification due to driveshaft interference.
- Easy, 100 percent Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Kit Components:
- Includes two BDS003839, 2017 F250/F350 8 inch Rear Leaf Spring, UPC Code 658848611447
- Includes one BDS013601, 2017-2022 Super Duty 4-Link Box Kit 1of2, UPC Code 658848613700
- Includes one BDS013801, 2017 Super Duty 8 inch Front Box Kit, UPC Code 658848613830
- Includes one BDS013809, 2017 Super Duty 8 inch Rear Box Kit, UPC Code 658848613847
- Includes one BDS033812, 2005+ Ford F250 SD Gas 8 inch Coil Kit, UPC Code 658848616619
- Includes one BDS123805, 2020-2022 Ford Superduty 8 inch Transfer Case Indexing Ring Kit, UPC Code 711745612181
- Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
Components by Option:
NX2 Nitro Series (BDS1960H):
- Includes two BDS85721, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1, UPC Code 711745609594
- Includes two BDS85779, Shock- 35.50 x 20.40 x 2-3/8 - EB1/EB1, UPC Code 711745609778
FOX 2.0 Performance Series (BDS1960FS):
- Includes two FOX98224721, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
- Includes two FOX98224779, Fox 2.0 Shock 35.95 x 21.85 x 2-EB1/EB1
