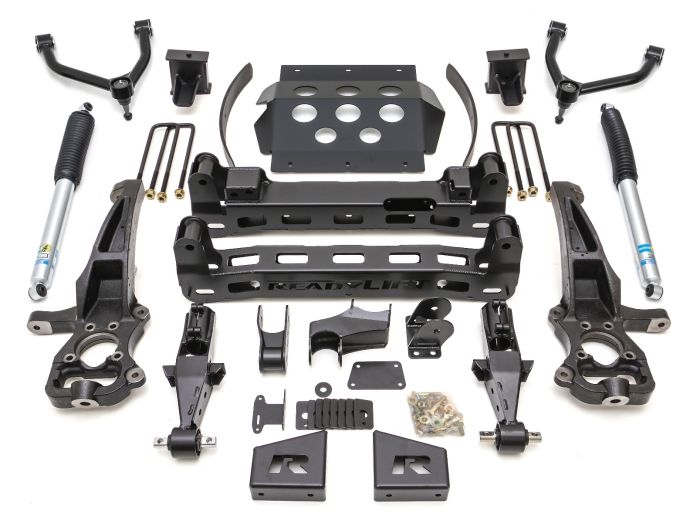

ReadyLIFT offers the new Big Lift Kit for 2019-2023 Chevy Silverado and GMC Sierra 1500 trucks, specifically the 8 InchF-6.5-Inch R Big Lift Kit (44-3985) for 4WD models. This kit, engineered for excellent ride quality and handling, is not suitable for Trail Boss, AT4, AT4X, ZR2, or Denali models, nor is it compatible with Adaptive Ride Control, Multimatic suspension, or vehicles with rear composite mono-leaf springs.
It's designed for trucks with traditional steel leaf springs, identified by square U-bolts. The 44-3985 kit features boxed steel front/rear cross members and a 3/16-Inch thick steel front skid plate.
The 1/4-inch steel differential drop brackets are double gusseted and ribbed for strength against torsional twisting. A unique clam-shell style lower strut extension preserves factory strut use and alignment, using TCT lower bushings for a precise pivot.
New tubular upper control arms with TCT pivot bushings replace OE stamped steel arms, enhancing strength and durability. The rear lift includes 5-Inch tall fabricated steel blocks with integrated bump stop landings and an add-a-leaf, along with new Bilstein 5100 series rear shocks.
Extensive testing ensures this 8-Inch lift kit enhances the ride quality of the new GM 1500 4WD trucks. Recommended tire sizes are 37x12.50 on 20x9 0 offset wheels with no trimming, and 37x12.50 on 20x10 -18 offset wheels with minor trimming.
Trimming areas include the front valance, felt liner edges, and mud flap. The use of the Auto 4 Hi feature is not recommended with this kit.
Key features include maintaining factory ride and handling, clearance for up to 37x12.50 tires on an 8-inch kit, the proprietary lower strut clamshell design, tube steel upper control arms with maintenance-free pivot bushings and 1-ton ball joints, 3/16-inch steel plate cross members and skid plate, anti-torsion differential drop brackets, fabricated steel rear lift blocks, and premium Bilstein rear shocks. The kit also includes the ReadyGuard Powertrain Warranty.
Features and Benefits:
- Maintains factory ride and handling
- Provides clearance for increased aftermarket tire sizes
- Can accommodate up to 37x12.50 tires on 8inch kit with 9-Inch wide wheels and 0 offset
- Minor trimming required for 18 offset
- Proprietary lower strut clamshell design maintains factory geometry
- Retains use of factory strut
- Tube steel upper control arms with maintenance-free pivot bushings and 1-ton ball joints
- 3/16inch thick steel plate cross members and skid plate
- Antitorsion boxed and gusseted plate steel differential drop brackets
- Fabricated steel 5-Inch rear lift blocks with integrated bump stop landings and offset pin
- 3/16 3/16inch thick steel plate cross members and skid plate
Details:
- Fitment: Direct Fitment
- Front Lift Component: Spacer
- Front Lift Height: 8.0 Inch
- Front Shocks: None
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 8.0 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Block and U-bolt with add a leafs
- Rear Lift Height: 5.0 Inch
- Rear Shocks: Bilstein 5100
- Shocks Included: Yes
