Built to outperform, BDS Suspension engineered a 6-inch lift kit with 4-Link conversion for your 2019-2024 RAM 2500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-Link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
4-Link Conversion
Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
- Front Lift Method: Coil Spring
- Rear Lift Method: Coil Springs
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 4.5 inch
- Will NOT fit air-ride equipped models
- Diesel models only
- Heavy duty 4-link arms improve strength, handling and caster control
- High strength progressive rate coil springs for a great ride on any terrain
- Track bar relocation brackets to re-position axle
- Forged drop pitman arm to correct steering angles
- Front sway bar correction to maintain handling performance
- HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
Tire Size: 37 x 13.5 Wheel Diameter: 20 x 9 Back Spacing: 5.625

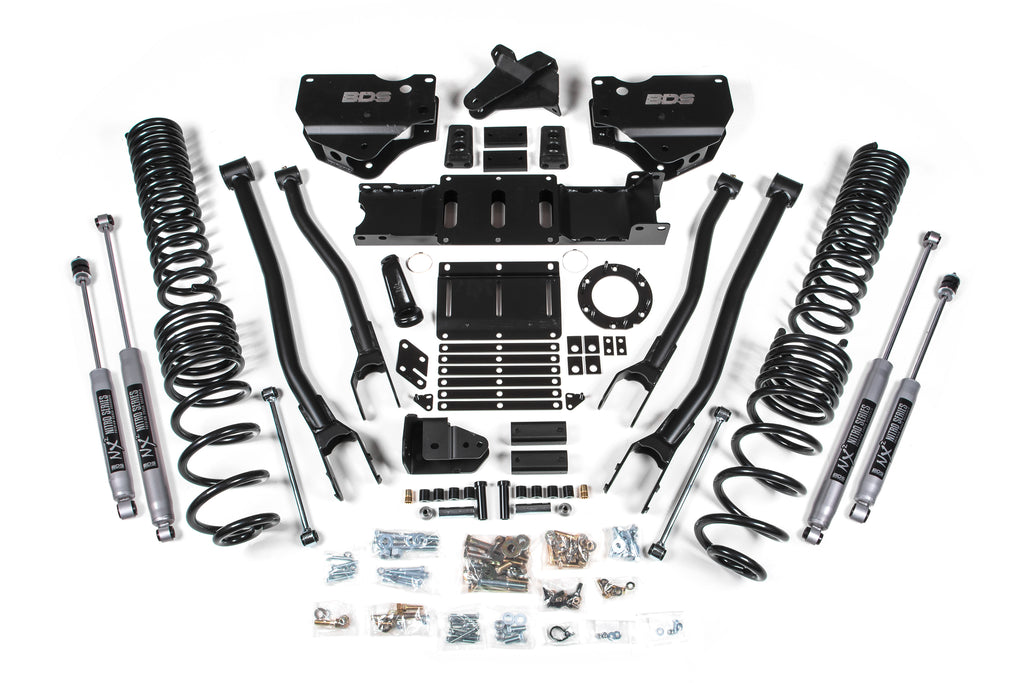

Kit Components:
- Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
- Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
- Includes one BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit, UPC Code 658848612482
- Includes one BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel, UPC Code 658848616428
- Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
Components by Option:
NX2 Nitro Series (BDS1688H):
- Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
- Includes two BDS85756, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1, UPC Code 711745609655
FOX 2.0 Performance Series (BDS1688FS):
- Includes two FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
- Includes two FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1

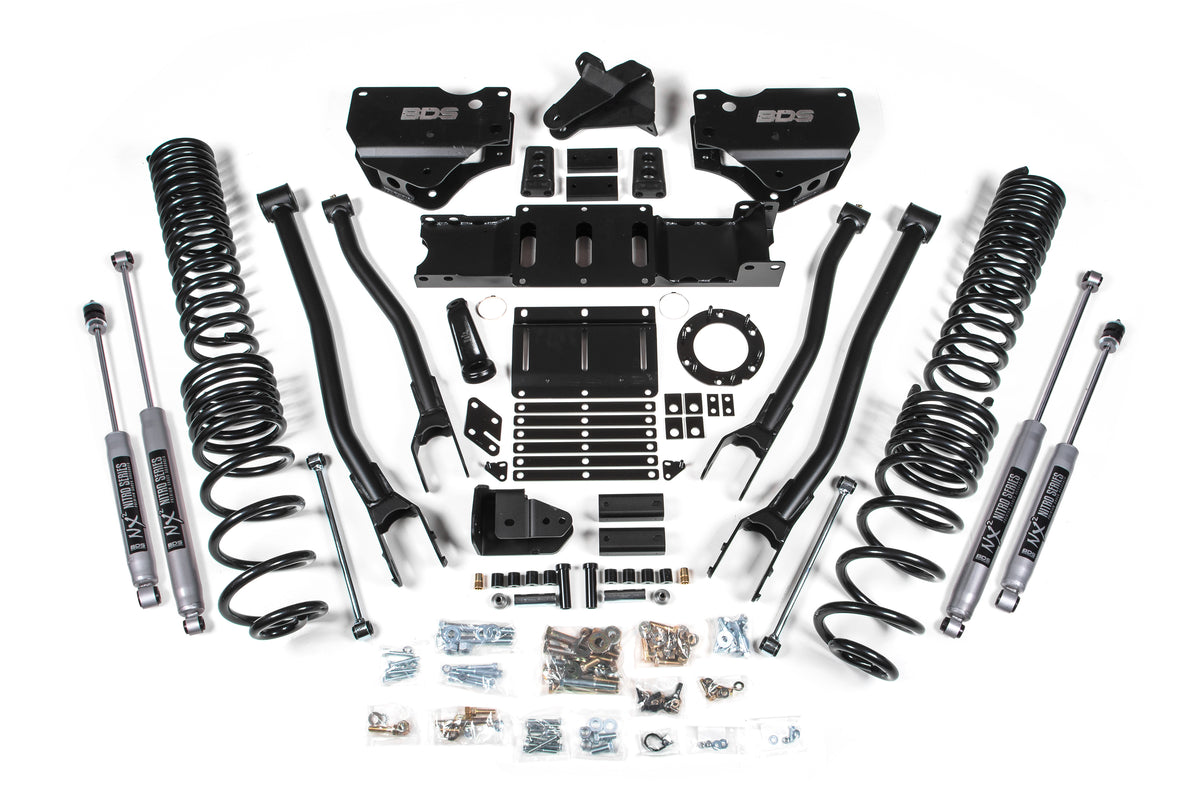

FOX 2.5 Performance Elite (BDS1688FPE):
- Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust
