Description
Increase the performance and capability of the 2021-2025 Ford F150 trucks with 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes FOX 2.0 strut shocks, high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection.
Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
FOX 2.0 Struts
These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate.
They feature a 2.0 inch extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (Internal Floating Piston) to eliminate oil aeration, FOX's proprietary internals, 5/8 inch hard chrome plated heat-treated alloy shaft.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 3 inch
- 18 inch or larger diameter wheels are required. Stock 17 inch and 18 inch wheels cannot be re-installed. Stock 20 inch wheels can be used with up to a 305/60R20 Tire.
- 18 inch wheels with 5-5.5 inch backspacing should be test fit prior to mounting the Tire to ensure proper clearance to the steering knuckle/tie rod. 5.5 inch backspacing is highly recommended for Tire-to-frame crash bar clearance.
- Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
- Block kits replace factory 1-1/4 inch block. The stock block will not be reinstalled.
- Crash bars may require modification based on wheel and Tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
- Does NOT fit diesel models.
- Will not work with Tremor models.
- Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure, BDS recommends having this performed prior to installing the lift.
- This system has not been tested on models equipped with Ford BlueCruise.
- Will not work with models with CCD (Continuous Controlled Damping)
- FOX 2.0 Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
3 Inch Block Kit
- Tail low to level stance
Tire Size: 35 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/5.5

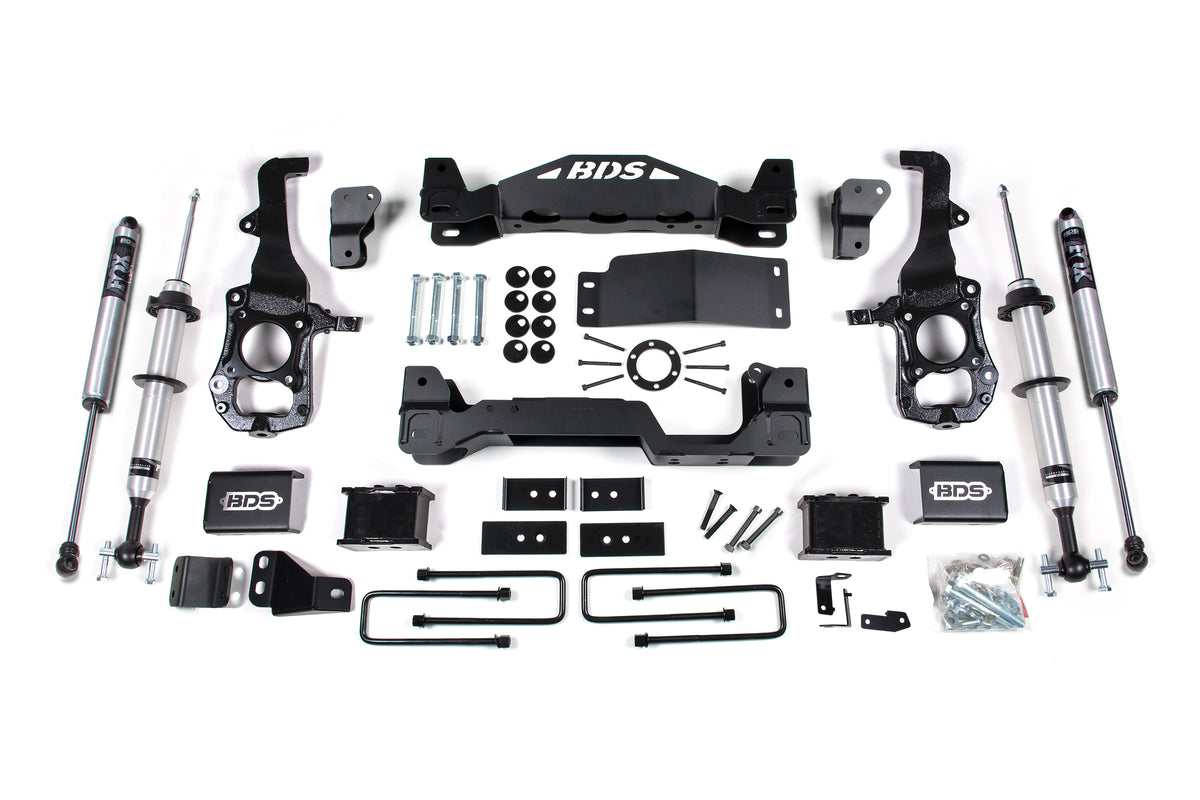

Kit Components:
- Includes one BDS023652, 2021-2025 Ford F150 Front Box Kit (1of2), UPC Code 658848615964
- Includes one BDS023653, 2021-2025 Ford F150 Front Box Kit (2of2), UPC Code 658848615971
- Includes one BDS023670, 2021-2025 Ford F150 Knuckle Box Kit - DS, UPC Code 658848616053
- Includes one BDS023671, 2021-2025 Ford F150 Knuckle Box Kit - PS, UPC Code 658848616060
Components by Option:
4 Inch Block Kit (BDS1900FSR):
- Includes one BDS013436, 2021-2025 Ford F150 4 inch Rear Box Kit, UPC Code 658848613526
- Includes two FOX98224828, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
- Includes two FOX98662001, BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, Internal Floating Piston, 6.1 inch, 4 & 6 inch Lift
5 Inch Block Kit (BDS1579FSR):
- Includes one BDS013538, 2021-2025 Ford F150 5 inch Rear Box Kit, UPC Code 658848613663
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
- Includes two FOX98662001, BDS, 2014-2024 Ford F-150, Front Coilover, Snap Ring, PS, 2.0, Internal Floating Piston, 6.1 inch, 4 and 6 inch Lift
