BDS Suspension leads the industry by developing a 2wd specific 6 inch lift kit suspension system for your 2015-2020 Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 6 inch
- Rear Lift Height: 5 inch
- 18 inch wheels with 5-5.5 inch total backspacing should be tested before mounting to ensure proper clearance to BDS steering knuckle.
- 18 inch or larger diameter wheels are required. Stock 17 inch and 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to 305/60-20 Tires.
- The 4 inch blocks will net a level/tail LOW stance. The 5 inch blocks will net a level/tail HIGH stance.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
- This system WILL WORK on Diesel Models.
- Will not fit HD models (7 lug).
- This kit is FMVSS No.126 Compliant
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Rear Lift Option
4 Inch Block Kit
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.5

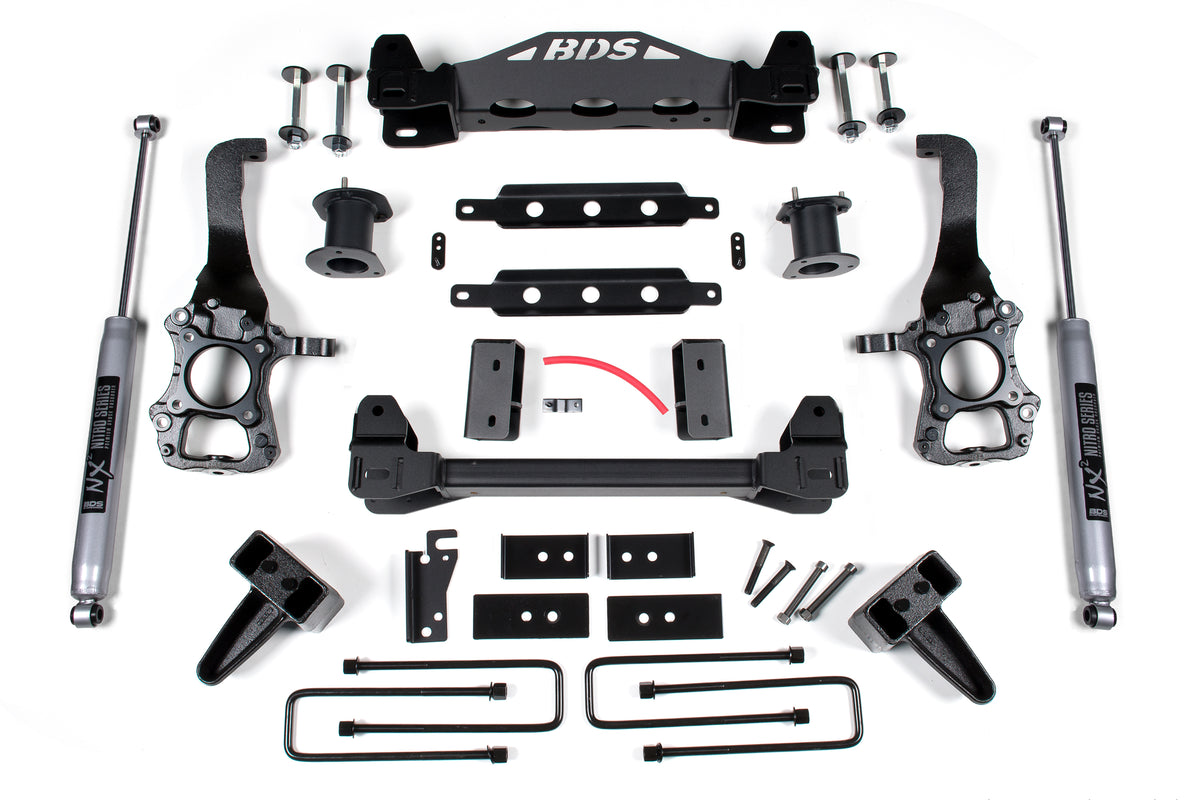

Kit Components:
- Includes one BDS023605, 2014-15 F150 6 Inch Spacer Box Kit, UPC Code 658848615780
- Includes one BDS023634, 2015-2020 Ford F150 Knuckle Box Kit - DS, UPC Code 658848615919
- Includes one BDS023635, 2015-2020 Ford F150 Knuckle Box Kit - PS, UPC Code 658848615926
- Includes one BDS023644, 2015-2020 Ford F150 2wd Box Kit, UPC Code 658848615933
Components by Option:
4 Inch Block Kit / NX2 Nitro Series (BDS1918H):
- Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519
- Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693
5 Inch Block Kit / NX2 Nitro Series (BDS1522H):
- Includes one BDS013529, 2009-2016 Ford F150 Rear Box Kit, UPC Code 658848613656
- Includes two BDS85760, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609693
4 Inch Block Kit / FOX 2.0 Performance Series (BDS1918FS):
- Includes one BDS013429, 09-15 F150 4 inch Rear Block Kit, UPC Code 658848613519
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
5 Inch Block Kit / FOX 2.0 Performance Series (BDS1522FS):
- Includes one BDS013529, 2009-2016 Ford F150 Rear Box Kit, UPC Code 658848613656
- Includes two FOX98224760, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
