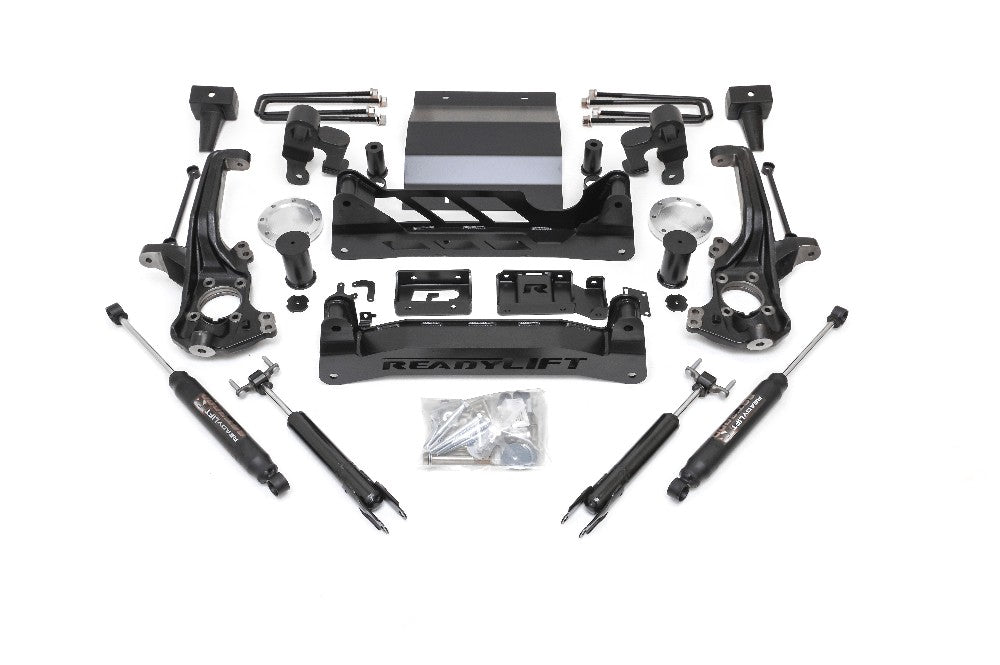

Our all-new 44-30601 6-Inch lift kits with ReadyLIFT SST3000 shocks are a great option for the customer who wants a taller, lifted height and the ability to run up to 37-Inch tall tires. The 44-3060 lift kits include laser-cut, fabricated heavy-duty steel cross-members, new cast iron OE-style knuckles with the perfect geometry built-in, torsion arm brackets, and our own front torsion bar relocation brackets that retain the factory position of the torsion bars.
These new torsion bar relocation brackets eliminate the traditional lowering of the torsion bars, which can inhibit ground clearance from a lift installation and help to improve the overall driving experience. Additionally, each kit includes crucial differential drop brackets and CV axle spacers, 12-Inch sway bar end links, bump stop extensions, OE style cast iron rear lift blocks, heavy-duty steel skid plate, and finally, SST3000 series shocks.
Features and Benefits: Laser cut, CNC formed heavy-duty front/rear drop crossmembers. Bolt-on installation well almost.
Some slight modifications will be required. OE-style cast-iron knuckles have been precisely engineered to provide the ideal geometry to ensure proper alignment and improve the overall driving experience.
Increases ground clearance. Includes our new torsion bar relocation brackets that keep the torsion bars in their factory location no need to lower the torsion bars to lift!
6 lift kits - Allows for 37x12.50 on a 9-Inch wide wheel with zero offset. Available with ReadyLIFT Sst3000 f/R shocks.
Includes important differential drop brackets and CNC-machined billet Aluminum CV axle spacers. Note: Some GM HD trucks equipped with Tow Package may require custom-length U-bolts purchased separately.
Custom U-bolt length may vary by vehicle application. If the ReadyLIFT kit standard U-bolts are too short, ReadyLIFT recommends locally sourcing custom U-bolts built to each truck specifications.
Features and Benefits:
- Big lift kit designed for 2020-2022 GM 2500HD/3500HD 4WD and AT4 models
- Complete front and rear off-road suspension system
- Includes (4) SST 3000 Series Shocks
- Allows for up to 37-Inch tall tires
- Uses OEM factory torsion keys
- Made in the USA
- Compatible with tow packages (see details for notes)
- Note: Single Cab configuration not validated for fitment and drivability by ReadyLIFT
Details:
- Fitment: Direct Fitment
- Front Lift Height: 6.0 Inch
- Front Shocks: SST3000
- Front or Rear: Front and Rear
- Install Difficulty: Difficult Requires Professional Installation
- Installation Time: 5+ Hours
- Lift Height: 6.0 Inch
- Max Tire Size: 37 Inch
- Rear Lift Component: Block
- Rear Lift Height: 6.0 Inch
- Rear Shocks: SST3000
- Shocks Included: Yes
