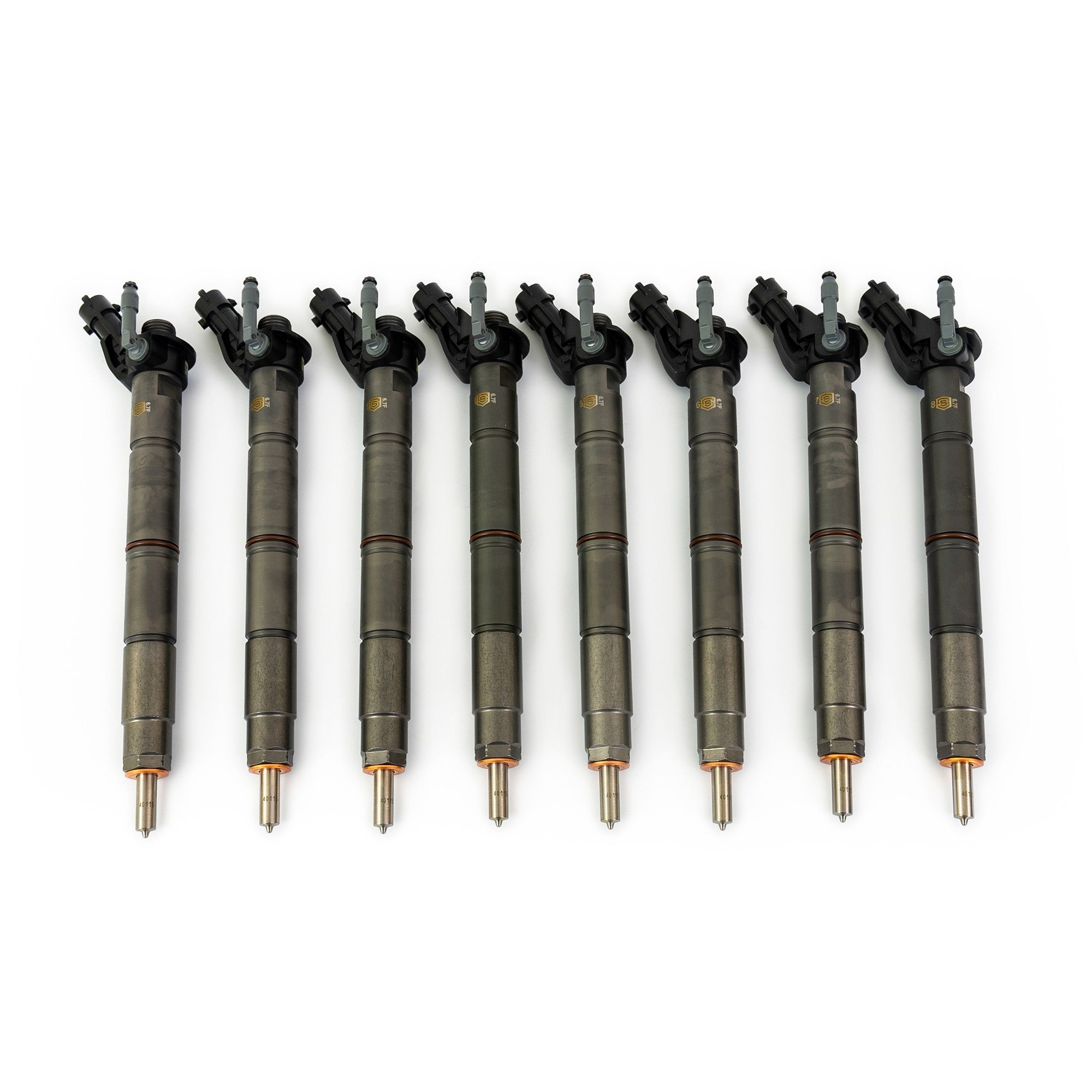

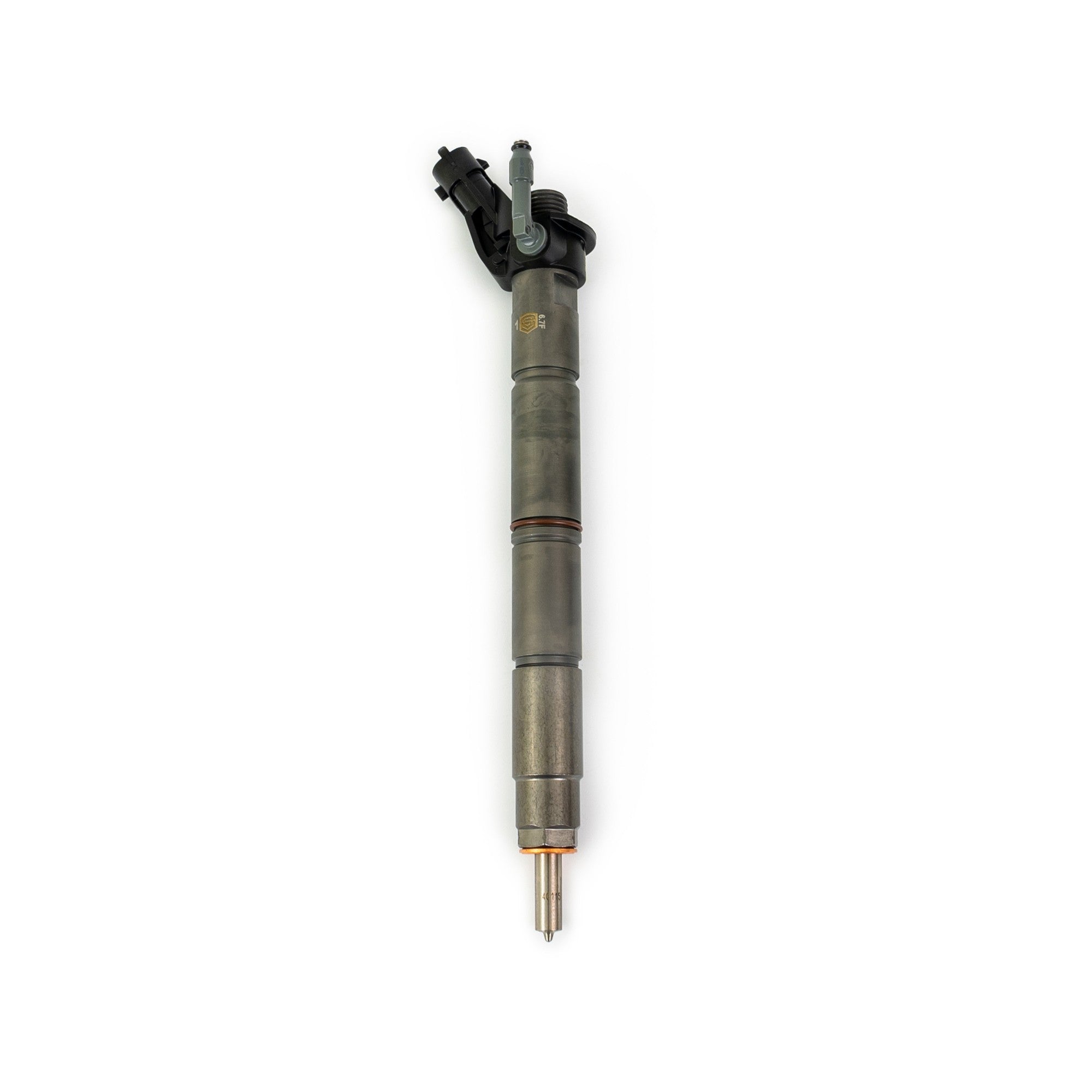

6.7L Ford Power Stroke Injectors (2011-2019) Injector build spec custom-matched to nozzle flow rate for each size, which includes internal modifications (piezo mod)
S&S Upgrades
- Proprietary nozzle honing process for clean and consistent holes
- Nozzles flow-matched to 1 percent variance per set, using OE standards
- Viscor SAE-J967
- 40 degrees C
- 100 bar
- Injectors flow-matched to 3 percent variance per set (except TorqueMaster)
- Viscor SAE-J967
- 40 degrees C
- 4 different pressure/energizing points per injector
- Injection profiles (rate shape) aligned
Options
- The industry has adopted a percent increase in nozzle flow over stock as the sizing convention
- Available sizes: TorqueMaster, 30 percent, 45 percent, 60 percent, 80 percent, 100 percent, 150 percent, 200 percent, 250 percent, 300 percent
Details:
- Engine Manufacturer: Power Stroke
- Liter: 6.7
- Cylinders: 8
- BlockType: V
- Fuel Type: Diesel
- CC: 6651
- CID: 406
- Engine Bore Inches: 3.9
- Engine Bore Metric: 99.1
- Engine Stroke Inches: 4.25
- Engine Stroke Metric: 107.9
- Engine Years: 2011-2019
- Size: TorqueMaster
- Sold As: Set
