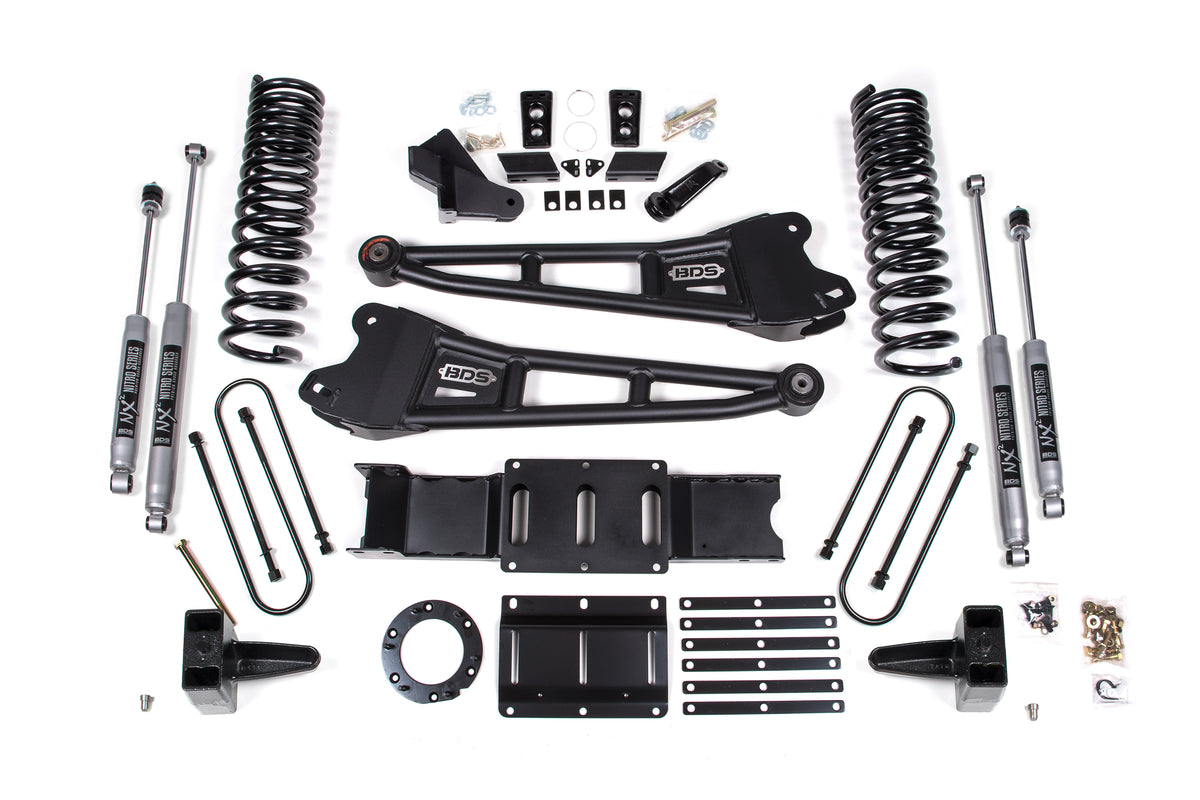

5.5 Inch Lift Kit w/ Radius Arm Ram 3500 19-24 4WD Gas

Raise your RAM 3500 gas powered truck to the next heights with this 5.5-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires.

Up front the lift kit includes gas-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.

At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

HD Radius Arms

In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

1. Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
2. A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
3. If equipped with a manual T-case BDS122422 is required.

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Rear Lift Option

With Factory Rear Overload Leaf

Kit Components:

• Includes one BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit, UPC Code 658848612758
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
• Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788

Components by Option:

With Factory Rear Overload Leaf / NX2 Nitro Series (BDS1687H):

• Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

Without Factory Rear Overload Leaf / NX2 Nitro Series (BDS1686H):

• Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
• Includes two BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745609624
• Includes two BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1, UPC Code 711745609709

With Factory Rear Overload Leaf / FOX 2.0 Performance Series (BDS1687FS):

• Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

Without Factory Rear Overload Leaf / FOX 2.0 Performance Series (BDS1686FS):

• Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
• Includes two FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• Includes two FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

With Factory Rear Overload Leaf / FOX 2.5 Performance Elite (BDS1687FPE):

• Includes one BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612642
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust

Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite (BDS1686FPE):

• Includes one BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612635
• Includes one FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• Includes one FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
