Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks.
At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.
- Front Lift Method: Radius Arm
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- A DEF tank relocation bracket(part# 122409) is required for this kit to work with Dually or Mega Cab Models with Aisin Transmissions (8-bolt).
- Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
Vehicles equipped with a Manual T-case, requires BDS122422 Manual transfer case shifter extension Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
Rear Lift Option Without Factory Rear Overload Leaf
Select rear box kit based on whether or not your RAM has factory Rear Overload Leaf.
Kit Components:
- Includes one BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit, UPC Code 658848612420
- Includes one BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas, UPC Code 658848616343
- Includes one BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit, UPC Code 658848619429
- Includes one BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas, UPC Code 658848619788
Components by Option:

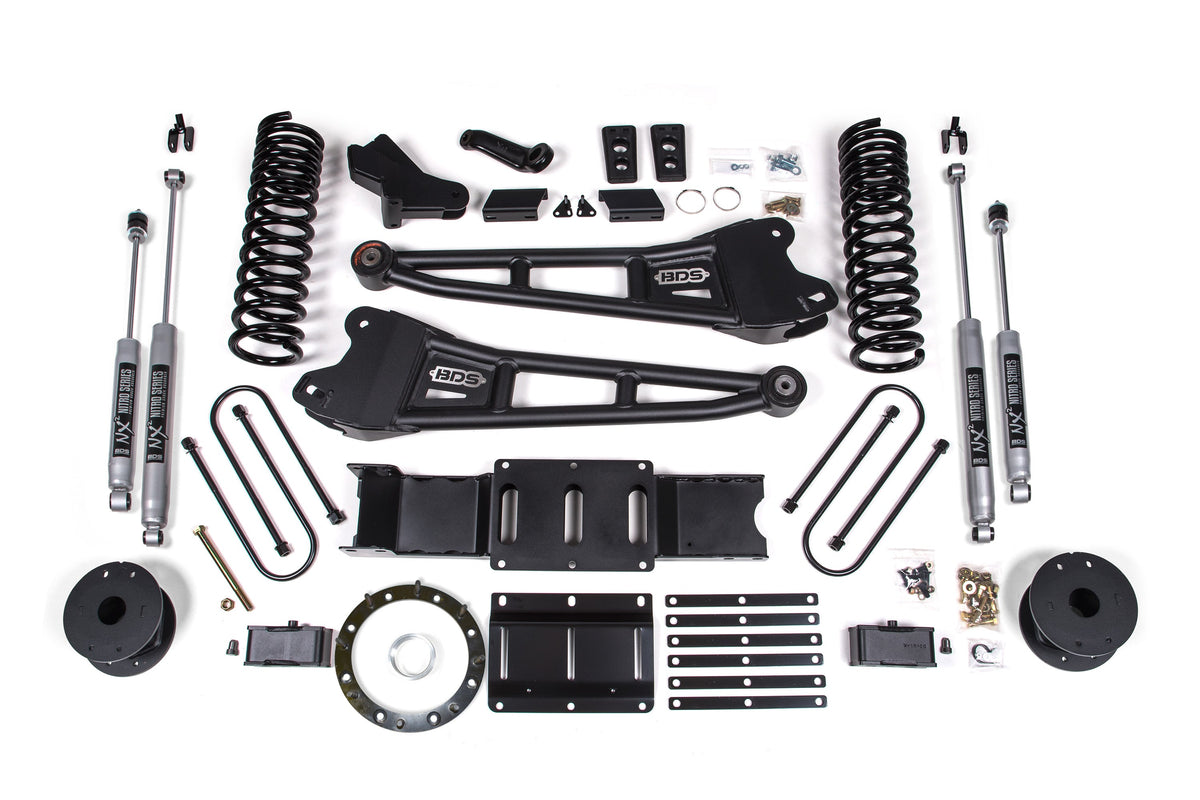

Without Factory Rear Overload Leaf / NX2 Nitro Series (BDS1702H):
- Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
- Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
- Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686
With Factory Rear Overload Leaf / NX2 Nitro Series (BDS1703H):
- Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
- Includes two BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2, UPC Code 711745609495
- Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686
Without Factory Rear Overload Leaf / FOX 2.0 Performance Series (BDS1702FS):
- Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

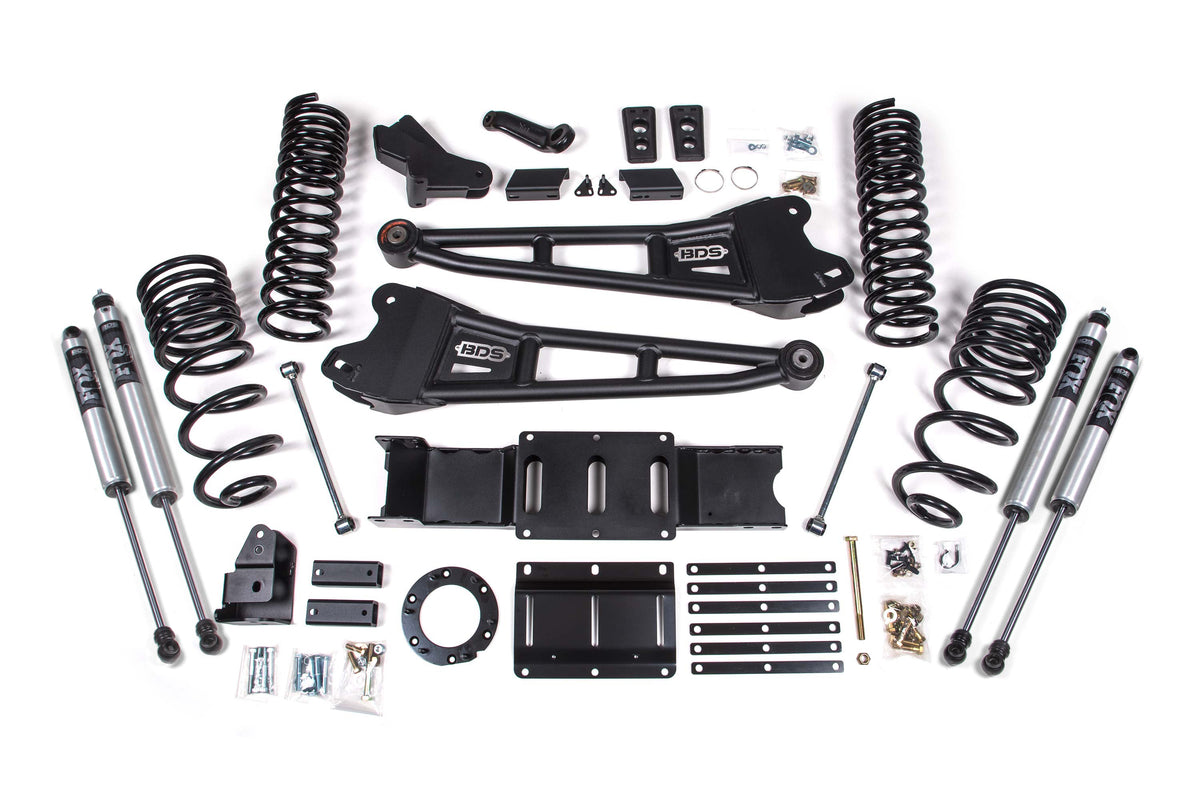

With Factory Rear Overload Leaf / FOX 2.0 Performance Series (BDS1703FS):
- Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1

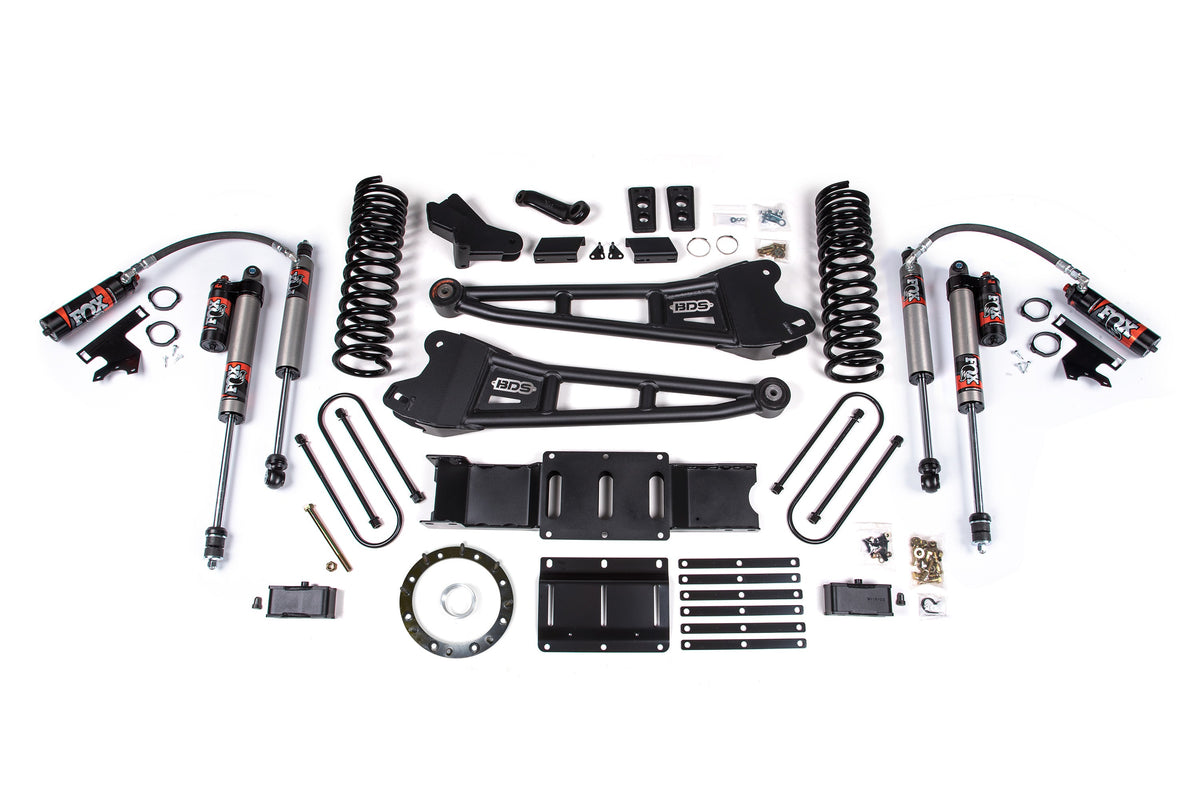

Without Factory Rear Overload Leaf / FOX 2.5 Performance Elite (BDS1702FPE):
- Includes one BDS012215, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/o overload, UPC Code 658848612116
- Includes one FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
With Factory Rear Overload Leaf / FOX 2.5 Performance Elite (BDS1703FPE):
- Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
- Includes one FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
