Description
Built to outperform, upgrade your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch radius arm lift kit and FOX 2.5 Performance Elite Coil-over conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch tires.
Up front the lift kit includes diesel-specific FOX 2.5 coil-over shocks, heavy duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of FOX Performance shocks.
FOX Performance Elite Coil-Over
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Radius Arms
In place of the factory stamped steel radius arms BDS supplies a pair of high-strength tubular radius arms. These arms mount into the factory location and offer caster adjustment for a wide range of lift heights along with an OE-style rubber bushing at the frame mount for smooth, quiet, service-free operation.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Features & Benefits
- FOX 2.5 Coil-Over mounts in factory coil bucket location
- Adds additional secondary FOX 2.0 shock for max performance
- Eibach coil springs ride smooth through the roughest terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- FOX shocks are fully serviceable and resistant to corrosion and harsh environments
Recommended Tires & Wheels
- (Trimming may be required)
- 37 x 12.5 with 17 x 9 and 5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Lift Option 5 Inch Block with 3 Leaf Main
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Kit Components:
- Includes one BDS013414, 2017-2024 Super Duty 4 inch Front Box Kit, UPC Code 658848613458
- Includes one BDS123251, 2005-2022 Ford F250/F350 Radius Arm Kit, Pair, UPC Code 711745604087
- Includes one BDS123613, 2017-2024 Super Duty Coil-over Mount Kit, UPC Code 711745604407
- Includes one BDS85431, 2017-2024 F250/F350 Single Stabilizer, UPC Code 711745609242
- Includes one FOX88406427, Kit: BDS 2005-On Ford SD Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R 4 inch Lift, Dual Speed Compression Adjust
Components by Option:

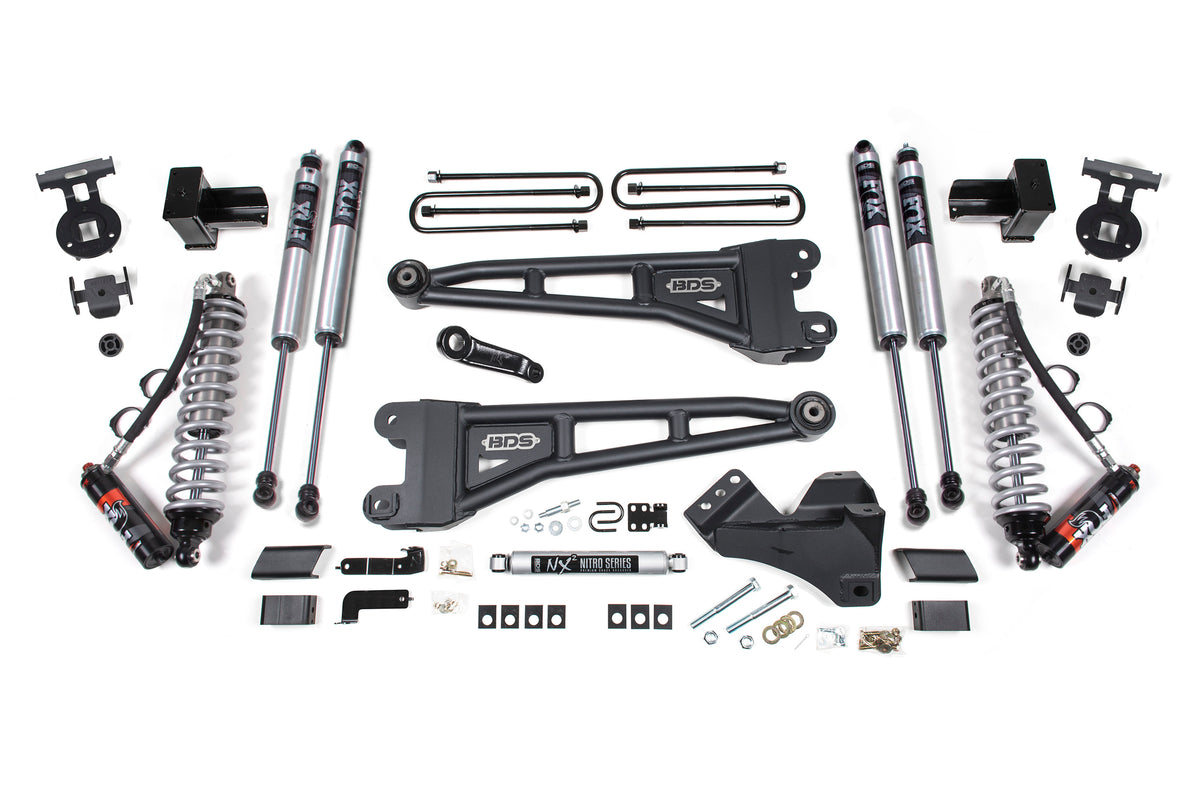

5 Inch Block With 2 and 3 Leaf Main / FOX 2.0 Performance Series (BDS1524FPE):
- Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Leaf Springs / FOX 2.0 Performance Series (BDS1557FPE):
- Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409
- Includes one BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spring Box Kit, UPC Code 658848613540
- Includes two FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
- Includes two FOX98224718, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1

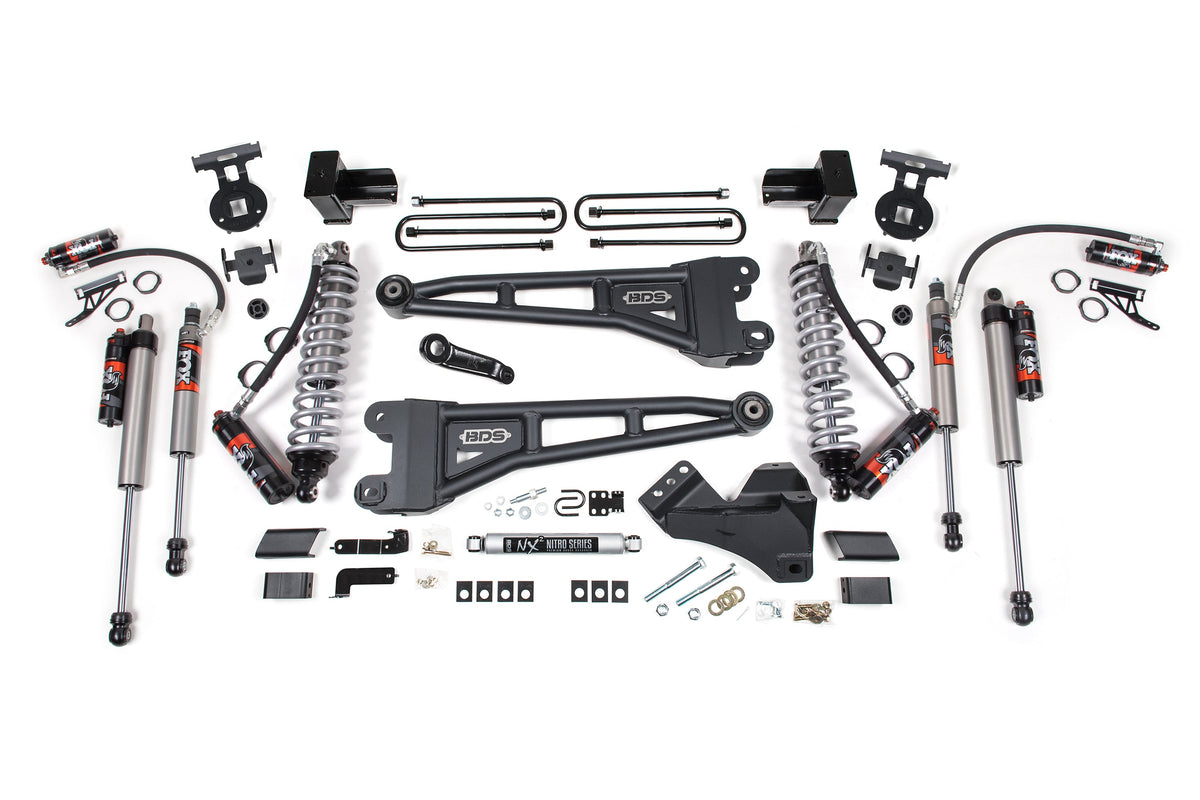

5 Inch Block With 2 and 3 Leaf Main / FOX 2.5 Performance Elite (BDS1966FPE):
- Includes one BDS013516, 2017-2024 F250 5 inch Rear Block Kit -3 Leaf Main, UPC Code 658848613595
- Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326098, Kit: 2017-2023 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inch Lift, Dual Speed Compression Adjust

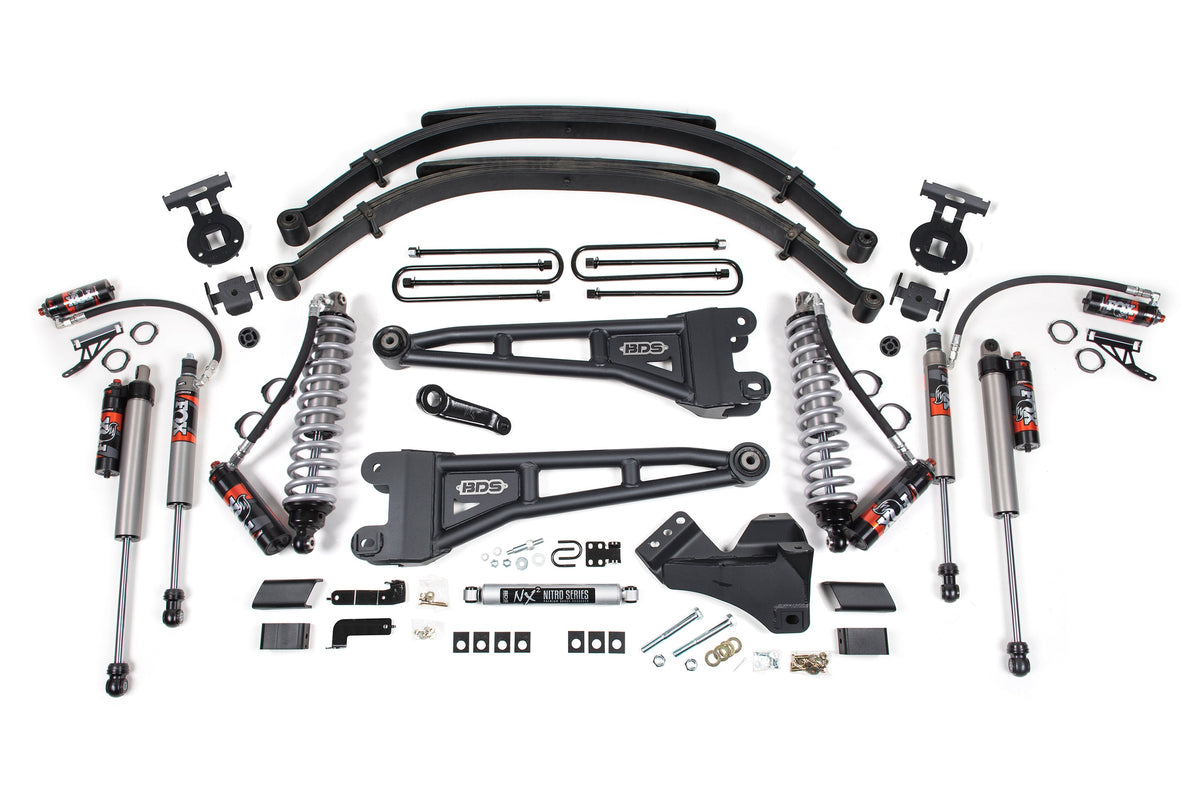

Leaf Springs / FOX 2.5 Performance Elite (BDS1970FPE):
- Includes two BDS003639, 2017-2024 Super Duty 6 inch Rear Leaf Spring, UPC Code 658848611409
- Includes one BDS013438, 2017-2024 Ford F250/F350 4 inch Rear Leaf Spring Box Kit, UPC Code 658848613540
- Includes one FOX88326097, Kit: 2017-2024 Ford SD Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326098, Kit: 2017-2023 Ford SD Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inch Lift, Dual Speed Compression Adjust
