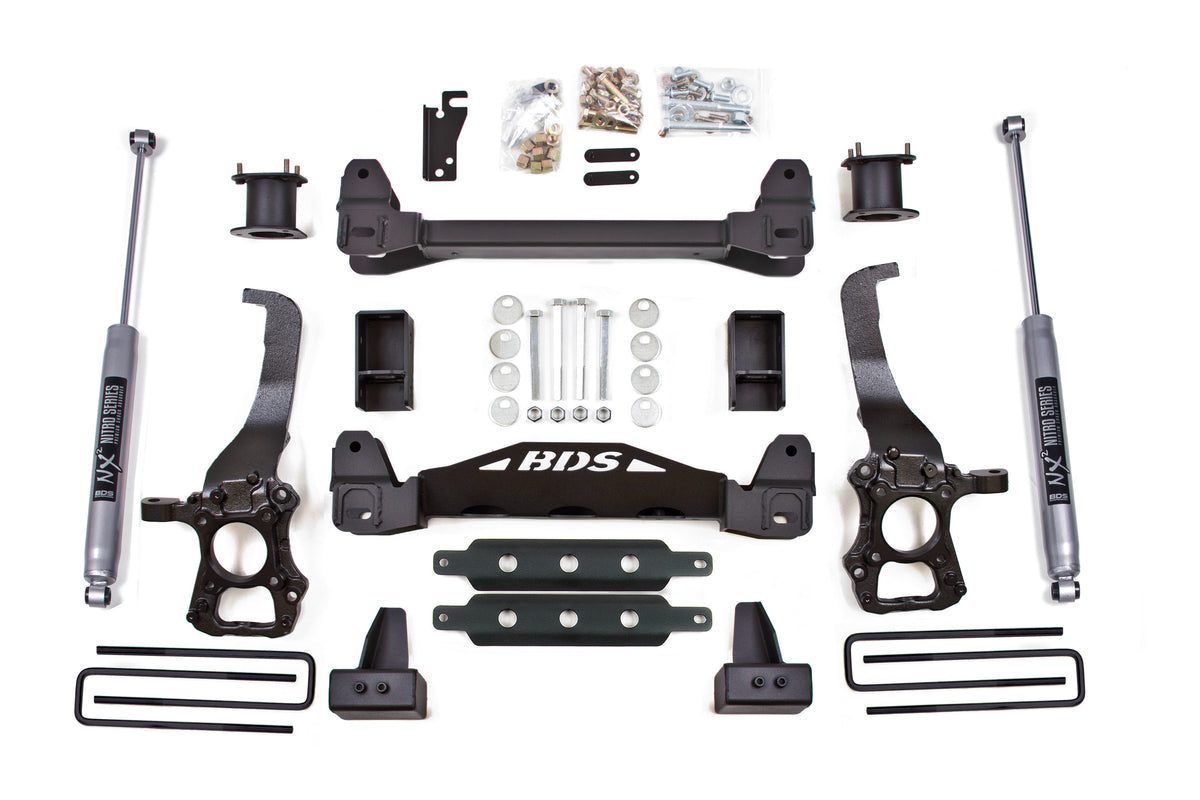

Improve the performance and capability of your 2014 Ford F150 2WD truck by installing a 4-inch suspension lift kit by BDS. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 4 inch
- 18 inch or larger diameter wheels required. Stock 17 inch & 18 inch wheels cannot be reinstalled. Stock 20 inch wheels can be used with up to a 305/60-20 Tires.
- E-brake bracket required for factory powersteps (123018)
- Will not fit HD models (7 lug).
- For a level to tail low appearance use #023416 with Kit#1504H. Block kits replace factory 1-1/4 inch block.
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5/5.5
Kit Components:
- Includes one BDS023425, 2014 F150 4wd 4 Inch Strut Spacer Box Kit, UPC Code 658848615742
- Includes one BDS023624, 09 Ford F150 2wd Front Box Kit (3of3), UPC Code 658848615841
- Includes one BDS023625, 2009-2014 Ford F150 4-6 Inch Box Kit (1of4), UPC Code 658848615858
- Includes one BDS023626, 2009-2014 Ford F150 4-6 Inch Box Kit (2of4), UPC Code 658848615865
Components by Option:
NX2 Nitro Series (BDS1504H):
- Includes two BDS85828, Shock- 30.95 x 18.20 x 2-3/8 - EB1/EB1, UPC Code 711745609877
FOX 2.0 Performance Series (BDS1504FS):
- Includes two FOX98224828, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
