Description

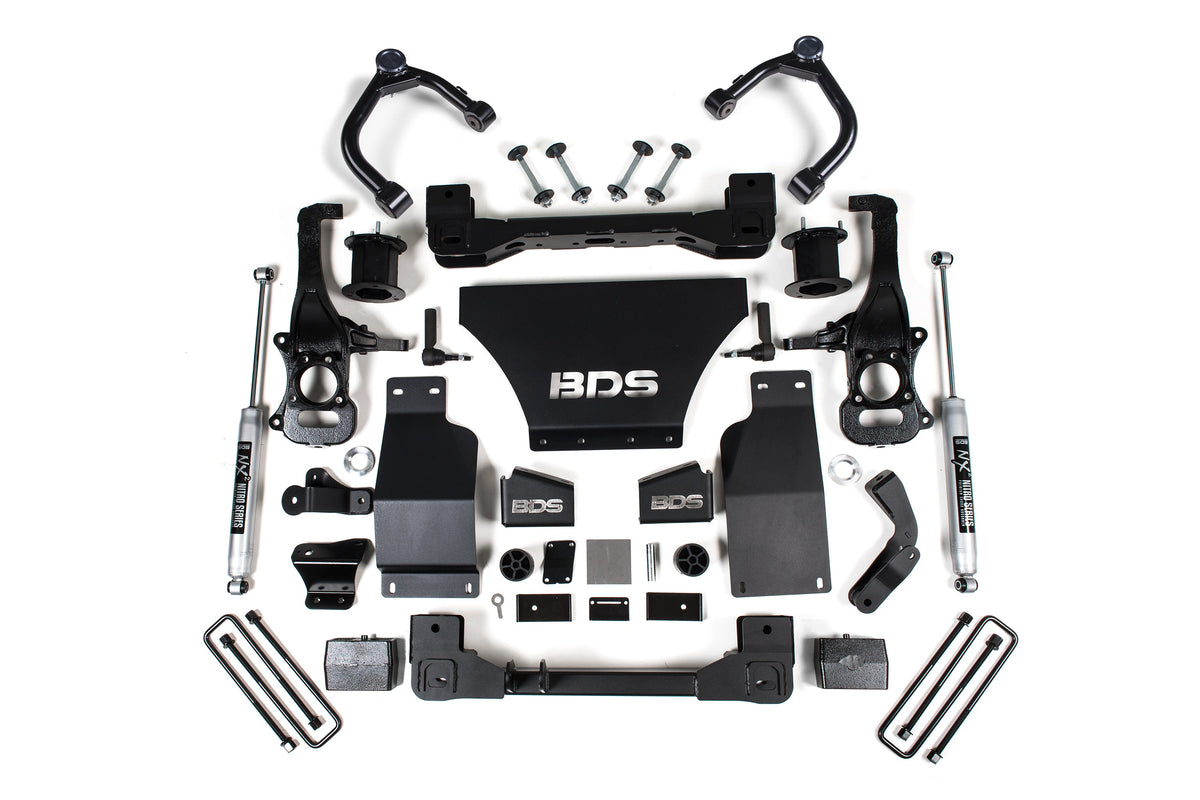

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with 4-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- Requires frame bracket modification
- Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rod end interference, stock 20 inch wheels can be reinstalled.
- 17 inch wheels with 4.5 inch backspacing should be test fit prior to mounting the Tire to ensure proper clearance to the steering knuckle / tie rod.
- All aftermarket wheels should be test fit prior to mounting the Tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.
- 2.7L Turbo models use Diesel kit for proper skid plate fitment. If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required). High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
FOX 2.0 Performance Series
- Custom-molded spring seat so you can reuse the stock spring and mounting hardware
- 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Internal Internal Floating Piston mono-tube reservoir design
Tire Size: 33 x 12.5 Tire Size 2: 35 x 12.5 Wheel Diameter: 20 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 6.25/6.25
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (Internal Floating Piston) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Kit Components:
- Includes one BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit, UPC Code 658848611737
- Includes one BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible), UPC Code 658848615056
- Includes one BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible, UPC Code 658848615063
- Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
- Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
Components by Option:
NX2 Nitro Series / Strut Spacer (BDS1800H):
- Includes one BDS021405, 2019-2024 Chevy/GMC 4 inch Strut Spacer Box, UPC Code 658848614639
- Includes two BDS85758, Shock- 27.90 x 16.55 x 2-3/8 - EB1/EB1, UPC Code 711745609679
FOX 2.0 Performance Series / Strut Spacer (BDS1800FS):
- Includes one BDS021405, 2019-2024 Chevy/GMC 4 inch Strut Spacer Box, UPC Code 658848614639
- Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
FOX 2.0 Performance Series / FOX 2.0 Performance Series (BDS1800FSR):
- Includes two FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1, UPC Code 692878899062
- Includes two FOX98662000, Kit: BDS, 2019-2024 Chevy 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.8 inch, 4.5 & 6.5 inch Lift, UPC Code 814897013483
