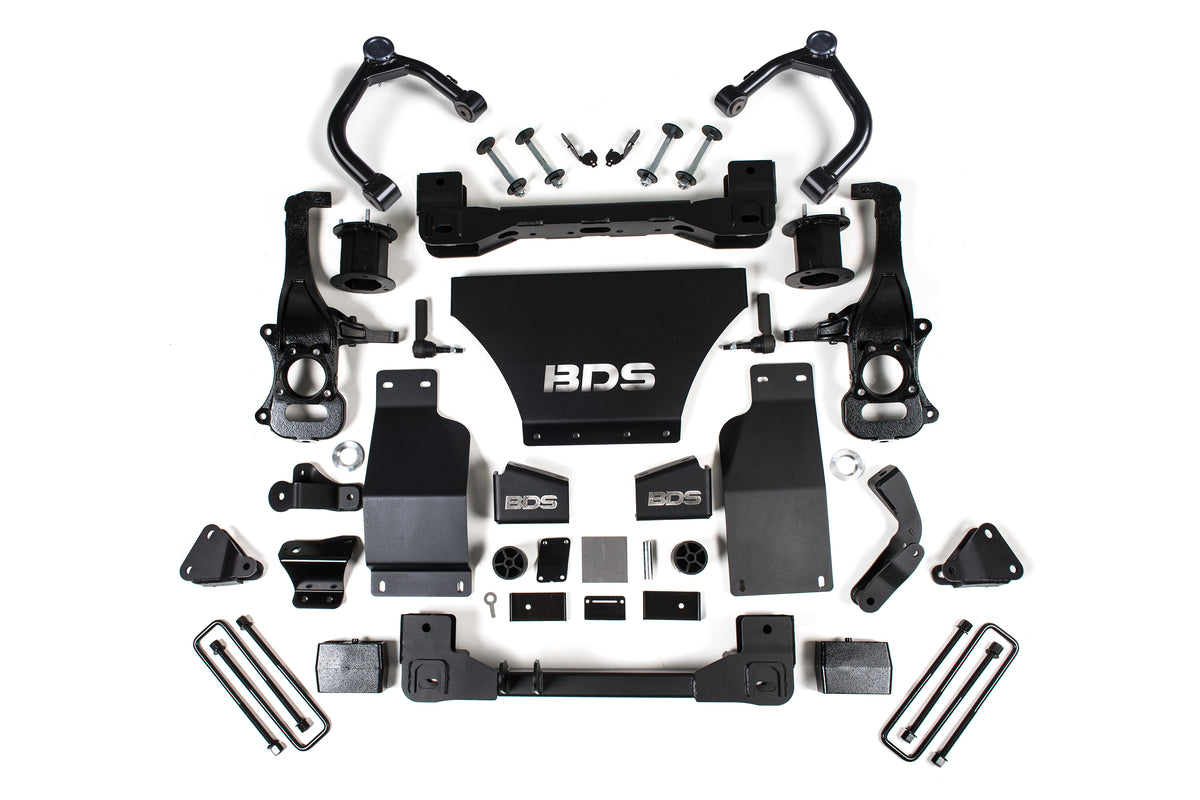

Give your Chevy Silverado High Country and GMC Denali 1500 trucks a new look by installing a 4-inch suspension lift kit by BDS Suspension. Works with trucks equipped with Adaptive Ride Control only. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility.
These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear BDS offers a heavy duty lift block to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts and shock relocation brackets to retain the ARC system without error.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: No
- Front Lift Height: 4 inch
- Rear Lift Height: 2 inch
- Requires frame bracket modification
- Factory 17 inch and 18 inch wheels cannot be reinstalled due to tie rode interference, stock 20 inch wheels can be reinstalled
- All aftermarket wheels should be test fit prior to mounting the Tire to ensure clearance to brake caliper. Some wheel profiles will not clear the brake caliper.
- This can be test fit before the vehicle is lifted while still in stock condition
- Front skid plate will not work with 2.7L Turbo Engines
- If equipped with a mono-leaf rear spring please use part #UBT4064 (Qty 4 required).
- Maintains factory adaptive ride control system
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- High-strength replacement upper control arms provide durability and serviceability
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- Factory Protection Plus drivetrain warranty included
Tire Size: 295 / 65 Tire Size 2: 35 x 12.5 Wheel Diameter: 18 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 4.5/6.258 hrs
Kit Components:
- Includes one BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit, UPC Code 658848611737
- Includes one BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2, UPC Code 658848615131
- Includes one BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2, UPC Code 658848615148
- Includes one BDS021704, 2019-2024 GM 1500 Knuckle Box 1of2 w/UCA w/ARC (4 inch & 6 inch Compatible), UPC Code 711745611924
- Includes one BDS021705, 2019-2024 GM 1500 Knuckle Box 2of2 w/UCA w/ARC (4 inch & 6 inch Compatible), UPC Code 711745611931
- Includes one BDS121405, 2019-2024 GMC 4 inch Adaptive Ride Box Kit, UPC Code 658848619009
