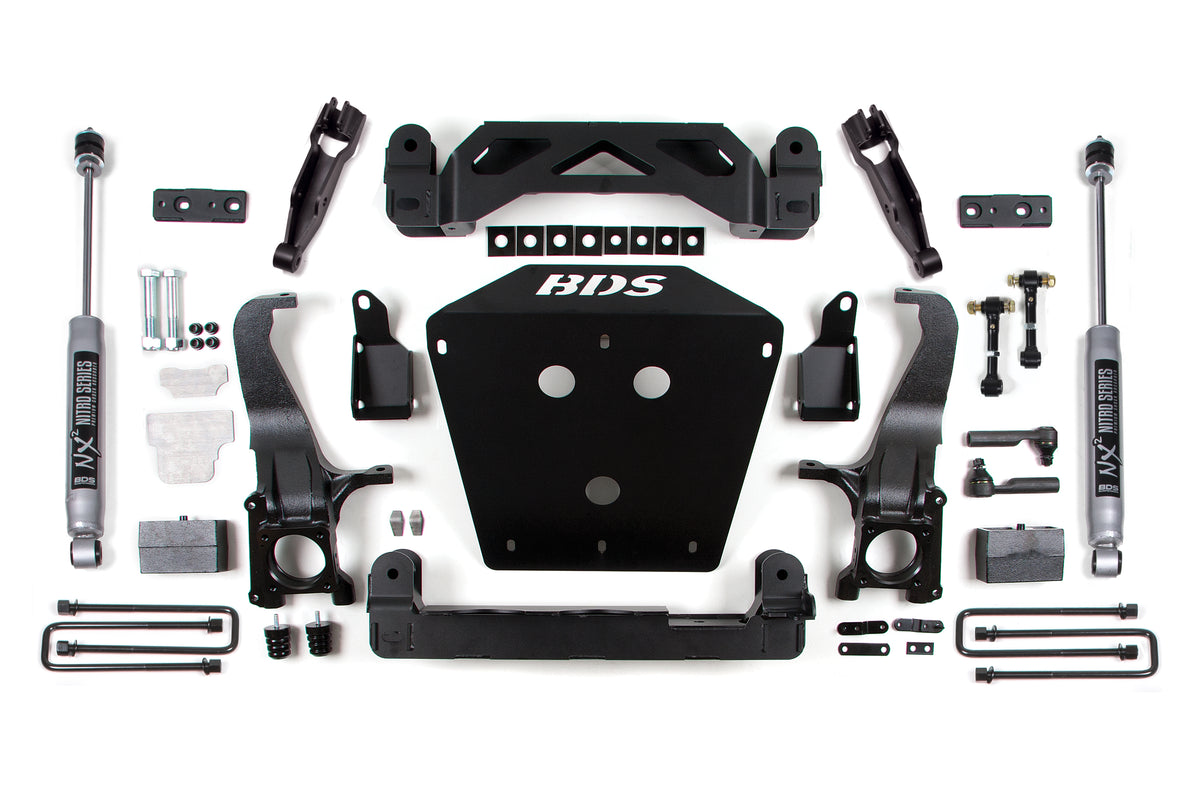

BDS steps up the performance and capability of the 2007-2015 Toyota Tundra 4WD trucks with a 4.5-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes a lower strut extension, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles utilizing replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear, this kit utilizes heavy duty cast steel lift blocks, brake line bracket and longer u-bolts. The rear of this kit is rounded out with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function and ESC compatibility.
- Front Lift Method: Cross-Member
- Rear Lift Method: Block
- Shocks Included: Yes
- Front Lift Height: 4.5 inch
- Rear Lift Height: 3 inch
- Requires frame bracket modification and welding.
- No strut dissassembly required.
- Stock 18 inch wheels can not be installed. factory 20 inch wheels with more than 6.25 inch backspacing can not be installed.
- Models with two piece rear drive line would require rear drive shaft modification.
- When kit is installed on 2WD models, the differential brackets will not be used.
- Will work with Bilstein (yellow) factory front struts on 2014-2015 models.
- Models equipped with 6 piston calipers will require clearance machining on the caliper near the bolt holes on the mounting surface.
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Tire Size: 35 x 12.5 Wheel Diameter: 20 x 9 Back Spacing: 6.25
Kit Components:
- Includes one BDS018319, 2007-2021 Toyota Tundra 3in Rear Block Kit, UPC Code 658848614462
- Includes one BDS028454, 2007-2021 Toyota Tundra Box Kit (5of5), UPC Code 658848616183
- Includes one BDS028700, 07-15 Toyota Tundra Box Kit (1of5), UPC Code 658848616268
- Includes one BDS028701, 2007-2021 Toyota Tundra Box Kit (2of5), UPC Code 658848616275
- Includes one BDS028702, 2007-2021 Toyota Tundra Box Kit (3of5), UPC Code 658848616282
- Includes one BDS028703, 2007-2021 Toyota Tundra Box Kit (4of5), UPC Code 658848616299
Components by Option:
NX2 Nitro Series (BDS814H):
- Includes two BDS85952, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2, UPC Code 711745610057
FOX 2.0 Performance Series (BDS814FS):
- Includes two FOX98224952, Fox 2.0 Shock 29.85 x 18.25 x 2- S50/EB1
