Description

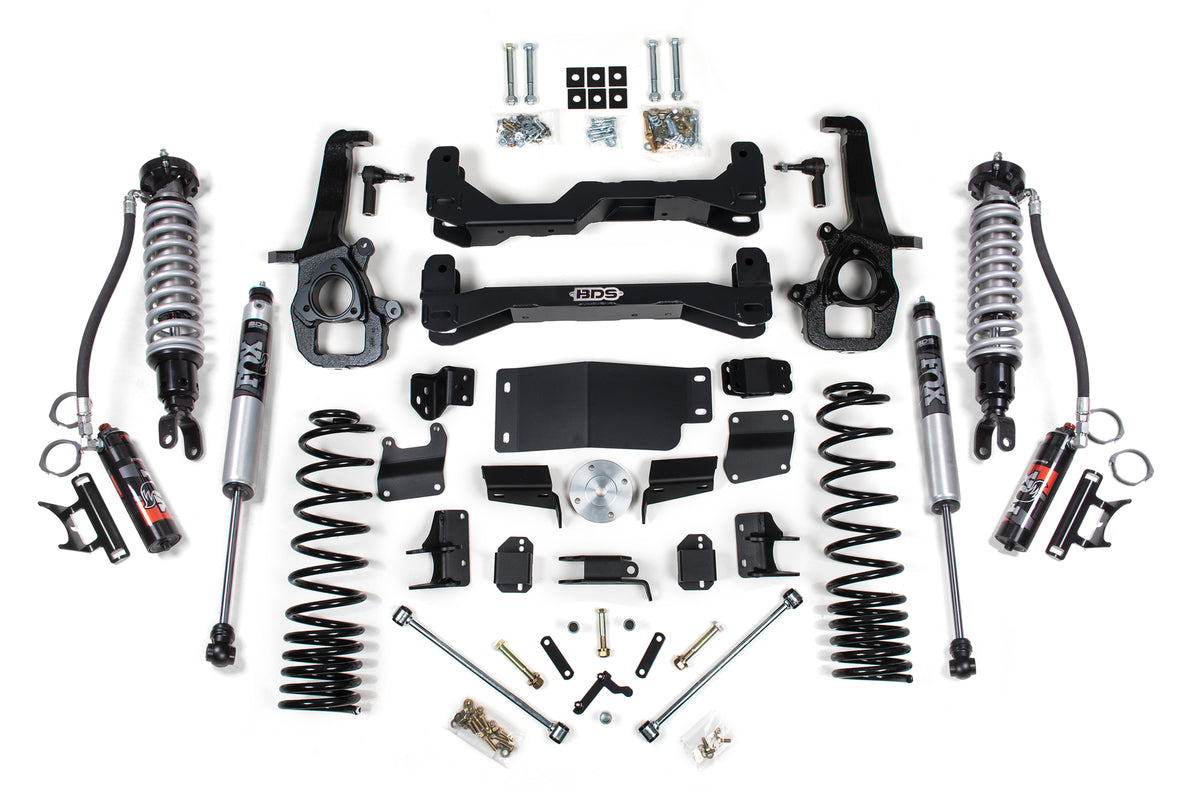

Hit the trails in your 2019-2024 RAM 1500 Rebel truck after installing a 3-inch coil-over suspension lift kit featuring FOX 2.5 Performance Elite Coil-over shocks by BDS Suspension.
These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.
Up front, the kit utilizes FOX 2.5 coil-over shocks, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection.
Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, stainless steel braided brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.
In the rear this kit utilizes progressive rate Pro-Ride coil springs, rear upper control arm relocation brackets to correct pinion angle, track bar relocation bracket to correct axle positioning, bump stop extensions, and sway bar links. The rear of these kits are rounded out with a set of FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
The Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
Large Bore OE Knuckle type
High Clearance Crossmembers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
- Standard Knuckle Type
- Front Lift Method: Cross-Member
- Rear Lift Method: Coil Spring
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 3 inch
- Fits 4WD models only
- Stock 18 inch wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory Tire size
- RAMs with factory 22 inch wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
- Will NOT fit adjustable inchair ride inch suspension equipped models.
- Standard Ram 1500 acheives 4 Inch of lift with this kit. Rebel and Offroad package trucks acheive 3in of lift due to being 1in taller from the factory.
- Will NOT work on diesel models
- Will NOT fit 2019-2022 RAM 1500 Classic models, Refer to the 2018 kit listings.
- Will NOT fit models equipped with the Thermal Axle option. Reference build code DSK-P or check diff cover for cooling lines mounted as circled in image below.
- IF USING 18IN WHEELS WITH MAXIMUM RECOMMENDED BACKSPACING, TEST FIT WHEELS ON VEHICLE BEFORE MOUNTING TireS TO ENSURE CLEARANCE
- FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
- Dual Speed Compression Adjust adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
- High clearance crossmember design maximizes ground clearance
- Robust steering knuckles maintain ESC system compliance
- HD skid plate system improved offroad protection
- Multipoint differential relocation brackets to secure the front axle and improve CV angles
- FOX performance series Internal Floating Piston gas rear shocks to improved ride and offroad performance
- Factory Protection Plus drivetrain warranty included
Tire Size: 35 x 12.5 Wheel Diameter: 18 x 9 Back Spacing: 5
Kit Components:
- Includes one BDS022508, 2019-2023 Ram 1500 Rear Box Kit, UPC Code 658848615407
- Includes one BDS022642, 2019-2023 Ram Front Box Kit 1 of 2, UPC Code 658848615575
- Includes one BDS022643, 2019-2023 Ram Front Box Kit 2 of 2, UPC Code 658848615582
- Includes one BDS032308, 2019-2023 Ram 1500 3in Rear Coil Box Kit, UPC Code 658848616350
- Includes one FOX88406383, Kit: BDS 19-ON Ram 1500, Front Coilover, 2.5 Truck Fox Performance Elite Series, R/R, 4 inch Lift, Dual Speed Compression Adjust
Components by Option:
FOX 2.0 Performance Series / Large Bore (BDS2112FPE):
- Includes one BDS022640, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - DRV, UPC Code 658848615551
- Includes one BDS022641, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - PASS, UPC Code 658848615568
- Includes two FOX98224807, Fox 2.0 Shock 27.57 x 16.95 x 2- S50/EB1, UPC Code 711745613546
FOX 2.0 Performance Series / Standard (BDS1760FPE):
- Includes one BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV, UPC Code 658848615520
- Includes one BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS, UPC Code 658848615537
- Includes two FOX98224807, Fox 2.0 Shock 27.57 x 16.95 x 2- S50/EB1, UPC Code 711745613546
FOX 2.5 Performance Elite / Large Bore (BDS2113FPE):
- Includes one BDS022640, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - DRV, UPC Code 658848615551
- Includes one BDS022641, 2019-2023 Ram 1500 Knuckle Box Kit - Large Bore - PASS, UPC Code 658848615568
- Includes one FOX88426028, Kit: BDS 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B,, UPC Code 814897013513
FOX 2.5 Performance Elite / Standard (BDS1761FPE):
- Includes one BDS022632, 2019-2023 Ram 1500 Knuckle Box Kit - DRV, UPC Code 658848615520
- Includes one BDS022633, 2019-2023 Ram 1500 Knuckle Box Kit - PASS, UPC Code 658848615537
- Includes one FOX88426028, Kit: BDS 19-ON Ram 1500, Rear, 2.5 Truck Fox Performance Elite Series, P/B,, UPC Code 814897013513
