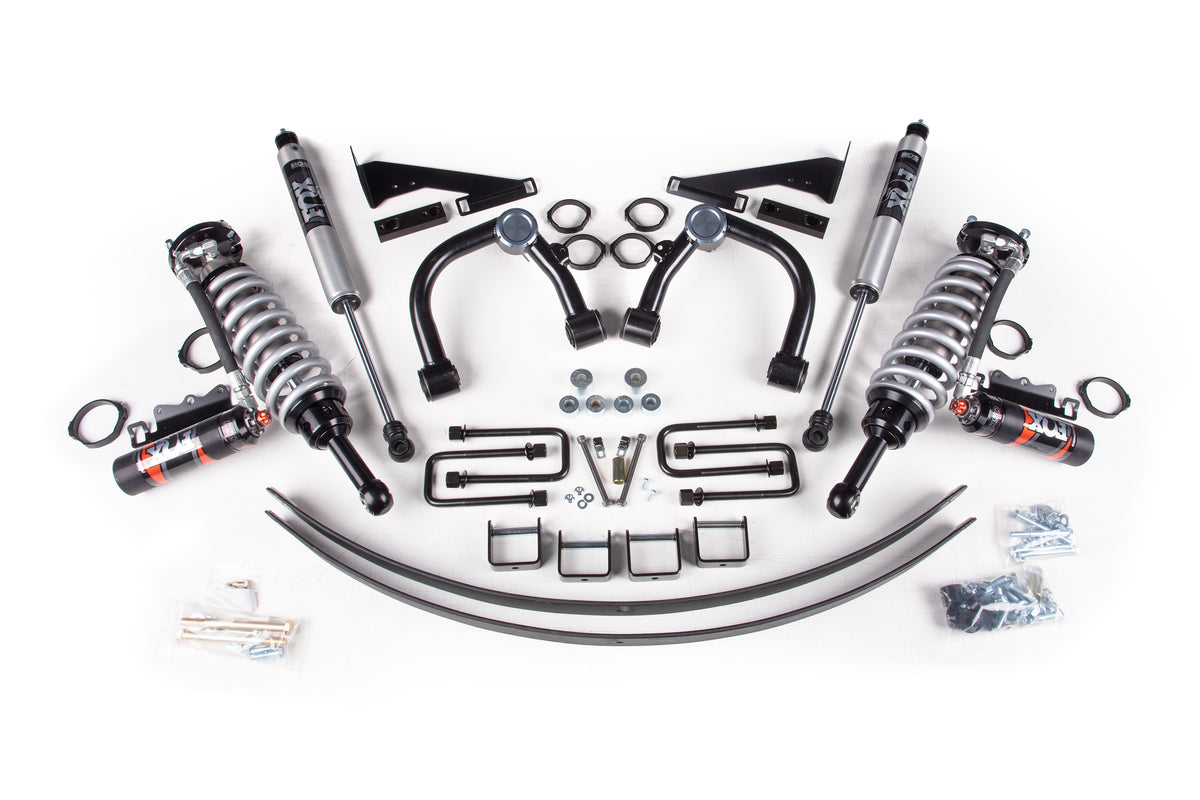

Hit the trails in your 2005-2023 Toyota Tacoma truck with style and performance by installing this 3-inch lift kit featuring FOX Factory Series 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33 inch Tires.
Up front the lift kit includes FOX 2.5 Factory Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. Additionally, 1 inch front differential spacers and longer hardware is supplied to reposition the front differential to keep CV axles within the correct operating angles.
In the rear, BDS supplies a set of add-a-leafs to provide 1 inch of lift to level out the truck and utilizes a complementary set of FOX 2.0 Performance shocks for an improved ride. Optional rear FOX 2.5 Dual Speed Compression Adjust reservoir shocks are available for maximum off road capabilities.
FOX Factory Series
FOX 2.5 coil-overs offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter coil-overs are built for abuse and packed with race-proven technology.
They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
- Front Lift Method: Coil-Over
- Rear Lift Method: Add-A-Leaf
- Shocks Included: Yes
- Front Lift Height: 3 inch
- Rear Lift Height: 1 inch
- FOX 2.5 Factory series coil-overs offer improved damper performance over stock
- Performance UCAs increase strength and allow for more suspension travel
- FOX 2.0 performance series Internal Floating Piston rear shocks included
- Factory Protection Plus drivetrain warranty included
- Easy, 100 percent Bolt on installation
Kit Components:
- Includes one BDS018217, 2005-2023 Toyota Tacoma Add-A-Leaf Kit, UPC Code 658848614417
- Includes one BDS028301, 2005-2023 Toyota Tacoma 3 inch Coilover Front Box Kit, UPC Code 658848616145
- Includes one FOX88006418, NF: Kit: 05-ON Toyota Tacoma 4wd & 2wd Prerunner w/ UCA, Front Coilover, 2.5 Series, R/R, 4.9 inch, 0-3 inch Lift, Dual Speed Compression Adjust
- Includes one FOX88326007, X - Kit: 05-On Toyota Tacoma Rear, 2.5 Series, R/R, 8.4 inch, 0-1.5 inch Lift, Dual Speed Compression Adjust
