Take your 2019-2023 Ford Ranger truck to the next level with a 3.5-inch lift kit with FOX 2.5 Coil-Over shocks from BDS. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your Ford Ranger up right with clearance for up to 33 inch tires.
To ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel.

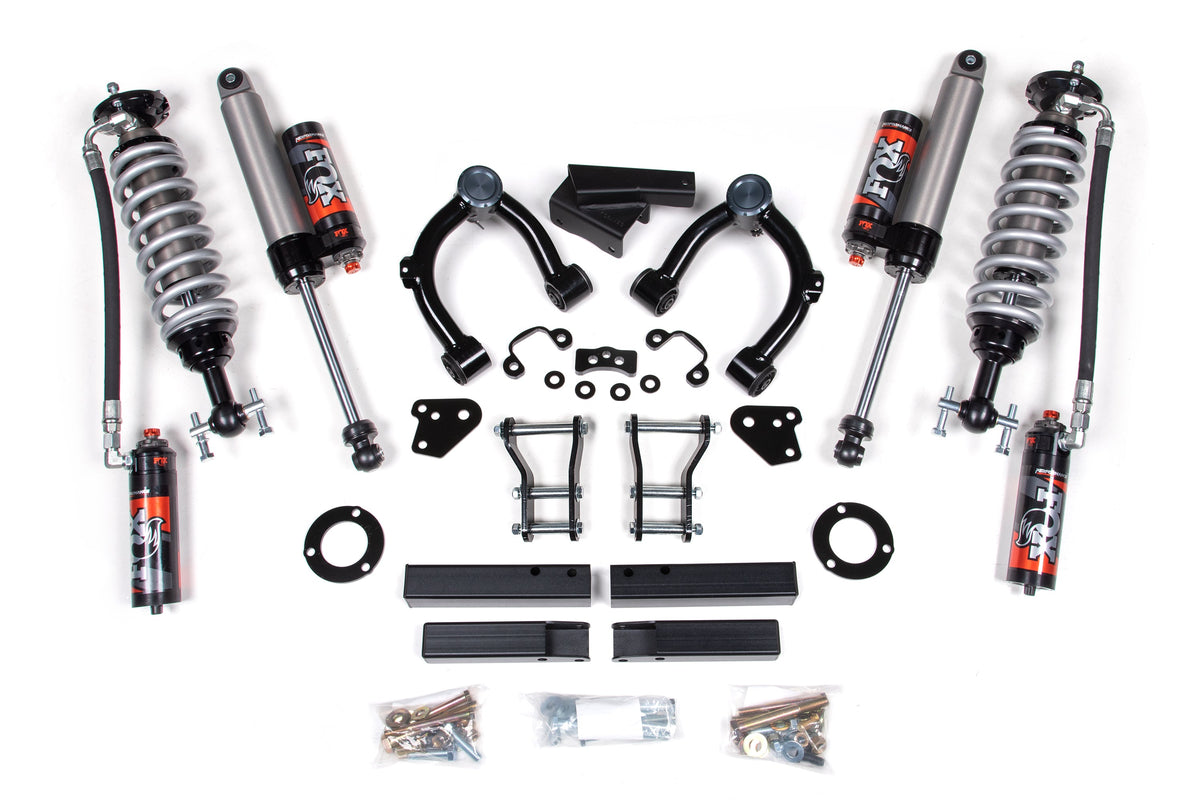

Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned matching FOX shocks.
DSC Adjustment
FOX 2.5 coil-overs are available standard with DSC (dual speed compression) adjustment to tune the high-speed and low-speed compression damping allowing for added control on-road with the ability to easily dial in more aggressive damping offroad. Tuning is a simple twist of the two clearly defined knobs with immediate feedback to dial it in for any terrain.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.
At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Features & Benefits
- FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
- DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
Recommended Tires & Wheels
- (Trimming may be required)
- 285 / 65 with 18 x 9 and 5.75 in. Backspace
- 305 / 55 with 20 x 9 and 5 in. Backspace
OE Knuckle Type Ford is producing two knuckle/control arm configurations in 2020+ model Rangers. Cast steel knuckle equipped models have different ball joints than models equipped with Aluminum knuckles.
- Front Lift Method: Coil-Over
- Rear Lift Method: Block
- Shocks Included: No
- Front Lift Height: 3.5 inch
- Rear Lift Height: 1.5 inch
Kit Components:
- Includes one BDS123614, 2019-2023 Ford Ranger Intrusion Beam Kit, UPC Code 711745604414
- Includes one FOX88306156, KIT: 19-ON Ford Ranger, US Only, Front, 2.5 Truck Fox Performance Elite Series, R/R, 4.05 inch, 2-3 inch Lift, Dual Speed Compression Adjust
Components by Option:
FOX 2.0 Performance Series / Cast Aluminum (BDS1545FPE):
- Includes one BDS013350, 2019-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit, UPC Code 658848613311
- Includes two FOX98224880, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
FOX 2.5 Performance Elite / Cast Steel (BDS1910FPE):
- Includes one BDS013354, 2020-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit - Steel OE Knuckle, UPC Code 711745611764
- Includes one FOX88326059, KIT: 19-ON Ford Ranger, US Only, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 9.55 inch, 0-1.5 inch Lift, Dual Speed Compression Adjust, UPC Code 711745603585
