25-26 Ram 3500 (Diesel) 4 Inch 4-Link Suspension Lift Kit W/ Indexing Ring

This BDS Suspension 4-inch extended travel 4-Link Lift Kit, designed specifically for diesel-powered Ram 3500 trucks, improves ride quality, handling, and off-road capability while maintaining excellent on-road comfort. With clearance for up to 37-inch tires, it delivers a more aggressive stance while preserving proper driveline geometry and everyday drivability.

Up front, the kit features Pro-Ride coil springs engineered to support the added weight of the diesel platform while providing a smooth, controlled ride. A heavy-duty 4-link front suspension system replaces the factory control arms to properly position the front axle while significantly reducing suspension bind through the full range of travel.

By allowing each link to articulate independently, the 4-link design maintains more consistent caster and pinion angles, improving straight-line stability, steering return-to-center, braking control, and overall ride quality both on and off the road. The reinforced link construction delivers exceptional strength and long-term durability for demanding on-road use, towing, and off-road conditions.

A heavy-duty track bar bracket is included to properly center the front axle and maintain precise steering geometry. Also included is a brand-new 10-bolt transfer case indexing ring engineered to clock the transfer case for optimized driveline angles and increased suspension droop. This indexing ring features an all-new, industry-leading seal developed specifically for motorsports applications, delivering superior sealing performance, reduced friction, and long-term durability under extreme heat and speed.

By properly clocking the transfer case, this system allows increased suspension travel and improved off-road capability compared to lift kits that do not re-index the transfer case. Additional components include sway bar links, brake line brackets, and premium shock absorbers matched to your selected configuration.

In the rear, lift is achieved using a high-strength fabricated lift block with longer U-bolts to ensure a secure and reliable installation. Matching rear shocks are included to maintain balanced ride quality and consistent performance from front to rear.

FOX 2.5 Performance Series IFP shocks increase oil capacity and cooling for enhanced damping control in more aggressive terrain. At the top level, FOX 2.5 Performance Elite Series shocks with Dual Speed Compression (DSC) adjusters deliver race-inspired performance and tunability, allowing independent adjustment of low- and high-speed compression for maximum control and versatility.

Built with BDS Suspension's uncompromising commitment to strength, ride quality, and long-term reliability, this 4-inch 4-link lift kit is the ideal upgrade for Ram 3500 owners seeking improved handling, corrected suspension geometry, increased suspension travel, and confidence-inspiring performance both on and off the road.
Features and Benefits:

• Extended travel shocks with transfer case indexing ring.
• 4-Link Front suspension for consistant caster control throughout travel.
• Front high strength dual rate coil springs for a great ride on any terrain
• Forged front adjustable track bar allows you to re-center axle
• Front sway bar correction to maintain handling performance
• Choice of BDS NX2 or upgrade to Fox shocks to suit your needs.
• Optional Front coil over shock upgrade with Fox hydro bump stop.

Recommended Tires and Wheels:

• (Trimming may be required)
• 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
• 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
• 35 x 12.5 with 20 x 9 and 4.5 in. Backspace

Front Lift Option:
Pro-Ride Coil Springs:

• Full length replacement springs
• Properly spec'd for new ride height
• Progressive rate for smooth and predictable ride
• Designed for maximum reliability through full range of motion

FOX 2.5 Performance Elite Coil-Over:

• Properly spec'd spring for new ride height, comfort and performance
• Custom tuned with DSC compression damping adjustability to fine tune your ride

Bump Stop Option:
Rubber Bump Stop:
Rubber factory style bump stops provide a hard stop for the suspension will keep your shocks and other components safe. They are great for road use and light offroading where the bump stops will be engaged at low speeds.

FOX 2.0 Factory Race Series Hydro Bump Stop:
Engineered to perform in the roughest terrain, the FOX 2.0 Hydraulic Bump stops provide one more layer of shock absorption when utilizing the full travel of your suspension. Ideal for the avid offroader who hits big obstacles and goes over rough terrain at speed to maintain comfort and control

FOX 2.0 Performance Series:

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

FOX 2.5 Performance Elite Series:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

FOX 2.5 Performance Series HTO:

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Details:

• Fits: 2025-2026 Ram 3500
• Location: Front/Rear
• Material: Steel
• Lift Height: 4.0 Inch
• Rear Lift Height: 2.0 Inch
• Color: Black
• Country Of Origin: USA
• Drive: 4WD
• Fuel Type: Diesel
• Engine Manufacturer: Cummins
• Engine Years: 2025-2026
• Lift Type: Spring
• Shock Style: BDS NX2
• Shocks Included: Yes
• Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts

Kit Components:

• BDS012433
• BDS012434
• BDS122627

Components by Option:

Coil Spring/Bump Stop Extension / NX2 Nitro Series / 2 Inch Block Kit With Overload (BDS2158H):

• BDS012219
• BDS032403 (x2)
• BDS85752 (x2)
• BDS85759 (x2)

Coil Spring/Bump Stop Extension / NX2 Nitro Series / 2 Inch Block Kit Without Overload (BDS2157H):

• BDS012217
• BDS032403 (x2)
• BDS85752 (x2)
• BDS85759 (x2)

Coil Spring/Bump Stop Extension / NX2 Nitro Series / 3 Inch Block Kit With Overload (BDS2156H):

• BDS012327
• BDS032403 (x2)
• BDS85752 (x2)
• BDS85759 (x2)

Coil Spring/Bump Stop Extension / NX2 Nitro Series / 3 Inch Block Kit Without Overload (BDS2155H):

• BDS012326
• BDS032403 (x2)
• BDS85752 (x2)
• BDS85759 (x2)

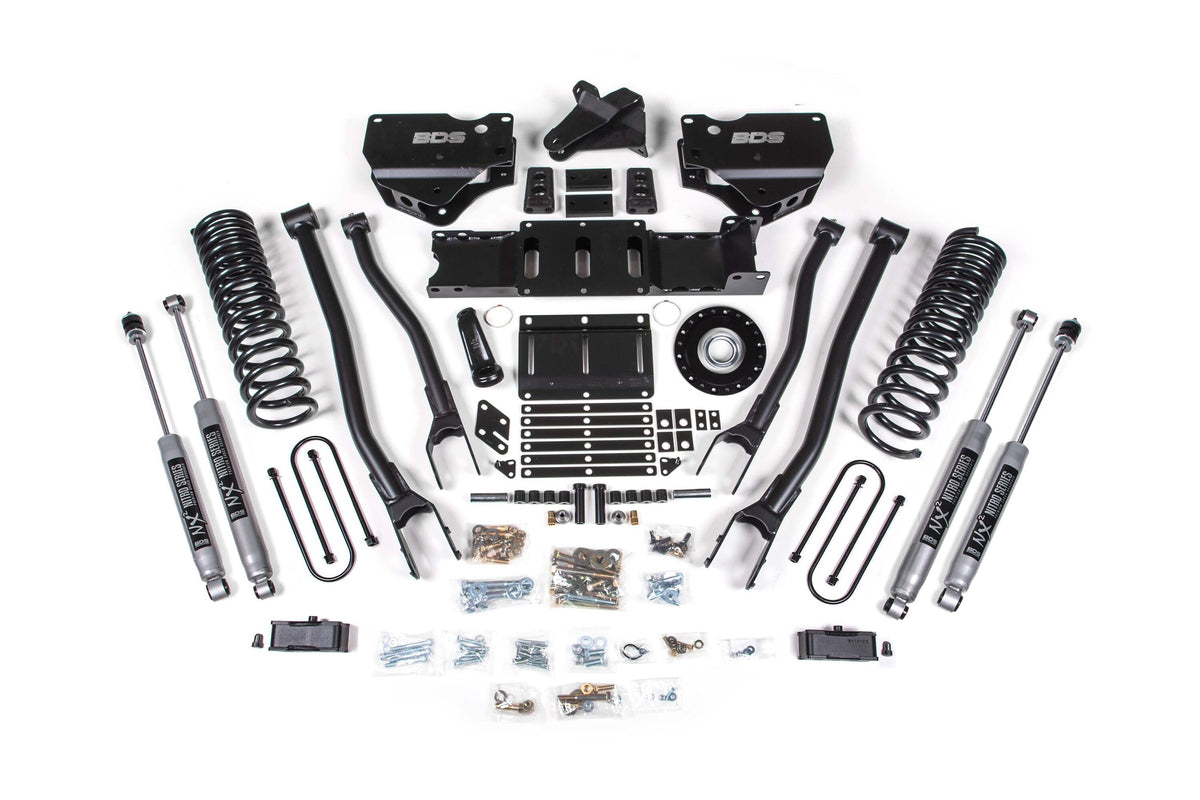

Coil Spring/Bump Stop Extension / NX2 Nitro Series / 3 Inch Block Kit with OE Air Assist (BDS2159H):

• BDS012316
• BDS032403 (x2)
• BDS85752 (x2)
• BDS85758 (x2)

Coil Spring/Bump Stop Extension / FOX 2.0 Performance Series / 2 Inch Block Kit With Overload (BDS2158FS):

• BDS012219
• BDS032403 (x2)
• FOX98224752 (x2)
• FOX98224759 (x2)

Coil Spring/Bump Stop Extension / FOX 2.0 Performance Series / 2 Inch Block Kit Without Overload (BDS2157FS):

• BDS012217
• BDS032403 (x2)
• FOX98224752 (x2)
• FOX98224759 (x2)

Coil Spring/Bump Stop Extension / FOX 2.0 Performance Series / 3 Inch Block Kit With Overload (BDS2156FS):

• BDS012327
• BDS032403 (x2)
• FOX98224752 (x2)
• FOX98224759 (x2)

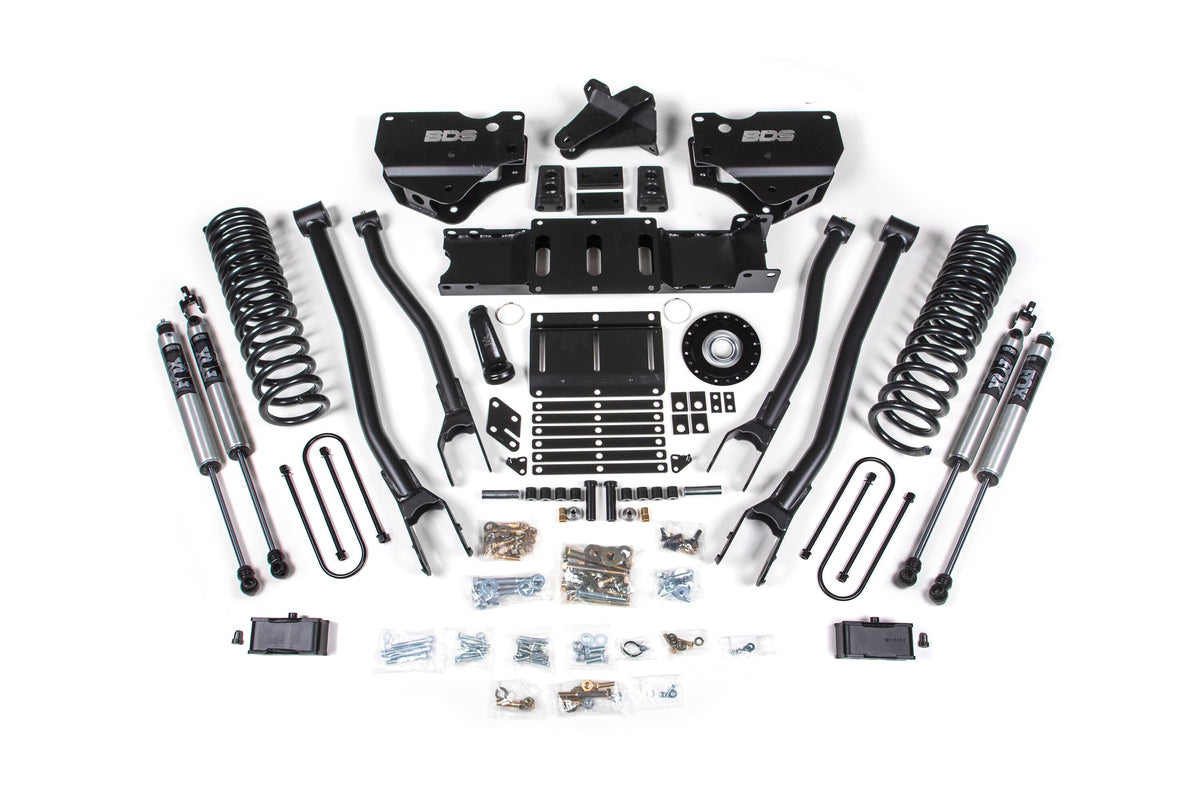

Coil Spring/Bump Stop Extension / FOX 2.0 Performance Series / 3 Inch Block Kit Without Overload (BDS2155FS):

• BDS012326
• BDS032403 (x2)
• FOX98224752 (x2)
• FOX98224759 (x2)

Coil Spring/Bump Stop Extension / FOX 2.0 Performance Series / 3 Inch Block Kit with OE Air Assist (BDS2159FS):

• BDS012316
• BDS032403 (x2)
• FOX98224752 (x2)
• FOX98224758 (x2)

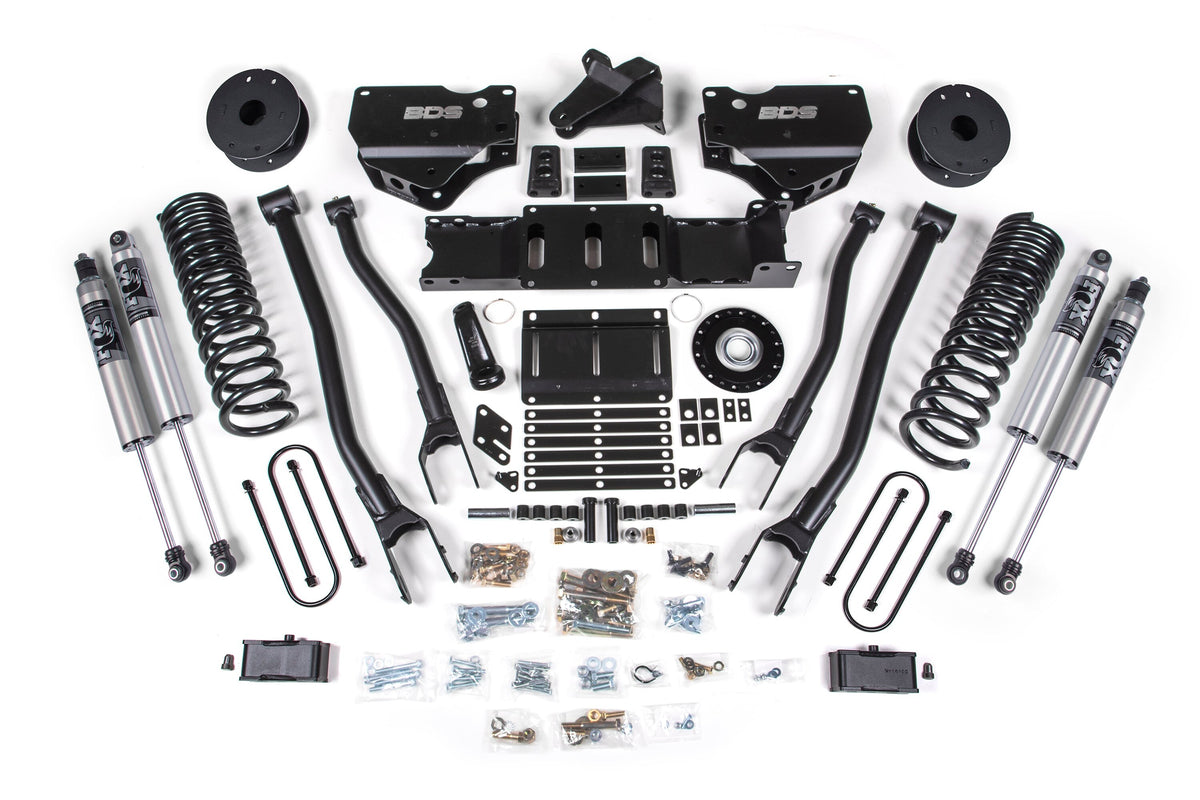

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Series HTO / 2 Inch Block Kit With Overload (BDS2158PS):

• BDS012219
• BDS032403 (x2)
• FOX98724048 (x2)
• FOX98724050 (x2)

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Series HTO / 2 Inch Block Kit Without Overload (BDS2157PS):

• BDS012217
• BDS032403 (x2)
• FOX98724048 (x2)
• FOX98724050 (x2)

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Series HTO / 3 Inch Block Kit With Overload (BDS2156PS):

• BDS012327
• BDS032403 (x2)
• FOX98724048 (x2)
• FOX98724050 (x2)

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Series HTO / 3 Inch Block Kit Without Overload (BDS2155PS):

• BDS012326
• BDS032403 (x2)
• FOX98724048 (x2)
• FOX98724050 (x2)

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Series HTO / 3 Inch Block Kit with OE Air Assist (BDS2159PS):

• BDS012316
• BDS032403 (x2)
• FOX98724048 (x2)
• FOX98724050 (x2)

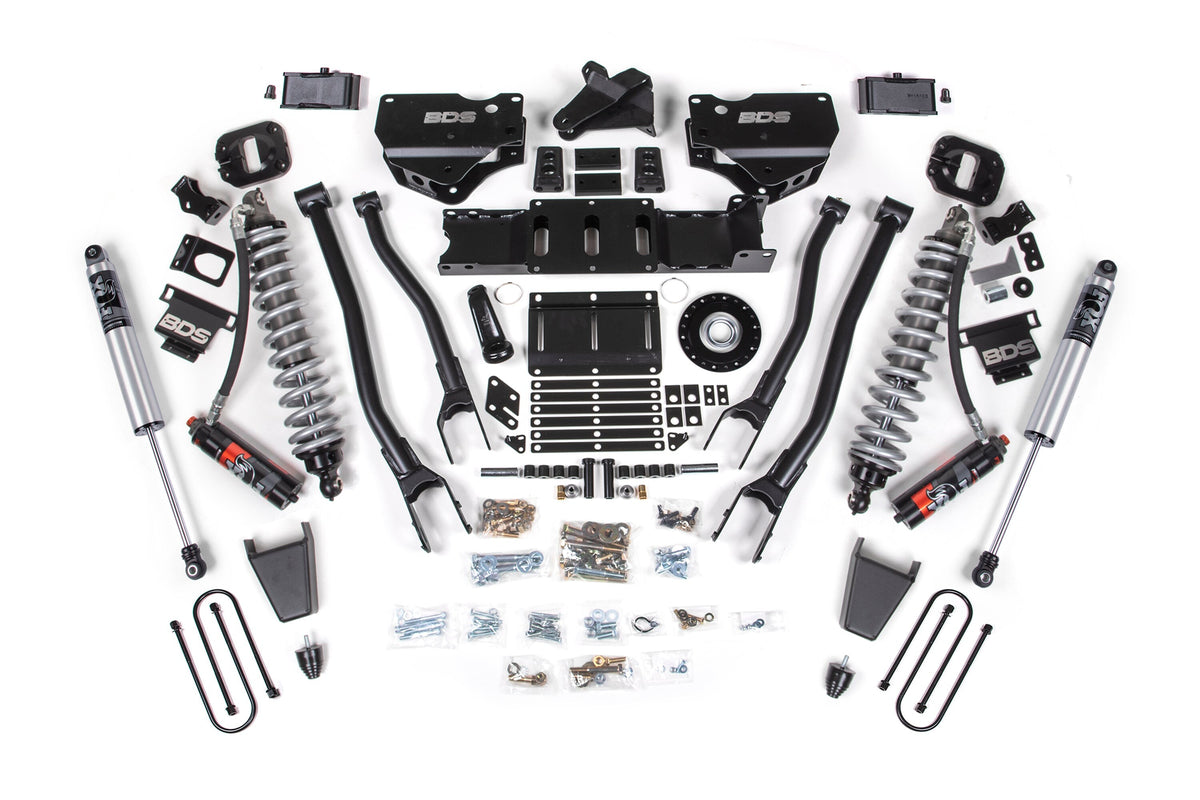

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Series HTO / 2 Inch Block Kit With Overload (BDS2158PPS):

• BDS012219
• BDS122331
• BDS122432
• FOX88406518
• FOX98724050 (x2)

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Series HTO / 2 Inch Block Kit Without Overload (BDS2157PPS):

• BDS012217
• BDS122331
• BDS122432
• FOX88406518
• FOX98724050 (x2)

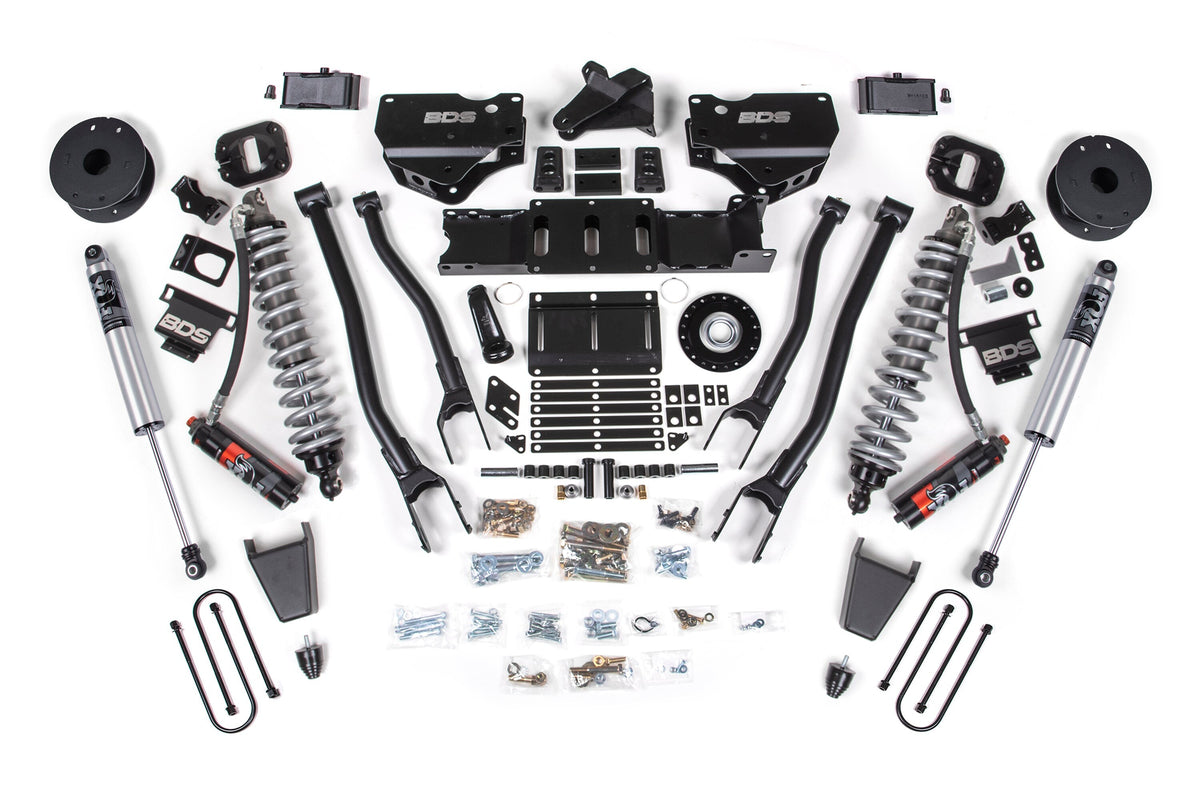

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Series HTO / 3 Inch Block Kit with OE Air Assist (BDS2159PPS):

• BDS012316
• BDS122331
• BDS122432
• FOX88406518
• FOX98724050 (x2)

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Elite / 2 Inch Block Kit With Overload (BDS2158FPE):

• BDS012219
• BDS032403 (x2)
• FOX88326064
• FOX88326101

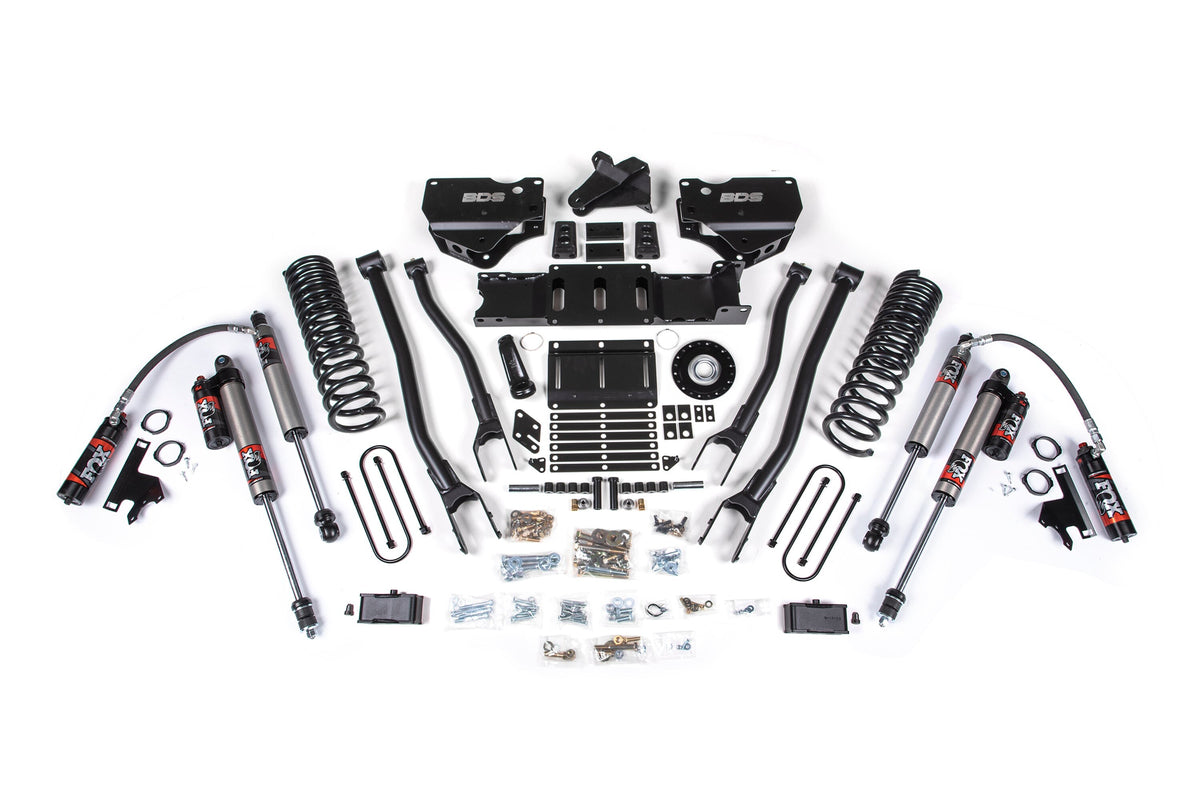

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Elite / 2 Inch Block Kit Without Overload (BDS2157FPE):

• BDS012217
• BDS032403 (x2)
• FOX88326064
• FOX88326101

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Elite / 3 Inch Block Kit With Overload (BDS2156FPE):

• BDS012327
• BDS032403 (x2)
• FOX88326064
• FOX88326101

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Elite / 3 Inch Block Kit Without Overload (BDS2155FPE):

• BDS012326
• BDS032403 (x2)
• FOX88326064
• FOX88326101

Coil Spring/Bump Stop Extension / FOX 2.5 Performance Elite / 3 Inch Block Kit with OE Air Assist (BDS2159FPE):

• BDS012316
• BDS032403 (x2)
• FOX88326064
• FOX88326148

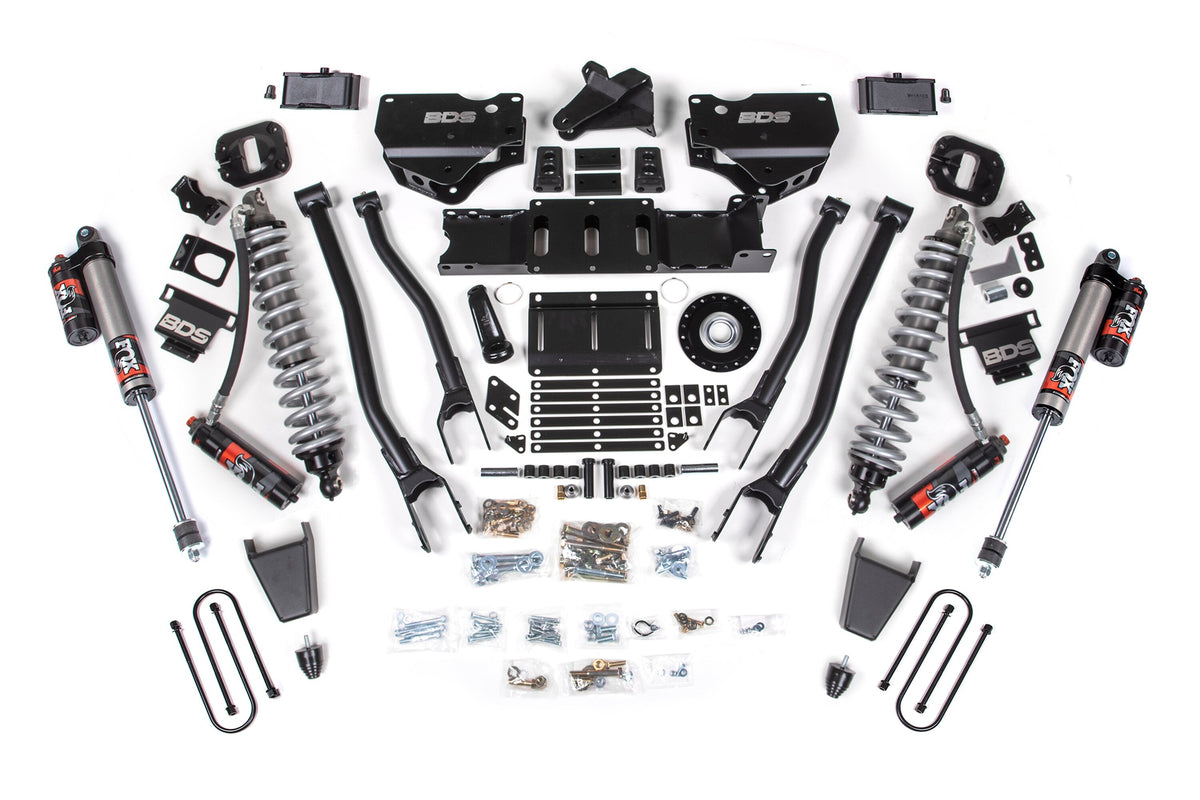

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Elite / 2 Inch Block Kit With Overload (BDS2158PES):

• BDS012219
• BDS122331
• BDS122432
• FOX88326101
• FOX88406518

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Elite / 2 Inch Block Kit Without Overload (BDS2157PES):

• BDS012217
• BDS122331
• BDS122432
• FOX88326101
• FOX88406518

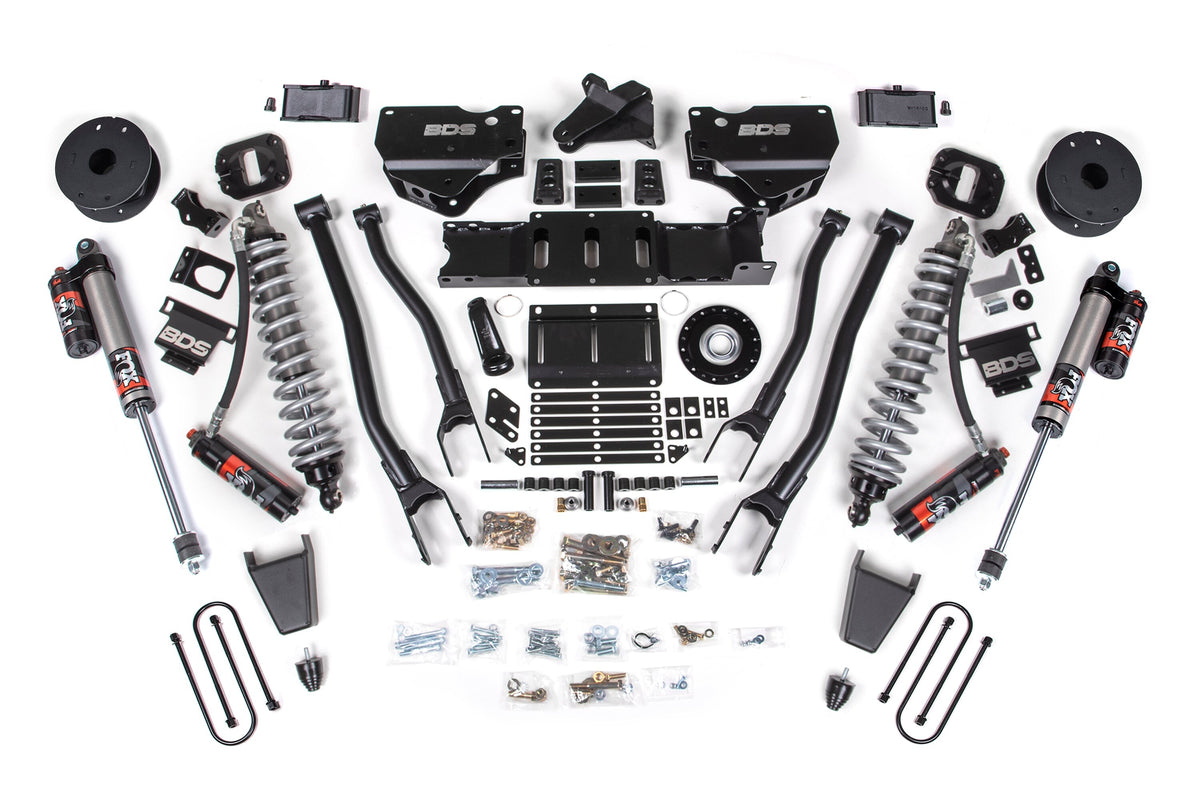

Coil-Over/Rubber Bump Stop / FOX 2.5 Performance Elite / 3 Inch Block Kit with OE Air Assist (BDS2159PES):

• BDS012316
• BDS122331
• BDS122432
• FOX88326101
• FOX88406518

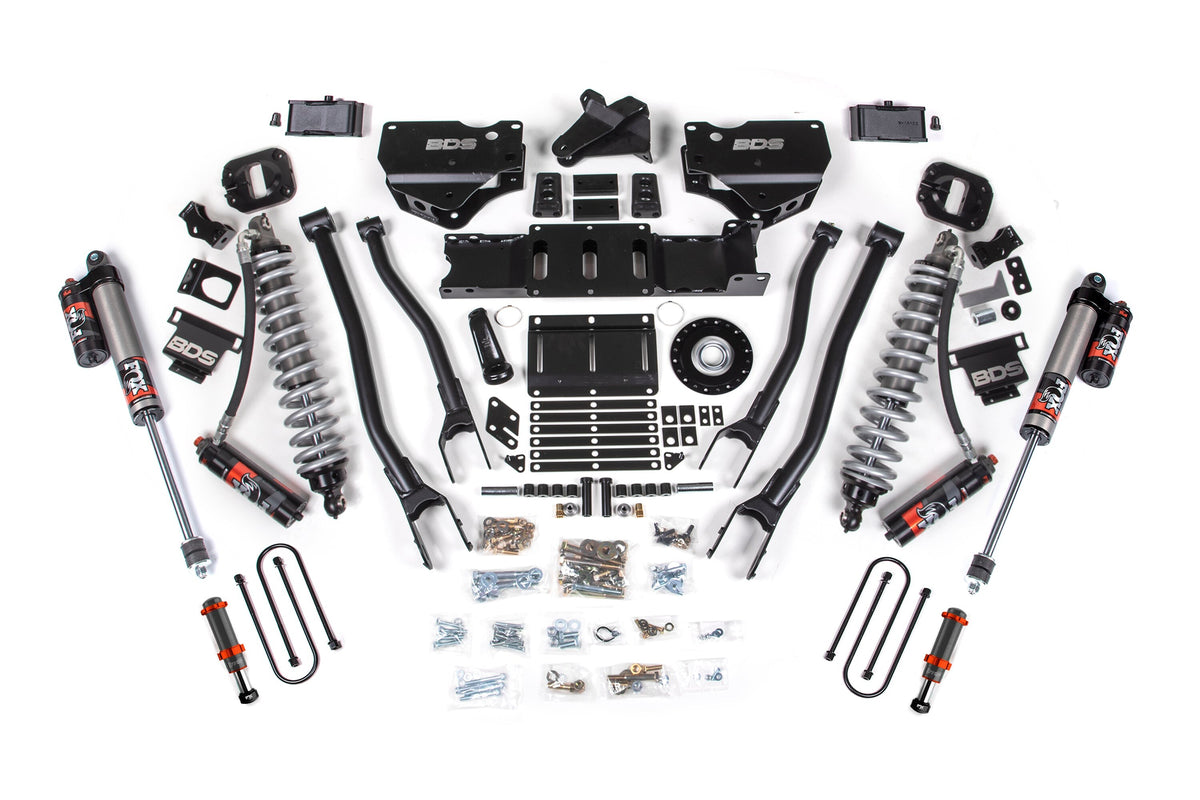

Coil-Over/FOX 2.0 Hydro Bump Stop / FOX 2.5 Performance Elite / 2 Inch Block Kit With Overload (BDS2158PESB):

• BDS012219
• BDS122331
• FOX88302155
• FOX88326101
• FOX88406518

Coil-Over/FOX 2.0 Hydro Bump Stop / FOX 2.5 Performance Elite / 2 Inch Block Kit Without Overload (BDS2157PESB):

• BDS012217
• BDS122331
• FOX88302155
• FOX88326101
• FOX88406518

Coil-Over/FOX 2.0 Hydro Bump Stop / FOX 2.5 Performance Elite / 3 Inch Block Kit with OE Air Assist (BDS2159PESB):

• BDS012316
• BDS122331
• FOX88302155
• FOX88326101
• FOX88406518
