This BDS Suspension 4-inch standard travel radius arm Lift kit Designed specifically for diesel-powered Ram 3500 trucks improves ride quality, handling, and off-road capability while maintaining excellent on-road comfort. With clearance for up to 37-inch tires, it delivers a more aggressive stance while preserving proper driveline geometry and everyday drivability.
Up front, the kit features Pro-Ride coil springs engineered to support the added weight of the diesel platform while providing a smooth, controlled ride. Heavy-duty replacement radius arms play a critical role in the system by properly positioning the front axle and correcting caster angles lost when lifting the truck. By restoring proper suspension geometry, these radius arms improve straight-line stability, steering return-to-center, braking control, and overall ride quality, while their reinforced construction adds strength and durability for both on-road and off-road use.
A heavy-duty track bar bracket is included to properly center the front axle and maintain precise steering geometry. Additional components include sway bar links, brake line brackets, and premium shock absorbers matched to your selected configuration.
In the rear, lift is achieved using a high-strength fabricated lift block with longer U-bolts to ensure a secure and reliable installation. Matching rear shocks are included to maintain balanced ride quality and consistent performance from front to rear.
FOX 2.5 Performance Series IFP shocks increase oil capacity and cooling for enhanced damping control in more aggressive terrain. At the top level, FOX 2.5 Performance Elite Series shocks with Dual Speed Compression (DSC) adjusters deliver race-inspired performance and tunability, allowing independent adjustment of low- and high-speed compression for maximum control and versatility.
Built with BDS Suspension's uncompromising commitment to strength, ride quality, and long-term reliability, this 4-inch radius arm lift kit is the ideal upgrade for Ram 3500 owners seeking improved handling, corrected suspension geometry, increased suspension travel, and confidence-inspiring performance both on and off the road.
Features and Benefits:
- Standard travel shocks, does not come with Transfer case indexing ring.
- Heavy duty tubular radius arms improve strength, handling and caster control
- Front high strength dual rate coil springs for a great ride on any terrain
- Forged front adjustable track bar allows you to re-center axle
- Front sway bar correction to maintain handling performance
- Choice of BDS NX2 or upgrade to Fox shocks to suit your needs.
Recommended Tires and Wheels:
- (Trimming may be required)
- 37 x 12.5 with 20 x 9 and 5.625 in. Backspace
- 35 x 12.5 with 20 x 9 and 4.5 in. Backspace
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
FOX 2.0 Performance Series:
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series:
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
- External reservoir design separates shock oil from the high-pressure nitrogen
- DSC - Dual Speed Compression Adjuster comes standard
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
FOX 2.5 Performance Series HTO:
- Increased off-road capabilities
- Easily adjust your shock for terrain, load and speed
- 2.5-inch Impact extruded aluminum body
- 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement.
- Fully serviceable for a lifetime of use
- 1-year Manufacturer's Warranty
Details:
- Fits: 2025-2026 Ram 3500
- Location: Front/Rear
- Material: Steel
- Lift Height: 4.0 Inch
- Rear Lift Height: 2.0 Inch
- Color: Black
- Country Of Origin: USA
- Drive: 4WD
- Fuel Type: Diesel
- Engine Manufacturer: Cummins
- Engine Years: 2025-2026
- Lift Type: Spring
- Shock Style: BDS NX2
- Shocks Included: Yes
- Warranty: Lifetime Replacement Warranty Extends to Cover all BDS Hard Parts
Kit Components:
- BDS012431
- BDS032403 (x2)
- BDS122321
Components by Option:

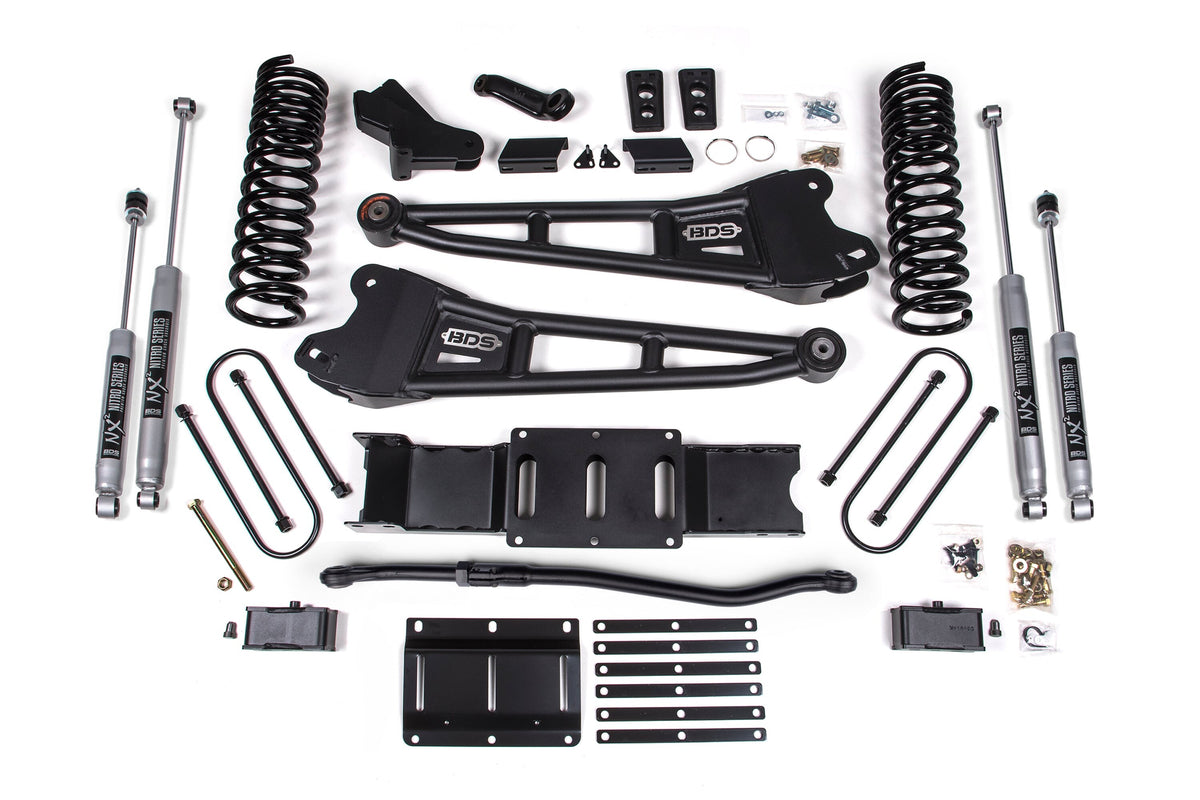

2 Inch Block Kit With Overload / NX2 Nitro Series (BDS2153H):
- BDS012219
- BDS85700 (x2)
- BDS85759 (x2)
2 Inch Block Kit Without Overload / NX2 Nitro Series (BDS2152H):
- BDS012217
- BDS85700 (x2)
- BDS85759 (x2)
3 Inch Block Kit With Overload / NX2 Nitro Series (BDS2151H):
- BDS012327
- BDS85700 (x2)
- BDS85759 (x2)
3 Inch Block Kit Without Overload / NX2 Nitro Series (BDS2150H):
- BDS012326
- BDS85700 (x2)
- BDS85759 (x2)
3 Inch Block Kit with OE Air Assist / NX2 Nitro Series (BDS2154H):
- BDS012316
- BDS85700 (x2)
- BDS85758 (x2)
2 Inch Block Kit With Overload / FOX 2.0 Performance Series (BDS2153FS):
- BDS012219
- FOX98224700 (x2)
- FOX98224759 (x2)
2 Inch Block Kit Without Overload / FOX 2.0 Performance Series (BDS2152FS):
- BDS012217
- FOX98224700 (x2)
- FOX98224759 (x2)

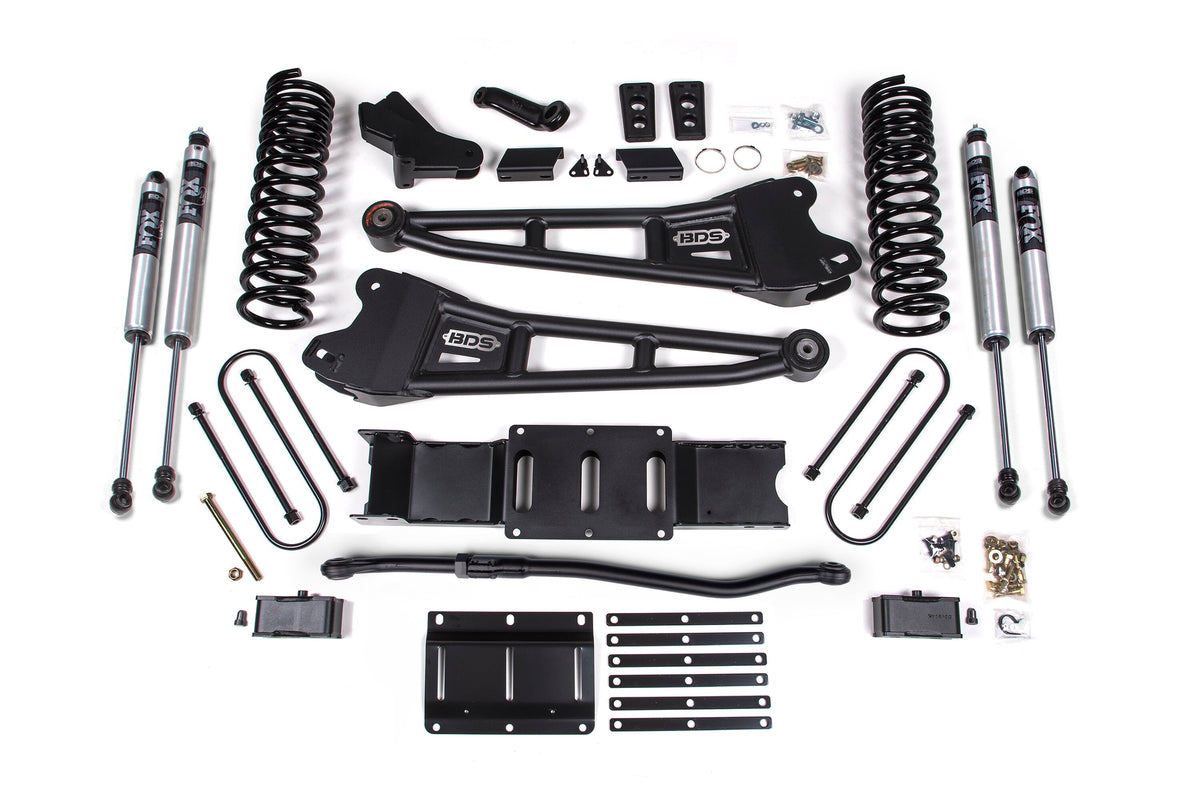

3 Inch Block Kit With Overload / FOX 2.0 Performance Series (BDS2151FS):
- BDS012327
- FOX98224700 (x2)
- FOX98224759 (x2)
3 Inch Block Kit Without Overload / FOX 2.0 Performance Series (BDS2150FS):
- BDS012326
- FOX98224700 (x2)
- FOX98224759 (x2)
3 Inch Block Kit with OE Air Assist / FOX 2.0 Performance Series (BDS2154FS):
- BDS012316
- FOX98224700 (x2)
- FOX98224758 (x2)

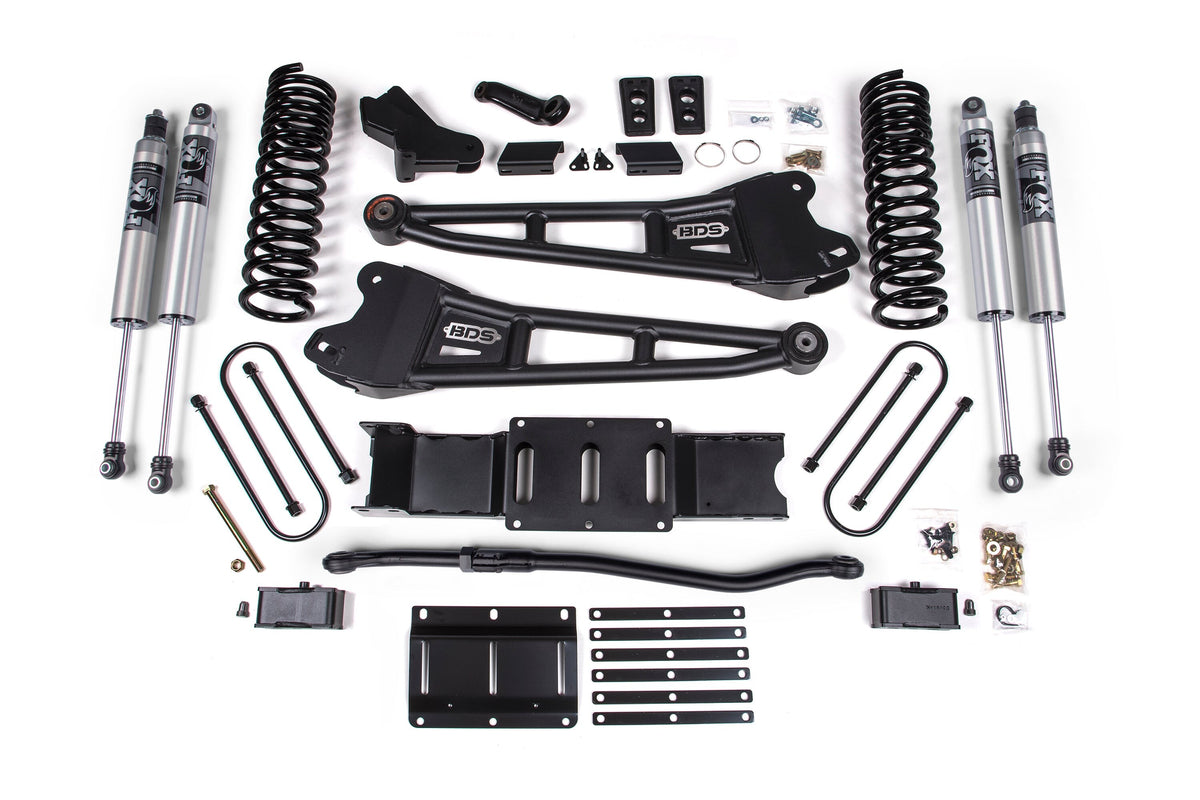

2 Inch Block Kit With Overload / FOX 2.5 Performance Series HTO (BDS2153PS):
- BDS012219
- FOX98724046 (x2)
- FOX98724050 (x2)
2 Inch Block Kit Without Overload / FOX 2.5 Performance Series HTO (BDS2152PS):
- BDS012217
- FOX98724046 (x2)
- FOX98724050 (x2)
3 Inch Block Kit With Overload / FOX 2.5 Performance Series HTO (BDS2151PS):
- BDS012327
- FOX98724046 (x2)
- FOX98724050 (x2)
3 Inch Block Kit Without Overload / FOX 2.5 Performance Series HTO (BDS2150PS):
- BDS012326
- FOX98724046 (x2)
- FOX98724050 (x2)
3 Inch Block Kit with OE Air Assist / FOX 2.5 Performance Series HTO (BDS2154PS):
- BDS012316
- FOX98724046 (x2)
- FOX98724050 (x2)
2 Inch Block Kit With Overload / FOX 2.5 Performance Elite (BDS2153FPE):
- BDS012219
- FOX88326063
- FOX88326101
2 Inch Block Kit Without Overload / FOX 2.5 Performance Elite (BDS2152FPE):
- BDS012217
- FOX88326063
- FOX88326101

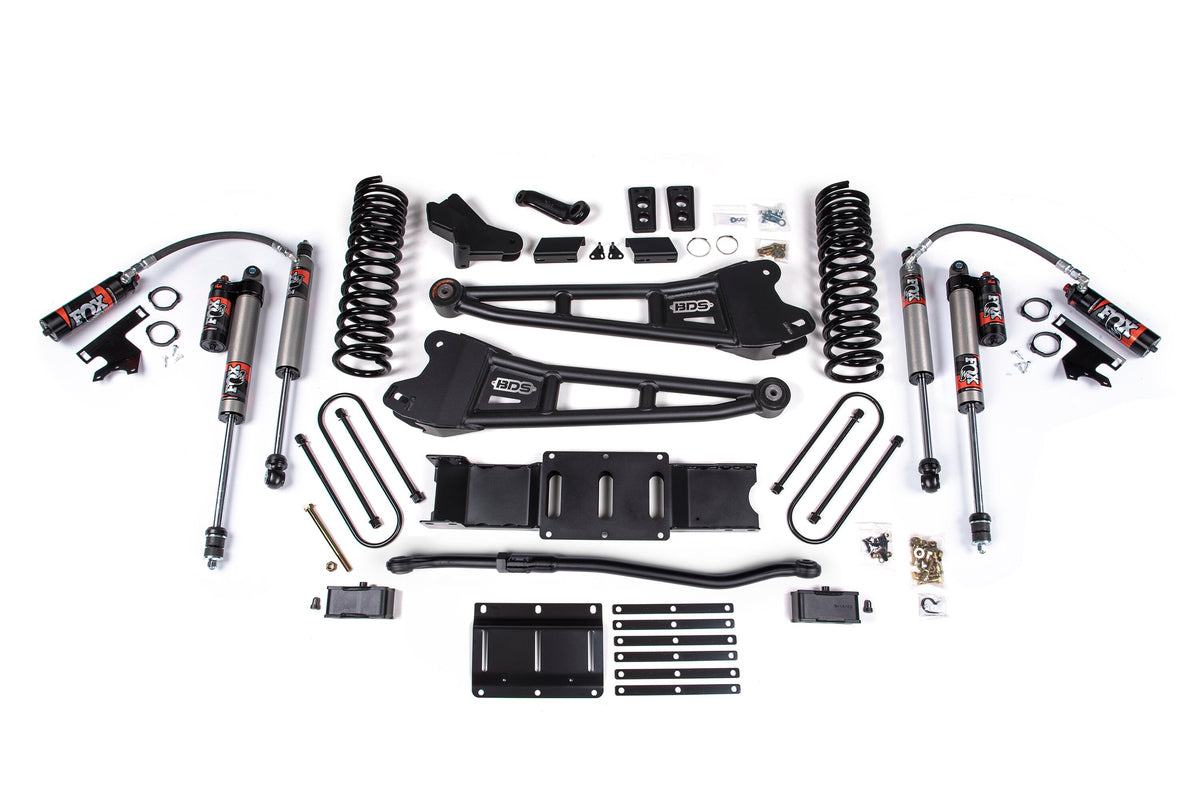

3 Inch Block Kit With Overload / FOX 2.5 Performance Elite (BDS2151FPE):
- BDS012327
- FOX88326063
- FOX88326101
3 Inch Block Kit Without Overload / FOX 2.5 Performance Elite (BDS2150FPE):
- BDS012326
- FOX88326063
- FOX88326101
3 Inch Block Kit with OE Air Assist / FOX 2.5 Performance Elite (BDS2154FPE):
- BDS012316
- FOX88326063
- FOX88326148
