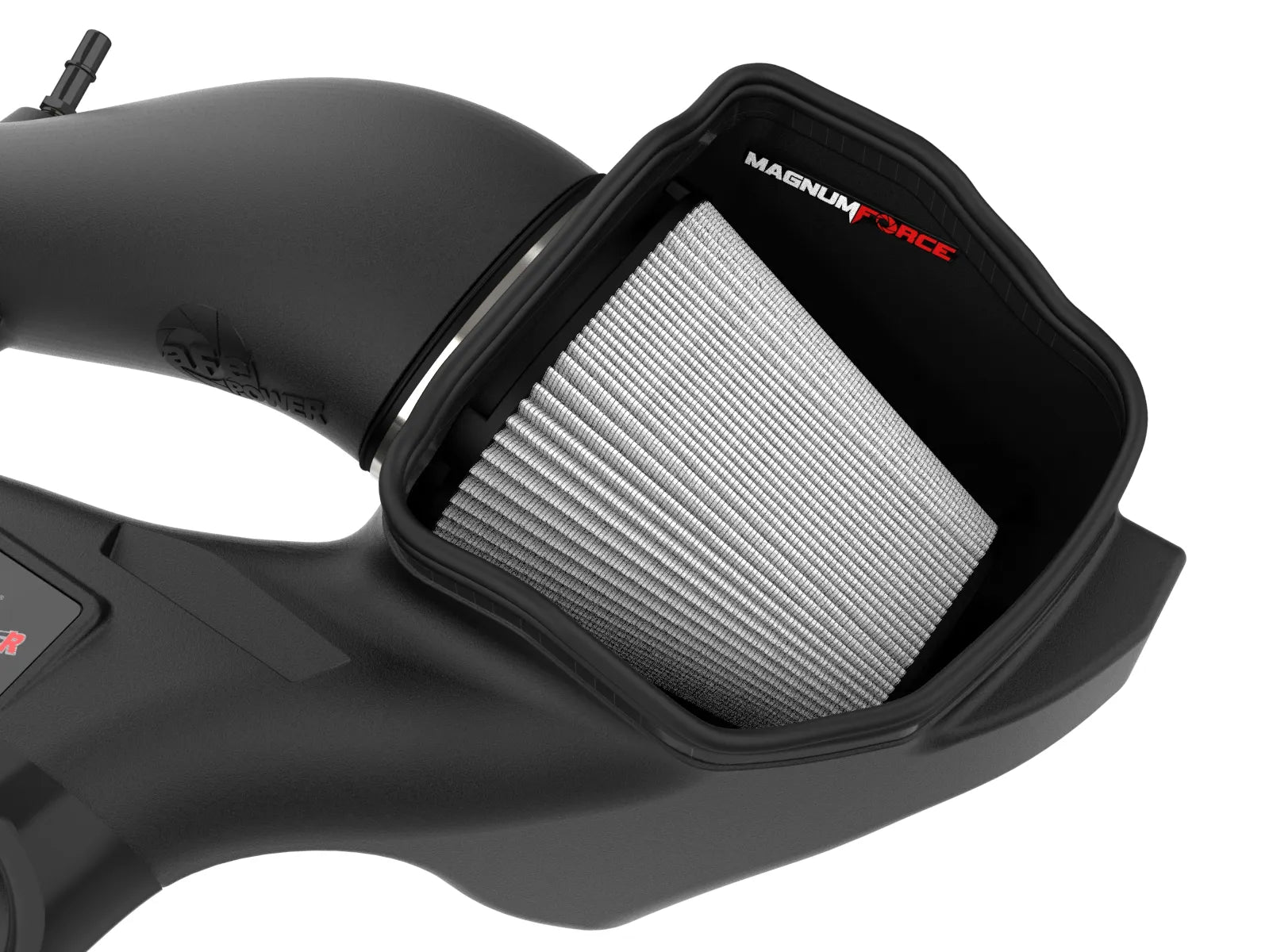

This 9 tall 360-degree radial flow air filter features our oil-free Pro Dry S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street use.
The included massive air filter is surrounded by an open-element Xlpe (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle's factory air inlet.

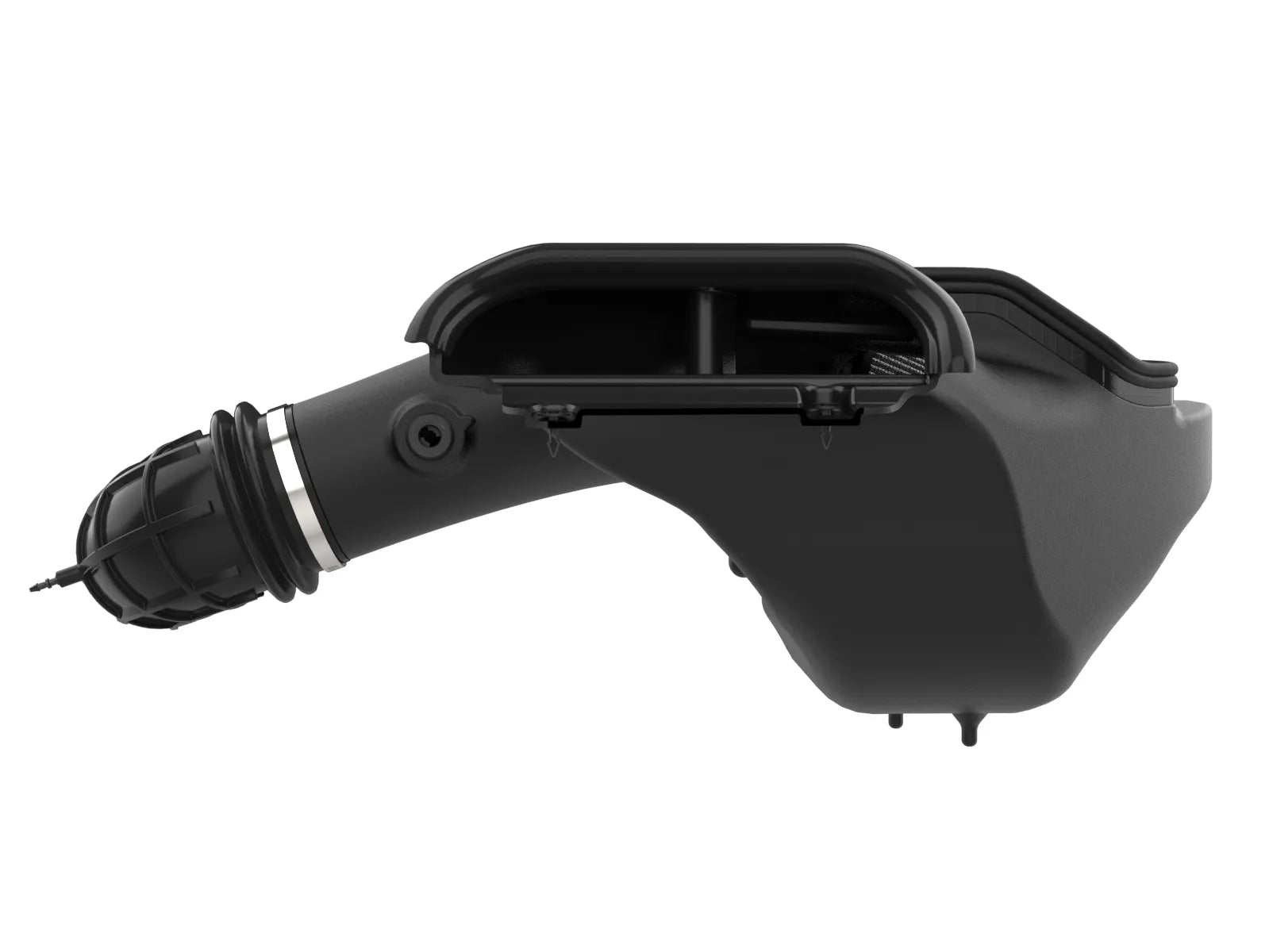

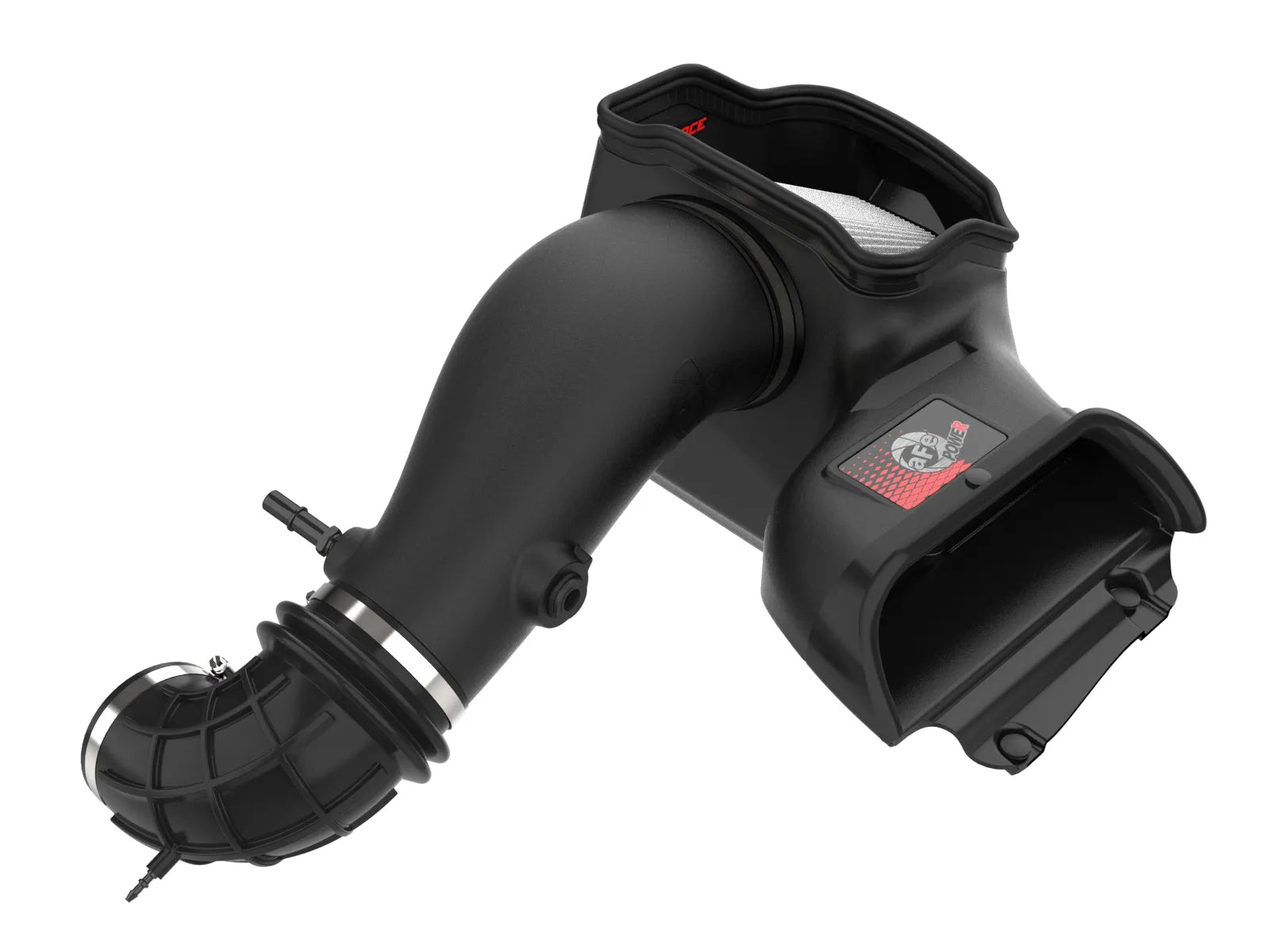

The built-in air intake scoop captures cold air directly from the top of the radiator support thanks to its huge opening. This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its Xlpe material is heat soak resistant and extremely durable.

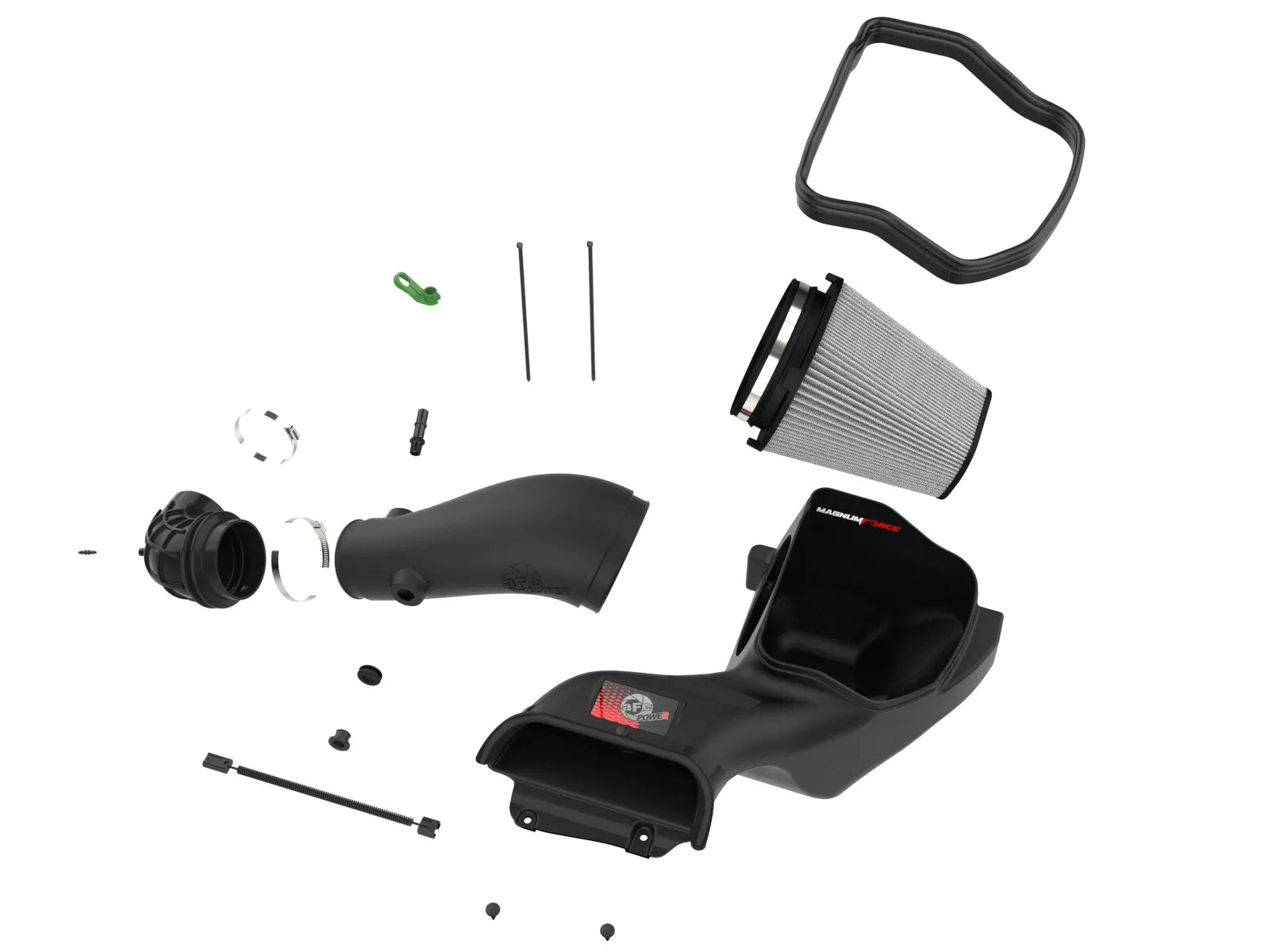

The computer designed system utilizes factory mounting locations, minimizing the use of unnecessary hardware, and ensuring a perfect fit every time. Its innovative design makes for a hassle-free, direct bolt-on installation process that requires no cutting or drilling. Stainless-steel clamps are included for strength, and a premium silicone bellow coupling allow for ample flexibility.
Features and Benefits:
- Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
- Housing with built-in air intake scoop to capture cold air directly from the top of radiator support
- Washable and Reusable Pro Dry S Air Filter for Maximum Convenience
- Innovative Filter-to-Housing Interface for Easy Installation (Roughly 30 Minutes)
- Premium Stainless-Steel Clamps and Silicone Couplings Provide a Secure Seal
- Utilizes Factory Mounting Locations for an Easy and Secure Installation
Details:
- Air Filter Flange Inside Diameter: 7.50 x 5.50 Inch

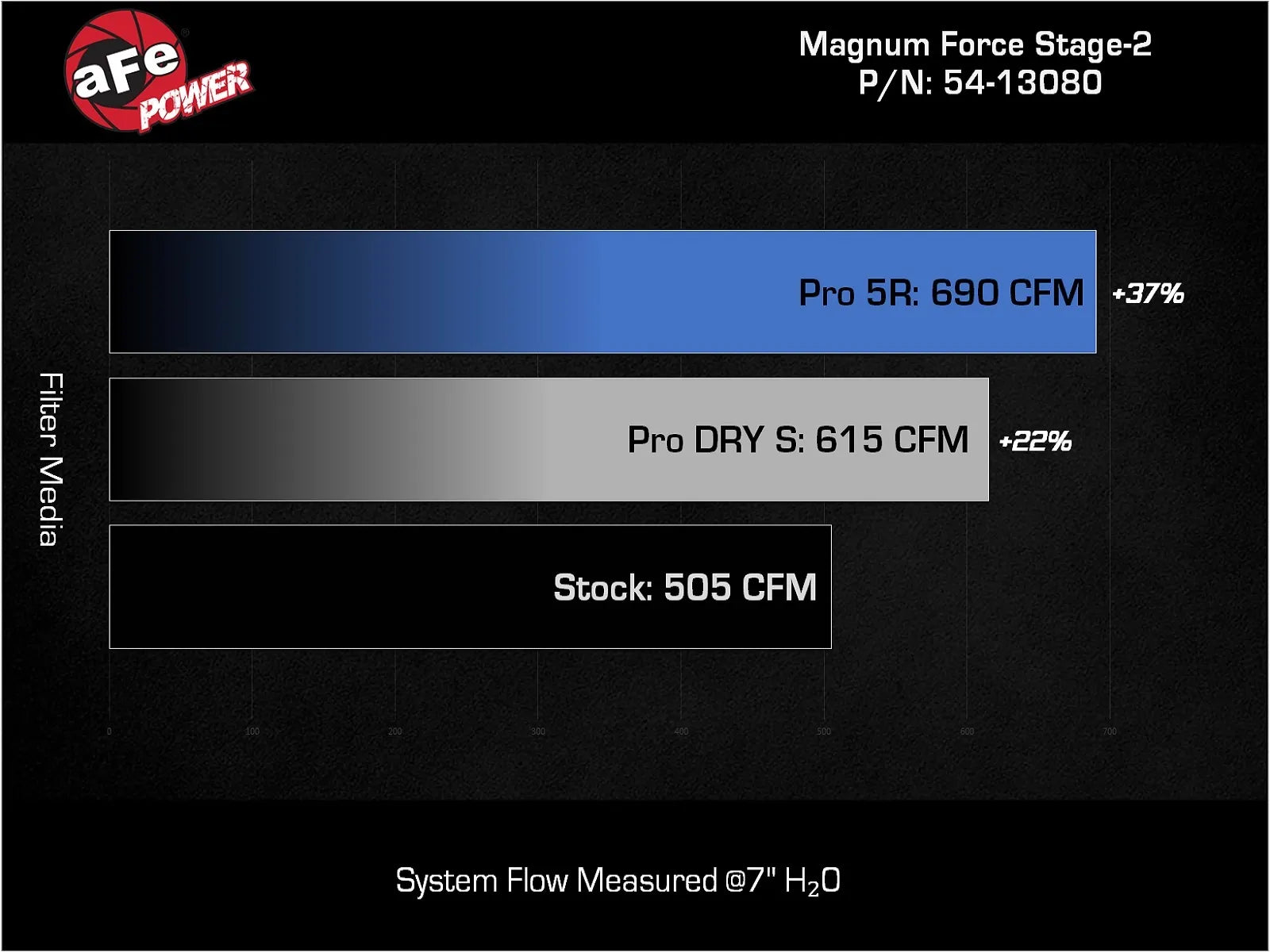

- Air Flow Gain: 22 Percent
- Air Flow Rate: 615 Cubic Feet per Minute
- Air Intake Tube Color: Black
- Air Intake Tube Material: Cross-linked Polyethylene
- Coupler Color: Black
- Coupler Included: Yes
- Coupler Material: Silicone
- ECU Tuning Required: No
- Emission Code: 1
- Filter Color: Gray
- Filter Included: Yes
- Filter Material: Non-woven Synthetic
- Fuel Type: Gas
- Grade Type: Performance
- Horse Power Increase: 14 Horsepower
- Housing Color: Black
- Housing Material: Cross-linked Polyethylene
- Liter: 5.2 Liter
- Modifications Required: No
- Mounting Hardware Included: Yes
- Oiled or Dry Media: Dry
- Series: Magnum Force
- System Type: Open Element Intake
- Torque Increase: 14 ft-lbs
- Tuning Required: No
- Warranty: 2 Year
Applications:
- Ford F-150 Raptor R 23-26 V8-5.2L (sc)
