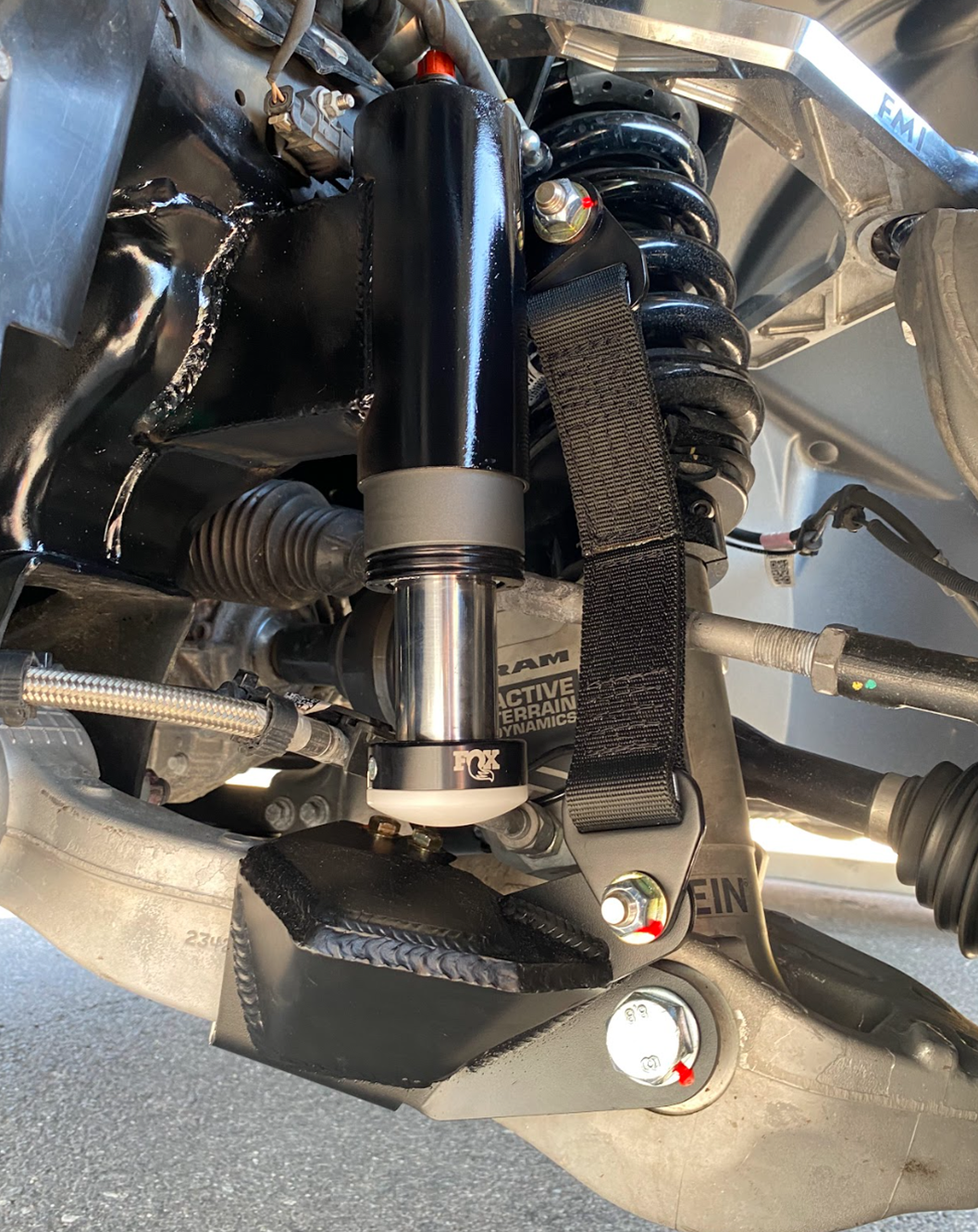

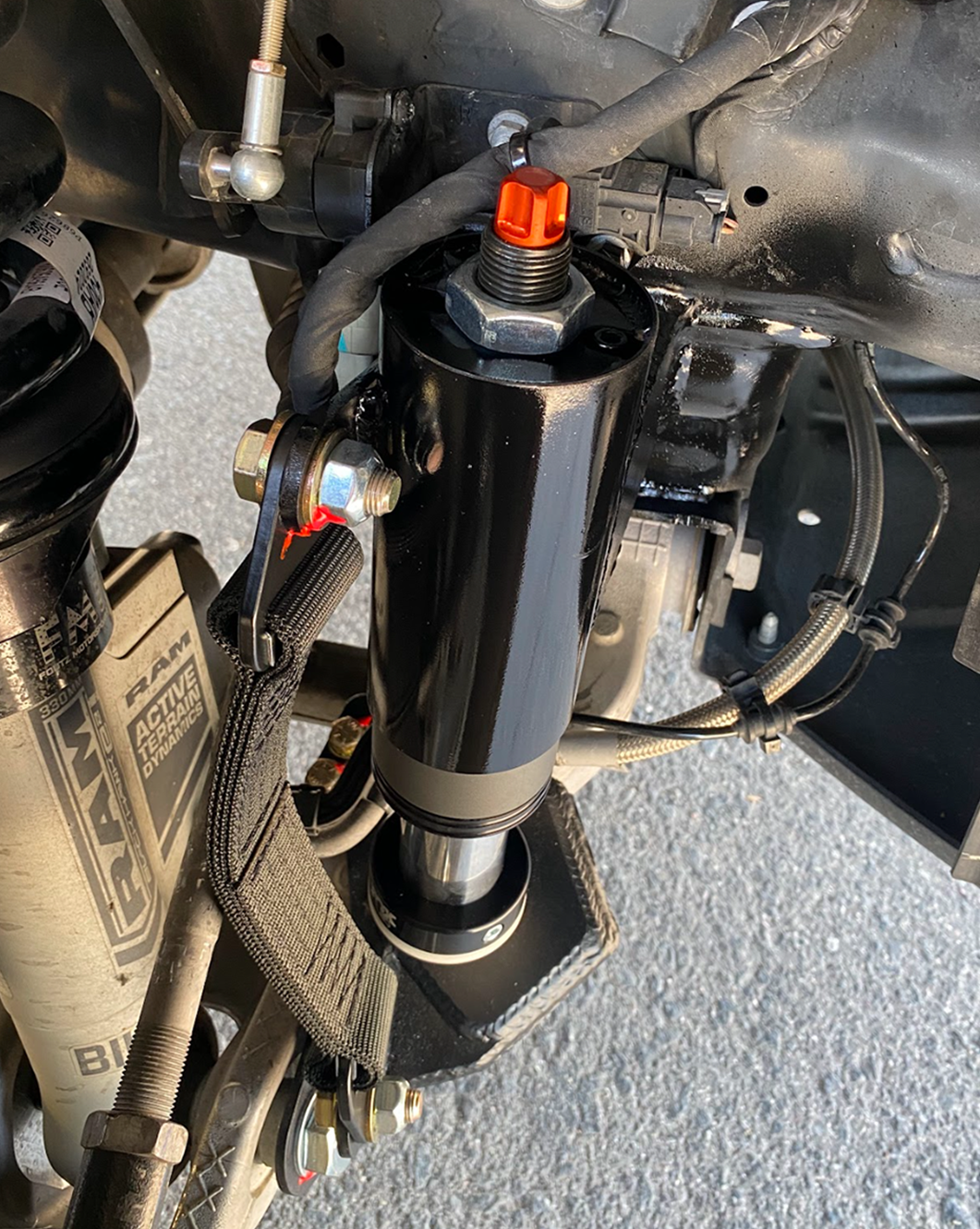

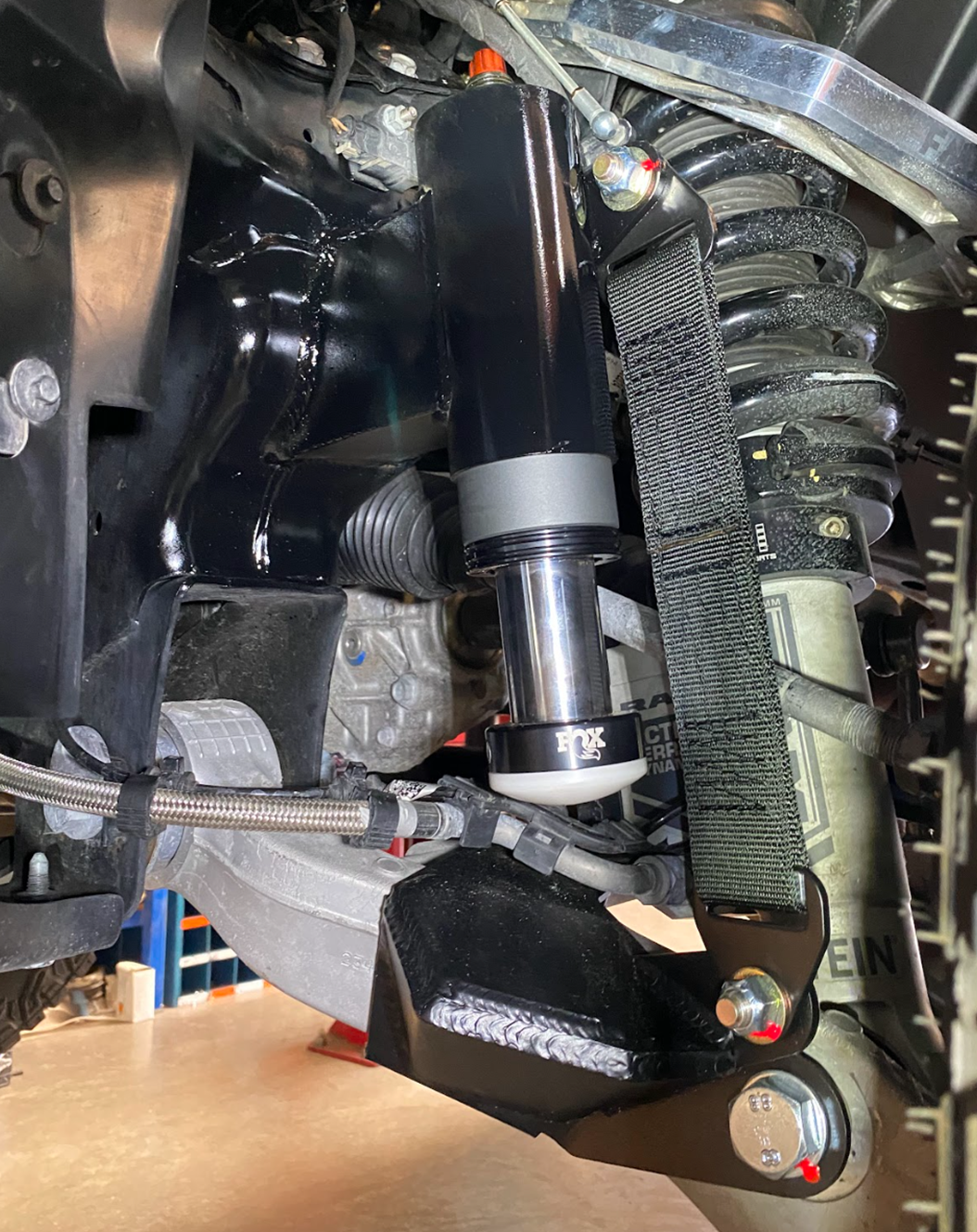

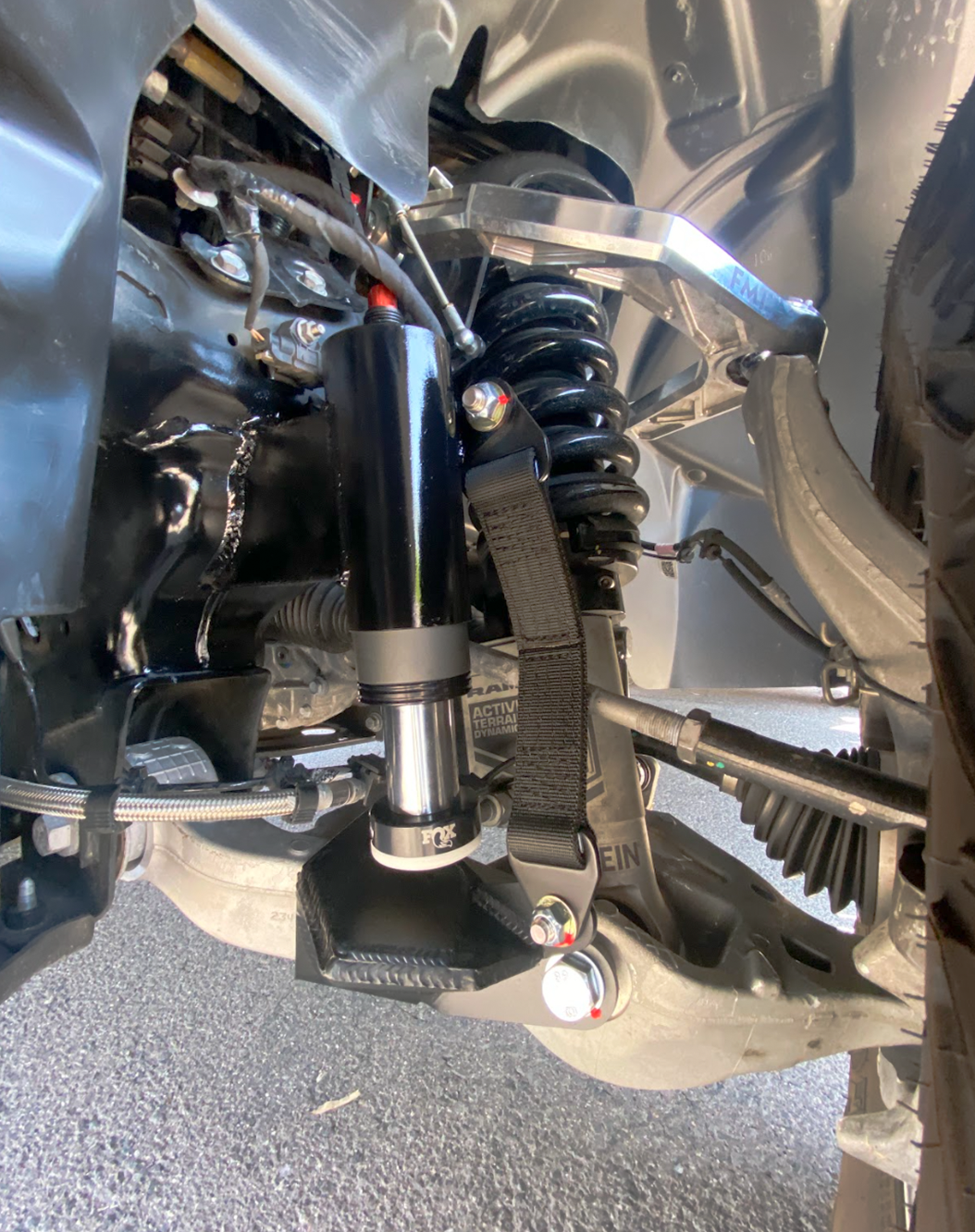

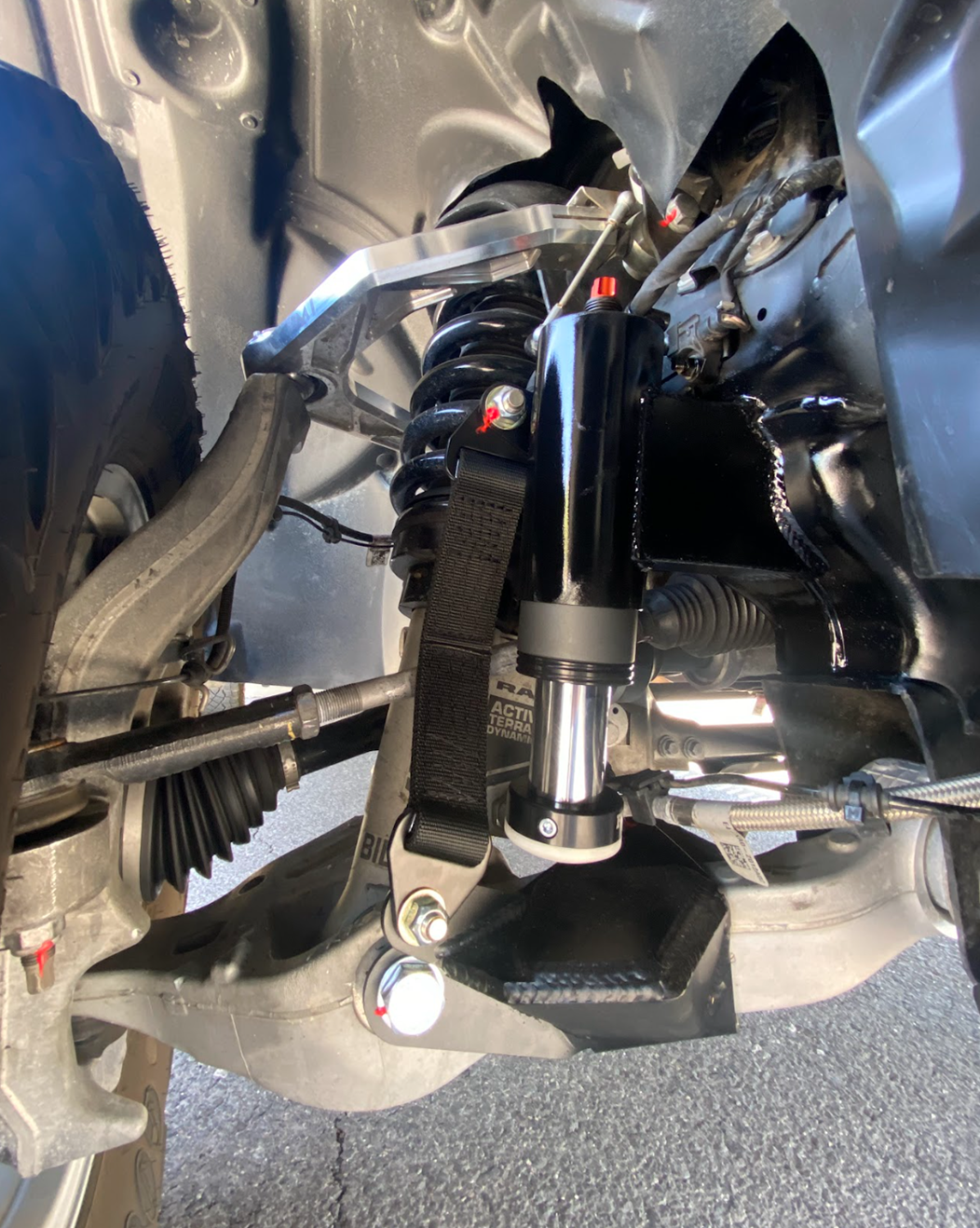

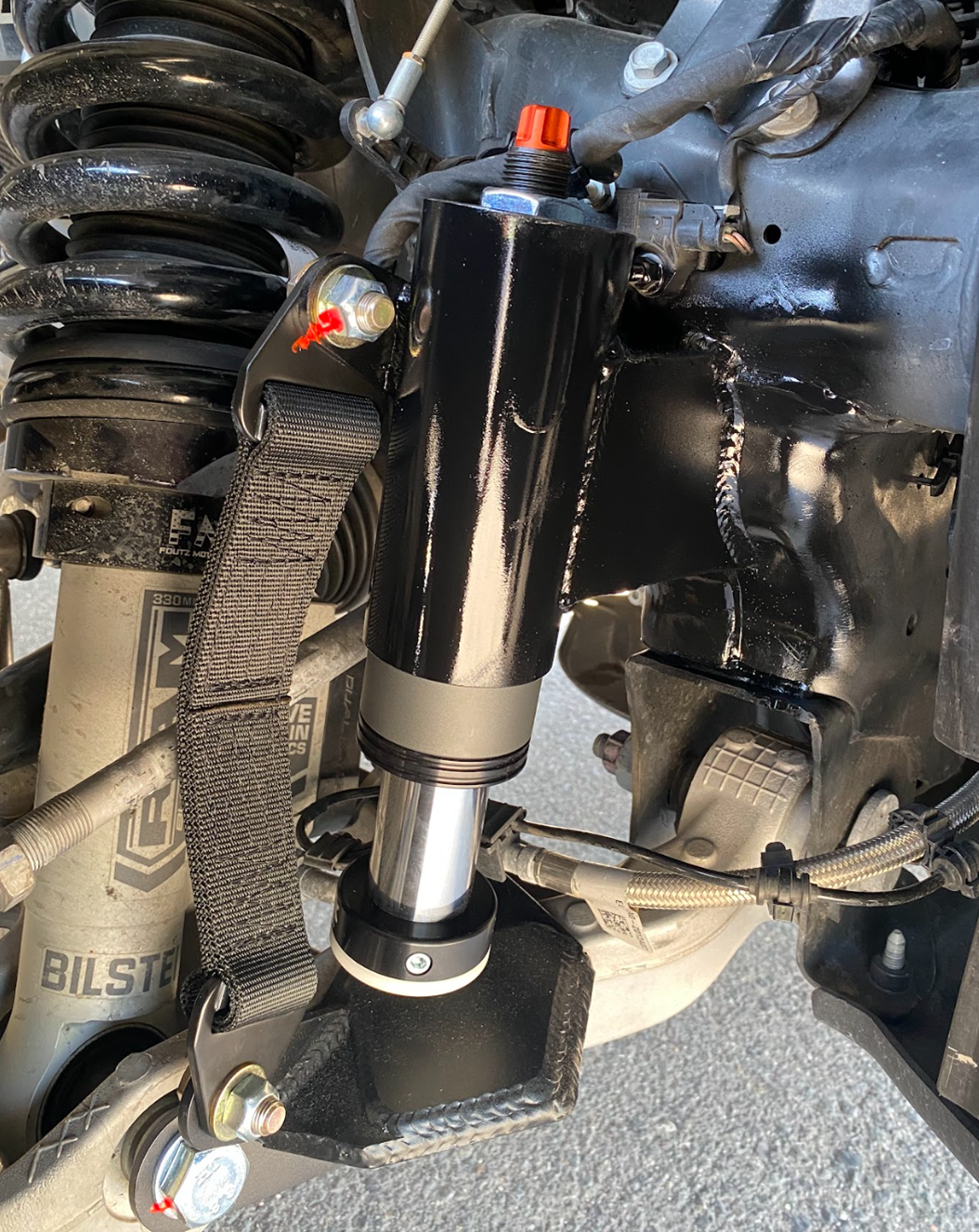

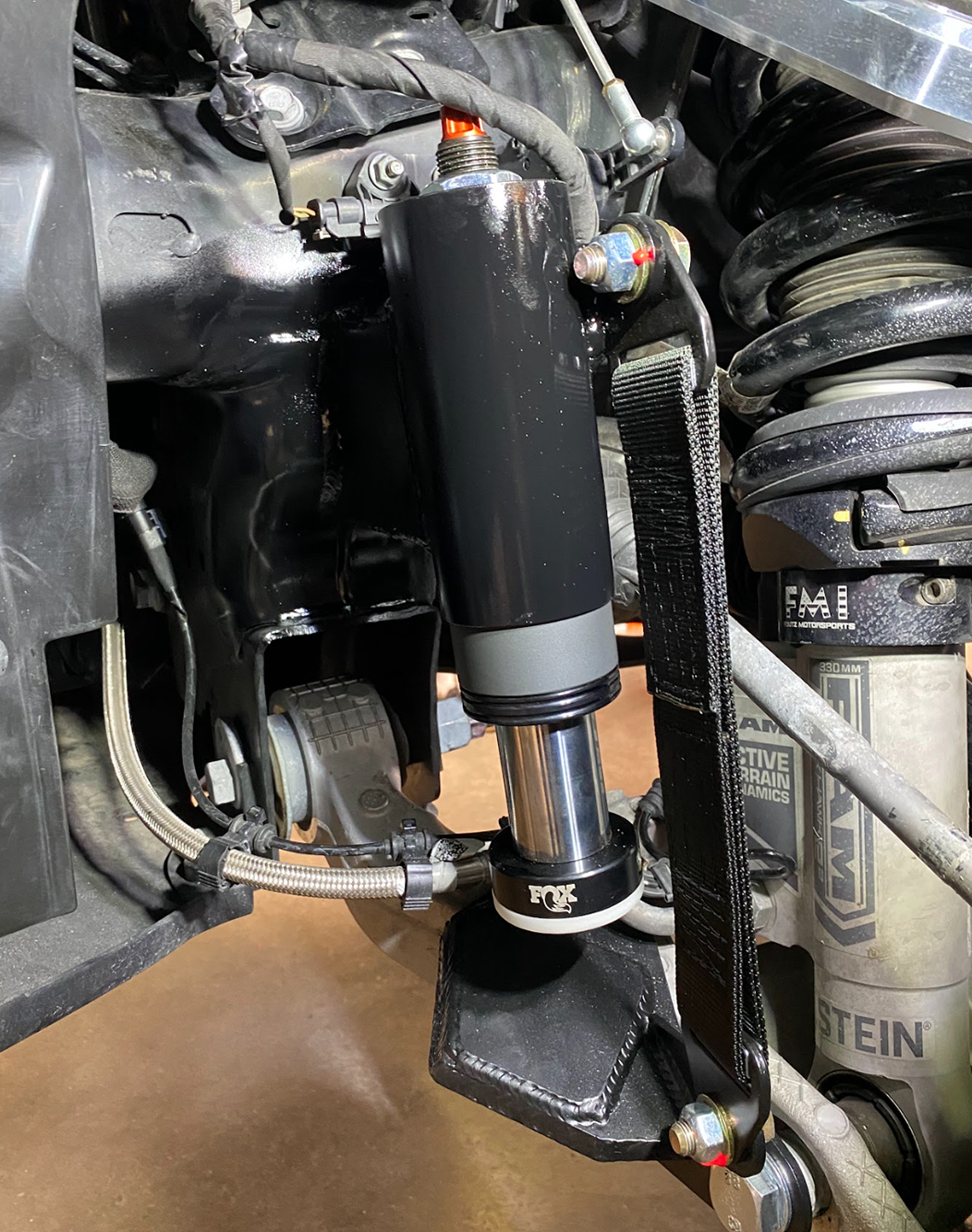

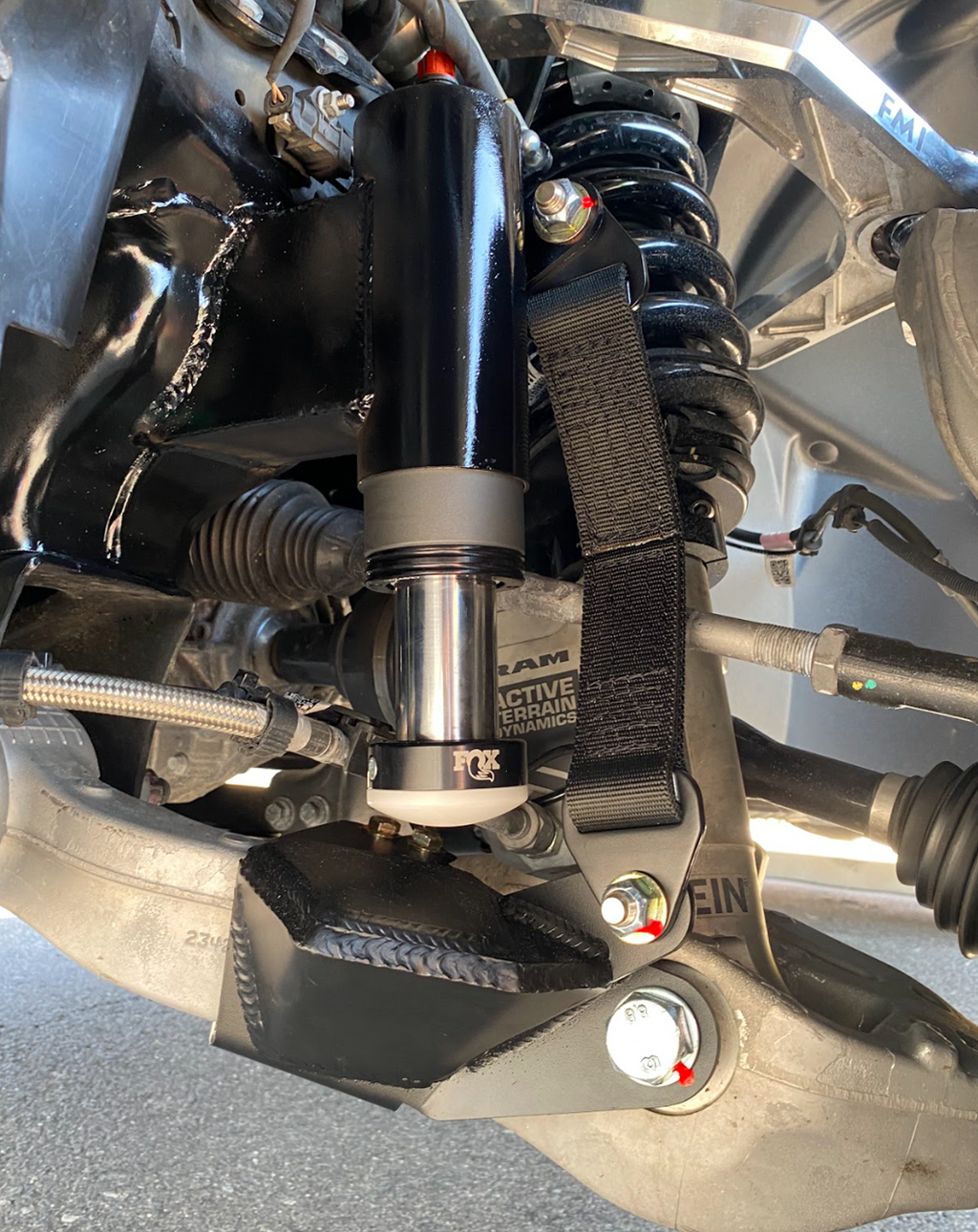

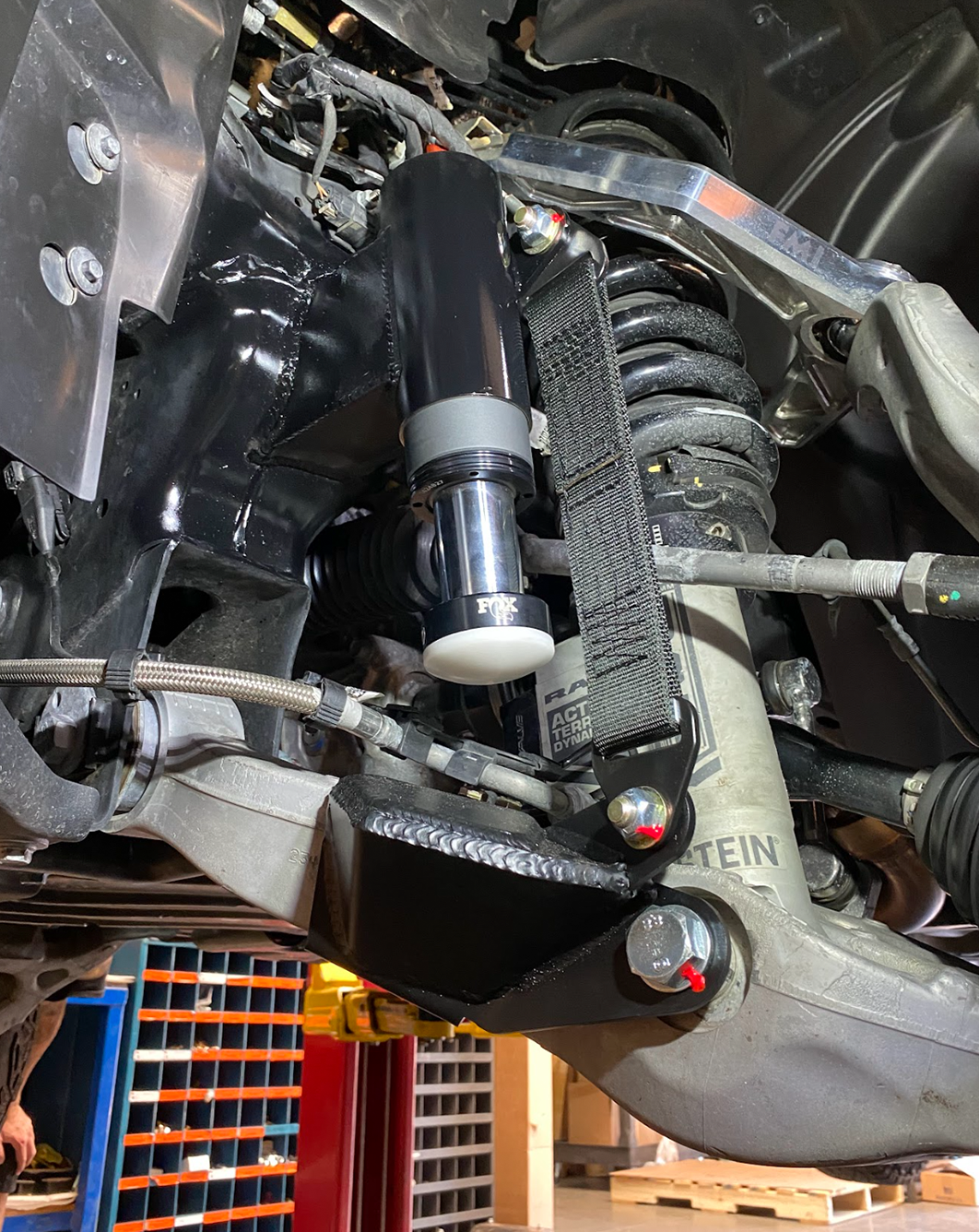

• 12" front limit straps with black-plated steel mounting tabs
• Mounting brackets that clamp around the front of the stock lower control arm, with a built-in bump stop pad
• Bump stop mount that welds to the frame
• Your choice of FOX, King, ADS or Carbon hydraulic bump stop, 2.5" OD with 2.5" of travel, included with the kit

Every suspension needs something to stop it at each end of its travel. At top-out, a limit strap restrains the suspension so the shock is not solely responsible for stopping droop. That protects the top shock mount from premature damage and extends the life of the front suspension components.

At bottom-out, a hydraulic bump stop cushions the last of the travel instead of letting the suspension hit hard. This kit handles both ends on the stock RHO front suspension.

It matters most on an RHO running aftermarket springs.

• 12" straps built to handle serious off-road abuse while keeping their strength, rather than stretching or wearing out.
• Each strap is 4 layers of military-grade webbing.
• Black-plated steel mounting tabs.

• Designed to work with the factory stock lower a-arm and bolt directly to the cast aluminum.

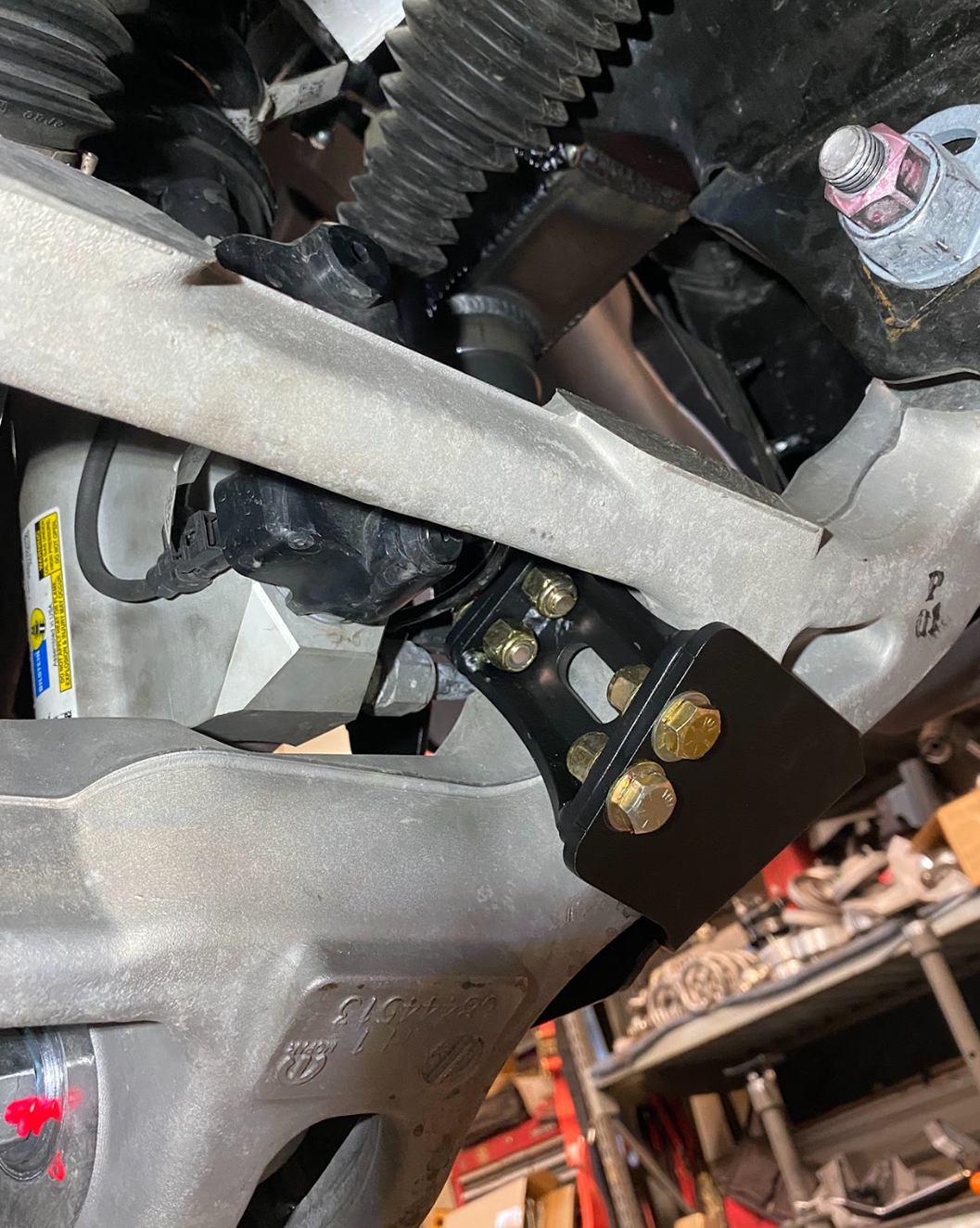

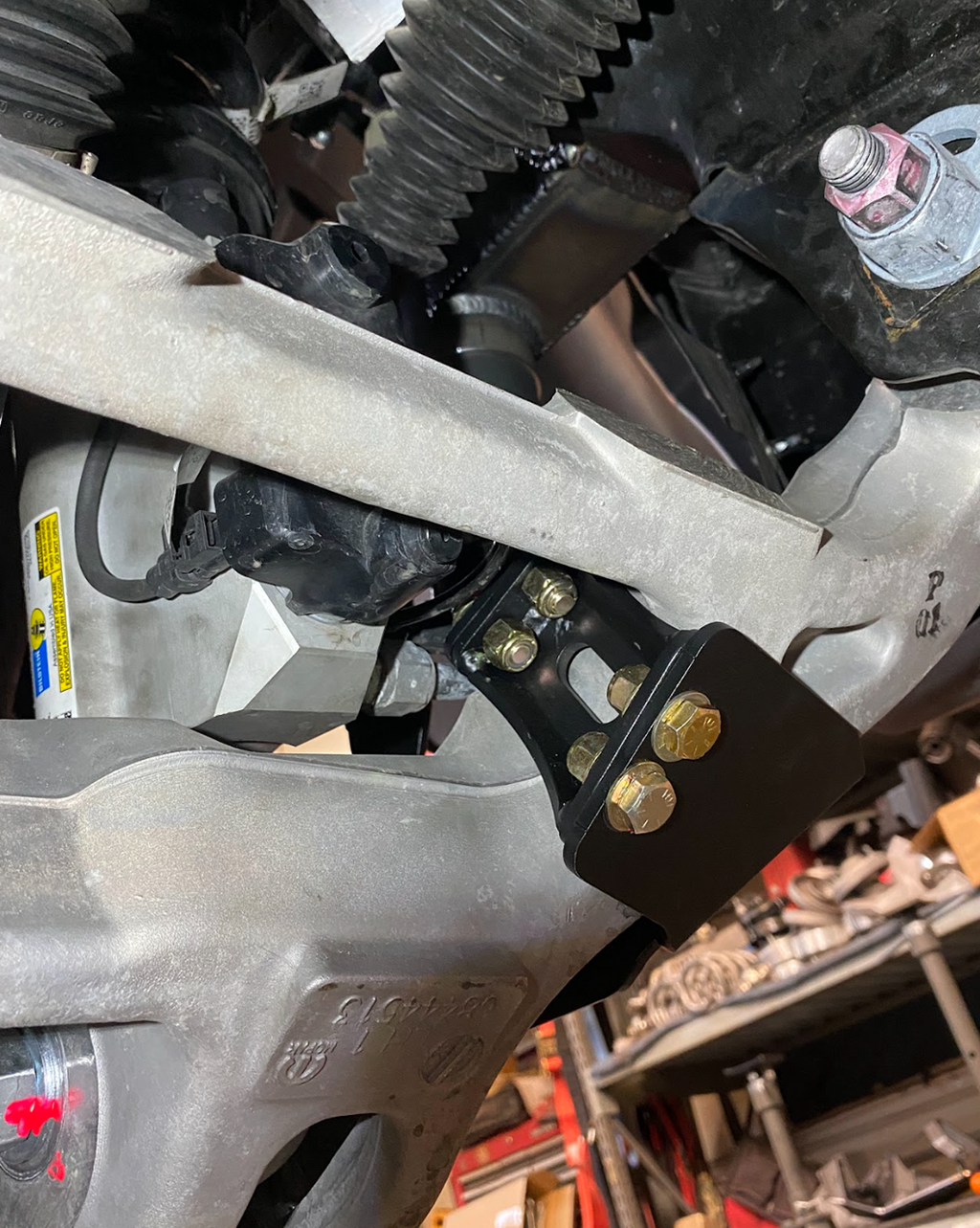

• Clamp around the front of the lower stock control arm.

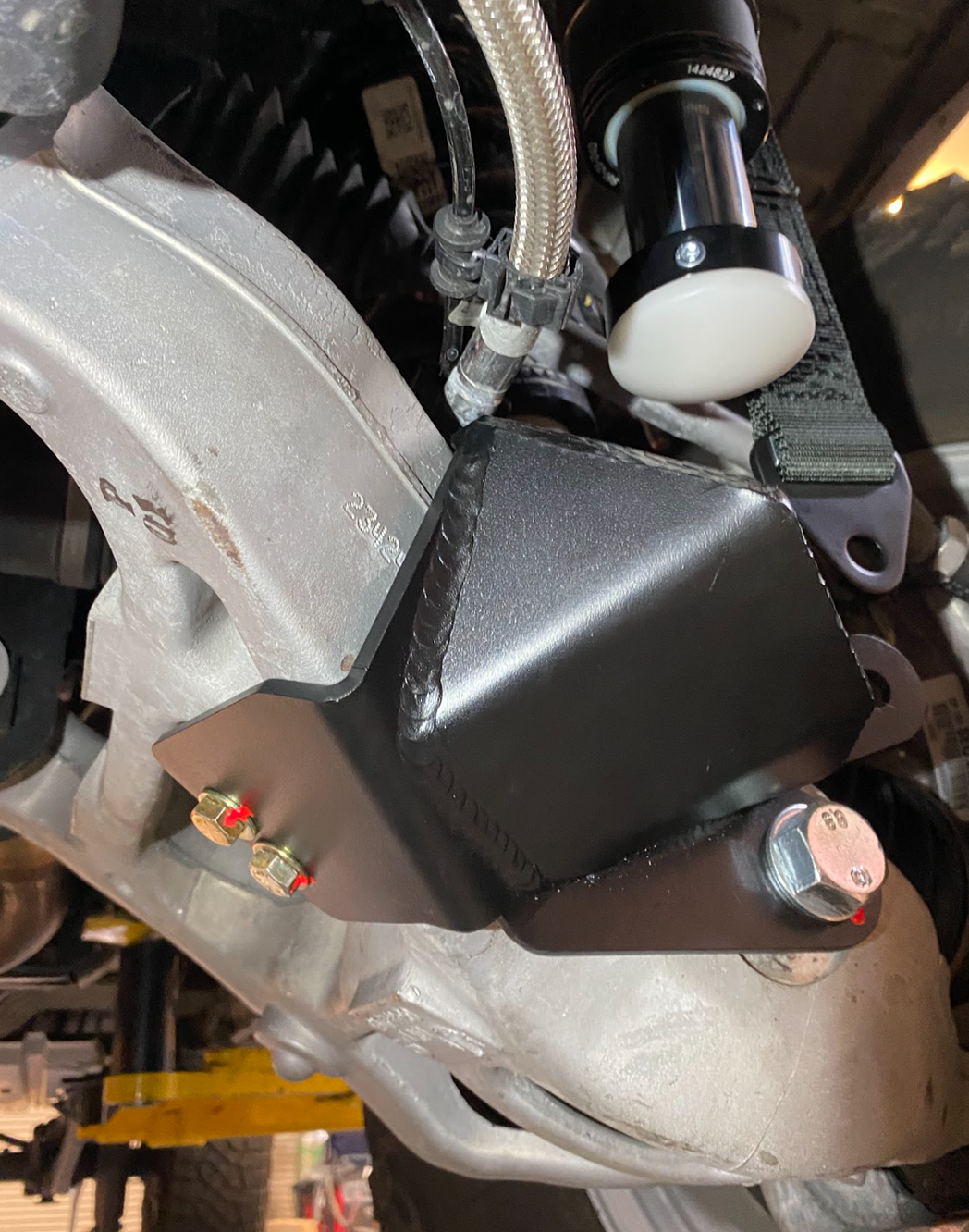

• Integrated bump stop pad in the bracket.
• MIG welded in-house and finished in hammer black powder coat.

The kit is engineered to work with FOX, King, ADS or Carbon front bump stops. Choose your brand when you order, and that 2.5" OD, 2.5" travel hydraulic bump stop comes with the kit.

Fits the 2025 Ram 1500 RHO with the factory stock front lower control arm.

Requires welding the bump stop mount to the frame. The kit should be installed by a qualified welder or fabricator.

Is the bump stop included?

Yes. Selecting FOX, King, ADS or Carbon includes that 2.5" OD, 2.5" travel hydraulic bump stop with the kit.

Does it work with my factory lower arms?

Yes. The brackets are designed for the factory stock lower a-arm and bolt directly to the cast aluminum.

What does a limit strap do?

It restrains the suspension at top-out, so the shock is not the only thing stopping droop. That protects the top shock mount.

Do I need this with aftermarket springs?

That is where it matters most. Running aftermarket springs on the RHO without one leaves the shock stopping droop on its own.

Is any welding required?

Yes. The bump stop mount welds to the frame, so a qualified welder or fabricator should install it.
