Foutz Motorsports Front Limit Strap Kit & Bump Stop for Stock Lower Arm 2024 Ford Ranger Raptor

• Designed to work with your factory stock lower a-arm and bolt on to the cast aluminum
• Limits the top out travel and saves your top shock mount from premature damage
• Extends the life of your front suspension components
• Restrains the top out so you don't have to rely on just the shock to stop the droop
• An absolute must-have if you're doing any real off-roading in your Ranger Raptor

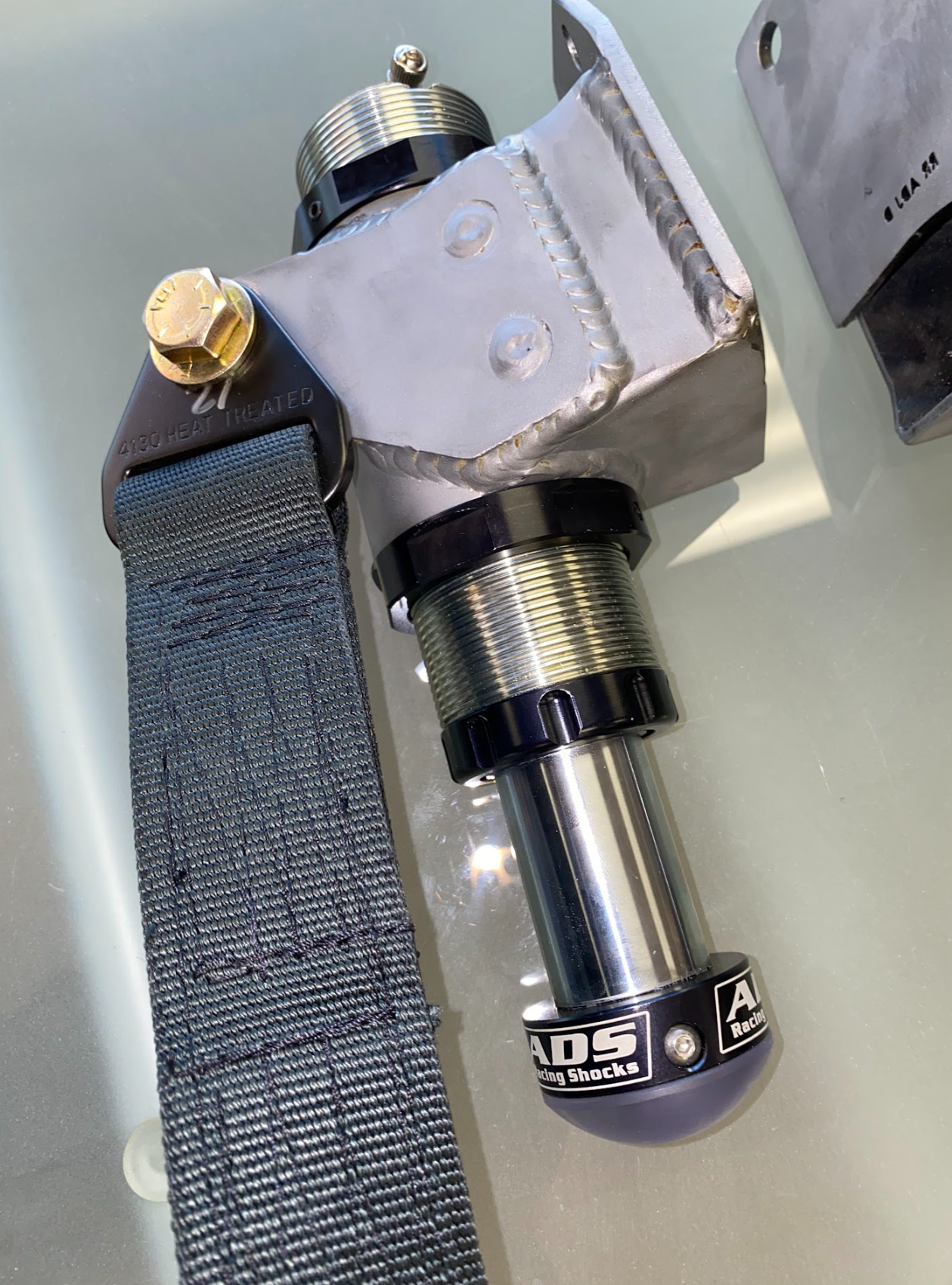

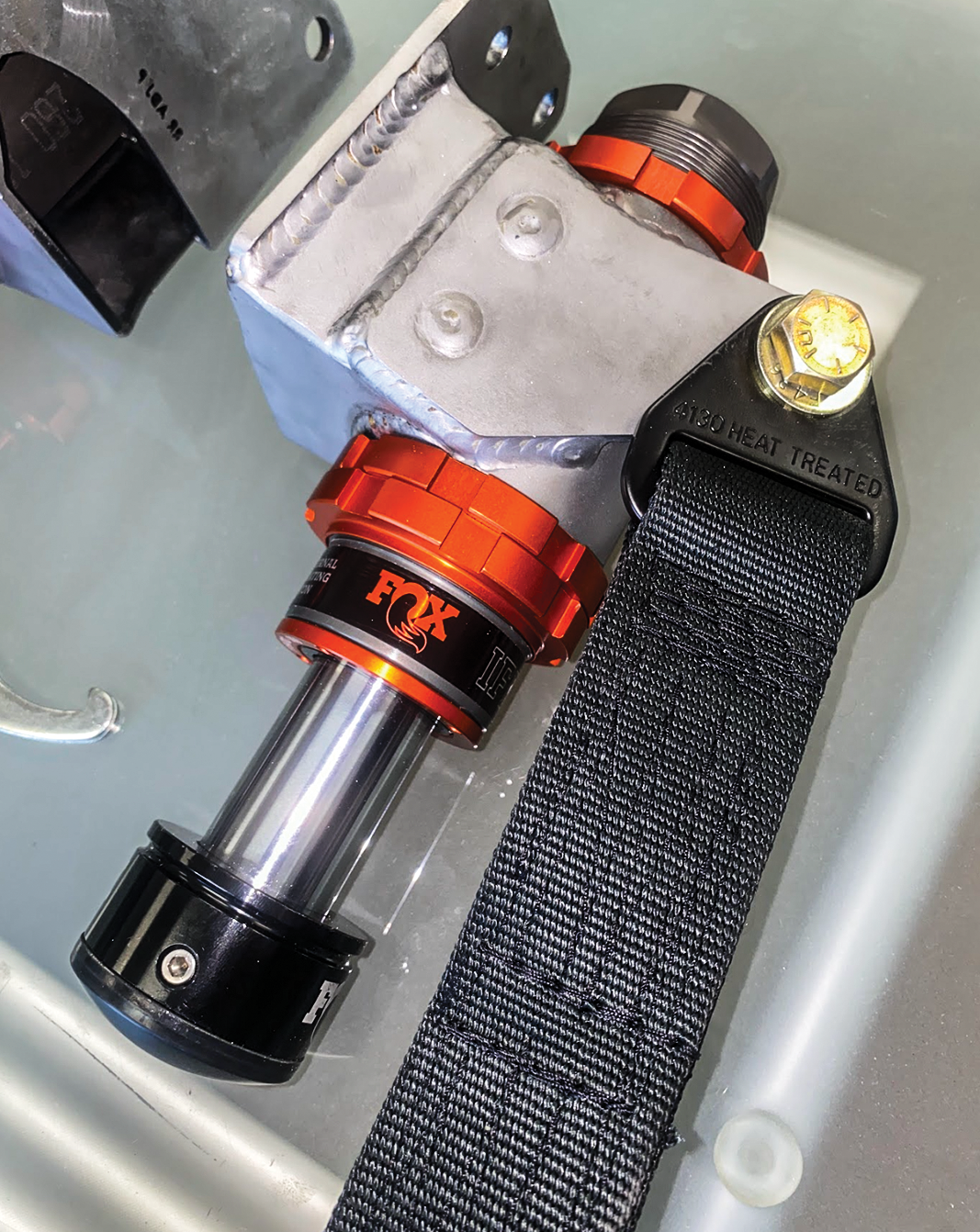

• Engineered to work with Fox, King, Carbon, or ADS front bump stops. 2.0" OD and 2.0" travel bump stop provides full bottom out protection

• The 9" limit straps are made of high quality material that is capable of withstanding abuse when you off-road. Their extreme durability will provide you with long lasting strength

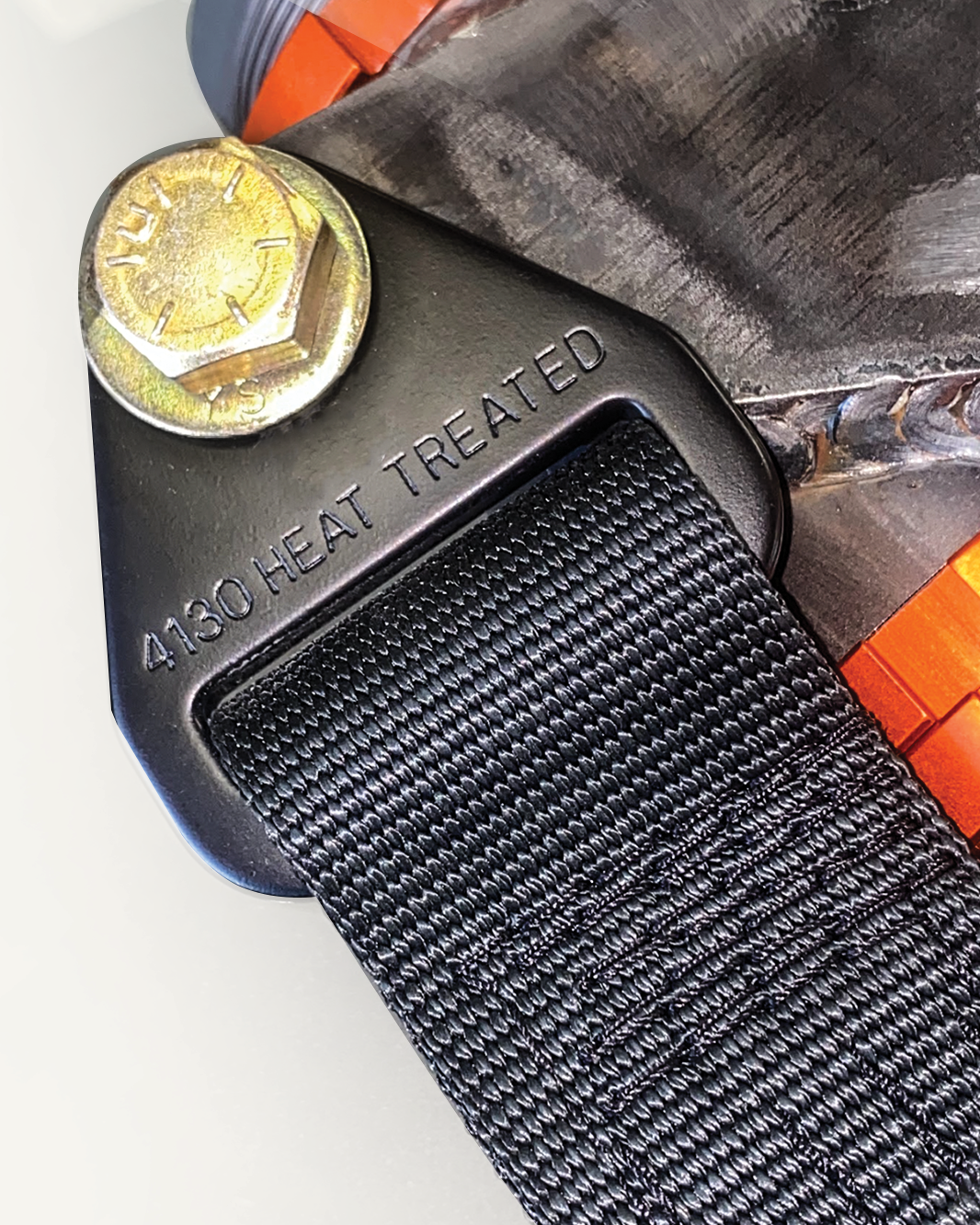

• Each strap features 4 layers of military grade webbing with steel mounting tabs at the end that are plated black

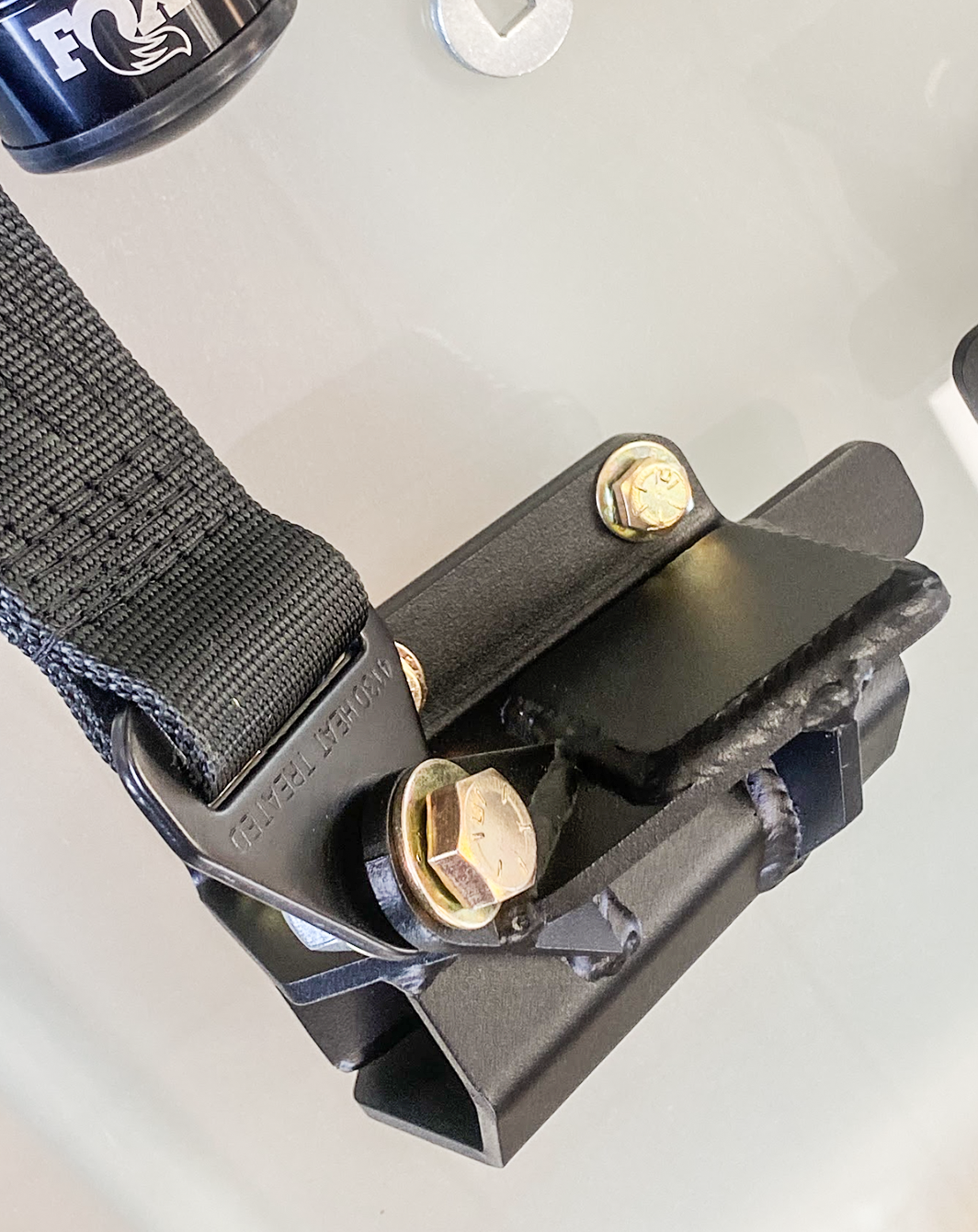

• A bump stop pad is built into the mounting brackets for an effortless integration

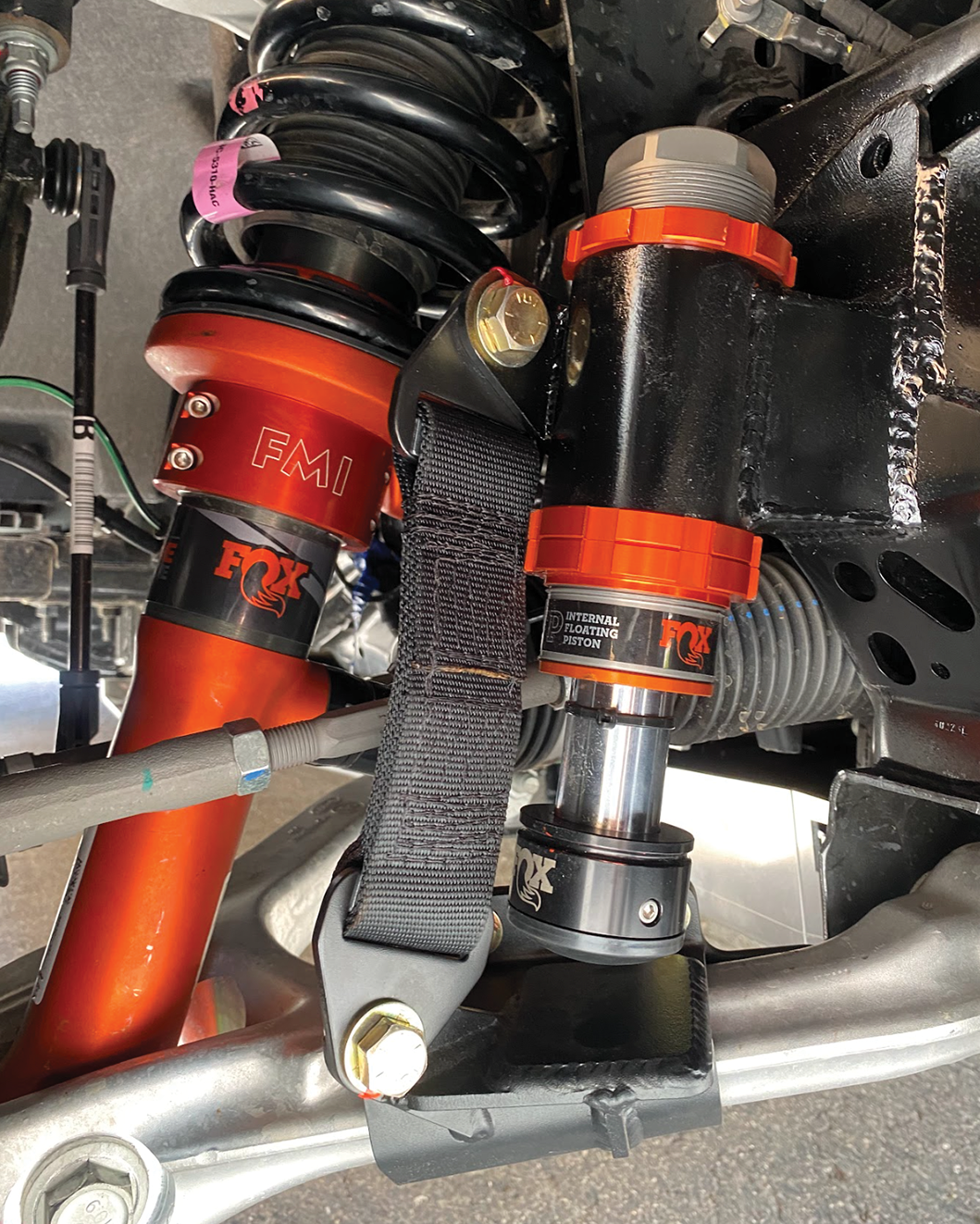

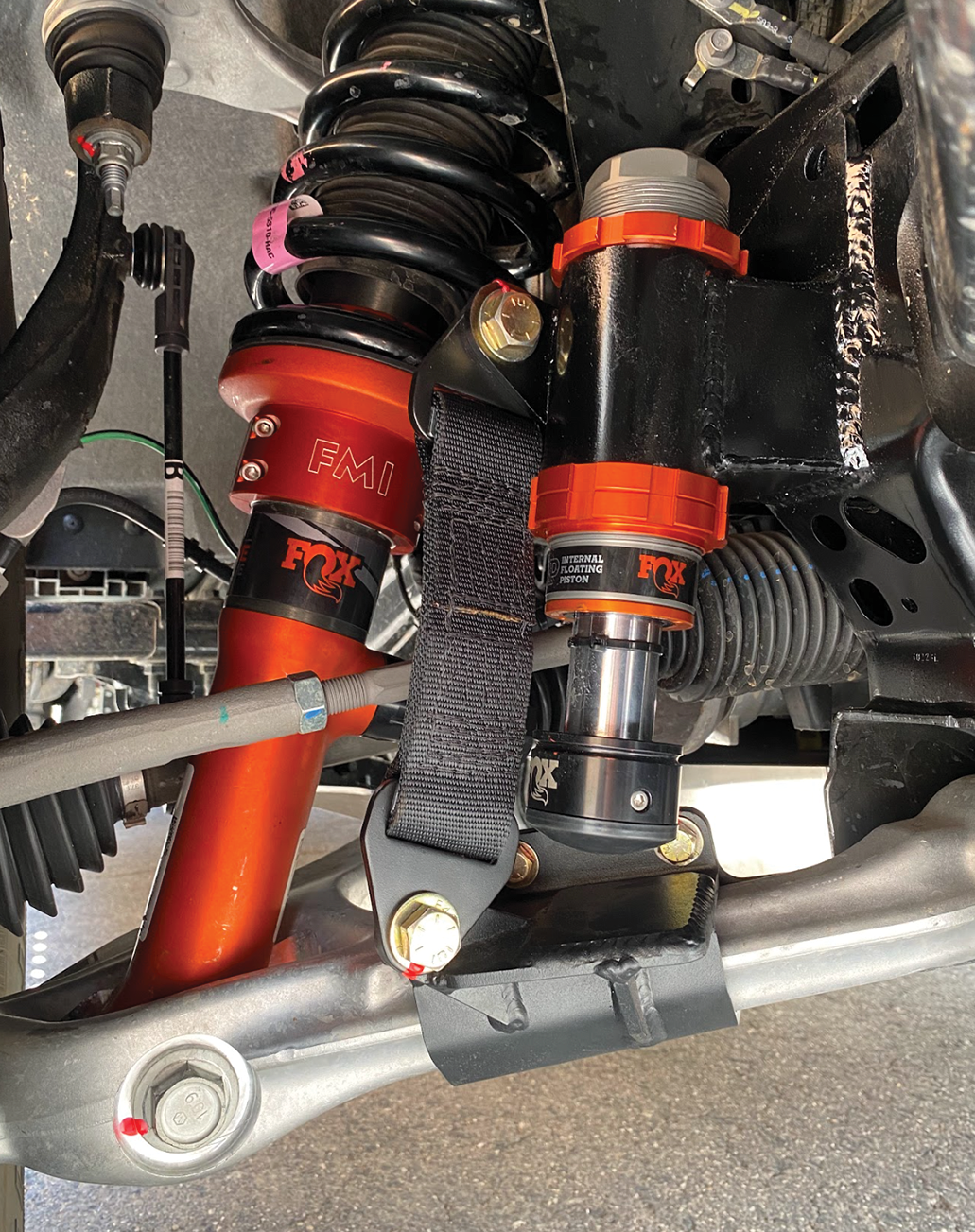

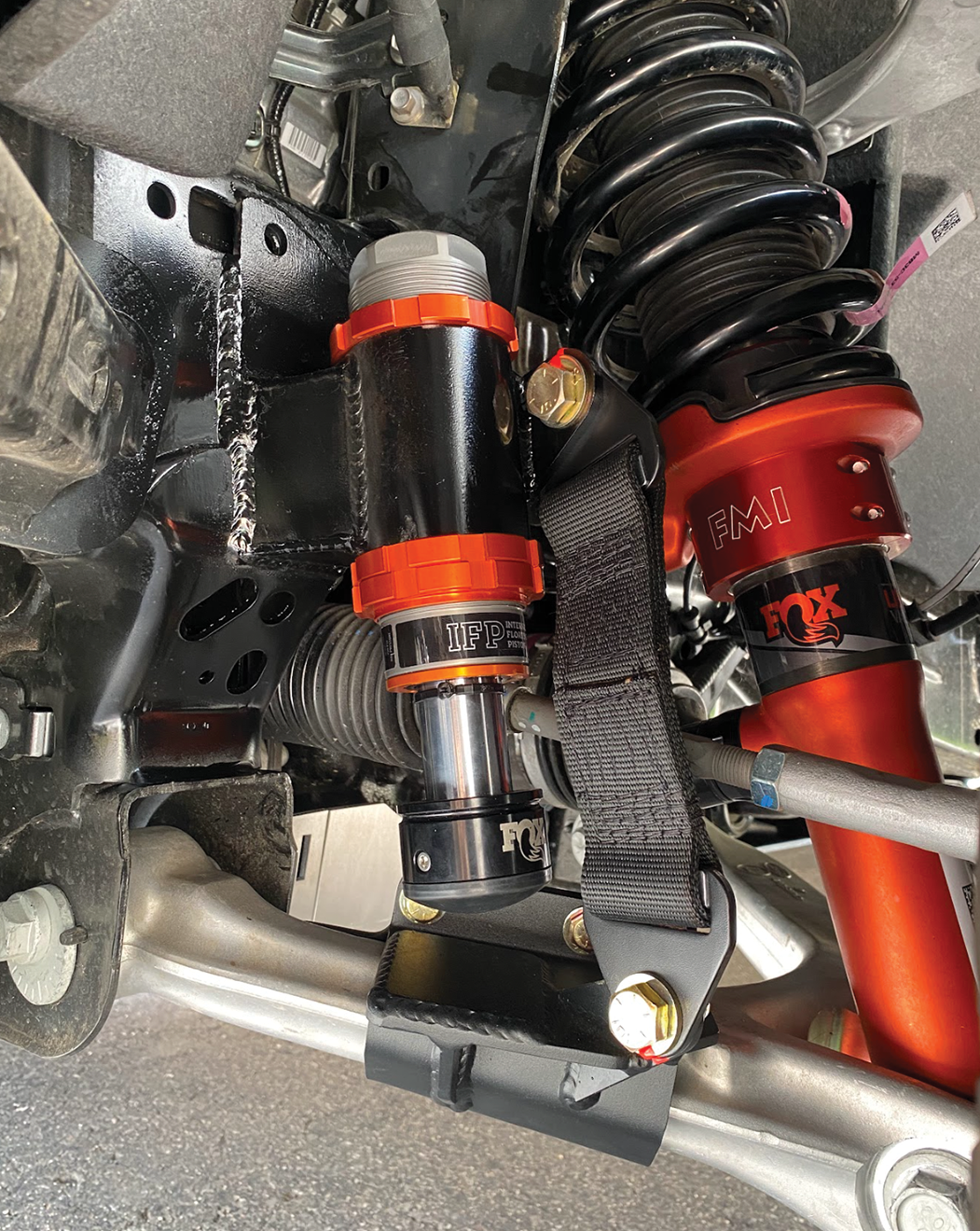

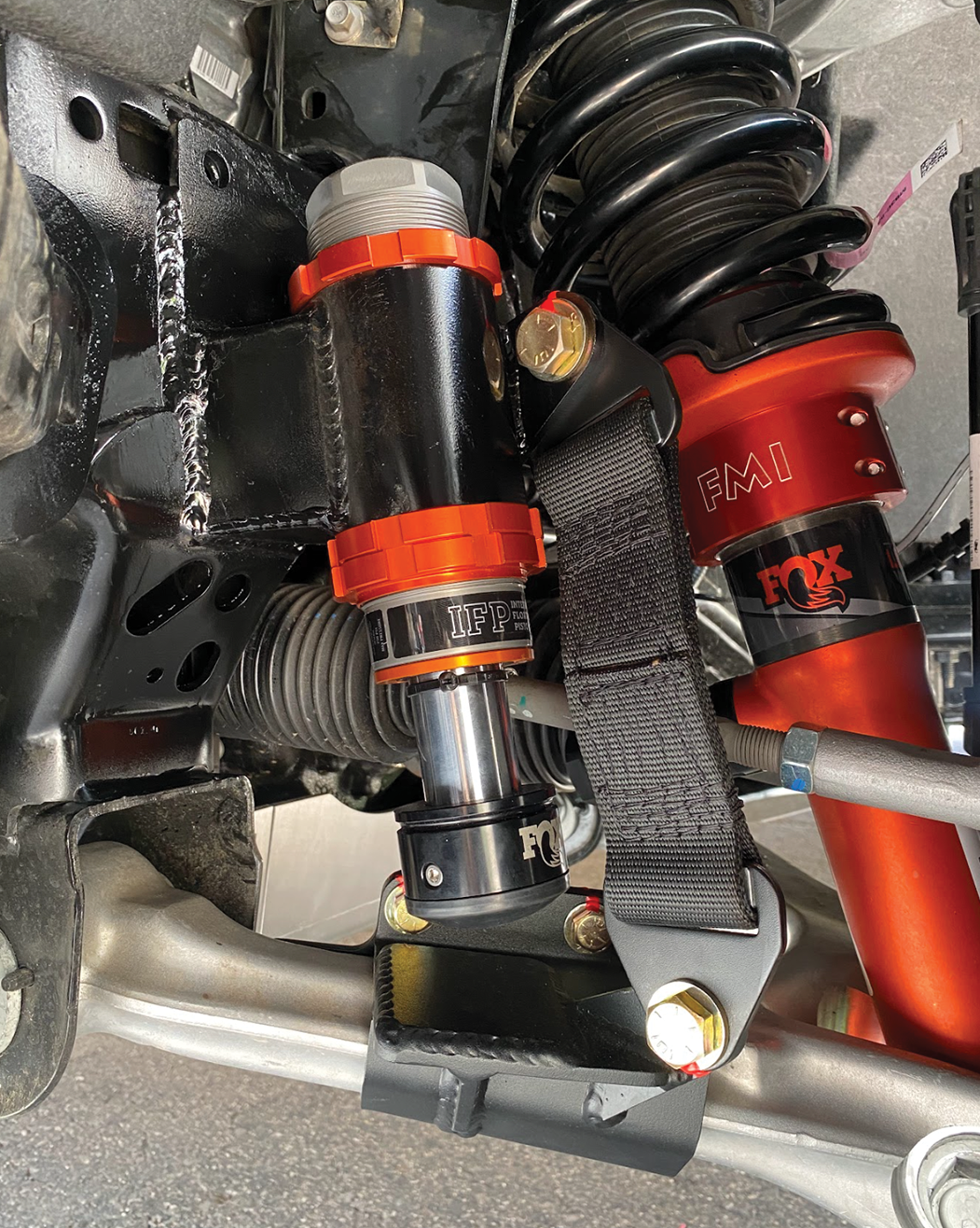

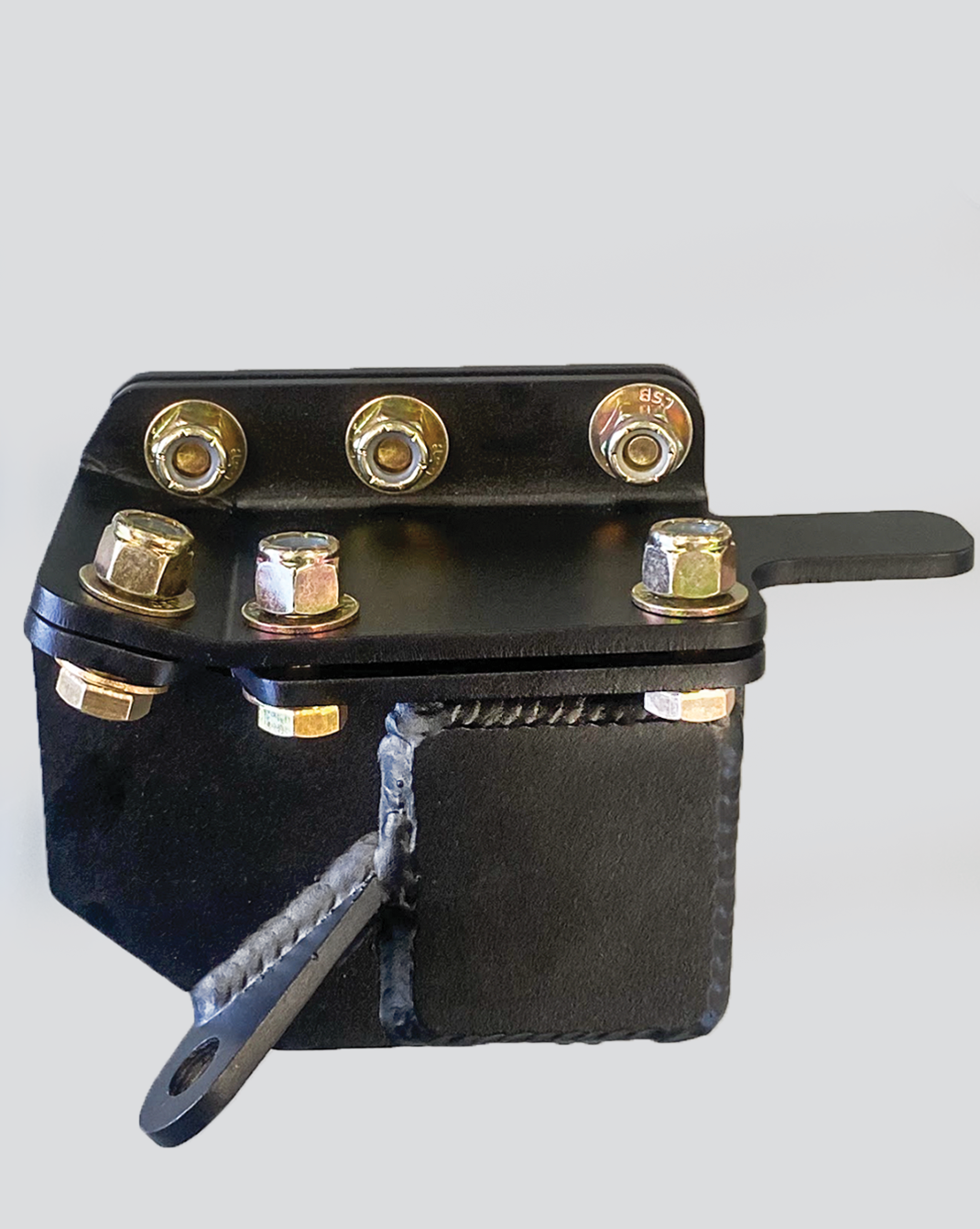

• The mounting brackets secure around the front of the lower stock control arm and are MIG welded in house and then finished in a hammer black powder coat for ultimate durability and strength

Installation Document

This kit requires you to weld the bump stop mount to the frame and should be installed by a qualified welder/fabricator.

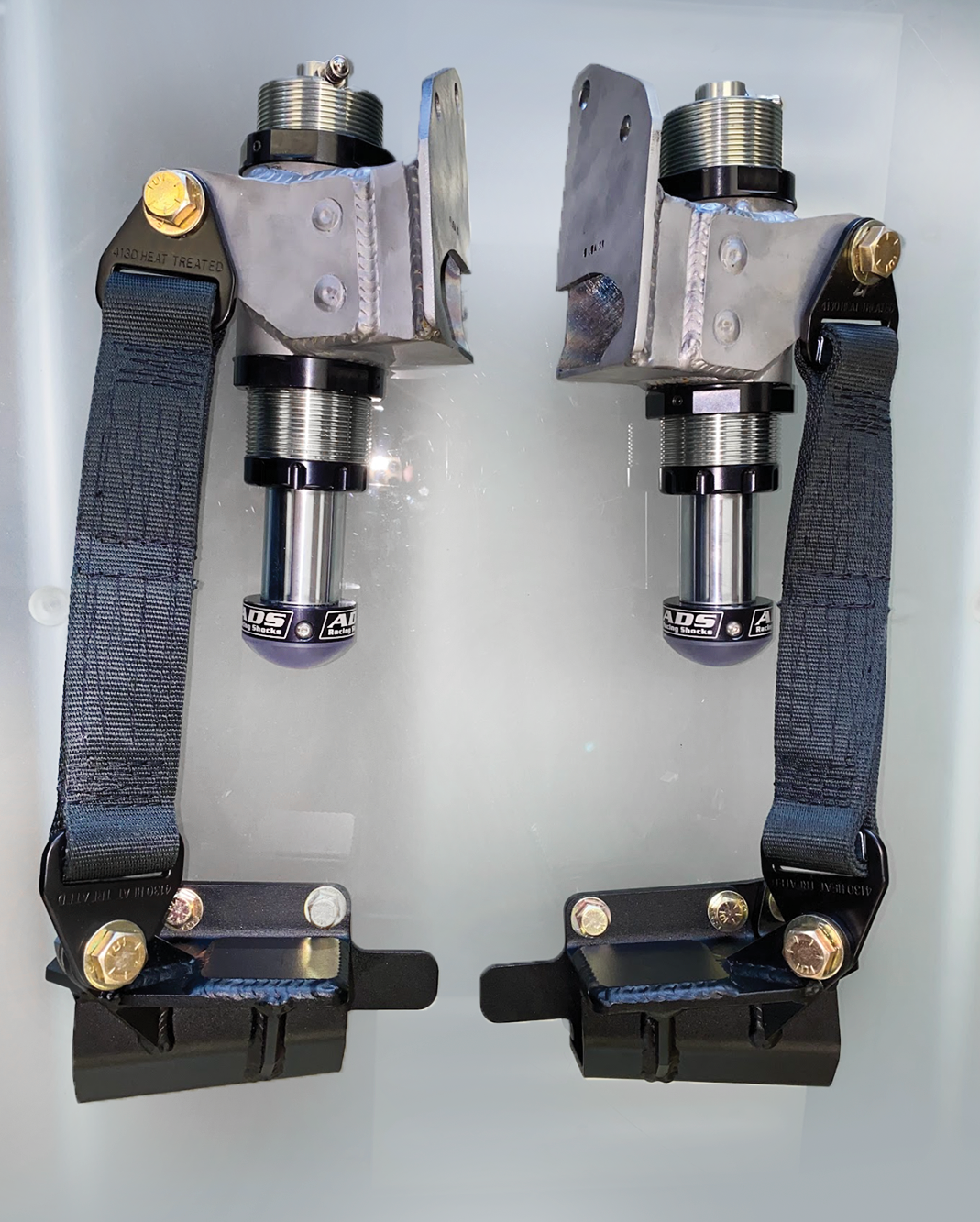

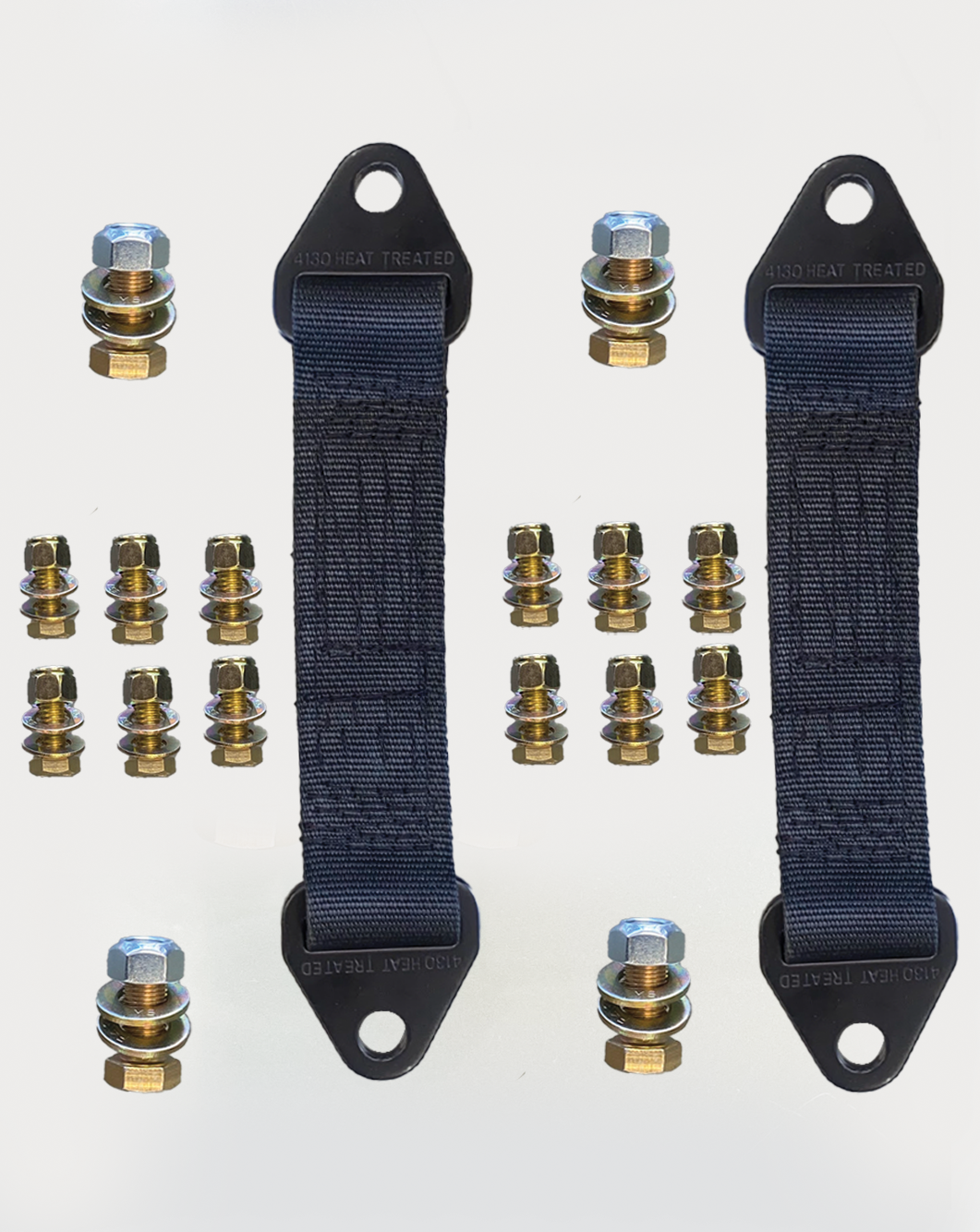

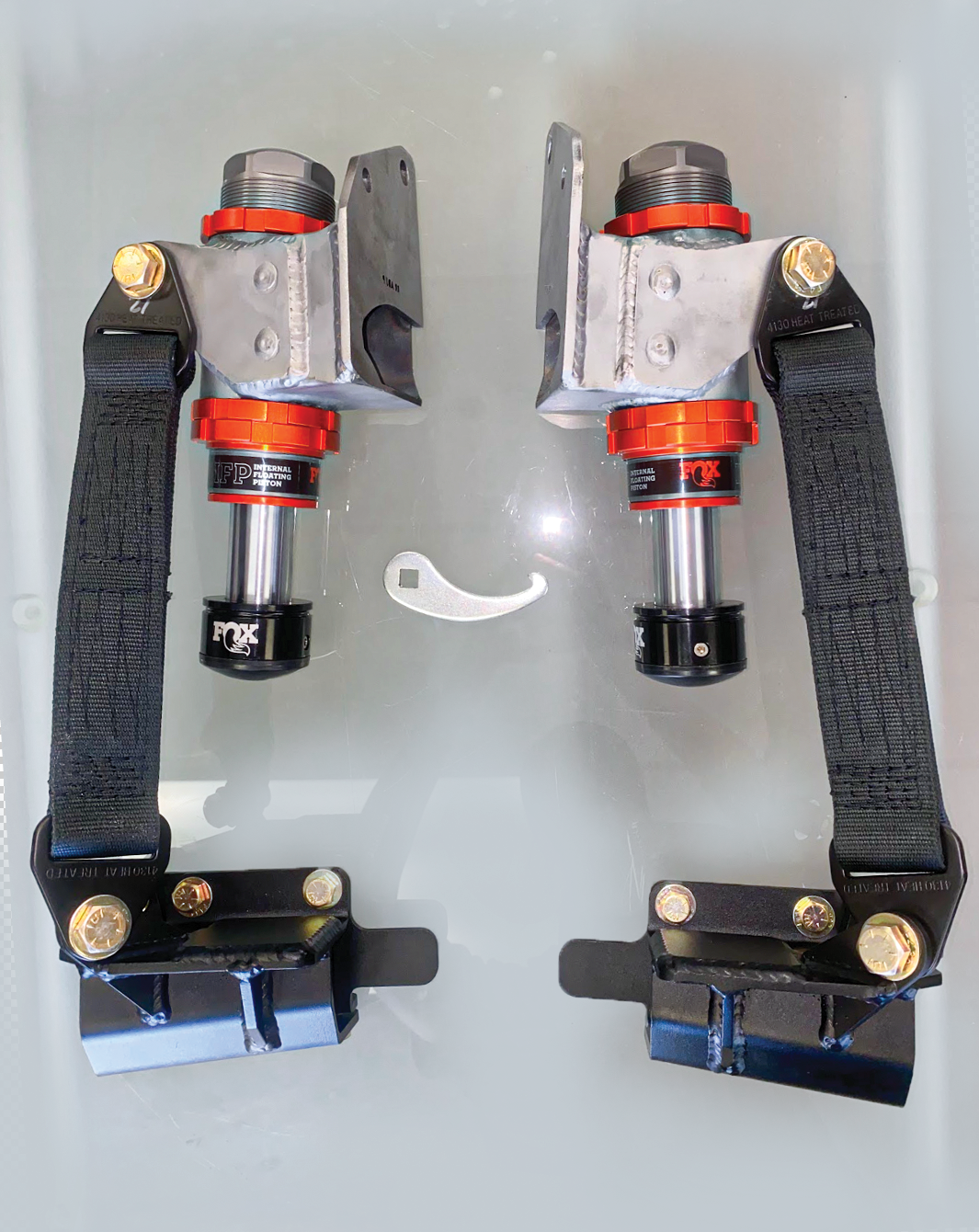

• (2) 9" length limit straps
• (2) bump stop can mounts
• (2) lower arm mounting brackets
• (12) 3/8-16 x 1" hex head yellow bolts
• (12) 3/8-16 Nyloc lock nuts
• (24) 3/8" flat washers
• (4) 1/2-20 x 1-1/4" hex head yellow bolts
• (4) 1/2-20 all metal lock nuts
• (8) 1/2" flat washers

Pick the brand of bump stop — Fox, ADS, Carbon or King — for your kit by selecting the options below before adding to your cart.

What does a front limit strap and bump stop kit do on a Ranger Raptor?

It limits front suspension top out travel and provides bottom out protection, which helps protect the top shock mount and extends the life of front suspension components.

Does this kit work with the factory stock lower a-arm?

Yes. The kit is designed to work with the factory stock lower a-arm and bolts on to the cast aluminum arm.

What bump stop brands are compatible with this kit?

The kit is engineered to work with Fox, King, Carbon, or ADS front bump stops. You can select your preferred brand from the options before adding the kit to your cart.

Does the front limit strap kit require welding to install?

Yes. The bump stop mount must be welded to the frame, so installation should be performed by a qualified welder/fabricator.

How long are the limit straps in this kit?

This kit includes (2) 9" length limit straps, each built with 4 layers of military grade webbing and black-plated steel mounting tabs.

What size bump stop is included with the kit?

The kit is engineered around a 2.0" OD and 2.0" travel bump stop, sized to provide full bottom out protection.

What are the mounting brackets made from?

The mounting brackets are MIG welded in house and finished in a hammer black powder coat, with a bump stop pad built directly into the bracket.
