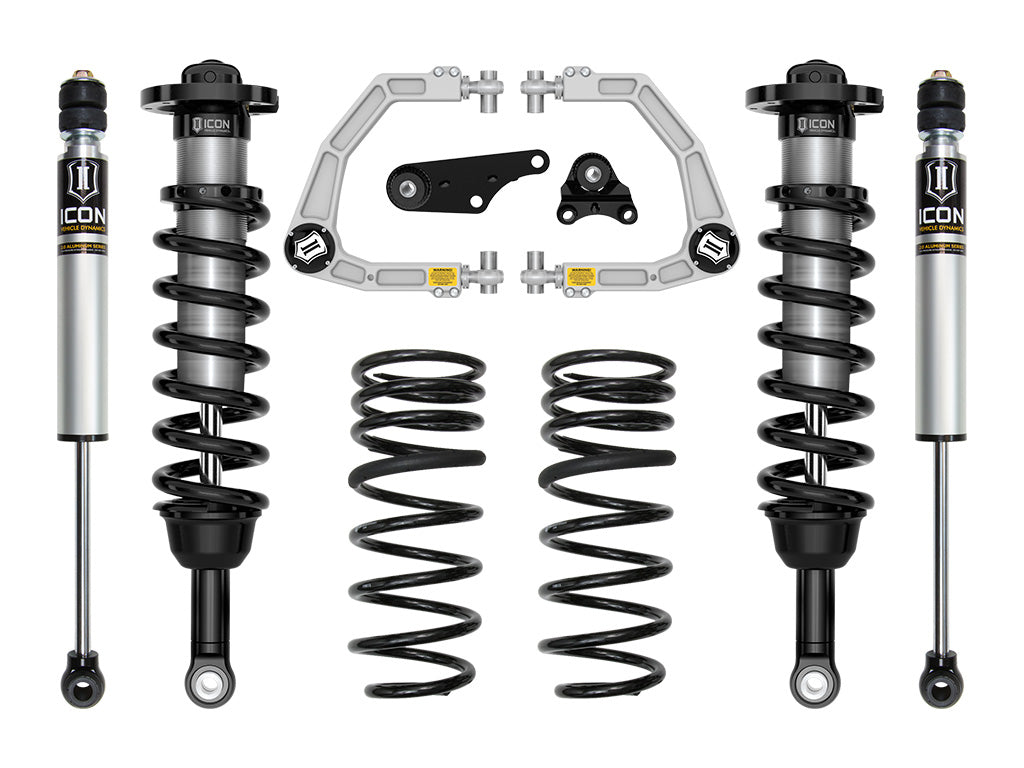

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.
This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are height adjustable from 1.25-3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.
The combination of front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.
Features and Benefits:
- The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to net .5 Inch of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3 Inch front lift height over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Dual rate rear coil springs improve performance and ride quality while providing .5 Inch rear lift height over stock with approximately 600lbs of additional weight in the rear
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- ICON engineered front and rear coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8 Inch shafts
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Control Arm: Yes
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Maximum Lift Front: 3.0 Inch
- Maximum Lift Rear: 0.5 Inch
- Minimum Lift Front: 1.25 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2.0
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 With 6.00 Inch Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191013 - Nipple Greasing Adapter Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 54202 - 22-25 Tundra/23-25 Sequoia/24-25 Taco/LC250/GX550/25 T4R Blt Adj Track Bar, 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 56100 - 07-14 FJ Cruiser 03-25 4Runner/22-25 Tundra/23-25 Sequoia Rear Shin Guards, 56116 - 24-25 Tacoma Front Skid Plate, 56117 - 24-25 Tacoma/25 4Runner Gas Transmission Skid Plate, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
