Description
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.

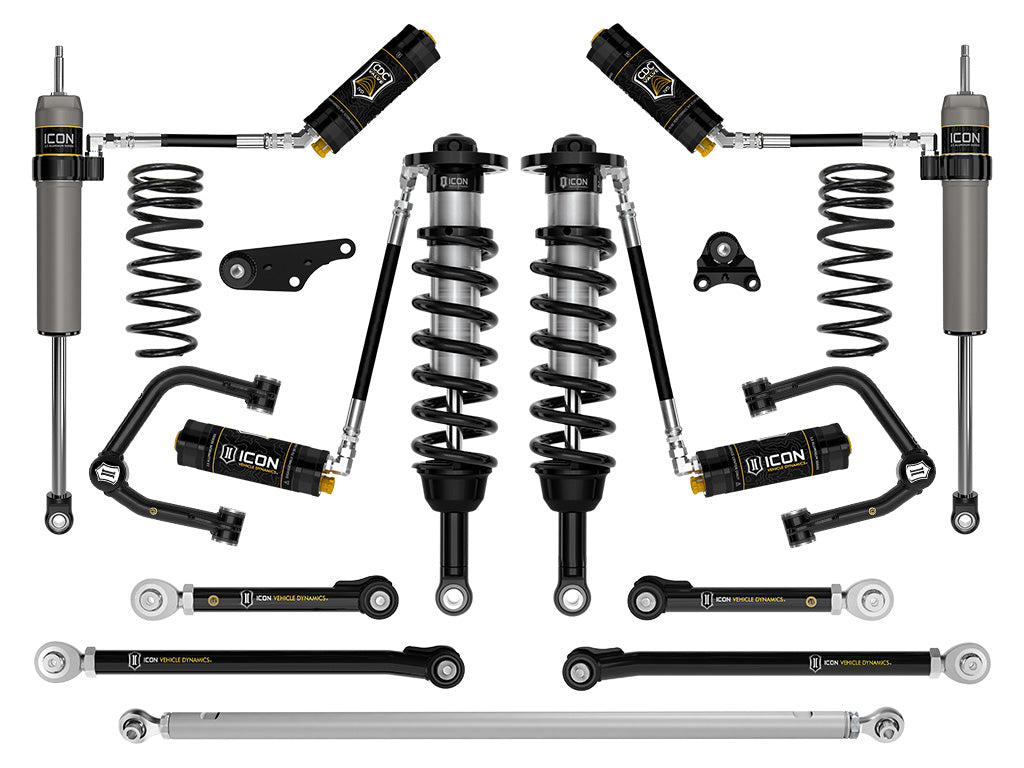

This Stage 11 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.
The combination of front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
Features and Benefits:- ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024-2025 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These rear springs are designed to net .5 Inch of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. ICON tubular rear upper and lower links employ dual-durometer greaseless bushings at one end, and massive FK rod ends at the other to provide the best combination of free articulation while isolating and damping road noise and vibrations. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy Inchon-vehicle Inch fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.5 Aluminum Series CDCV remote reservoir rear shocks with integrated bump zones provide improved shock damping ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 11 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3 Inch front lift height over stock
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Dual rate rear coil springs improve performance and ride quality while providing .5 Inch rear lift height over stock with approximately 600lbs of additional weight in the rear
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- ICON engineered front and rear coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment

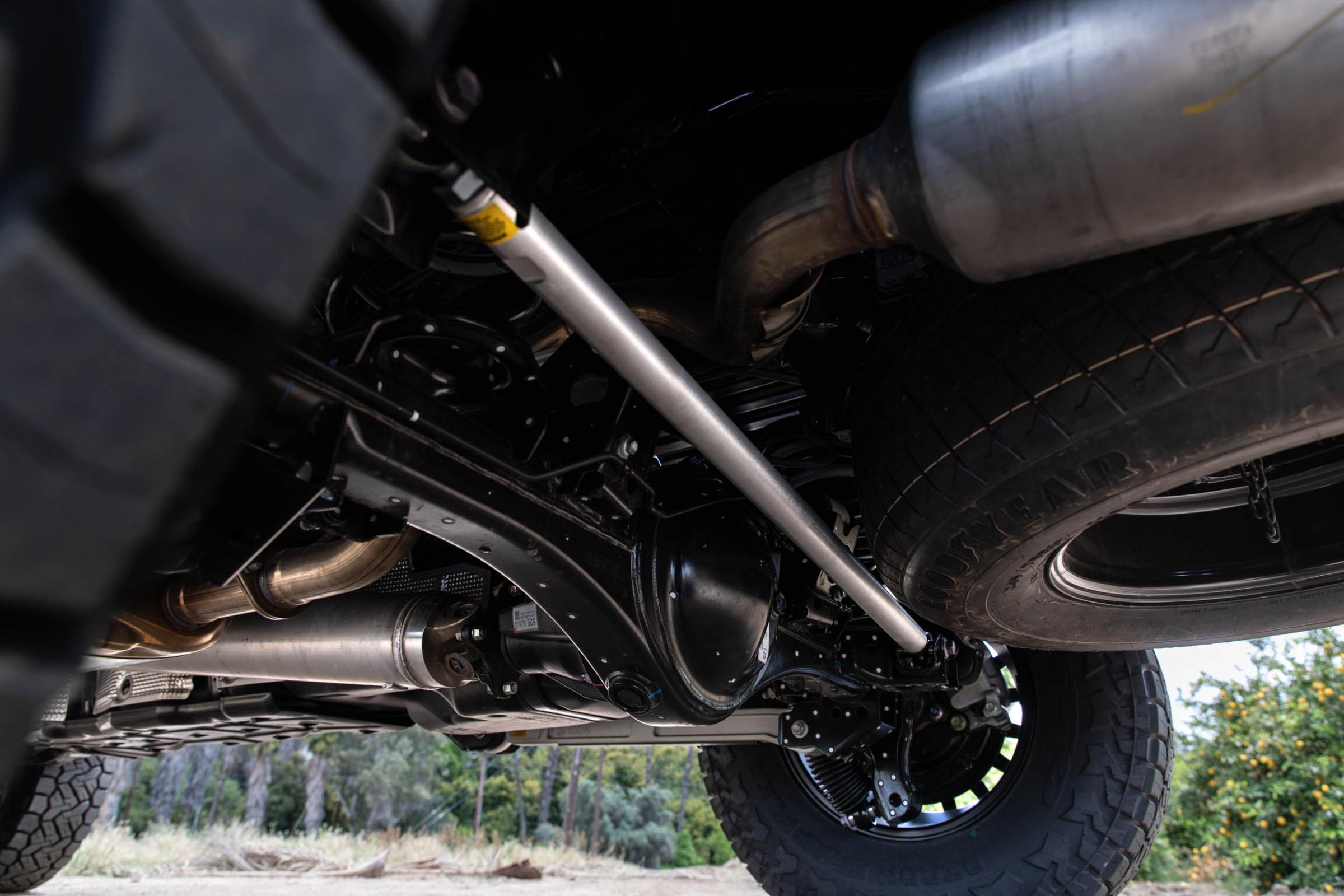

- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
- 2.5 Aluminum Series remote reservoir rear shocks with 7/8 Inch shafts provide increased performance and balanced tune with coilovers
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Control Arm: Yes
- Adjustable Damping: Yes
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Damping Adjustment Type: Manual
- Front Reservoir Style: Remote
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Maximum Lift Front: 3.0 Inch
- Maximum Lift Rear: 0.5 Inch
- Minimum Lift Front: 1.25 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Remote
- Rear Shock Body Diameter: 2.5
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 With 6.00 Inch Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 191013 - Nipple Greasing Adapter Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 56100 - 07-14 FJ Cruiser 03-25 4Runner/22-25 Tundra/23-25 Sequoia Rear Shin Guards, 56116 - 24-25 Tacoma Front Skid Plate, 56117 - 24-25 Tacoma/25 4Runner Gas Transmission Skid Plate
