Description
ICON Vehicle Dynamics 2024-2025 Toyota Land Cruiser 250 Series suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.

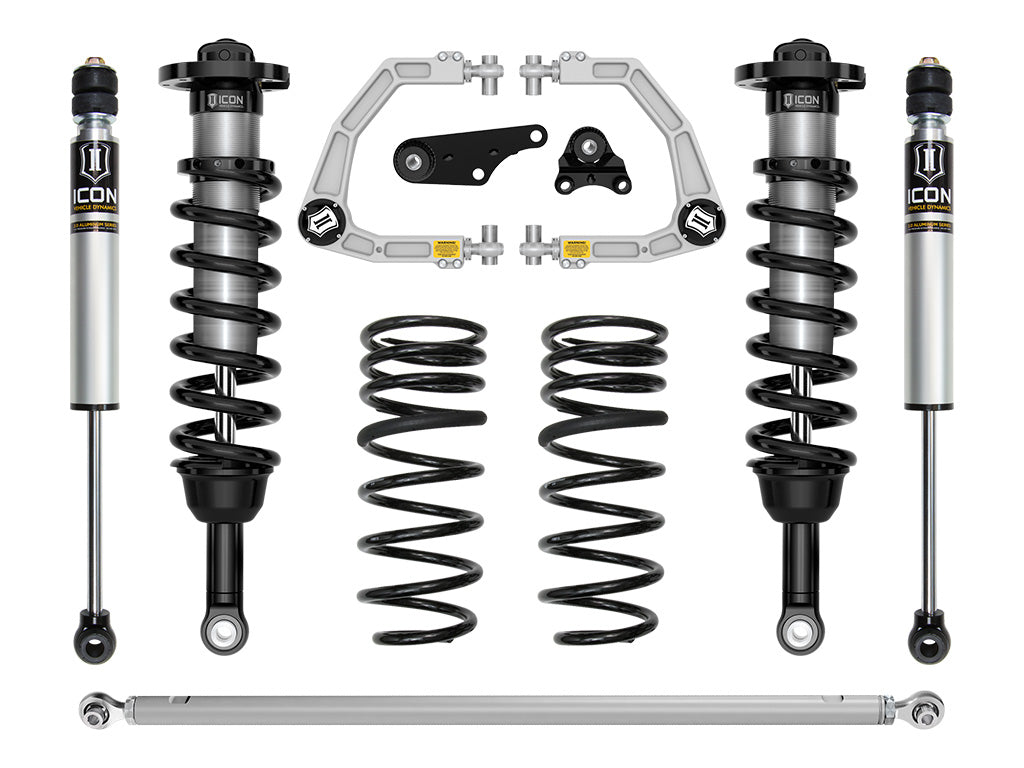

The Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are height adjustable from 1.25-3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.
The combination of front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.
Features and Benefits:- The included ICON billet aluminum upper control arm kit is designed to improve the overall performance of the Toyota Land Cruiser with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The dual-rate rear coil design provides a softer ride height spring rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. 2 Inch of rear lift height over stock allows a for level stance front to rear. The ICON Billet Adjustable Rear Track Bar helps re-center the rear axle and double adjuster rod end threads allow easy Inchon-vehicle Inch fine adjustment of track bar length without requiring removal or disassembly of the track bar. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Land Cruiser 250 Series Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
- Adjustable coilovers provide 1.25-3 Inch front lift height over stock
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
- On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
- Dual rate rear coil springs improve performance and ride quality while providing 2 inch of rear lift
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8 Inch shafts
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Control Arm: Yes
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coil Spring Color: Black
- Coil Spring Material: Steel
- Coils Quantity Front: 2.0
- Coils Quantity Rear: 2.0
- Front Reservoir Style: Internal
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.0 Inch
- Maximum Lift Front: 3.0 Inch
- Maximum Lift Height Front: 3.0 Inch
- Maximum Lift Height Rear: 2.0 Inch
- Maximum Lift Rear: 2.0 Inch
- Minimum Lift Front: 1.25 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Yes
- Rear Reservoir Style: Internal
- Rear Shock Body Diameter: 2.0
- Rear Spring Rate Type: Progressive Dual Rate
- Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 With 6.6 Inch Backspace / 40mm Offset, 17x8.5 With 6.32 Inch Backspace / 40mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 54003 - 24-25 LC250/24-25 GX550/25 4Runner Billet Rear Lower Link Kit, 54102 - 22-25 Tundra/23-25 Sequoia/24-25 Taco/LC250/GX550/25 T4R Blt Upr Link Kit, 191013 - Nipple Greasing Adapter Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 56100 - 07-14 FJ Cruiser 03-24 4Runner/22-24 Tundra/23-24 Sequoia Rear Shin Guards, 191014 - .25 Inch Collar Spanner Pin Wrench, 198001 - Billet Spanner Wrench Kit, 56120 - 24-25 Land Cruiser 250 Series/25 4Runner Front Skid Plate, 56121 - 24-25 Land Cruiser 250 Series/25 4Runner Hybrid Trans Skid Plate, 56122 - 24-25 Land Cruiser 250 Series/25 4Runner Front Skid Plate Fascia
/
