This ICON Vehicle Dynamics 2.5 Inch suspension system is a great way to level your 4WD 2023 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 3 system is perfect for on-road and off-road use including towing, job site duty and spirited off-road adventure.

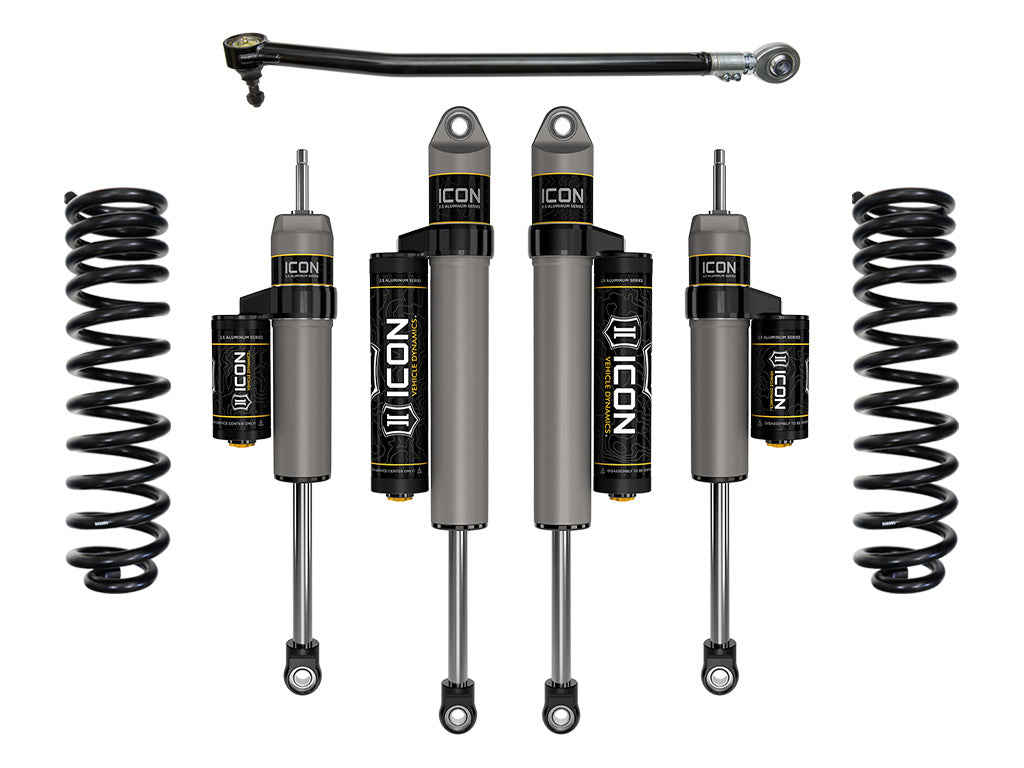

ICON's Stage 3 System is comprised of dual rate coil springs optimized for trucks equipped with gasoline engines, alignment cams, ICON 2.5 Aluminum Series front and rear piggyback reservoir shocks, and an adjustable track bar designed specifically for the 2017-2024 Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.
Features and Benefits:
- Fits 2023 F-250 / F-350 4WD gas applications
- Approximately 25 Percent increased front wheel travel over stock
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Shocks are fully rebuildable and revalvable
- Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8 Inch shafts
- FK Rod End bearings provide extended longevity and minimal deflection
- Lifetime guarantee against coil spring breakage or sag
- Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Details
- Active Or Passive Suspension: Passive
- Adjustable Compression: No
- Adjustable Damping: No
- Adjustable Rebound: No
- Bushings Included: Yes
- Coil Quantity Front: 2.0
- Coil Spring Color: Black
- Coils Quantity Front: 2.0
- Front Reservoir Style: Piggyback
- Front Shock Body Diameter: 2.5
- Front Spring Rate Type: Progressive Dual Rate
- Grade Type: Performance
- Maximum Lift: 2.5 Inch
- Maximum Lift Front: 2.5 Inch
- Maximum Lift Height Front: 2.5 Inch
- Minimum Lift Front: 1.5 Inch
- Mounting Hardware Included: Yes
- Oem Wheels & Tires Fitment: Not Compatible With All Available OE Wheel/Tire Combinations. Aftermarket Wheels With Lower Offset/Less Backspace Recommended.
- Rear Reservoir Style: Piggyback
- Rear Shock Body Diameter: 2.5
- Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 61111 - 17-25 FSD Front 2.5 Inch Extended Ss Brake Line Kit
