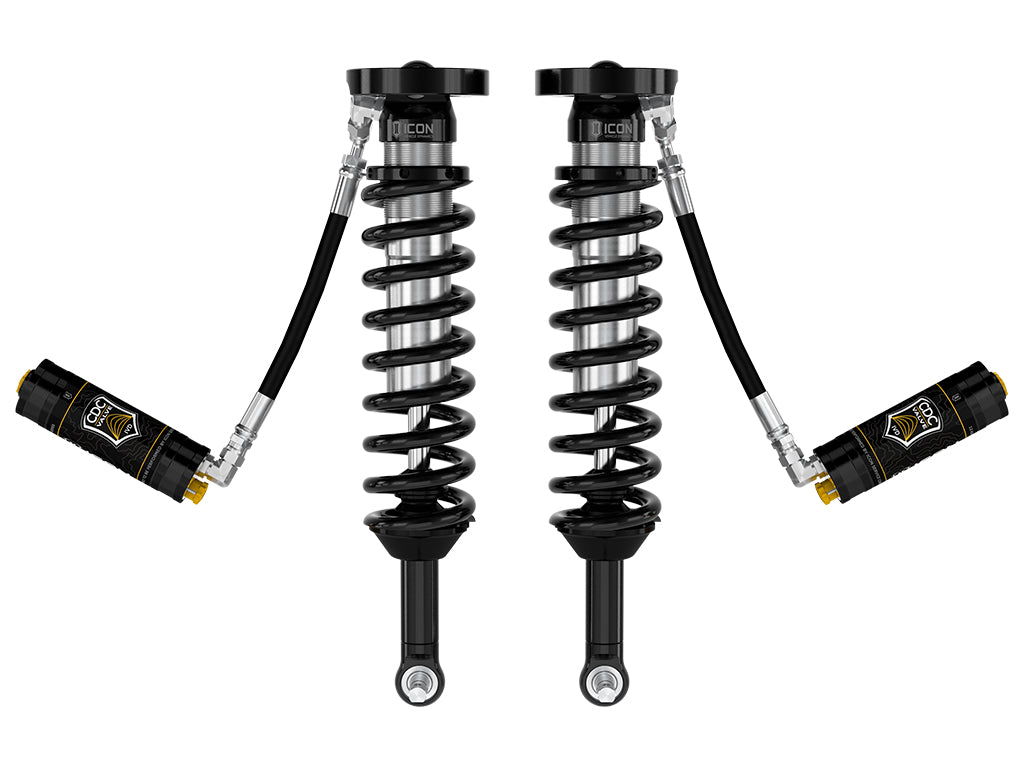

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks.
Specifically designed for the narrower track width of these Colorado submodels, their longer length offers a 20 Percent increase in total front wheel travel compared to stock, for a total of 9.5 Inch of front wheel travel. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations.
The larger 2.5 Inch diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.
ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your 2023-2024 Chevrolet Colorado WT, LT, and Z71.
Features and Benefits:
- 20 Percent increase in front wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Adjustable for 1.75-2.5 Inch of front lift height over stock
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs
- Corrosion resistant CAD plated 2.5 Inch diameter shock bodies
- 7/8 Inch diameter hardened chrome plated shafts
- 6061 Aircraft grade aluminum CNC machined components
- PTFE lined spherical bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin and application specific mounting hardware
- Fully rebuildable and re-tunable
- 100 Percent Bolt-on - no drilling, cutting, or welding necessary for installation
Details
- Material: Aluminum, Steel
- Active Or Passive Suspension: Passive
- Adjustable Compression: Yes
- Adjustable Damping: Yes
- Adjustable Ride Height: Yes
- Assembled: Yes
- Body Diameter: 2.5 Inch
- Coil Over Springs Included: Yes
- Compressed Length: 17.44
- Cylinder Color: Silver
- Cylinder Finish: Cadmium Plated
- Cylinder Material: Steel
- Damping Adjustment Type: Manual
- Damping Type: Oil
- Dust Shield Included: No
- Extended Length: 22.43
- Front Spring Rate: 450 Inch
- Gas Charged: Yes
- Grade Type: Performance
- Includes Bump Stop: Yes
- Internal Construction Type: Single Tube
- Lower Mount Type: Bar Pin
- Maximum Lift: 2.5 Inch
- Maximum Ride Height Raising Distance: 2.5
- Minimum Lift: 1.75 Inch
- Oem Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
- Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.46 Inch Backspace / 18mm Offset
- Remote Reservoir: Yes
- Reservoir Style: Remote
- Self Leveling: No
- Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
- Shaft Diameter: 0.875
- Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Flat On Bar Pin
- Spring Color: Black
- Spring Material: Steel
- Spring Rate Type: Linear
- Travel Length: 4.99
- Upper Mount Type: Mounting Plate
- Valving Type: Digressive
- Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198001 - Billet Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit
